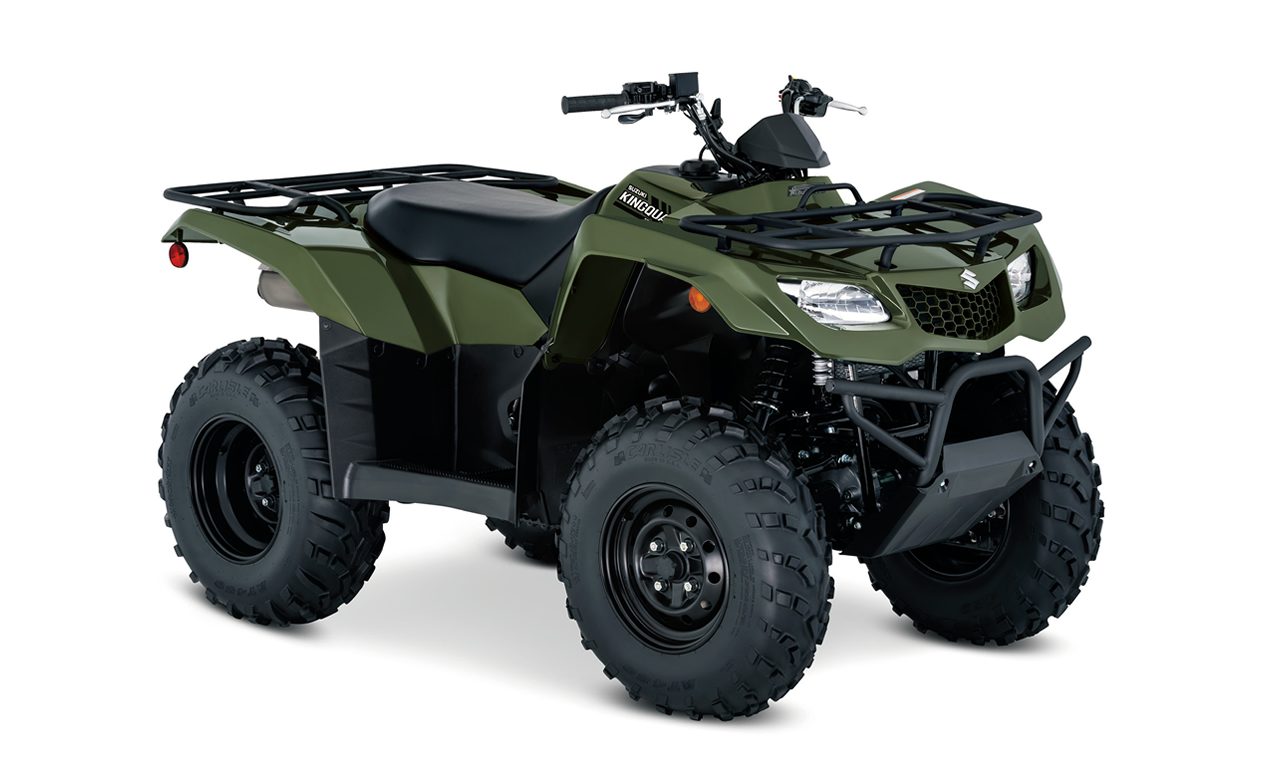

KINGQUAD 400FSi 4x4

Performance with Function and Style

Sporty and stylish bodywork. A comprehensive set of features for user convenience and comfort. Powered by an efficient fuel-injected 376cm³ 4-valve engine matched to a functional semi-automatic 5-speed transmission, the KINGQUAD 400FSi 4x4 is designed, equipped and ready to deliver class-leading performance.

Key Features

- Powerful fuel-injected, 4-stroke engine is easy on gas.

- Durable manual transmission with semi-automatic clutch.

- Select 2WD or 4WD via a handlebar-mounted lever.

- Large fuel tank and plush seat delivers extended, comfortable riding range.

- Rugged bodywork and full racks to tackle the task at hand.

Engine Features

- The KINGQUAD 400FSi's fuel-injected, 376cm³, 4-stroke, 4-valve engine produces efficient power and drivability.

- Suzuki's class-leading fuel injection smooths power output, especially in the mid-to-high range, and provides excellent cold starting. The system uses 3D maps for optimum ignition, creating responsive yet environmentally compliant performance.

- Suzuki Advanced Cooling System (SACS) uses an oil cooler and thermostat-controlled cooling fan to shed engine heat during hard work or cargo hauling.

- Push-button electric starting has a start-in-gear function — when the rear brake is applied — allowing starting without shifting to neutral (as conditions permit).

- The Engine Control Unit (ECU) has slip control logic, which adjusts fuel injector duration and timing to improve drivability and grip in loose/slippery conditions.

- Highly efficient iridium spark plug contributes to better combustion, cleaner emissions and longer plug life. Engine starting under low temperature is also improved.

- The PAIR (Pulsed-secondary AIR-injection) system and catalyst-equipped exhaust system help the ATV comply with Environmental Protection Agency (EPA) emission standards while maintaining a high level of performance.

- 5-speed transmission, with semi-automatic clutch and reverse, allows the rider to select the ideal gear for maximum traction and fuel efficiency.

- Select 2WD or 4WD with the flip of a handlebar-mounted lever. The shaft drive system is reliable, durable and nearly maintenance-free.

- Torque-sensing limited-slip front differential provides maximum traction and light steering when in 4WD mode.

- High/low selectable sub-transmission provides wide-ranging versatility.

- Automotive gate-type gearshift lever lets the rider conveniently choose high or low range, neutral or reverse.

- The ECU has a Reverse Mode that monitors vehicle speed, so higher engine rpm can be used when getting out of mud or loose soil in reverse mode.

Chassis Features

- Sporty bodywork features sharply angled, high-clearance fenders.

- Suzuki's exclusive T-shaped seat delivers rider mobility during sport riding or when tackling difficult terrain. It's also plush for extended riding comfort.

- Overall length is under 2,060mm, so the KINGQUAD fits into a truck bed for easy transportation.

- Independent front A-arm suspension offers smooth performance and remarkable ground clearance with 170mm of wheel travel.

- Swing-arm rear suspension with 170mm of wheel travel and twin shock absorbers provides agile handling and plush riding.

- Dual front hydraulic disc brakes feature calipers with large, 34mm pistons and a wide brake-pad surface area for increased stopping power and outstanding durability.

- Large, 25-inch Carlisle tires with aggressive tread offer consistent traction in wet conditions, yet make for a quiet, smooth ride on hard-packed trails.

- The tires are mounted to rugged steel wheels powder-coated with a durable matte black finish.

- Lightweight and strong plastic skid plates are sturdy to withstand trail pounding, yet slippery to let obstacles slide below.

Utility/Convenience Features

- Dual 35W headlights (with high and low settings) are part of the distinctive KINGQUAD grille appearance. Bright tail light helps make the ATV visible in dark conditions.

- Heavy-duty front and rear cargo racks let the rider take advantage of the ATV's superb load capabilities. Wrinkle paint finish on the racks and front bumper is durable and scratch resistant.

- LCD instrumentation includes a speedometer, odometer, trip meter, hour meter, clock, fuel gauge, and indicators for reverse, neutral, oil and FI (fuel injection).

- Automotive-style DC power outlet is included on the front fender.

- Winch-ready mounts and wire conduit makes winch installation simple.

- Large, 16.0L fuel tank provides outstanding riding range.

- Full floorboards with integrated raised footpegs provide protection.

Additional Features

- A variety of Suzuki Genuine Accessories are available, including winches, windshield, front and rear bumpers, snowplow, aluminum skid plates, rack extensions, utility box, and more.

Specifications

Engine Type 4-stroke, 1-cylinder, air-cooled with SACS, SOHC
Engine Displacement 376 cm3 (22.9 cu. in)
Bore x Stroke 82.0 mm x 71.2 mm (3.2 in x 2.8 in)
Transmission 5-speed forward constant mesh, 2-speed forward with reverse
Overall Length 2,060 mm (81.1 in)
Overall Width 1,145 mm (45.1 in)
Overall Height 1,220 mm (48.0 in)
Wheelbase 1,270 mm (50.0 in)
Ground Clearance 250 mm (9.8 in)
Seat Height 840 mm (33.1 in)
Curb Mass 281 kg (619 lbs)
Suspension Front Independent, double wishbone, coil spring, oil damped
Suspension Rear Swingarm type, coil spring, oil damped
Brakes Front Disc, twin
Brakes Rear Drum
Tires Front AT25x8-12☆☆ , tubeless
Tires Rear AT25x10-12☆☆ , tubeless
Fuel Tank Capacity 16.0 L (4.2/3.5 US/Imp gal)

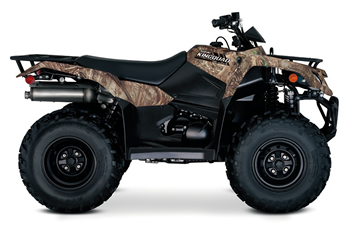

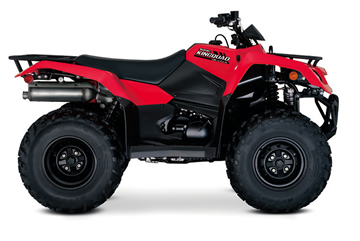

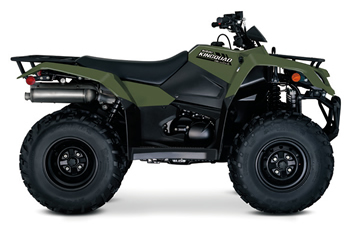

Colors

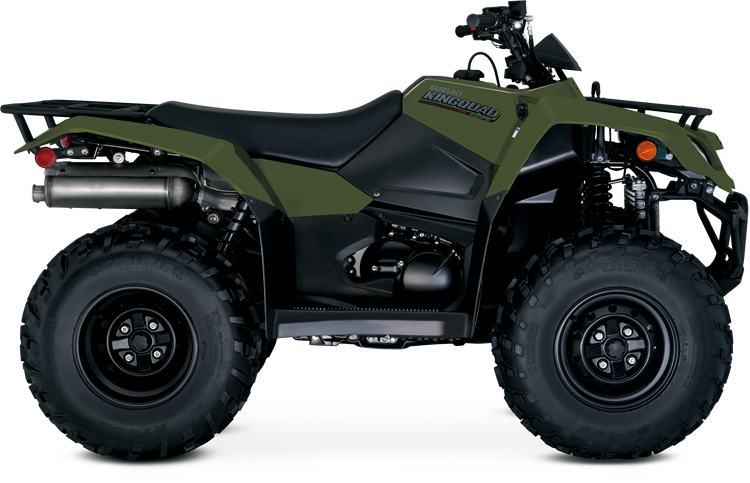

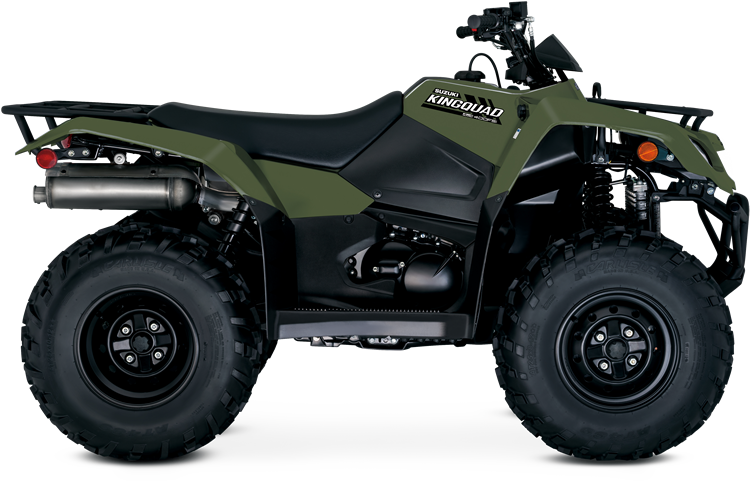

Models by Model Year
