Address 125

The Classic Commuter

Experience the timeless joy and exhilaration of two-wheeled urban freedom.
Enjoy the stylish beauty of curvaceous form punctuated by attractive body lines and chrome-plated accents. Much more than just a practical, fuel-efficient scooter that delivers satisfying and responsive performance you will find ideal for everyday use, the Address 125 lets you make a statement about who you are and where you like to go.

Key Features

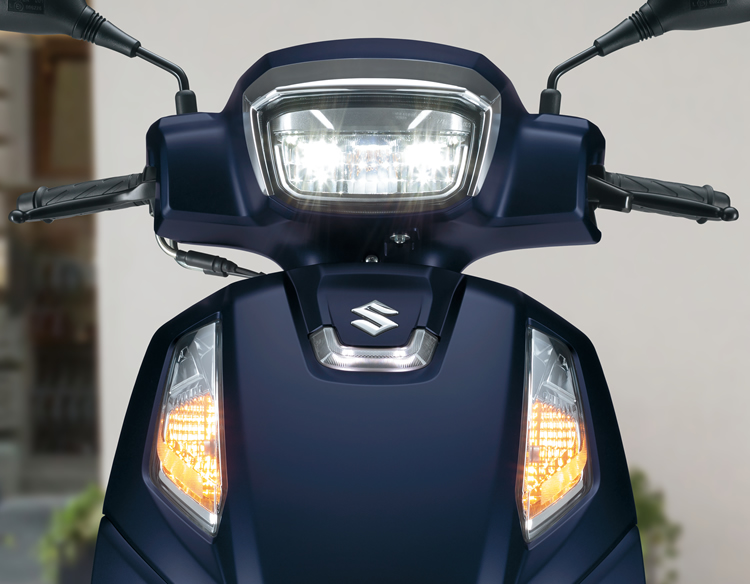

- The LED headlight helps you see the road ahead better at night, and its bright chrome surround lends a premium touch to the Address 125's classic appeal.

- A new U-shaped LED position light in the upper center of the face combines with the sharp vertical design of the turn signals that flank it to create a signature look.

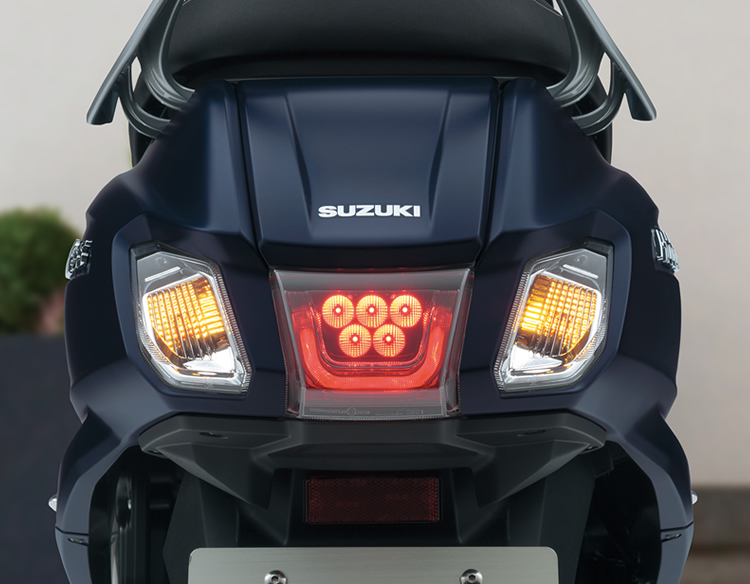

- The LED tail light's distinctive U-shaped illumination pattern accentuates the rear styling. Flanking it are turn signals featuring chrome surrounds and meticulously cut lenses.

- New lid conceals the tail-mounted fuel cap and can be opened using the ignition switch.

- The upgraded capacity of the 24.4L underseat utility compartment provides convenient space for storing shopping bags, rain gear, or other items.

- A pair of inner front pockets provide easy access to storage space large enough to each hold a 500ml beverage or other small items you may want to keep close at hand.

- A handy 2A USB outlet located above the left front pocket lets you recharge a smartphone on the go.

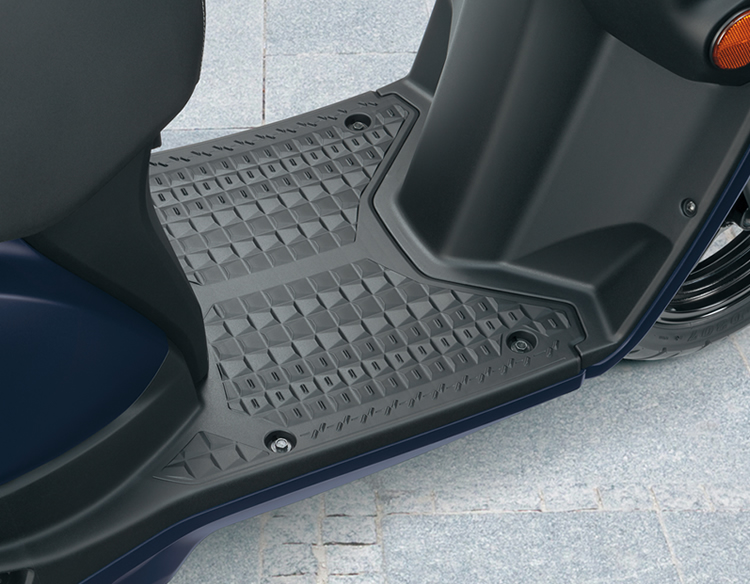

- The long, wide floorboard helps you maintain a comfortable riding position.

- The Address 125's SEP engine is engineered to deliver strong low-end torque and quick acceleration, while also achieving optimum fuel economy and Euro 5+ compliant low emissions.

- The engine now starts up more quietly thanks to the adoption of a roller type one-way clutch.

- Revised CVT settings cause engine rpm to rise gradually in the 30-60km/h range, delivering a satisfying feeling much like that of riding a motorcycle.

- Multifunction digital instrument panel provides you with a wealth of information and complements the updated look of the iconic styling.

- Theft deterrent key system with seat and fuel lid opener functions heightens convenience and security.

Engine Features

- Suzuki Eco Performance (SEP) is the development concept behind a compilation of cutting-edge Suzuki engine technologies that aim to optimize all aspects of engine efficiency and bring you a superb balance of environmentally responsible operation and thoroughly satisfying performance.

- The new engine produces greater torque at low- to mid-range speeds, contributing to even quicker, more responsive acceleration, while it also improves fuel efficiency and starts more quietly.

- The engine produces peak horsepower of 6.2kW and maximum torque of 10.2N·m at low rpm to deliver responsive performance that makes the Address 125 a wonderful choice for getting around town.

- Fuel consumption is a low 1.9L/100km (52.6km/L) and CO2 emissions measure a mere 45g/ km in WMTC mode testing.*

- Optimized CVT settings deliver better, more responsive acceleration and enable a constant cruising speed at lower rpm that helps maximize fuel mileage

- The engine's SOHC air-cooled design makes it a reliable powerplant that is easy to maintain and economical to run. Moreover, it is compact and lightweight, a feature that contributes to realizing more nimble handling.

* Actual fuel consumption and CO₂ emissions may differ owing to conditions such as the weather, road, rider behavior and maintenance.

Chassis Features

- Featuring a curb mass of just 106kg, the Address 125 is designed to be easy to handle and highly maneuverable. Seat height and floorboard space are optimized to suit a wide range of body types and help ensure riding comfort.

- By reducing weight while enhancing rigidity, the new frame contributes to realizing excellent straight-line stability and positive cornering performance, as well as to fuel economy.

- The rational design of the new engine mounting bracket gave the development team the design flexibility to increase the capacity of the air cleaner box, fuel tank and underseat utility compartment, all while achieving a smoother ride.

- The moderately soft front suspension setting helps realize a smooth ride. Both the forks and rear suspension are finely tuned to deliver solid road-holding performance, nimble handling, and a comfortable ride.

- The cast aluminum wheels feature an attractive new design that also reduces weight. These are shod with tubeless DUNLOP D307 N tires that help deliver superior running performance and positive grip on wet surfaces. Well suited to European road conditions, they contribute to a smooth ride, even on cobblestones.

- Suzuki's Combined Brake System* supports well-balanced braking by distributing braking force to both the front and rear wheels when you squeeze the left-hand brake lever.

- A 190mm diameter disc brake in the front and 120mm drum brake in the rear contribute to providing stable stopping power.

- Rear brake lock enhances comfort and convenience by letting you remove both hands from the handlebars when stopped at a street light or in traffic. A switch on the left brake lever activates the system.

- The Address 125 rides on a short wheelbase that contributes to ease of maneuverability and works in conjunction with the light, slim design to offer easier, more nimble handling on city streets.

- Thanks to its ample 160 mm ground clearance**, the Address 125 handles speed bumps and other bumps in the road with ease. At the same time, an optimized seat shape that helps make it easy to place both feet on the ground.

- The 5.3-liter fuel tank works in conjunction with the fuel-efficient engine to achieve a liberating riding range of approximately 279 kilometers*** that goes easier on your wallet.

- Long and well-padded, the updated seat features a flatter design that maintains the same hip point, while affording both you and your passenger with greater comfort when riding two-up.

- Both long and wide, the floorboard is designed to provide plenty of room for you to adjust your feet and find a comfortable riding position, even when carrying a passenger.

- The unique design of the concealed tail-mounted fuel cap facilitates easy refueling without having to open the seat. The cap is concealed beneath a new outer lid that can be opened using the ignition key, making the design more attractive and more secure against tampering

- The steel front fender and leg shield are resistant to damage, and the metal leg shield now extends further downward to better protect the scooter if it is dropped. Even so, the Address 125 is still extremely light and these steel parts in no way impede its nimble handling.

- A large grab bar wraps around the back of the seat to lend the passenger extra reassurance and comfort, while also adding stylish flair. Longer new die-cast aluminum pillion footpegs provide solid footing and lower the pillion rider's feet 14 mm to enhance comfort.

* The Combined Brake System is intended only to assist braking operation. We strongly recommend that riders normally use both brake levers to control the front and rear brakes when braking.

**Measured without a rider.

***Figures may differ owing to conditions such as the weather, road, rider behavior and maintenance

Utility Features

- The left and right inner front pockets* are easy to access, and each offers storage space large enough to hold a 500ml beverage or other small items you may want to keep close at hand.

- A handy 2A USB outlet** located just above the front pocket lets you recharge your smartphone while out riding. Its attractive blue LED remains lit while the ignition is turned on, making the outlet easy to locate at night or in other dark conditions.

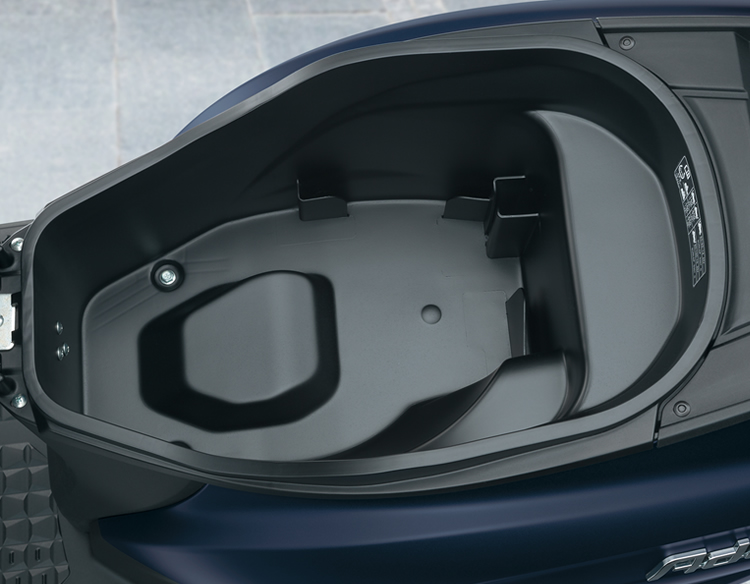

- With a practical design and upgraded capacity of 24.4L, the underseat utility compartment*** provides convenient space to store shopping bags, rain gear or other items, and protect them from the elements.

- A pair of sturdy utility hooks**** let you hang various items, including shopping bags, up front with you. The back hook can be locked to better secure items, and can be folded out of the way when not in use.

- The Suzuki Easy Start System lets you start the engine with one quick push of a button and be on your way.

- A condenser inside the regulator/rectifier allows you to kick start the Address 125, even if the battery dies.

- Both a center stand and side stand are included as standard equipment. A redesign to the center stand and its layout reduces the effort needed to extend it by 23 percent over the previous model.

- Suzuki's side stand interlock system prevents engine ignition while the stand is down to protect you against carelessly starting off with it extended.

- The theft deterrent key system lets you quickly access the ignition key hole using a magnetic mechanism coded to your key, even when wearing gloves. And the shutter closes again with a simple push of a button. There are also handy functions that let you open the seat or fuel lid using the ignition key.

*Stowed items are shown for illustrative purposes only.

*The weight limit for each front pocket is 0.5kg.

*Do not use the front pockets to store items that are fragile, valuable, dangerous, or susceptible to heat.

*Do not keep electronic equipment in the front pockets while riding as the vibration may cause damage.

*Items may be displaced depending on their shape and riding conditions.

** Using the USB outlet while the engine is idling or stopped may drain the battery. Be aware of battery drain when using the USB outlet.

** Failure to observe the following instructions may result in damage to the scooter or connected device.
- Do not connect any electronic device other than a mobile phone.
- Do not use when washing the scooter or when it is raining.

** Reattach the cap when the outlet is not in use.

*** The weight limit for items in the underseat compartment is 3kg.

*** Do not use the compartment to store items that are fragile, valuable, dangerous, or susceptible to heat.

**** The weight limit for each hook is 1.5kg.

Electrical Features

- The bright LED headlight features a long, wide radiating area that illuminates the road ahead well for more reassured riding on dark streets.

- The single LED position light in the upper center of the face features a new U-shaped illumination pattern. It and the sharp vertical design of the (bulb-type) turn signals that flank it convey the Address 125's signature look.

- The new LED tail light features a distinctive U-shaped illumination pattern consistent with that of the LED position light. The rear (bulb-type) turn signals are accented by chrome surrounds and feature lenses meticulously cut to match the front turn signals.

- Employing LEDs for the headlight, position light and tail light brings the added benefits of durability and low power consumption.

- New Pass and Hazard light switches enhance usability through intuitive operation.

- The full-digital multifunction instrument panel features a compact LCD screen with a clean and intuitive layout. The screen's backlighting also helps maximize visibility in a wide range of riding situations.

- The Suzuki Eco Drive Indicator* lights up when you are riding in a fuel-efficient manner, offering instant feedback that can help you learn techniques for maximizing fuel economy.

*The Eco Drive Indicator does not automatically improve fuel economy but may help you refine your riding efficiency. Fuel consumption may vary depending on traffic conditions, such as the frequency of starts from stop, distance driven, rate of acceleration (throttle use), chosen speed, and maintenance.

Suzuki Genuine Accessories

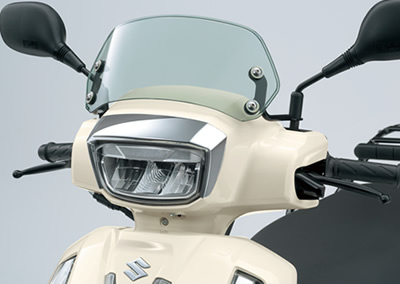

Meter Visor (Smoked Tint)

The stylish and sophisticated appearance of the Meter Visor blends seamlessly with the overall look of the scooter, and fits in perfectly with the handle cover area. It is smoked tint.

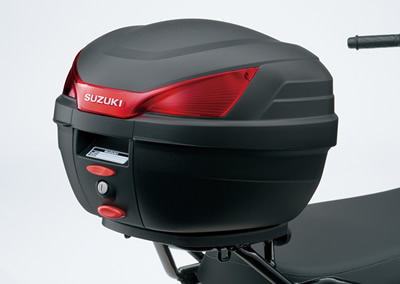

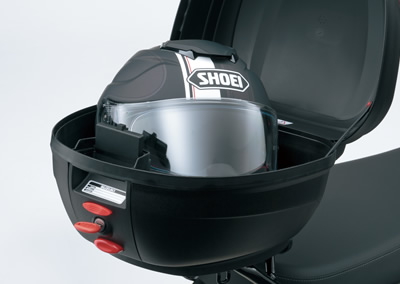

Plastic Top Case (27L)

A top case adorned with the SUZUKI logo.
Maximum load: 3 kg / Capacity: 27 liter
Note: To install this accessory, you need to purchase the Rear Carrier and Top Case Adapter Plate, which are sold separately.

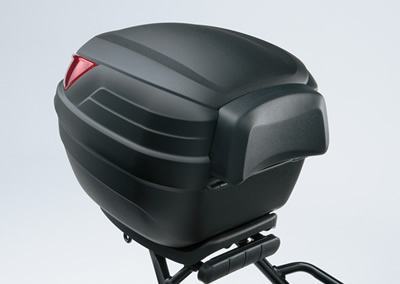

Cushion for Top Case

This accessory provides well-cushioned padding where the passenger's back meets the top case.
Note: It is not a backrest. Do not put your weight on it.

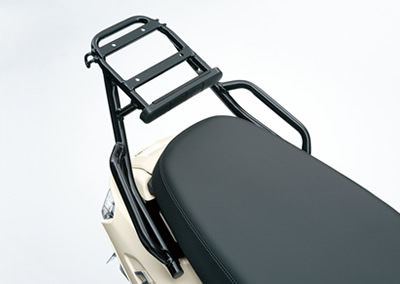

Rear Carrier

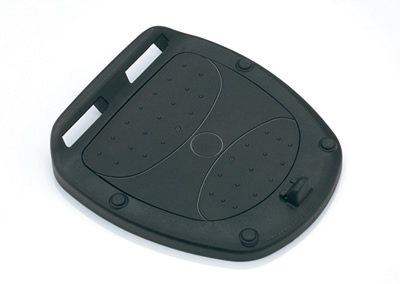

Top Case Adapter Plate

*Click the icons

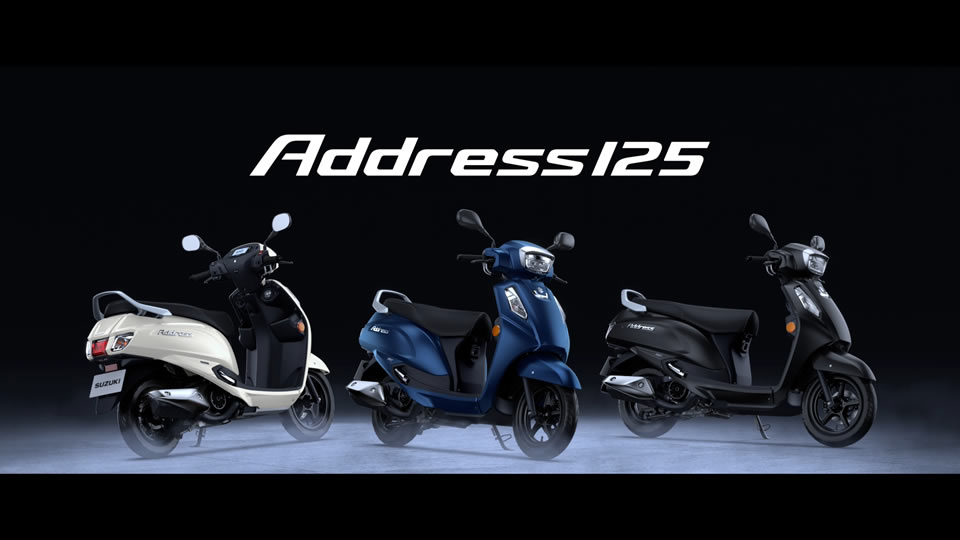

Movie

Specifications

Overall length 1,835 mm (72.2 in.)
Overall width 690 mm (27.2 in.)
Overall height 1,155 mm (45.5 in.)
Wheelbase 1,260 mm (49.6 in.)
Ground clearance 160 mm (6.3 in.)
Seat height 770 mm (30.3 in.)
Curb mass 106 kg (233.7 lbs.)
Engine type 4-stroke, 1-cylinder, air-cooled, SOHC
Bore × Stroke 52.5 mm x 57.4 mm (2.1 in. x 2.3 in.)
Displacement 124 cm³ (7.6 cu. in.)
Compression ratio 10.3 : 1
Fuel system Fuel injection
Starter system Electric + Kick
Lubrication system Forced feed circulation, Wet sump
TransmissionPrimary CVT
Front suspension Telescopic, coil spring, oil damped
Rear suspension Swingarm type, coil spring, oil damped
Rake / Trail 26° 30' / 88 mm (3.5 in.)
Front brake Disc
Rear brake Drum
Front tire size 90/90-12 44J, tubeless
Rear tire size 90/100-10 53J, tubeless
Ignition system Electronic ignition (transistorized)
Fuel tank capacity 5.3 L (1.4 / 1.2 US / lmp gal)
Oil capacity (Overhaul) 0.8 L (0.2 / 0.2 US / lmp qt)

*European Spec. shown

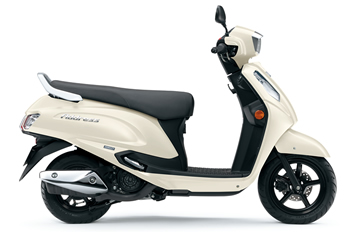

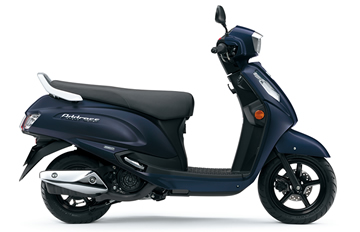

Colors
