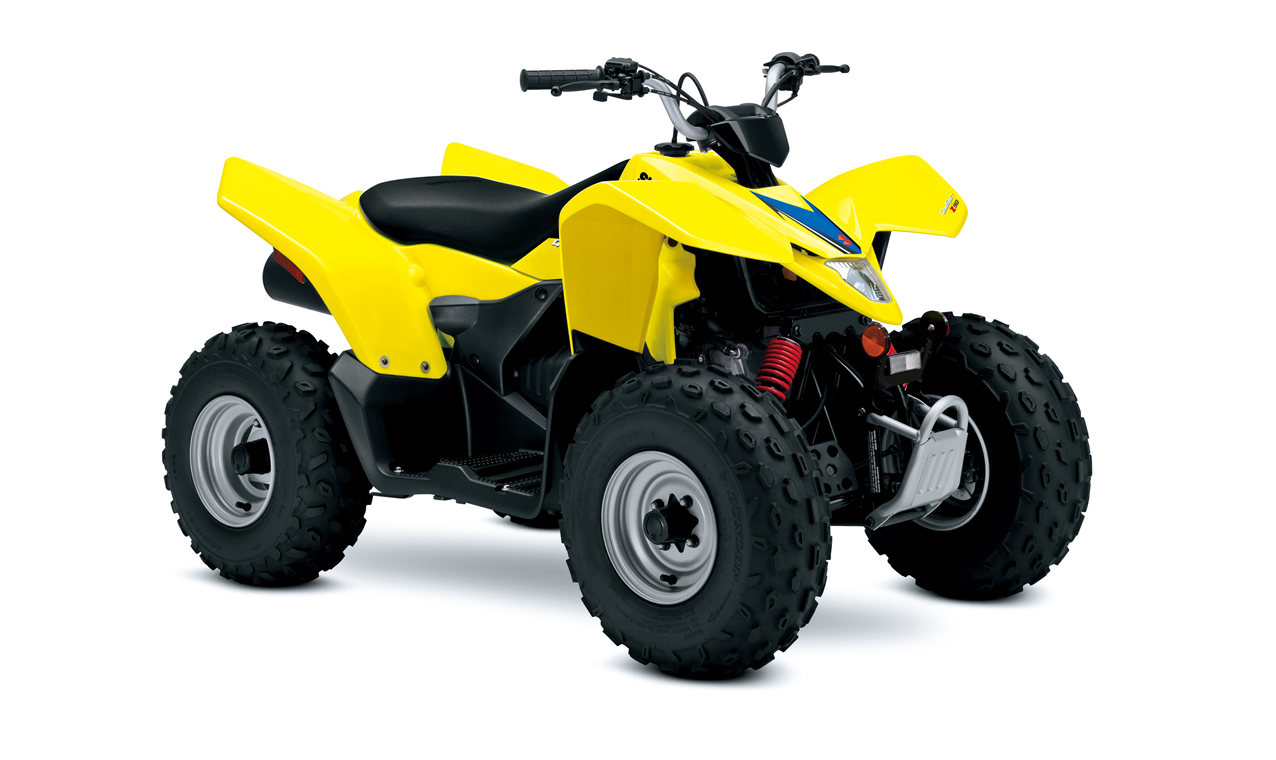

QuadSport Z90

Fun Redefined

The Suzuki QuadSport Z90 is the ideal ATV for adult-supervised riders ages 12 and older to develop their skills. Convenient features like an automatic transmission and electric starter help make this ATV suitable for supervised riders ages 12 and up.

Key Features

- Designed for adult-supervised riders ages 12 and older.

- Adjustable throttle limiter controls speed.

- Easy electric starting, plus back-up recoil starter.

- Smooth-running CVT automatic transmission.

- Competition-inspired styling with yellow bodywork.

Engine Features

- Compact 90cm³ air-cooled, 4-stroke, single-cylinder engine has been designed for durability and low maintenance.

- Suzuki Composite Electrochemical Material (SCEM)-coated cylinder, derived from Suzuki's high-performance GSX-R sportbikes, provides durability, weight reduction and superior heat dissipation.

- Smooth running multi-plate cam chain lets the engine operate quietly. Easy-access oil filter and oil strainer cap reduces service time.

- Clean-burning four-stroke engine easily achieves Environmental Protection Agency (EPA) emissions regulations.

- Spark-arrestor equipped muffler is environmentally friendly, yet has a pleasant exhaust note.

- Large 6.0L fuel tank provides long riding time. A vacuum-operated fuel petcock automatically stops fuel flow when the engine's not running.

- A keyed ignition switch lets grown-ups decide when the action begins and ends.

- Simple, screw-type throttle limiter allows adult supervisors to limit the maximum power delivery to suit the rider's ability.

- Speed-limiter collar in the automatic clutch limits top speed. It can be removed to increase top speed as the rider gains ability.

- Includes an easy electric starting system plus a standard back-up recoil starter.

- Smooth-running CVT automatic transmission provides easy operation and allows the rider to focus on riding instead of shifting.

Chassis Features

- Child-size (Y-12) controls for easy operation.

- Single A-arm front suspension with twin independent shock absorbers and single-shock rear suspension provide long wheel travel for a smooth, comfortable ride.

- Rear axle shaft has double oil seals for performance and reliability.

- Headlamp style front piece is detachable to achieve a sporty look.

- Modern styling with full floorboards creates a big Quad look that also features yellow bodywork with coordinated graphics.

- Front, side, and rear reflectors improve the ATV's visibility to other riders.

- Large-diameter, semi-sealed front drum brakes and single fully sealed rear drum brake provide strong braking performance.

- One-piece, 8-inch wheels with tubeless tires provide a smooth comfortable ride.

- Strong, high-rigidity steel frame is sturdy and compact.

- The low seat height of just 650mm makes it easy for the rider to get on and operate the ATV.

- Suzuki T-shaped seat design allows for smooth weight transition and provides a comfortable ride. The seat is easy to remove for service and has a durable black cover that complements the ATV's graphics package.

- Competition-inspired bodywork features Champion Yellow No.2 bodywork with blue, black, and red graphics.

Additional Features

- A variety of Genuine Suzuki Accessories for QuadSport owners are available, including a large selection of Suzuki logo apparel.

- Minimum age: 12 years old.

- ATVs are not toys. Serious injury or death can result from improper use of ATVs. Your youngster's safety will depend on you taking a "Safety First" approach to ATV riding. The QuadSport Z90 may be used only by those aged 12 and older. Always supervise riders under the age of 16. All other Suzuki ATVs may be used only by those aged 16 and older. Even though your child may be the right age, you need to be sure that he or she has the size, strength, skills, and judgment to operate the ATV safely. The SVIA publication "Parents, Youngsters & ATVs" (included with products and available through your dealer) contains guidelines that can help you determine if your child is ready to ride an ATV.

*Click the icons


Engine Type 4-stroke, 1-cylinder, air-cooled, SOHC
Engine Displacement 90 cm3 (5.5 cu. in.)
Bore x Stroke 45.5 mm x 55.2 mm (1.8 in. x 2.2 in.)
Transmission CVT
Overall Length 1,505 mm (59.3 in.)
Overall Width 875 mm (34.4 in.)
Overall Height 915 mm (36.0 in.)
Wheelbase 1,005 mm (39.6 in.)
Ground Clearance 150 mm (5.9 in.)
Seat Height 650 mm (25.6 in.)
Curb Mass 127 kg (280 lbs.)
Suspension Front Independent, swing axle, coil spring, oil damped
Suspension Rear Swingarm type, coil spring, oil damped
Brakes Front Drum
Brakes Rear Drum
Tires Front AT19x7-8 , tubeless
Tires Rear AT19x7-8 , tubeless
Fuel Tank Capacity 6.0 L (1.6 / 1.3 US / Imp gal)

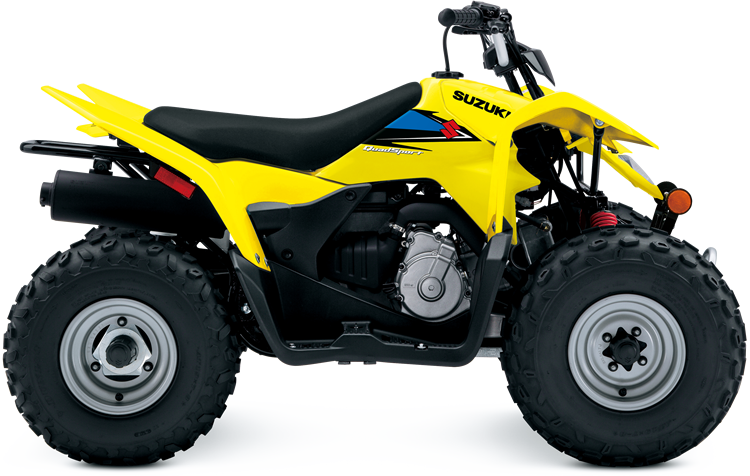

Models by Model Year
