KINGQUAD 400ASi 4x4/ Special Edition

Equipped and Styled to Impress

In 1983, Suzuki introduced the world's first 4-wheel ATV. Today, Suzuki ATVs are everywhere.
From the most remote areas to the most common of everyday tasks, you'll find the KingQuad400ASi powering a rider onward.

Key Features

- Powerful fuel-injected, four-stroke engine is easy on gas

- Large fuel tank & plush seat delivers extended, comfortable riding range

- Fender-mounted shifter controls the QuadMatic™ transmission

- Automotive gate-type gearshift lever is convenient to use

- Select 2WD or 4WD via a handlebar-mounted lever

- Dual 35W headlights with high and low settings

- Plush T-shaped seat delivers rider mobility and comfort

- Special Edition bodywork has a durable, matte black finish

- LCD instrumentation presents vital information in clear fashion

Engine Features

- The KingQuad 400ASi's fuel-injected 376cm³ 4-stroke, 4-valve engine produces efficient power and drivability.

- Suzuki's class-leading fuel injection smooths power output, especially in the mid-to-high range, and provides excellent cold starting. The system uses 3D maps for optimum ignition, creating responsive yet environmentally compliant performance.

- Suzuki Advanced Cooling System (SACS) uses an oil cooler and thermostat-controlled cooling fan to shed engine heat during hard work or cargo hauling.

- Push-button electric starting has a start-in-gear function allowing starting without shifting to neutral (as conditions permit).

- The Engine Control Unit (ECU) has slip control logic, which adjusts fuel injector duration and timing to improve drivability and grip in loose/slippery conditions.

- Highly efficient iridium spark plug contributes to better combustion, cleaner emissions and longer plug life. Engine starting under low temperature is also improved.

- Suzuki's Pulsed-secondary AIR-injection (PAIR) system and an exhaust system equipped with a catalytic converter help the ATV meet emission standards while maintaining a high level of performance.

- The QuadMatic™ transmission is a fully automatic CVT (Continuously Variable Transmission) with selectable high-low sub-transmission and reverse for maximum traction and fuel efficiency.

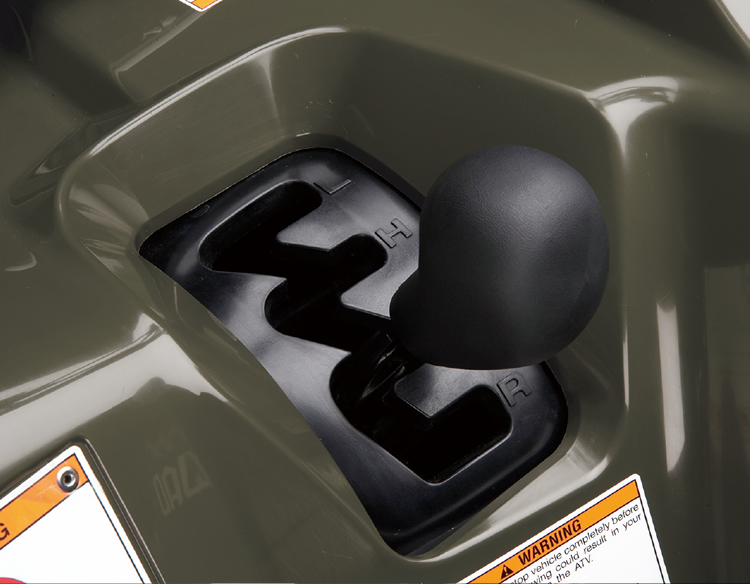

- Automotive gate-type gearshift lever lets you conveniently choose high- or low-range, neutral or reverse.

- Select two- or four-wheel drive with the flip of a handlebar-mounted lever. The shaft drive system is reliable and durable, and is nearly maintenance free.

- Torque-sensing limited-slip front differential provides maximum traction and light steering when in 4WD mode.

- An advanced engine-braking system minimizes free-wheeling with the throttle off to help control the ATV during steep descents.

- The ECU has a Reverse Mode that monitors vehicle speed so higher engine RPM can be used when getting out of mud or loose soil in reverse mode.

Chassis Features

- Sporty bodywork features sharply angled, high-clearance fenders.

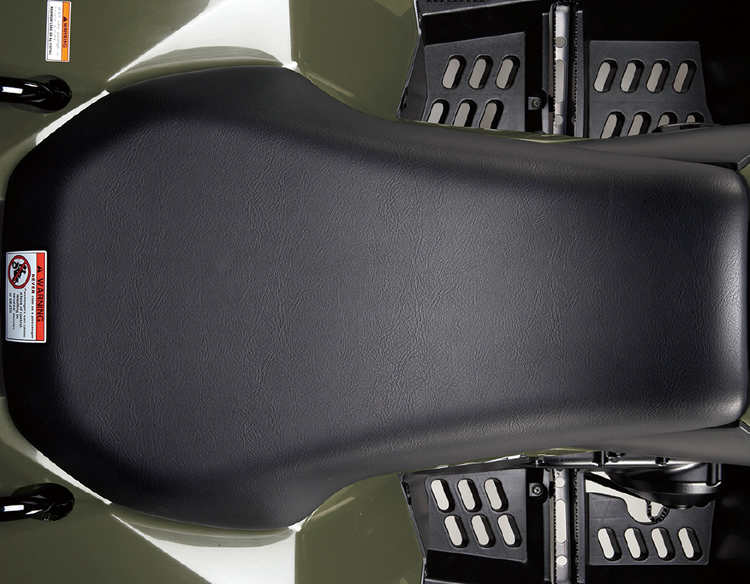

- Suzuki's plush T-shaped seat offers the rider greater mobility during sport or difficult terrain riding.

- Overall length is 2,060mm so the KingQuad fits into a 6.5-foot truck bed for easy transportation.

- Independent front A-arm suspension offers smooth performance and remarkable ground clearance with 170mm of wheel travel.

- Swingarm rear-suspension with 170mm of wheel travel and twin shock absorbers provides agile handling and plush ride.

- Dual front hydraulic disc brakes feature calipers with large 34mm pistons and wide brake-pad surface area for increased stopping power and outstanding durability.

- The KingQuad 400ASi Special Edition is fitted with stylish, lightweight cast aluminum wheels.

- Large, 25-inch Carlisle tires with aggressive tread offers consistent traction in wet conditions, yet has a quiet, smooth ride on hard-packed trails.

- Lightweight and strong plastic skid plates are sturdy enough to withstand trail pounding yet slippery enough to let obstacles slide below.

Utility/Convenience Features

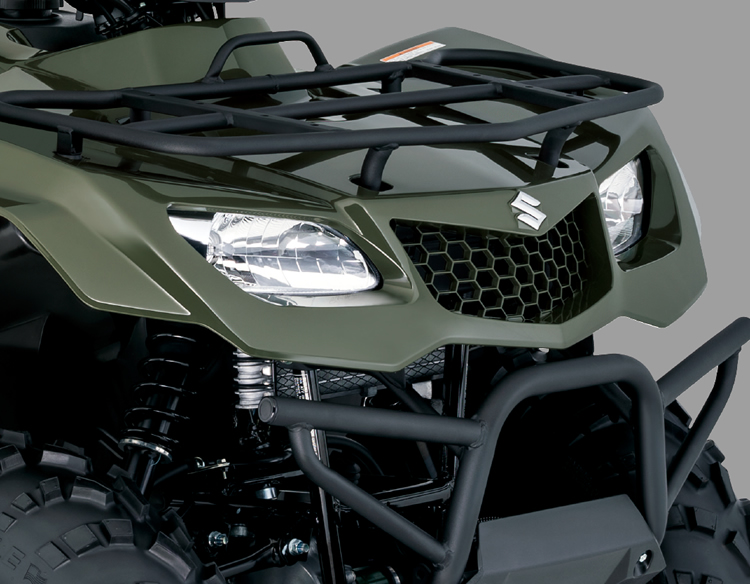

- Dual 35W headlights (with high and low settings) are part of the distinctive KINGQUAD grille appearance. Bright tail light helps make the ATV visible in dark conditions.

- Heavy-duty front and rear cargo racks let you take advantage of the ATV's superb load capabilities. Wrinkle paint finish on the racks and front bumper is durable and scratch resistant.

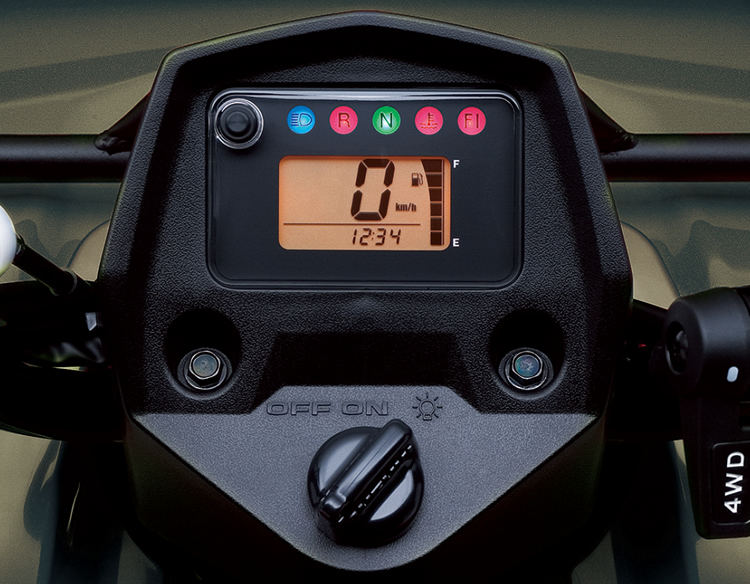

- LCD instrumentation includes speedometer, odometer, tripmeter, hour meter, clock, fuel gauge and indicators for reverse, neutral, oil and fuel injection.

- Automotive-style DC power outlet on front fender.

- Winch-ready mounts and wire conduit makes winch installation simple.

- Large 16.0 L fuel tank provides outstanding riding range.

- Full floorboards with integrated raised footpegs provide protection.

Special Features

- A variety of Suzuki Genuine Accessories are available, including winches, windshield, front and rear bumpers, snow plow, aluminum skid pans, rack extensions, utility box and more.

- Minimum Operator Age: 16 Years Old

Specifications

Engine Type 4-stroke, 1-cylinder, air-cooled with SACS, SOHC
Engine Displacement 376 cm3 (22.9 cu. in)
Bore x Stroke 82.0 mm x 71.2 mm (3.2 in x 2.8 in)
Transmission CVT, 2-speed forward with reverse
Overall Length 2,060 mm (81.1 in)
Overall Width 1,145 mm (45.1 in)
Overall Height 1,220 mm (48.0 in)
Wheelbase 1,270 mm (50.0 in)
Ground Clearance 250 mm (9.8 in)
Seat Height 840 mm (33.1 in)
Curb Mass 287 kg (633 lbs)
Suspension Front Independent, double wishbone, coil spring, oil damped
Suspension Rear Swingarm type, coil spring, oil damped
Brakes Front Disc, twin
Brakes Rear Drum
Tires Front AT25x8-12☆☆ , tubeless
Tires Rear AT25x10-12☆☆ , tubeless
Fuel Tank Capacity 16.0 L (4.2/3.5 US/Imp gal)

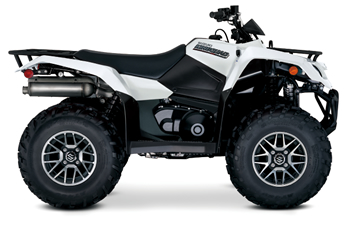

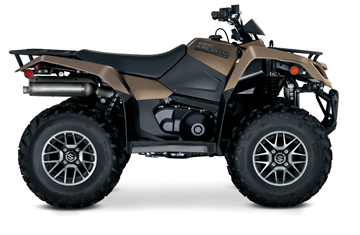

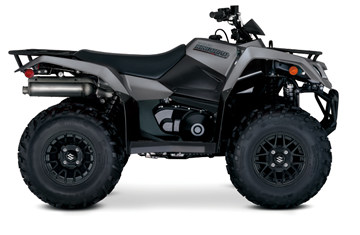

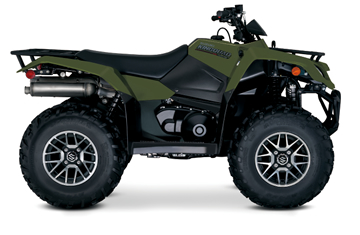

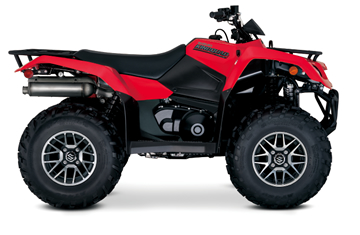

Colors [KINGQUAD 400ASi 4x4
Special Edition]

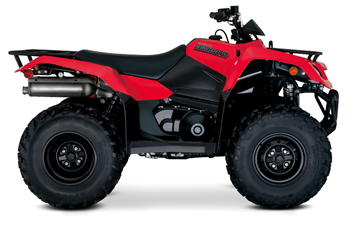

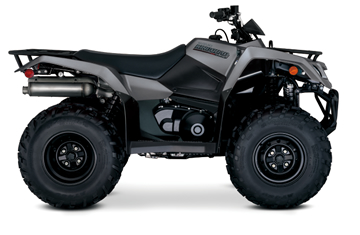

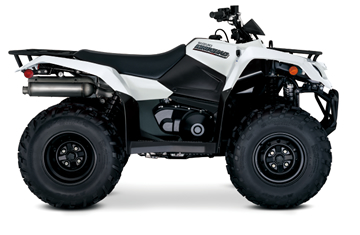

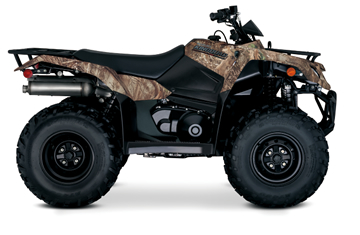

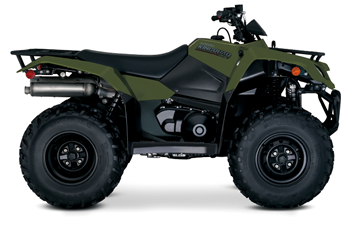

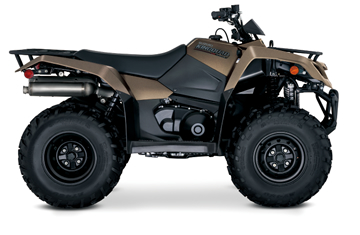

Colors [KINGQUAD 400ASi 4x4]

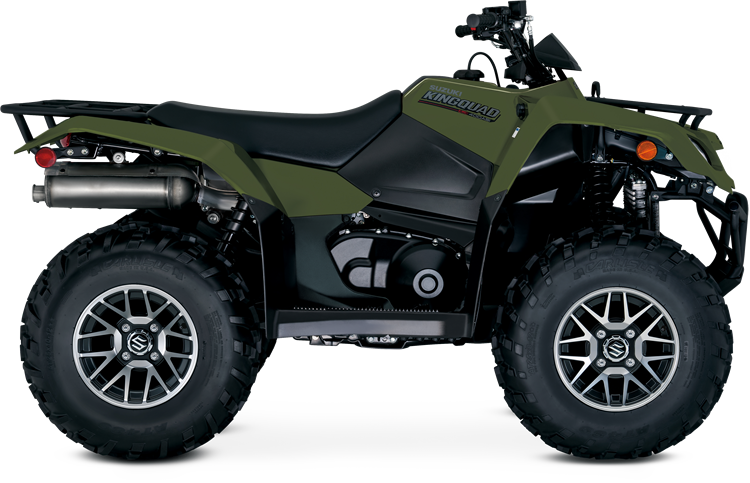

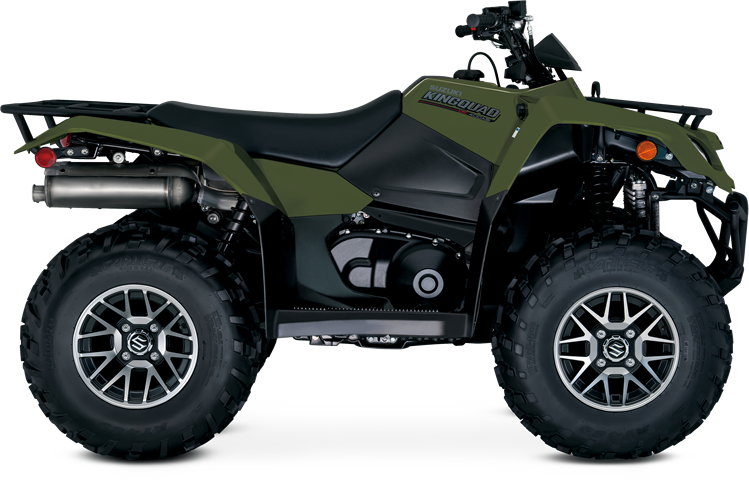

Models by Model Year
