Laying The Foundation Of Riding Fun

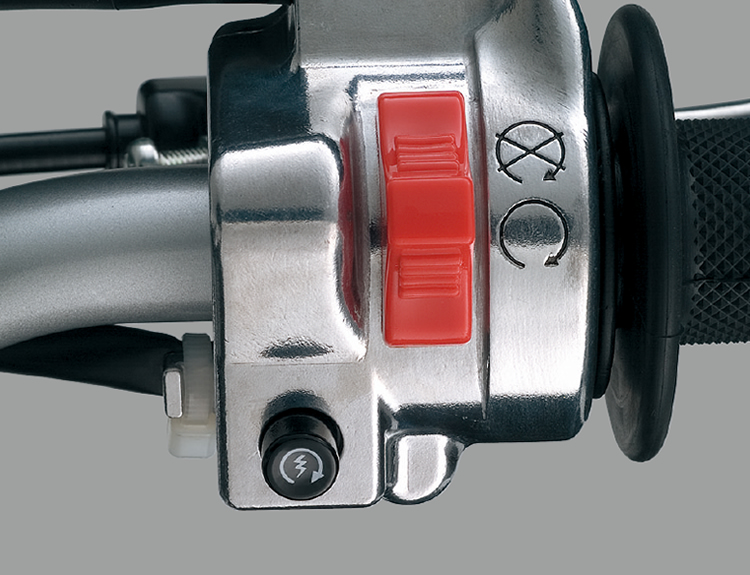

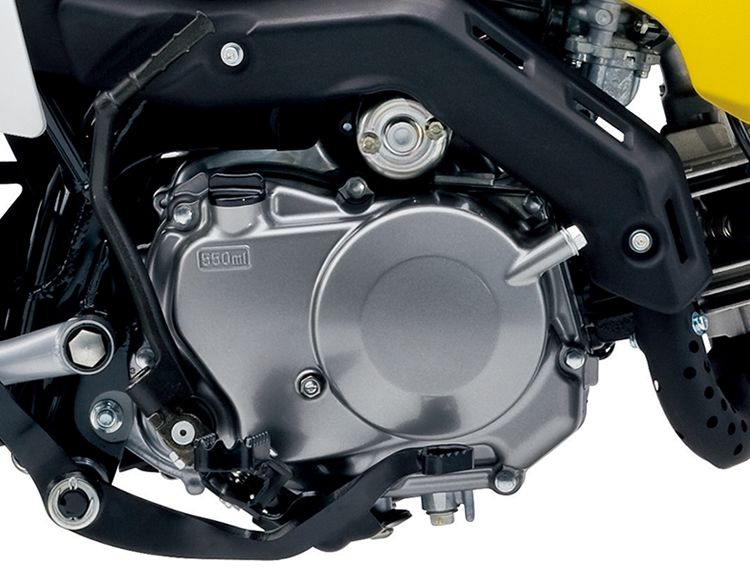

Torque-packed, electric-starting 50cm3 4-stroke engine. Super-cool race-style looks.
An easy and fun choice for children to learn the fundamentals of riding.

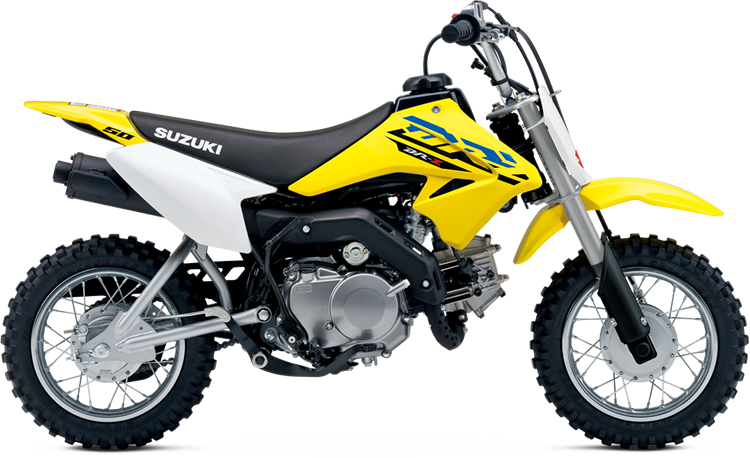

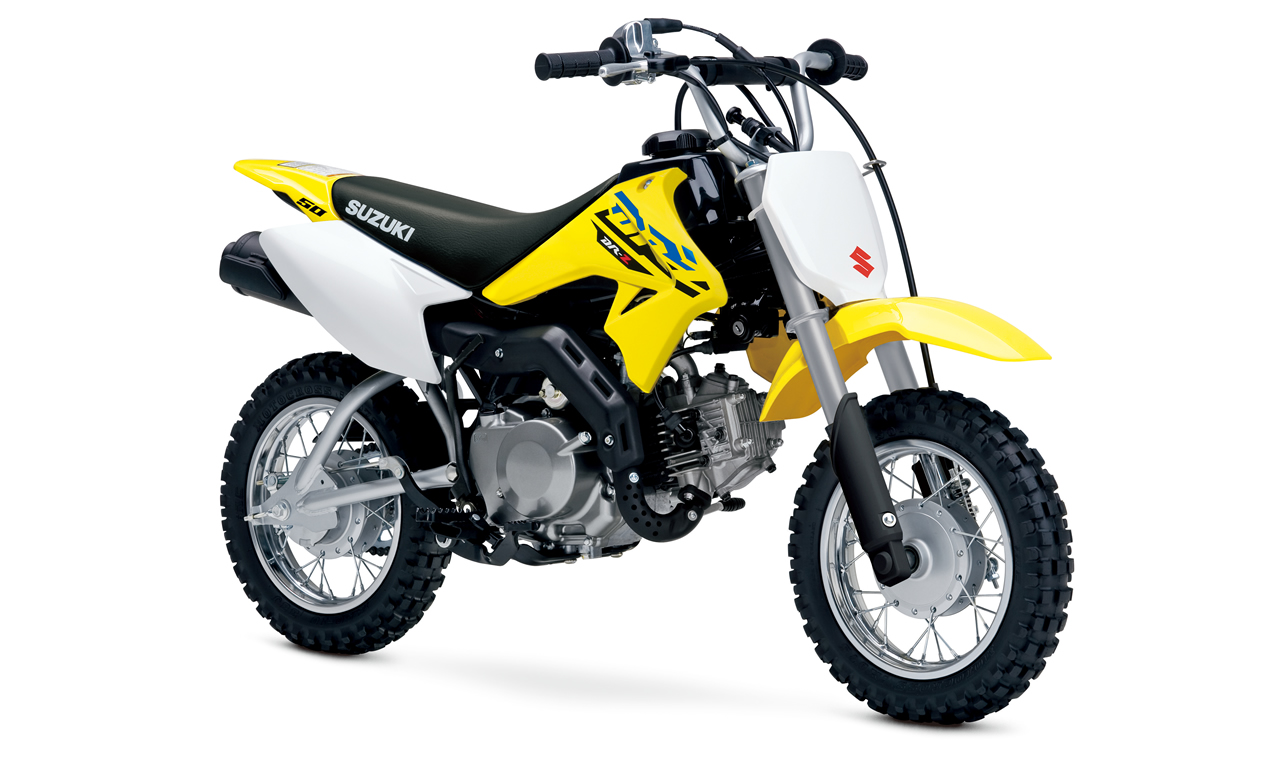

With an adequately sized engine and adequately sized chassis, the user-friendly DR-Z50 is ready for many enjoyable years down the road.
| Engine Type | 4-stroke, 1-cylinder, air-cooled, SOHC |
|---|---|
| Engine Displacement | 50 cm3 (3.1 cu. in.) |
| Bore x Stroke | 39.0 mm x 41.8 mm (1.5 in. x 1.6 in.) |
| Transmission | 3-speed constant mesh |
| Overall Length | 1,320 mm (52.0 in.) |
| Overall Width | 580 mm (22.8 in.) |
| Overall Height | 790 mm (31.1 in.) |
| Wheelbase | 935 mm (36.8 in.) |
| Ground Clearance | 135 mm (5.3 in.) |
| Seat Height | 560 mm (22.0 in.) |
| Curb Mass | 54 kg (119 lbs.) |
|---|---|
| Suspension Front | Inverted telescopic, coil spring |
| Suspension Rear | Swingarm type, coil spring, oil damped |
| Brakes Front | Drum |
| Brakes Rear | Drum |
| Tires Front | 2.50-10 33J, tube type |
| Tires Rear | 2.50-10 33J, tube type |
| Fuel Tank Capacity | 3.0 L (0.8 / 0.7 US / Imp gal) |
