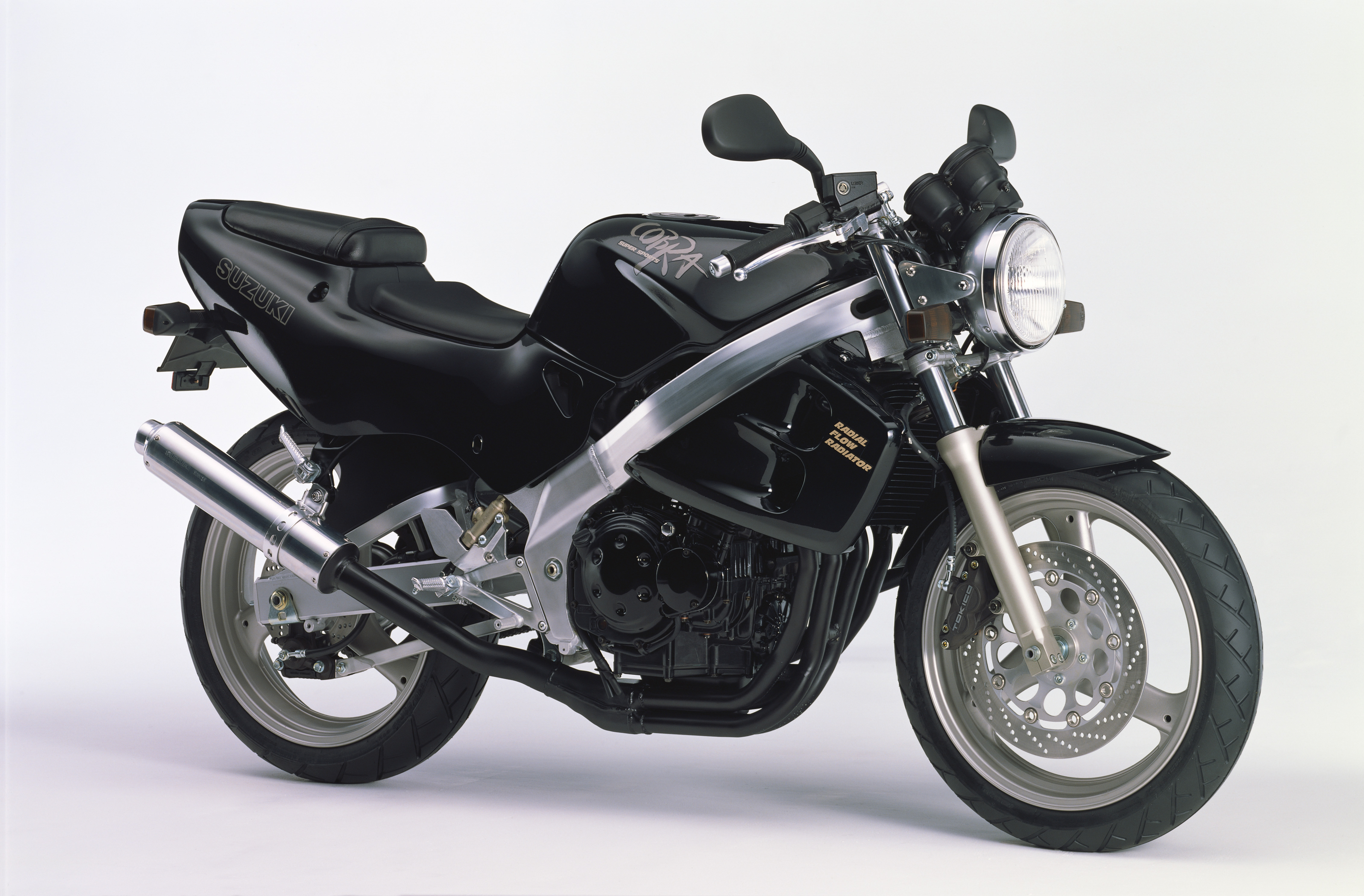

1989 | COBRA

Naked 250 cm³ street sportbike

COBRA(コブラ)

The COBRA combines an agile-looking naked exterior with unique design features, highlighted by the radiator cover and parts around the lights to create a totally fresh look completely different to any previous race replica model. The liquid-cooled 4-cylinder DOHC engine of the GSX-R250R is tuned for riding on city streets and mounted on an ALBOX frame. The intake system combines a downdraft slingshot carburetor with a straight intake flow for swift response. The chassis adopts radial tires, large-diameter 310 mm single floating disc brakes (the same size as those usually adopted on 400 cm³-class bikes), and 4-pot calipers with different diameters to realize an excellent balance between riding stability and powerful braking force.

Dimensions and weight Dimensions Overall length 1,990 mm
Overall width 695 mm
Overall height 1,010 mm
Wheelbase 1,380 mm
Weight 139 kg (Dry)
Engine Engine type 4-stroke, 4-cylinder, liquid-cooled, DOHC
Engine displacement 248 cm³
Bore x stroke 49.0 mm × 33.0 mm
Maximum power 33.1kW(45PS) / 15,000rpm
Maximum torque 25.5N-m / 10,500rpm
Transmission 6-speed constant mesh
Front tire size 110/70-17 54H
Rear tire size 140/60R18 64H
