1977 | RG50
50 cm³ sprinter model, newly added to the performance-oriented RG series.
The air-cooled 2-stroke 1-cylinder engine of the RG50 features Suzuki’s unique power reed valve system that combines both a piston valve and a reed valve. The stylish cradle type frame was newly developed for the RG50. This frame is particularly robust and combines well with the front and rear suspensions to realize superb handling.
Dimensions and weight | Dimensions | Overall length | 1,815 mm |
Overall width | 685 mm | ||
Overall height | 955 mm | ||
Wheelbase | 1,170 mm | ||
Weight | 68 kg (Dry) | ||
Engine | Engine type | 2-stroke, 1-cylinder, air-cooled | |
Engine displacement | 49 cm³ | ||
Bore x stroke | 41.0 mm × 37.8 mm | ||
Maximum power | 4.6kW(6.3PS) / 8,500rpm | ||
Maximum torque | 5.2N-m / 8,000rpm | ||
Transmission | 5-speed constant mesh | ||
Front tire size | 2.50-17-4PR | ||
Rear tire size | 2.75-17-4PR |
1980 | RG50E
High power that goes beyond the 50 cm³ class with the aggressive front design of an RG
The power reed valve engine of the RG50E generates an impressive maximum horsepower of 7.2 PS and maximum torque of 5.69 N·m. The RG50E features a down type muffler with a large-capacity power chamber to reduce exhaust noise and a black finish to recreate the image of a racing bike. The integrated star-shaped cast wheels, which are designed to ensure superlative riding stability, were increased in size from 17 to 18 inches. The RG50E that debuted in 1981 was the first model in the 50 cm³ class to be equipped with Anti Nose Dive Forks (ANDF).
Dimensions and weight | Dimensions | Overall length | 1,930 mm |
Overall width | 715 mm | ||
Overall height | 990 mm | ||
Wheelbase | 1,205 mm | ||
Weight | 73 kg (Dry) | ||
Engine | Engine type | 2-stroke, 1-cylinder, air-cooled | |
Engine displacement | 49 cm³ | ||
Bore x stroke | 41.0 mm × 37.8 mm | ||
Maximum power | 5.3kW(7.2PS) / 9,000rpm | ||
Maximum torque | 5.7N-m / 8,000rpm | ||
Transmission | 5-speed constant mesh | ||
Front tire size | 2.50-18-4PR | ||
Rear tire size | 2.50-18-4PR |

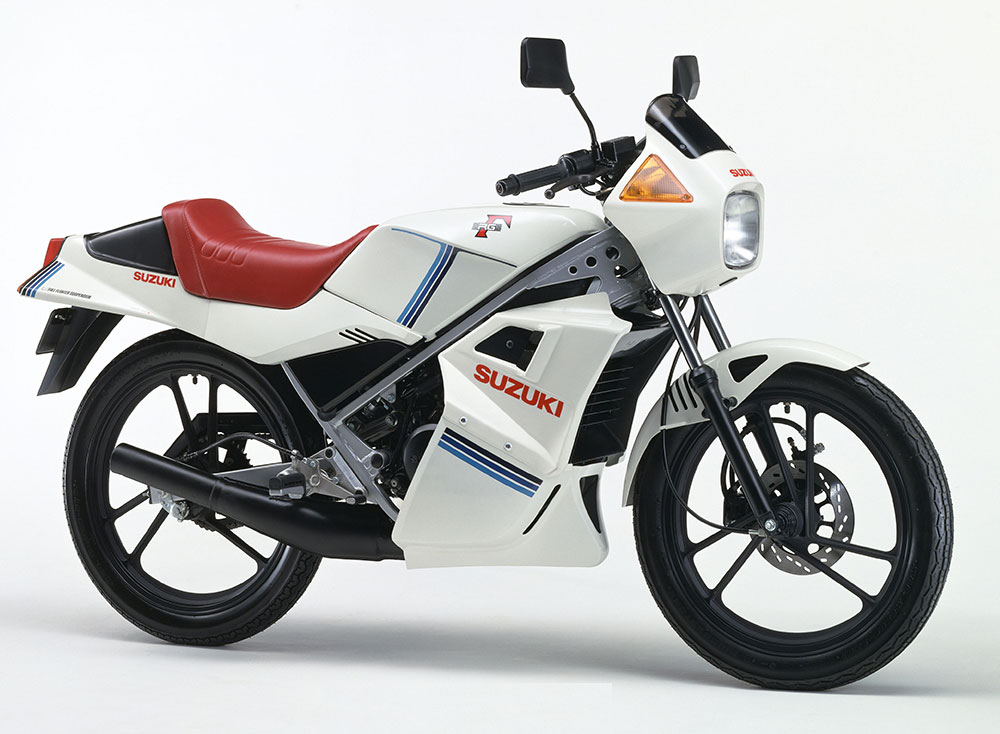

1982 | RG50Γ
Exciting 50 cm³ model featuring a hexagonal pipe frame
The RG50Γ combines the first hexagonal pipe frame adopted on a 50 cm³ model produced in Japan with a newly developed 2-stroke liquid-cooled 1-cylinder power reed valve engine. Incorporating Suzuki’s unique power reed valve into this engine helps ro realize gutsy torque in the low- and mid-rpm ranges. The adoption of a liquid cooling system featuring a radiator equipped with an airflow-converging cover substantially improves cooling performance and enhances fuel economy. Handling is also improved through features such as the Full Floater suspension with a hexagonal pipe swingarm, smaller-diameter front wheel, and Anti Nose Dive Forks (ANDF). The RG50Γ is also provided with fairings and a 6-speed transmission. Weight was reduced by the widespread use of aluminum forgings, resulting in a machine that meets the expectations of users looking for a sporty ride.
* Under fairing is an optional equipment.
Dimensions and weight | Dimensions | Overall length | 1,880 mm |
Overall width | 650 mm | ||
Overall height | 1,030 mm | ||
Wheelbase | 1,230 mm | ||
Weight | 69 kg (Dry) | ||
Engine | Engine type | 2-stroke, 1-cylinder, air-cooled | |
Engine displacement | 49 cm³ | ||
Bore x stroke | 41.0 mm × 37.8 mm | ||
Maximum power | 5.3kW(7.2PS) / 8,000rpm | ||
Maximum torque | 6.5N-m / 7,500rpm | ||
Transmission | 6-speed constant mesh | ||
Front tire size | 2.75-17-4PR | ||
Rear tire size | 2.75-18-4PR |

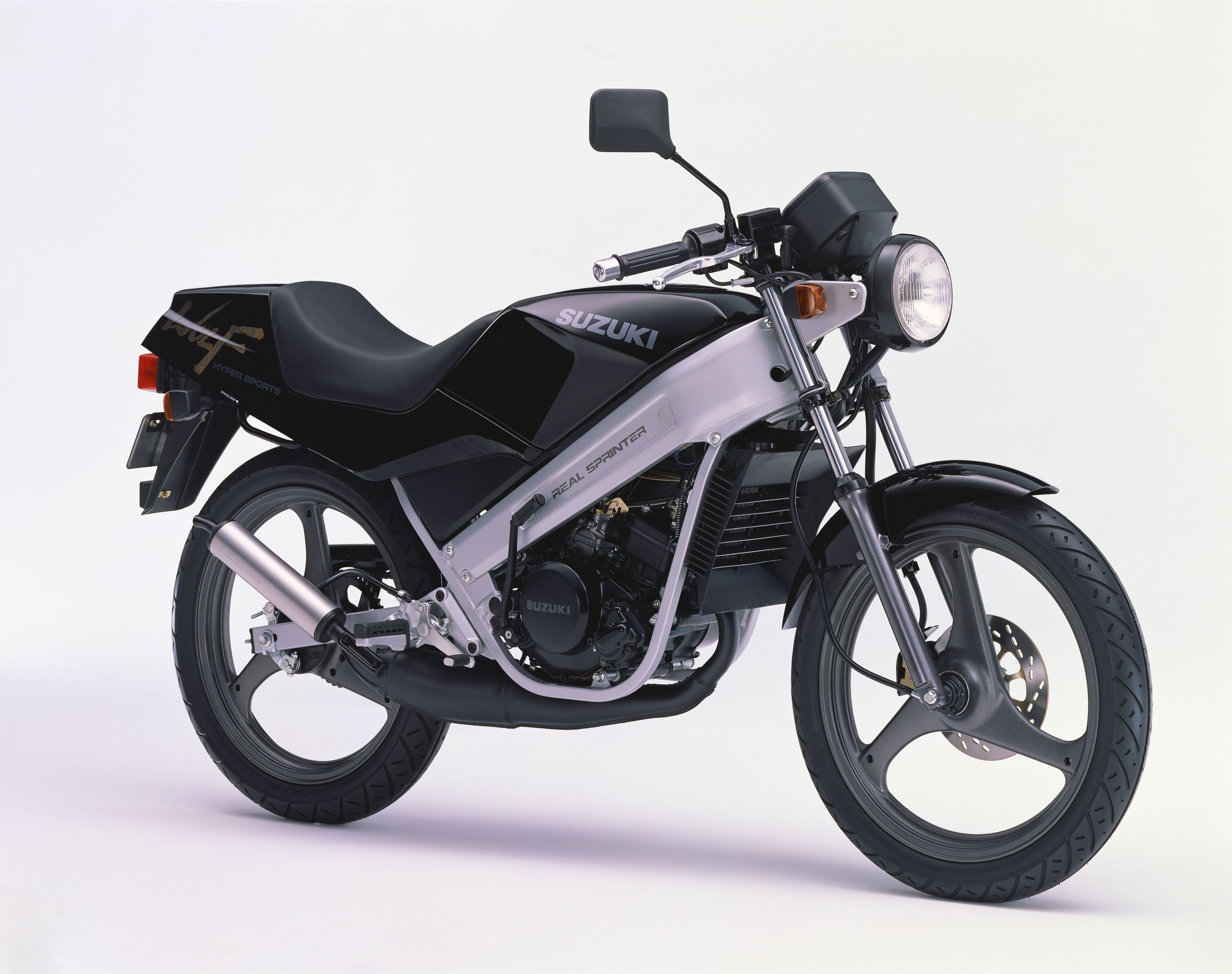

1989 | WOLF 50
Light and agile 50 cm³ naked bike
This is a sister model to the 250 cm³ WOLF. It is equipped with the dynamic and proven 2-stroke liquid-cooled 1-cylinder engine installed on the RG50Γ. The WOLF 50 delivers a simple and stylish impression completely different to any previous race replica model due to features such as a round halogen headlight, tapered frame cover, new-pattern low-profile tires, hollow 3-spoke wheels , and chamber type muffler.
Dimensions and weight | Dimensions | Overall length | 1,880 mm |
Overall width | 655 mm | ||
Overall height | 995 mm | ||
Wheelbase | 1,235 mm | ||
Weight | 73 kg (Dry) | ||
Engine | Engine type | 2-stroke, 1-cylinder, air-cooled | |
Engine displacement | 49 cm³ | ||
Bore x stroke | 41.0 mm × 37.8 mm | ||
Maximum power | 5.3kW(7.2PS) / 7,200rpm | ||
Maximum torque | 7.1N-m / 7,000rpm | ||
Transmission | 6-speed constant mesh | ||
Front tire size | 80/90-17 44P | ||
Rear tire size | 90/90-17 49P |
