1966 | M15-2

Suzuki’s first motorcycle to win the Good Design Award

M15-2

The M15-2 was the first model from Suzuki to receive the Good Design Award from the Ministry of International Trade and Industry, proof that the company’s designs had attained an impressive level of excellence. The piston valve 2-stroke 1-cylinder engine generates maximum horsepower of 4.5 PS and has a top speed catalog rating of 80 km/h. Other changes from the previous model include updated designs for the seat and other parts.

Dimensions and weight Dimensions Overall length 1,785 mm
Overall width 665 mm
Overall height 960 mm
Wheelbase 1,160 mm
Weight 66 kg
Engine Engine type 2-stroke, 1-cylinder, air-cooled
Engine displacement 50 cm³
Bore x stroke 41.0 mm × 38.0 mm
Maximum power 3.3kW(4.5PS) / 8,000rpm
Maximum torque 4.1N-m / 7,000rpm
Transmission 4-speed constant mesh
Front tire size 2.25-17-4PR
Rear tire size 2.25-17-4PR

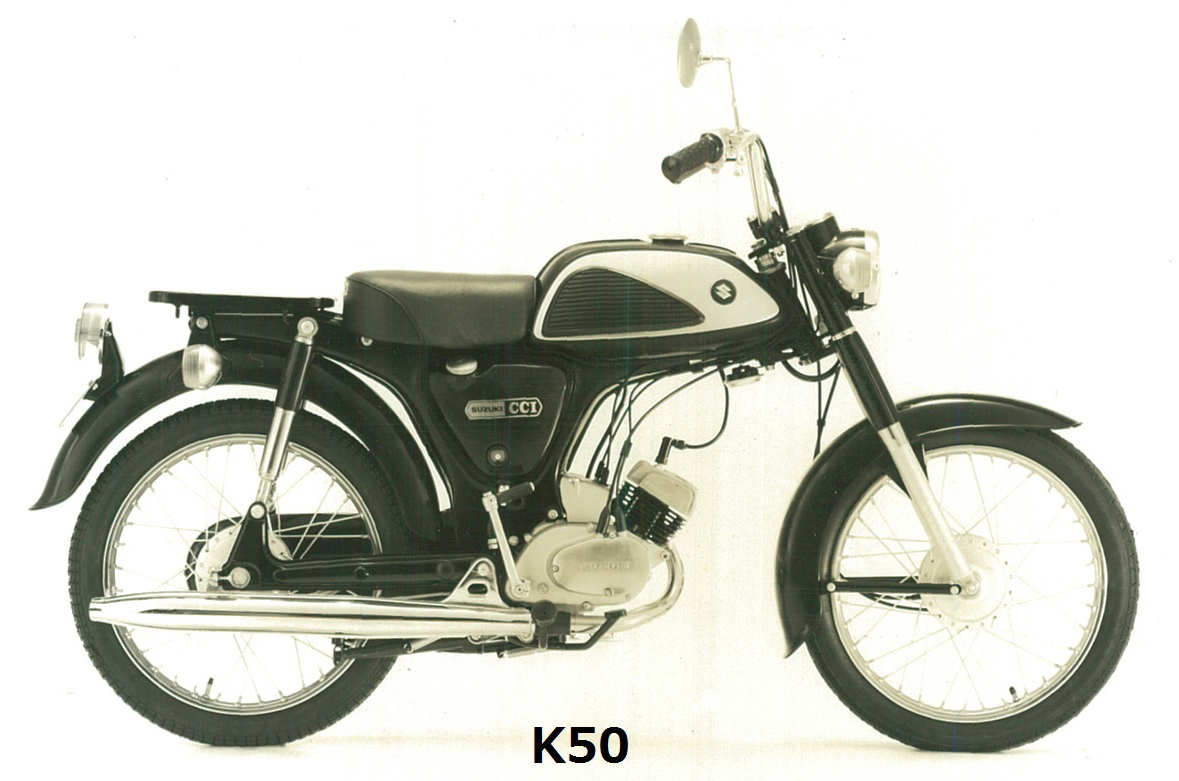

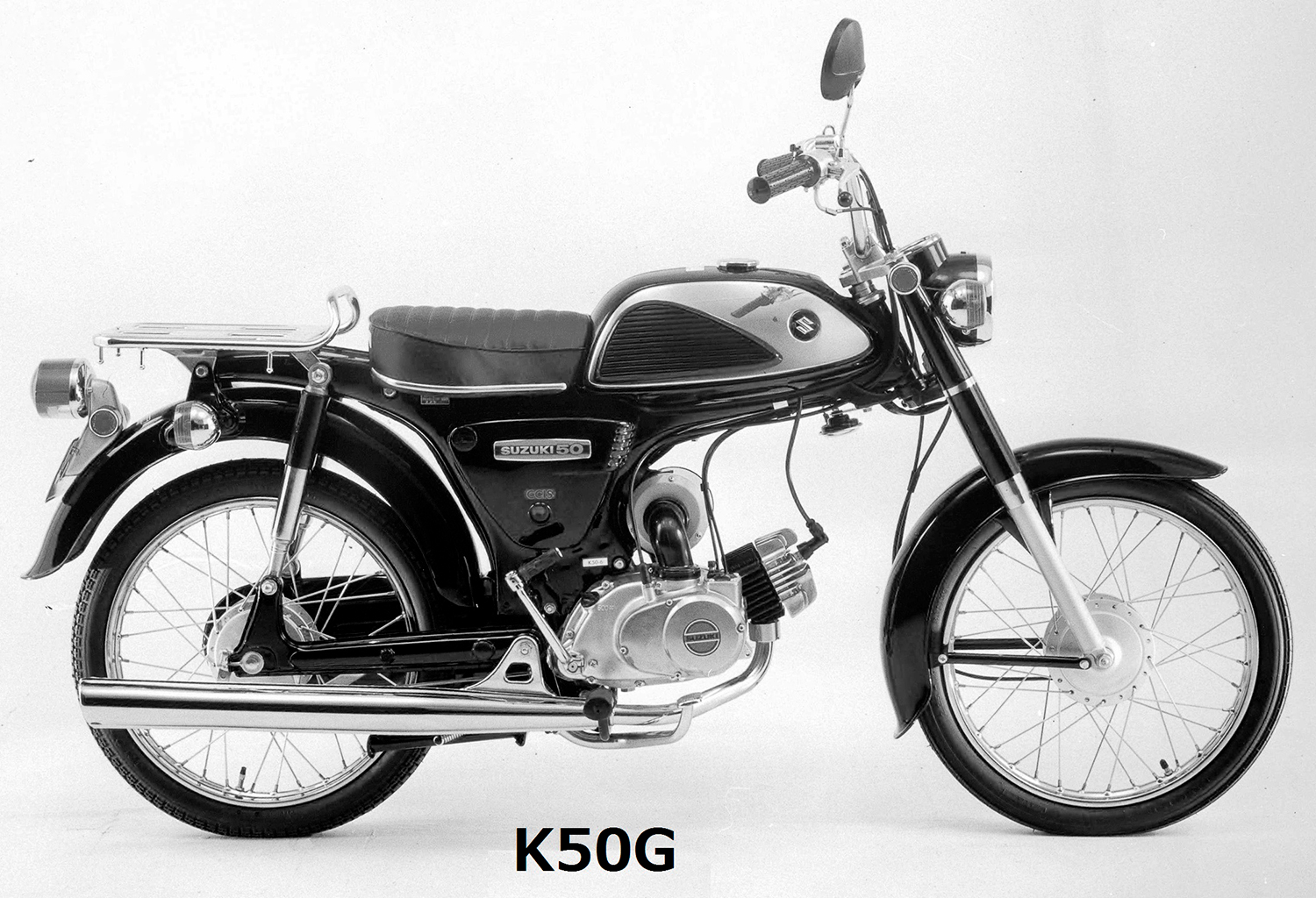

1969 | K50/K50G

Newly developed model with even greater user-friendliness

K50 K50G

The K50 and K50G are highly practical models with an agile design featuring elements such as a V-shaped frame and a rear fender separated from the frame. A good-looking fuel tank, oil tank, and other parts were adopted to match the new frame. The semi-upright handlebars with a larger pipe diameter are positioned higher and wider than the previous model, realizing an even more comfortable ride. A box-shaped seat ensures stable ride comfort. These models are also equipped with a new side stand convenient for short and quick parking. In October of the same year (1969), the model-changed K50G debuted with a new forward-tilted engine. This engine generates maximum torque of 5.1 N·m (up from 4.12 N·m) and substantially higher torque in low- and mid-rpm ranges, which made it possible to change the transmission system from a rotary 4-speed automatic to a 3-speed for easier operation. However, the rotary 4-speed automatic transmission was re-adopted in 1973.

K50 K50G
Dimensions and weight Dimensions Overall length 1,790 mm 1,815 mm
Overall width 760 mm 750 mm
Overall height 990 mm
Wheelbase 1,165 mm 1,190 mm
Weight 72 kg 78 kg
Engine Engine type 2-stroke, 1-cylinder, air-cooled
Engine displacement 50 cm³ 49 cm³
Bore x stroke 41.0 mm × 38.0 mm 41.0 mm × 37.8 mm
Maximum power 3.3kW(4.5PS) / 8,000rpm 3.3kW(4.5PS) / 7,000rpm
Maximum torque 4.1N-m / 7,000rpm 5.1N-m / 5,000rpm
Transmission 4-speed constant mesh 3-speed constant mesh
Front tire size 2.25-17-4PR
Rear tire size 2.25-17-4PR

1978 | K50

Classic model with fresh styling design

K50

The styling of the K50 was completely updated from the previous model by changing the shape of the fuel tank and frame cover, while retaining the same well-received air-cooled 2-stroke 1-cylinder engine that generates maximum power of 4.5 PS. The appearance of this long-selling model-changed K50 was left untouched for 27 years until it was withdrawn from the market in 2005.

Dimensions and weight Dimensions Overall length 1,815 mm
Overall width 750 mm
Overall height 990 mm
Wheelbase 1.190 mm
Weight 72 kg (Dry)
Engine Engine type 2-stroke, 1-cylinder, air-cooled
Engine displacement 49 cm³
Bore x stroke 41.0 mm × 37.8 mm
Maximum power 3.3kW(4.5PS) / 7,000rpm
Maximum torque 5.1N-m / 5,000rpm
Transmission 4-speed constant mesh
Front tire size 2.25-17-4PR
Rear tire size 2.25-17-4PR
