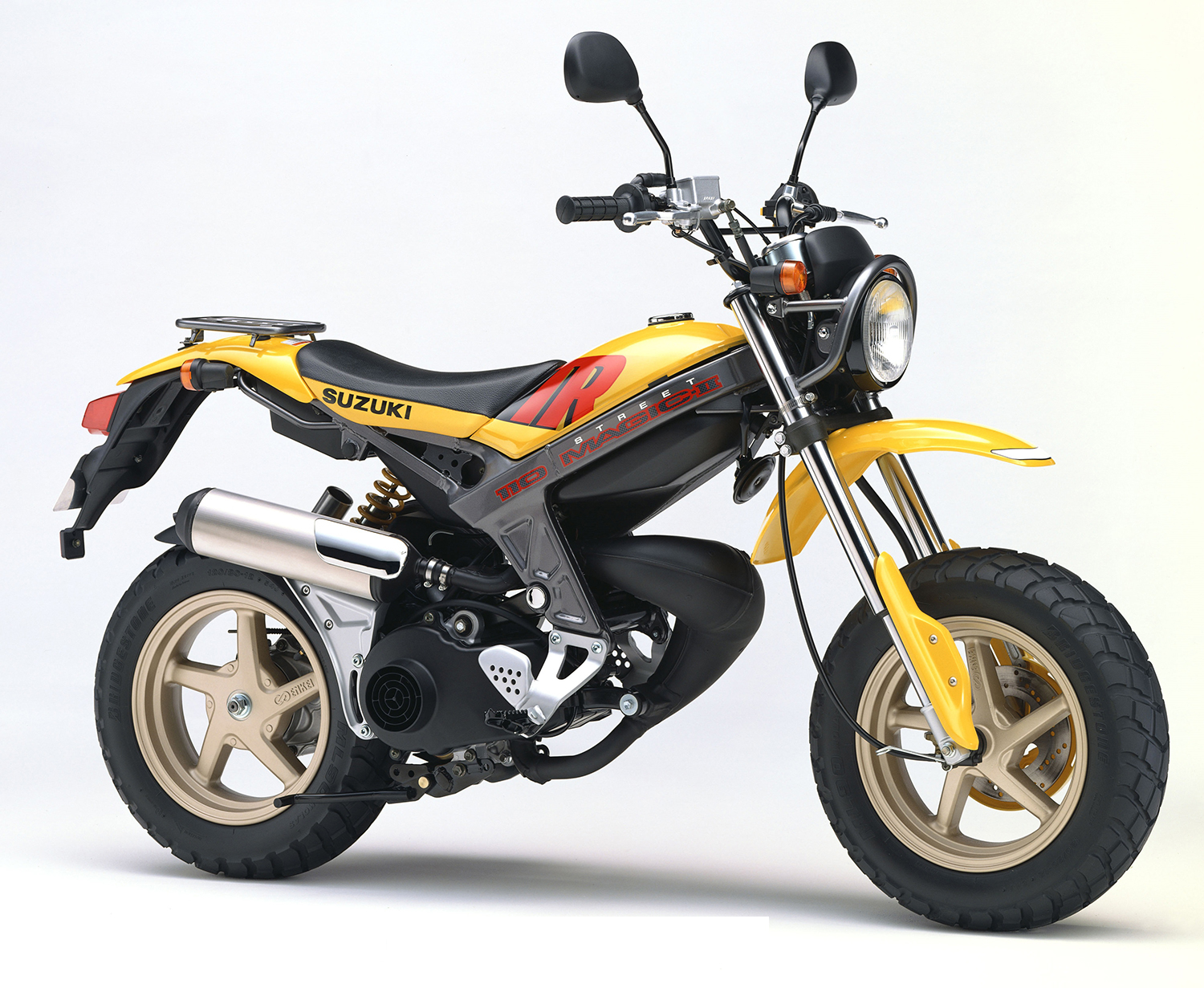

1997 | Street Magic/Street Magic II
New forms for sporty scooters
Street Magic
-
Street Magic II
“Quick, easy, cool” is the inspiration behind these innovatively styled sporty scooters. The 50 cm³ 2-stroke engine with a forced air-cooling system generates maximum horsepower of 7.2 PS. These models are equipped with highly rigid twin-tube frames equivalent to those used on sporty street bikes. Features such as powerful front disc brakes, large and wide 12-inch front and rear tires, inverted front forks, and rear shocks with a reservoir tank (only on the Street Magic 50S) bring these bikes to the next level of dynamic performance. At the same time, the adoption of an automatic V-belt CVT helps to create a pair of sporty scooters that are friendly and fun-to-ride. The RV-inspired Street Magic II with off-road themed styling was added later to the lineup based on the original Street Magic.
Street Magic | Street Magic II | |||
Dimensions and weight | Dimensions | Overall length | 1,635 mm | 1,645 mm |
Overall width | 710 mm | 715 mm | ||
Overall height | 965 mm | 975 mm | ||
Wheelbase | 1,080 mm | |||
Weight | 73 kg (Dry) | 78 kg (Dry) | ||
Engine | Engine type | 2-stroke, 1-cylinder, air-cooled | ||
Engine displacement | 49 cm³ | |||
Bore x stroke | 41.0 mm × 37.4 mm | |||
Maximum power | 5.3kW(7.2PS) / 6,750rpm | |||
Maximum torque | 8N-m / 6,000rpm | |||
Transmission | CVT | |||
Front tire size | 110/80-12 51J | 120/80-12 54J | ||
Rear tire size | 120/80-12 54J |
1998 | Street Magic-II 110/Street Magic 110
Rider-friendly yet sporty scooters
Street Magic-II 110
-
Street Magic 110
These are new concepts that combine the rider-friendly nature of a scooter with the sporty performance of a street bike and fresh styling inspired by Recreational Vehicles (RVs). Both feature highly rigid twin-tube frames that emulate the design of sporty street bikes, a smooth 110 cm³ 2-stroke 1-cylinder engine that generates maximum horsepower of 10 PS, and a V-belt CVT. Equipped with features such as powerful front disc brakes, large and wide 12-inch front and rear tires, aluminum diecast wheels, and inverted front forks, these are high-performance fun-to-ride models with characteristics resembling those of a sporty scooter. The Street Magic-II 110 debuted first, followed by the Street Magic 110 with its angular headlight and a street bike-styled front fender.
Street Magic-II 110 | Street Magic 110 | |||
Dimensions and weight | Dimensions | Overall length | 1,715 mm | 1,700 mm |
Overall width | 715 mm | 710mm | ||
Overall height | 990 mm | 975 mm | ||
Wheelbase | 1,150 mm | |||
Weight | 88 kg (Dry) | 85 kg (Dry) | ||
Engine | Engine type | 2-stroke, 1-cylinder, air-cooled | ||
Engine displacement | 113 cm³ | |||
Bore x stroke | 52.5 mm × 52.2 mm | |||
Maximum power | 7.4kW(10PS) / 6,500rpm | |||
Maximum torque | 11.8N-m / 6,000rpm | |||
Transmission | CVT | |||
Front tire size | 120/80-12 54J | 120/70-12 44L | ||
Rear tire size | 120/80-12 54J | 130/70-12 49L |
