1982 | Fan Fan
Fashionable moped-inspired scooter

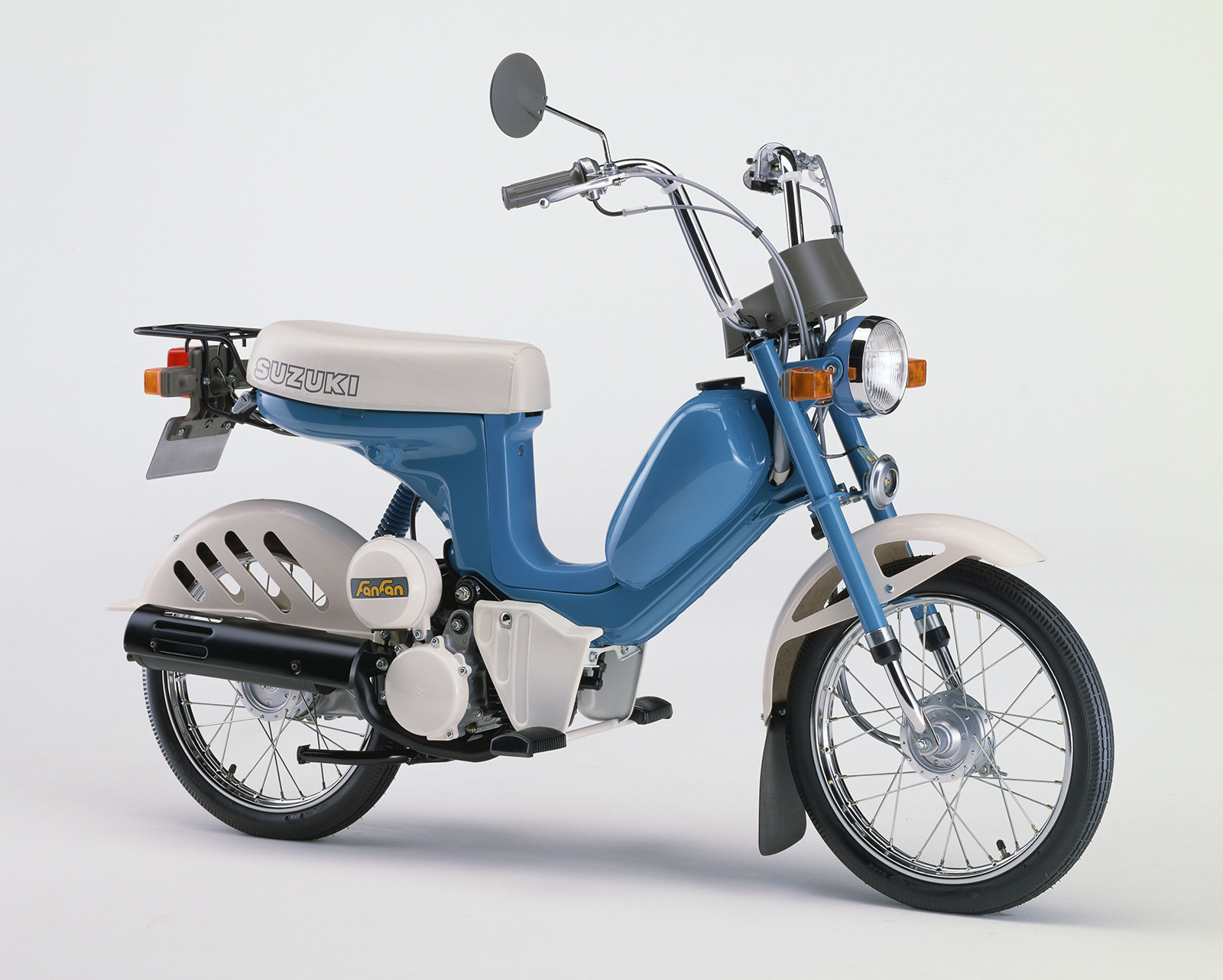

The Fan Fan is a fashionable 50 cm³ scooter influenced by the image of European mopeds. A fresh-looking design featuring upright handlebars, fuel tank located in front of the seat, a covered type rear fender, and vibrant body colors create an impressively trendy and sporty style. This model also combines a compact and easy-to-handle chassis with a frame shaped like a square-root sign (√) that is simple to mount and dismount, resulting in a scooter that can be ridden with ease by anyone. The Fan Fan is equipped with the same air-cooled 2-stroke 1-cylinder engine installed in the Youdy and Swany, which generates 3.2 PS. This engine is paired with a 2-speed automatic transmission.
Dimensions and weight | Dimensions | Overall length | 1,570 mm |
Overall width | 720 mm | ||
Overall height | 985 mm | ||
Wheelbase | 1,050 mm | ||
Weight | 48.1 kg (Dry) | ||
Engine | Engine type | 2-stroke, 1-cylinder, air-cooled | |
Engine displacement | 49 cm³ | ||
Bore x stroke | 41.0 mm × 37.8 mm | ||
Maximum power | 2.4kW(3.2PS) / 5,500rpm | ||
Maximum torque | 4.9N-m / 4,000rpm | ||
Transmission | 2-speed constant mesh | ||
Front tire size | 2.00-14-4PR | ||
Rear tire size | 2.00-14-4PR |
