1985 | SX200R
An athletic model on and off the road
The SX200R has a compact, slim, and lightweight body with a dry weight of only 101 kg. Its newly designed 200 cm³ 4-stroke 1-cylinder SOHC engine is paired with a flat slide carburetor and generates maximum horsepower of 20 PS. The chassis features front forks with a 240 mm stroke that realize excellent rideability and road handling performance. At the rear, the Excellent Full-Floater Suspension is combined with an aluminum swingarm to deliver the rapid action of the suspension reliably to the rear wheel. Low-profile tires (21-inch at the front and 18-inch at the rear) generate powerful grip.
Dimensions and weight | Dimensions | Overall length | 2,145 mm |
Overall width | 850 mm | ||
Overall height | 1,195 mm | ||
Wheelbase | 1,415 mm | ||
Weight | 101 kg (Dry) | ||
Engine | Engine type | 4-stroke, 1-cylinder, air-cooled, SOHC | |
Engine displacement | 199 cm³ | ||
Bore x stroke | 66.0 mm × 58.2 mm | ||
Maximum power | 14.7kW(20PS) / 8,500rpm | ||
Maximum torque | 17.7N-m / 7,000rpm | ||
Transmission | 5-speed constant mesh | ||
Front tire size | 80/80-21 45P | ||
Rear tire size | 110/80-18 58P |
1993 |DJEBEL 200
Off-road touring bike featuring large-capacity 13-liter fuel tank
The 200 cm³ 4-stroke air-cooled 1-cylinder engine in the DJEBEL 200 generates maximum horsepower of 20 PS and is designed for response in the low- to mid-rpm range and smooth performance at high revs. This engine is tuned for easier handling by entry-level riders while still realizing high-level performance to satisfy the demands of experienced enthusiasts. Excellent fuel economy of 54.3 km/L (60 km/h steady state fuel economy*) and the large-capacity 13-liter fuel tank ensures an impressive range between refueling. The DJEBEL 200 ensures a comfortable riding experience over long distances with features such as a large halogen headlight, an aluminum headlight guard, flat rear fenders that are ideally suited for carrying cargo, and handy grab bars. A seat height of 810 mm also helps to realize a comfortable sitting posture.
* Suzuki’s internal test results. Figures may vary depending on the rider’s skill or riding conditions.
Dimensions and weight | Dimensions | Overall length | 2,150 mm |
Overall width | 805 mm | ||
Overall height | 1,150 mm | ||
Wheelbase | 1,405 mm | ||
Weight | 106 kg (Dry) | ||
Engine | Engine type | 4-stroke, 1-cylinder, air-cooled, SOHC | |
Engine displacement | 199 cm³ | ||
Bore x stroke | 66.0 mm × 58.2 mm | ||
Maximum power | 14.7kW(20PS) / 8,500rpm | ||
Maximum torque | 17.7N-m / 7,000rpm | ||
Transmission | 5-speed constant mesh | ||
Front tire size | 70/100-21 44P | ||
Rear tire size | 100/90-18 56P |

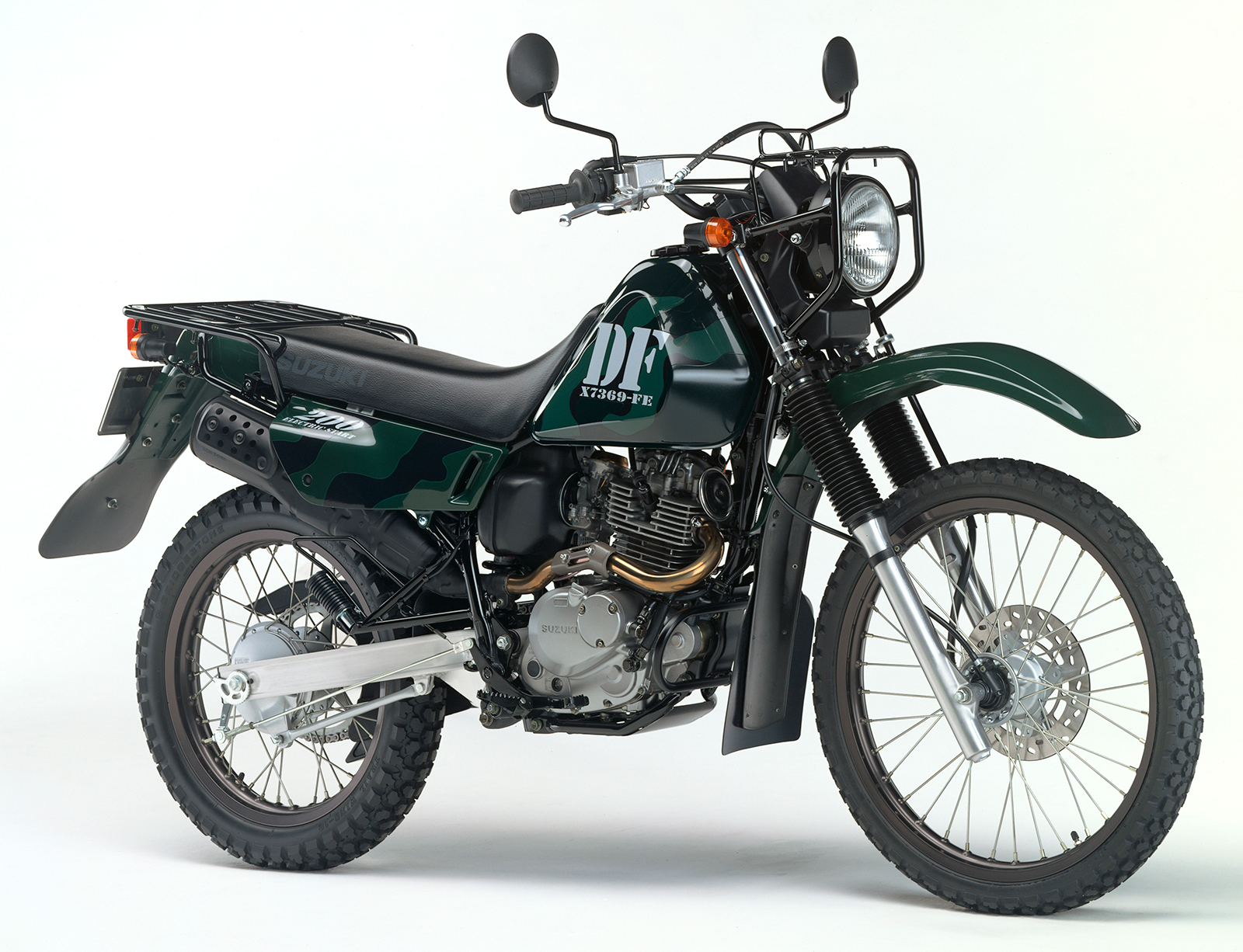

1997 |DF200E
Heavy-duty street bike
The DF200E is an uncompromising off-roader that combines a wide range of functional components specially designed for the big outdoors with new street bike trends to attract young riders. It pairs a slim and robust diamond-shaped frame with an air-cooled SOHC engine famous for its strength and endurance. Distinguishing features of the DF200E include an oil cooler, clip-on headlight housing, imposing engine protector, foot guards, large front and rear mud flaps, a heavy-duty chain case, and spacious rear carrier. This impressive collection of sturdy and practical equipment is perfectly suited for a wide range of activities off the beaten track. With a comfortable seat height of 795 mm and a large-capacity 13-liter fuel tank for long-distance rides, this is an easy- and fun-to-ride bike suited to both city streets and no-holds-barred off-road touring.
Dimensions and weight | Dimensions | Overall length | 2,210 mm |
Overall width | 805 mm | ||
Overall height | 1,180 mm | ||
Wheelbase | 1,405 mm | ||
Weight | 114 kg (Dry) | ||
Engine | Engine type | 4-stroke, 1-cylinder, air-cooled, SOHC | |
Engine displacement | 199 cm³ | ||
Bore x stroke | 66.0 mm × 58.2 mm | ||
Maximum power | 14.7kW(20PS) / 8,500rpm | ||
Maximum torque | 17.7N-m / 7,000rpm | ||
Transmission | 5-speed constant mesh | ||
Front tire size | 70/100-21 44P | ||
Rear tire size | 100/90-18 56P |
