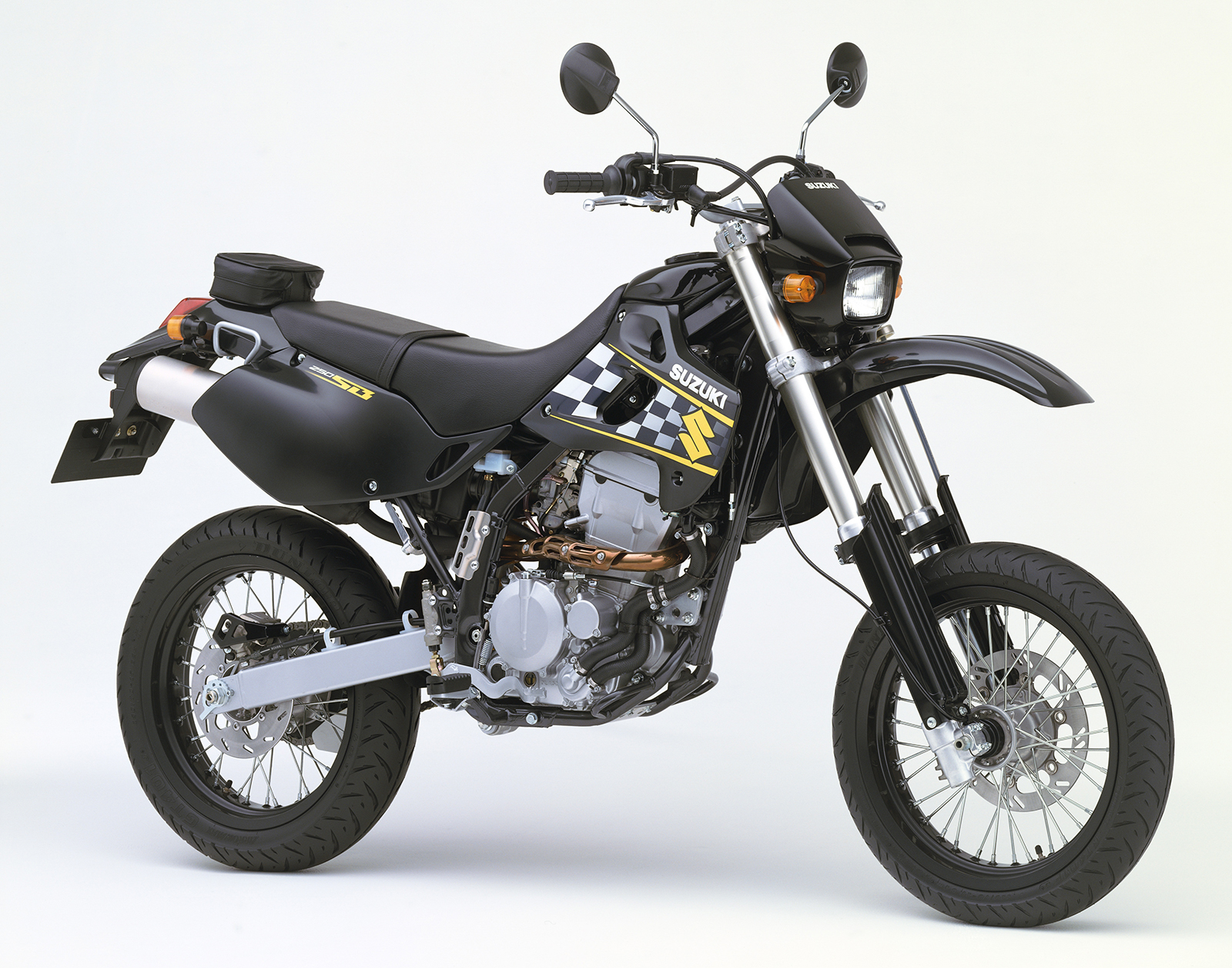

2002 |250SB

Streetwise sportbike with an off-road flavor


The 250SB is a dynamic sportbike on an offroader chassis that was developed to appeal to younger riders who actively use motorcycles to move around the city. This model features a lightweight and compact 250 cm³ 4-stroke liquid-cooled 1-cylinder DOHC 4-valve engine with 2 radiators, which generates punchy output up to 21 kW (29 PS). The 250SB is equipped with inverted front forks and a single link-type rear suspension. Other features include 17-inch road tires, excellent visibility from a high riding position, and smooth turning performance. The 250SB is based on the D-TRACKER, a model produced and sold by Kawasaki Heavy Industries, Ltd., which supplied the 250SB to Suzuki on an OEM basis.

Dimensions and weight Dimensions Overall length 2,065 mm
Overall width 790 mm
Overall height 1,175 mm
Wheelbase 1,435 mm
Weight 119 kg (Dry)
Engine Engine type 4-stroke, 1-cylinder, liquid-cooled, DOHC
Engine displacement 249 cm³
Bore x stroke 72.0 mm × 61.2 mm
Maximum power 21kW(29PS) / 9,000rpm
Maximum torque 25N-m / 7,000rpm
Transmission 6-speed constant mesh
Front tire size 110/70-17 54H
Rear tire size 130/70-17 62H
