2000 ｜ DR-Z400S
Lightweight, high power dual purpose bike
The DR-Z400S is a dual purpose bike perfectly suited for a wide range of scenarios from sporty off-road riding to touring and city streets. It features a lightweight, compact, and powerful 400 cm³ 4-stroke liquid-cooled 1-cylinder DOHC 4-valve engine. The combination of a lightweight and highly rigid frame and the incorporation of thorough weight reduction measures into the design create a dry weight of only 129 kg, resulting in superb riding performance. Both the front and rear suspensions have adjustable play with a long stroke to ensure rideability and excellent stability over unpaved roads. The DR-Z400 enduro racing bike also debuted at the same time.
| Dimensions and weight | Dimensions | Overall length | 2,310 mm |
| Overall width | 875 mm | ||
| Overall height | 1,235 mm | ||
| Wheelbase | 1,475 mm | ||
| Weight | 129 kg (Dry) | ||
| Engine | Engine type | 4-stroke, 1-cylinder, liquid-cooled, DOHC | |
| Engine displacement | 398 cm³ | ||
| Bore x stroke | 90.0 mm × 62.6 mm | ||
| Maximum power | 29kW(40PS) / 7,500rpm | ||
| Maximum torque | 39N-m / 6,500rpm | ||
| Transmission | 5-speed constant mesh | ||
| Front tire size | 80/100-21 51P | ||
| Rear tire size | 120/90-18 65P | ||

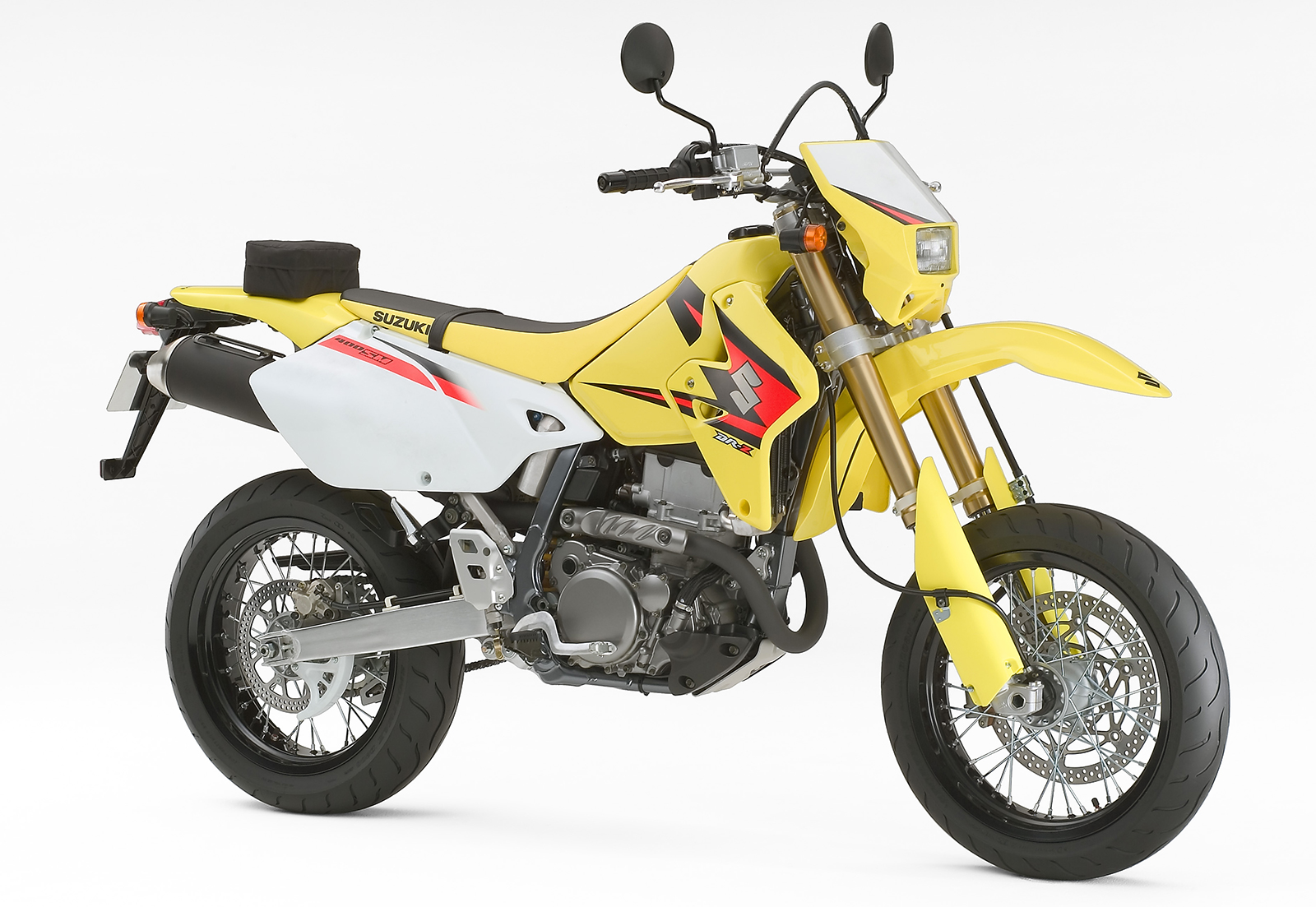

2004 ｜DR-Z400SM
Supermotard that breaks new ground of riding potential
Based on the DR-Z400S, the DR-Z400SM was developed as an on-road street bike inspired by supermoto. Equipped with a lightweight and compact 400 cm³ 4-stroke liquid-cooled 1-cylinder DOHC engine, the DR-Z400SM is renowned for its power and rideability. To realize excellent road holding performance, the front suspension features the same inverted front forks as adopted by Suzuki’s RM series of motocross bikes. A tapered swingarm at the rear wheel creates a narrower axle area, helping to enhance rigidity and realize nimble handling. In addition, the adoption of lightweight wide aluminum rims and on-road 17-inch high-grip tires helps to ensure sporty fun-to-ride performance.
| Dimensions and weight | Dimensions | Overall length | 2,225 mm |
| Overall width | 870 mm | ||
| Overall height | 1,185 mm | ||
| Wheelbase | 1,460 mm | ||
| Weight | 133 kg (Dry) | ||
| Engine | Engine type | 4-stroke, 1-cylinder, liquid-cooled, DOHC | |
| Engine displacement | 398 cm³ | ||
| Bore x stroke | 90.0 mm × 62.6 mm | ||
| Maximum power | 29kW(40PS) / 7,500rpm | ||
| Maximum torque | 39N-m / 6,500rpm | ||
| Transmission | 5-speed constant mesh | ||
| Front tire size | 120/70R17M/C 58H | ||
| Rear tire size | 140/70R17M/C 66H | ||
