1971 | Hustler 50
Classical 50 cm³ scrambler style and smallest model in the Hustler series
The Hustler 50 is a classical scrambler that features Ceriani type front forks and a 5-speed transmission mounted on a pipe backbone frame. Its 50 cm³ 2-stroke 1-cylinder engine generates maximum horsepower of 6 PS and maximum torque of 5.1 N·m, delivering the gutsy performance essential for a scrambler. Original motocross racing kit parts were prepared so that the model can be converted into a genuine motocrosser. The debut of the Hustler 50 completed the full lineup of the Hustler series, which ranges from 50 to 250 cm³ models.
Dimensions and weight | Dimensions | Overall length | 1,800 mm |
Overall width | 830 mm | ||
Overall height | 990 mm | ||
Wheelbase | 1,185 mm | ||
Weight | 69.5 kg (Dry) | ||
Engine | Engine type | 2-stroke, 1-cylinder, air-cooled | |
Engine displacement | 49 cm³ | ||
Bore x stroke | 41.0 mm × 37.8 mm | ||
Maximum power | 4.4kW(6PS) / 8,500rpm | ||
Maximum torque | 5.1N-m / 7,500rpm | ||
Transmission | 5-speed constant mesh | ||
Front tire size | 2.25-17-4PR | ||
Rear tire size | 2.50-17-4PR |
1980 |Hustler 50
Powered-up 50 cm³ Hustler with totally new riding performance
The Hustler 50 features a full range of technologies that delivered outstanding performance in motocross grand prix events around the world. Its 50 cm³ 2-stroke 1-cylinder engine is equipped with Suzuki’s unique power reed valve and generates maximum horsepower of 6.7 PS, as well as smooth revs and stable torque from low- to high- rpm ranges. This engine has an upright aluminum cylinder with large cooling fins for extended off-road riding, and the forward-tilted inverted rear suspension ensures ample stroke. This model also adopts extremely grippy 19-inch front and 17-inch rear semi-knobby tires with a large block pattern.
Dimensions and weight | Dimensions | Overall length | 1,905 mm |
Overall width | 795 mm | ||
Overall height | 1,055 mm | ||
Wheelbase | 1,210 mm | ||
Weight | 74.5 kg (Dry) | ||
Engine | Engine type | 2-stroke, 1-cylinder, air-cooled | |
Engine displacement | 49 cm³ | ||
Bore x stroke | 41.0 mm × 37.8 mm | ||
Maximum power | 4.9kW(6.7PS) / 8,500rpm | ||
Maximum torque | 5.8N-m / 7,500rpm | ||
Transmission | 5-speed constant mesh | ||
Front tire size | 2.50-19-4PR | ||
Rear tire size | 3.00-17-4PR |

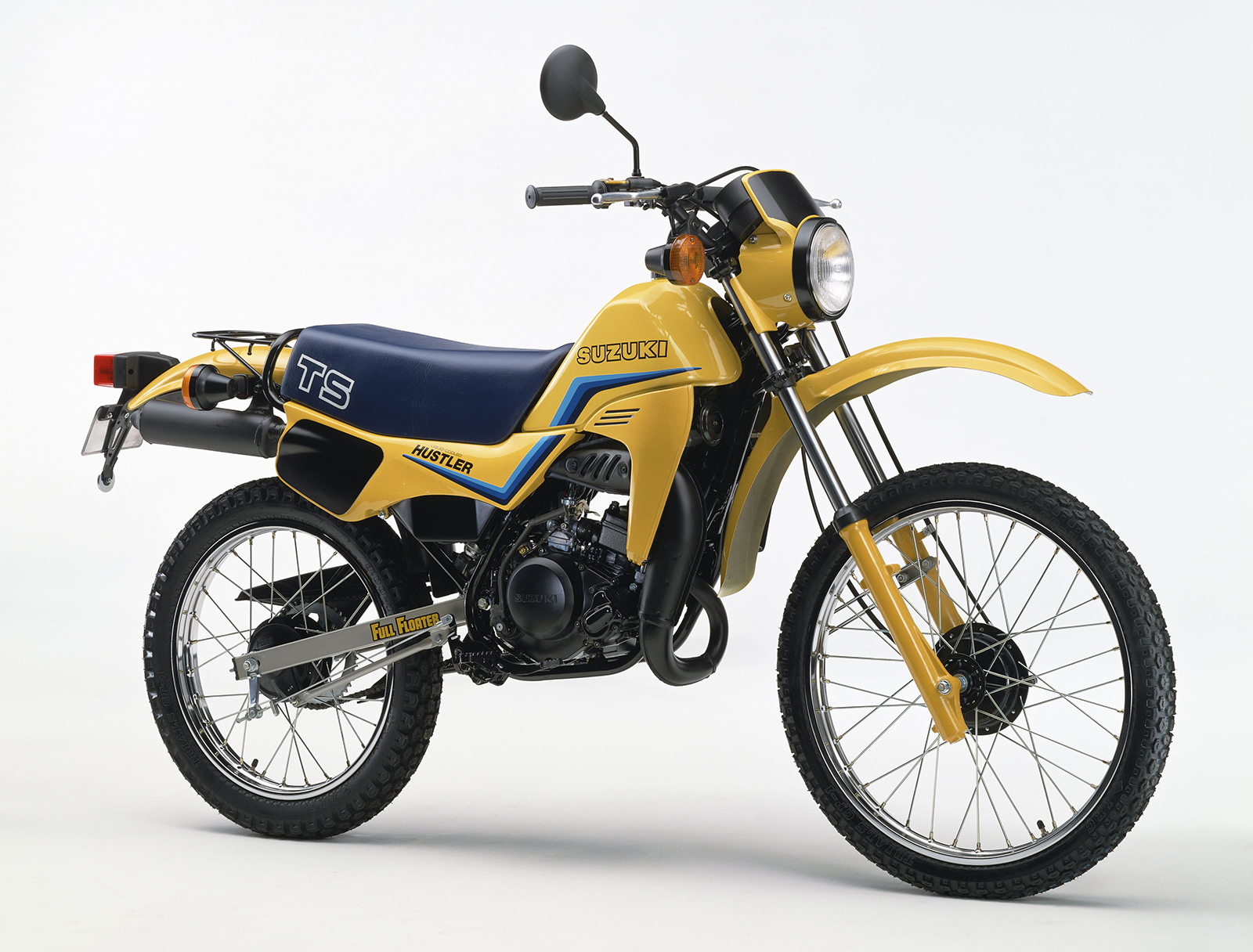

1983 |Hustler 50
True entry-level off-road model
The Hustler 50 is equipped with the 50 cm³ 2-stroke liquid-cooled 1-cylinder engine that was successfully adopted in models such as the RM series. Gutsy torque in the low- and mid-rpm ranges is enhanced by the adoption of a power reed valve. Liquid cooling prevents any reduction in performance due to overheating when ridden for extended periods of time, helping to realize a new level of endurance and quietness. In addition, the Hustler 50 also features long stroke front and rear suspensions, including the Full-Floater rear suspension with a square pipe swingarm, as well as a large-diameter 21-inch front tire to enhance road handling.
Dimensions and weight | Dimensions | Overall length | 2,045 mm |
Overall width | 810 mm | ||
Overall height | 1,115 mm | ||
Wheelbase | 1,315 mm | ||
Weight | 77 kg (Dry) | ||
Engine | Engine type | 2-stroke, 1-cylinder, liquid-cooled | |
Engine displacement | 49 cm³ | ||
Bore x stroke | 41.0 mm × 37.8 mm | ||
Maximum power | 5.3kW(7.2PS) / 8,000rpm | ||
Maximum torque | 6.5N-m / 7,500rpm | ||
Transmission | 6-speed constant mesh | ||
Front tire size | 2.50-21-4PR | ||
Rear tire size | 3.00-18-4PR |
