SUZUKI MULTI-FUNCTION DISPLAY

The all Multi-Function Display and its features offer you access to all the information you need to be assured for a comfortable and Ultimate boating experience.

Connected to Planet Earth

SUZUKI MULTI-FUNCTION DISPLAY PRODUCT LINEUP

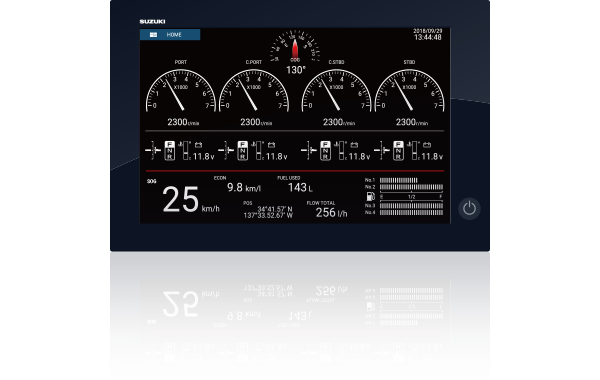

SMD16

16" Multi-Function Display

Picture of SMD16

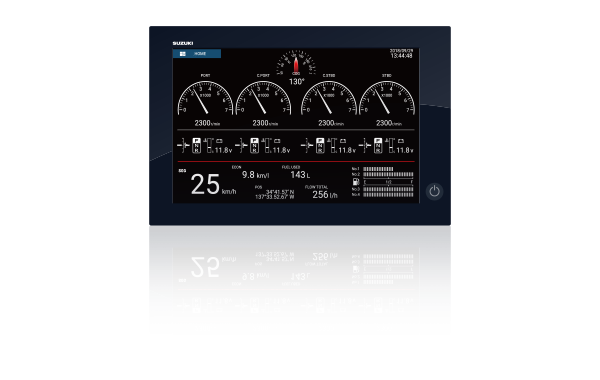

SMD12

12" Multi-Function Display

Picture of SMD12

SMD9

9" Multi-Function Display

Picture of SMD9

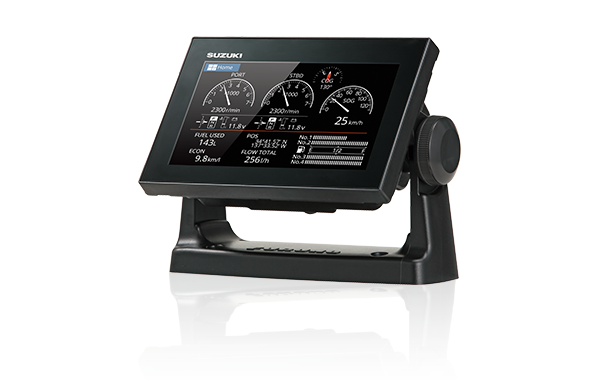

SMD7

7" Multi-Function Display

Picture of SMD7
Picture of SUZUKI MULTI-FUNCTION Picture of SUZUKI MULTI-FUNCTION

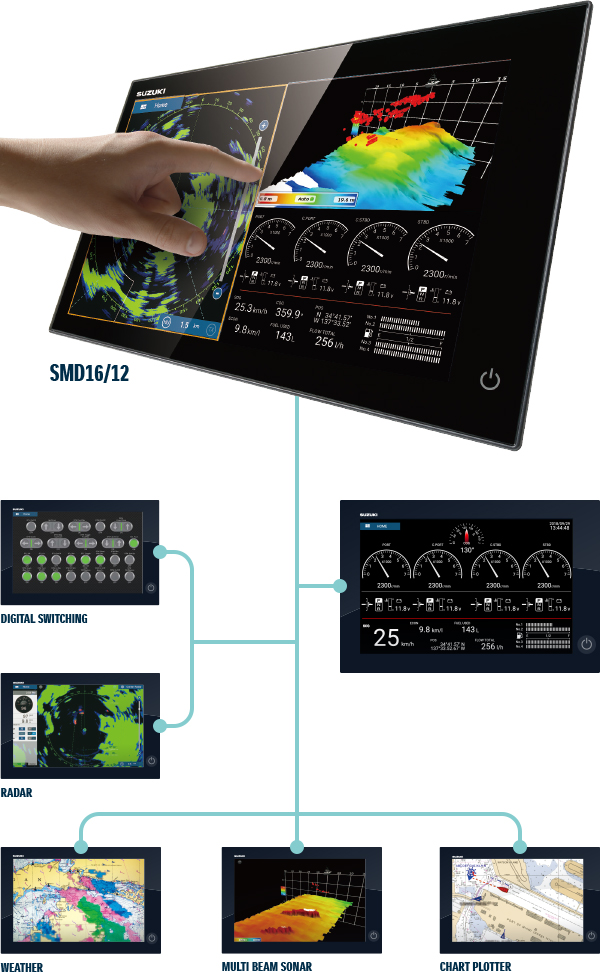

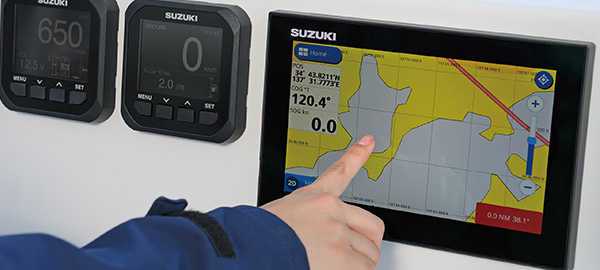

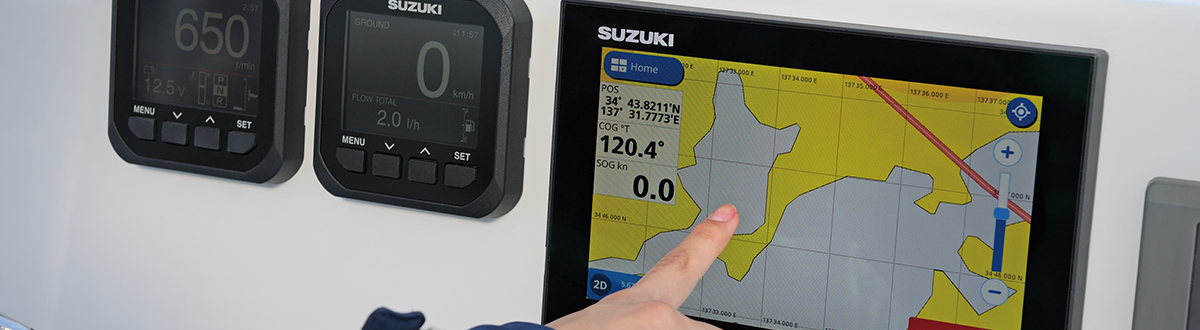

ULTIMATE CONNECTIVITY

With the Multi-Function Display your boat and engine can now be connected to global weather and be in touch with your surrounding environment as well as control and operate all your other devices on your boat.
Control at the touch of a finger with the touch screen glass top design. Available in 7, 9, 12 and 16inch screens.

Diagram of ULTIMATE CONNECTIVITY Diagram of ULTIMATE CONNECTIVITY

KEY BENEFIT

The Suzuki Multi-Function Display gives you access to all your Suzuki engine information so you can easily and quickly see the performance of your outboard/s in one clear view.

SUZUKI Diagnostic System Mobile (SDS Mobile) app

SDS Mobile works in tandem with our Multi-Function Display. Simply download the app, which is available on iOS and Android, to your smartphone: you don’t need a separate device.
Output the data from the diagnosis menu on the display, and you’ll see three QR codes appear.
Scan them with your smartphone, and you instantly upload data including the engine number, number of hours since the last oil change, total engine hours and hours of operation at different rpm.
The data is stored in your smartphone in a file that you can email straight to your dealer from the app.
The SDS Mobile app and email service is entirely free of charge.

Diagram of SUZUKI Diagnostic System Mobile (SDS Mobile) app

RECOMMENDED OPTIONAL INSTRUMENTS FOR MULTI-FUNCTION DISPLAY BY FURUNO

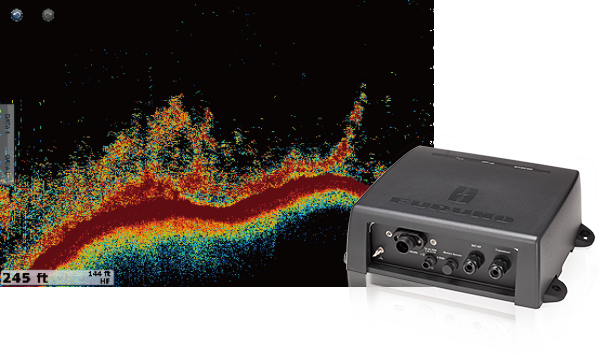

FISH FINDER

Diagram of FISH FINDER

BBDS1SMD 16 / 12

Bottom Discrimination Sounder

  • Enhanced detection of fish echoes using FURUNO Digital Filter (FDFTM) Fish Finder technology
  • Dual frequency, 50 kHz and 200 kHz
Display ModesSingle (50 or 200 kHz), Dual (50 and 200 kHz), Bottom-lock, Bottom-Zoom, ACCU-FISHTM, Bottom Discrimination, A-scope
Range ScaleMax. 1,200 m
Power Supply12-24 VDC, 12 W, 1.1-0.4 A
Transducers600 W/1 kW*, 50/200 kHz
* Optional Matching Box, MB-1100 may be required.

DFF1-UHDSMD 16 / 12

Network TruEcho CHIRPTMFish Finder

  • TruEcho CHIRPTM technology
  • Designed to operate over a broadband range of frequencies utilizing a broadband transducer
  • Clear presentation separates bottom structure from bottom fish, and bait fish from game fish
Display ModesSingle (High or Low frequency), Dual (Both High and Low frequencies), Bottom-lock, Bottom-Zoom, ACCU-FISHTM, Bottom Discrimination, A-Scope
Range ScaleMax. 1,200 m
Power Supply12-24 VDC, 30 W, 2.8-1.4 A
Transducers1 kW, Broadband transducers 42-65 kHz (low), 130-210 kHz (high)

DFF3SMD 16 / 12

Network Fish Finder

  • Enhanced detection of fish echoes using FURUNO Digital Filter (FDFTM) Fish Finder technology
  • FURUNO Free Synthesizer transceiver to let you choose any two operating frequencies from 28 to 200 kHz
Display ModesSingle (high or low), Dual (high and low), Bottom-lock, Bottom-Zoom, ACCU-FISHTM*, A-scope
* With Transducer (50/200-1T) only.
Range ScaleMax. 3,000 m
Power Supply12-24 VDC, 30 W, 3.5 A
Transducers1/2/3 kW, Frequency: 28, 38, 50, 68, 82, 88, 107, 150, 200 kHz, 50/200 kHz

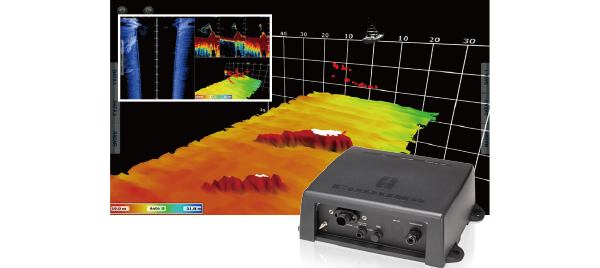

MULTI BEAM SONAR

DFF-3DSMD 16 / 12

Network Multi Beam Sonar

Diagram of DFF-3D
  • Sidebar detection range is up to 200 m in a 120-degree swath port and starboard direction*
  • Deep water, main beam penetration directly under the boat is approx. 300 m*
  • * Maximum depth depending on installation, bottom type and water conditions.

Display ModesCross Section, Triple/Single Beam Sounder, Side Scan, 3D Sounder History
Range ScaleMax. 1,200 m
Power Supply12-24 VDC, 1.4-0.7 A
Transducers800 W, 2 types (thru-hull and transom mount)

RADAR

Diagram of RADAR

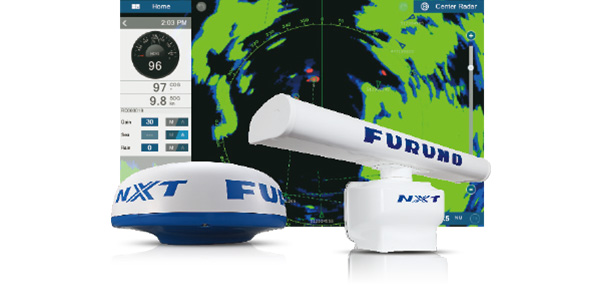

DRS4D-NXT/DRS6A-NXTSMD 16 / 12

Solid State Radar Sensor

Diagram of DRS4D-NXT/DRS6A-NXT
  • Solid-State pulse compression Doppler Radar
  • Revolutionary Target AnalyzerTM function instantly identifies hazardous targets
  • Fast Target TrackingTM and Auto Target Acquire function, up to 100 targets
  • Bird Mode to find the best fishing grounds by tracking birds
Peak Output PowerSolid-state, 25 W
TypeDRS4D-NXT: ø610 mm Radome (24"), DRS6A-NXT: 1036 mm Open (3.5')/1255 mm Open (4')/1795 mm Open (6')
Antenna Rotation Speed24*/36/48 rpm range coupled or 24 rpm fixed
* In dual range mode, speed is limited to 24 rpm.
Power Supply12-24 VDC, DRS4D-NXT: 2.5-1.3 A, DRS6ANXT: 9.5/5.0 A

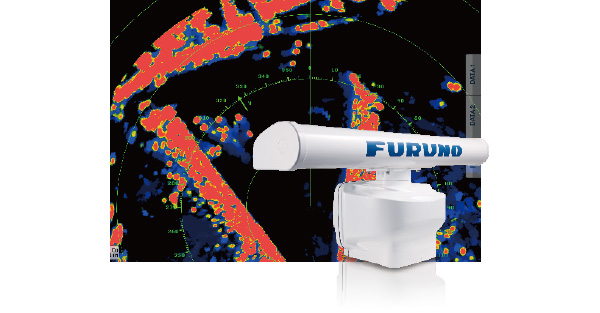

DRS6A X-CLASSSMD 16 / 12

Radar Sensor

Diagram of DRS6A X-CLASS
  • Enhanced target detection, both short and long range
  • Bird mode helps you identify birds, adjusting the gain and sea settings automatically for optimal visibility
  • Fast Target TrackingTM, takes only seconds for a speed and course vector to be displayed
Peak Output Power6 kW
Type1036 mm Open (3.5')/1255 mm Open (4')/1795 mm Open (6')
Antenna Rotation Speed24/36/48 rpm range coupled or 24 rpm fixed
Power Supply24 VDC, 4 A

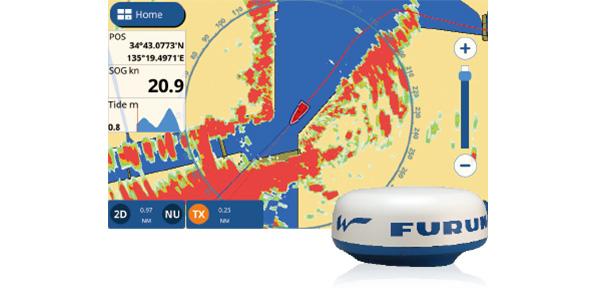

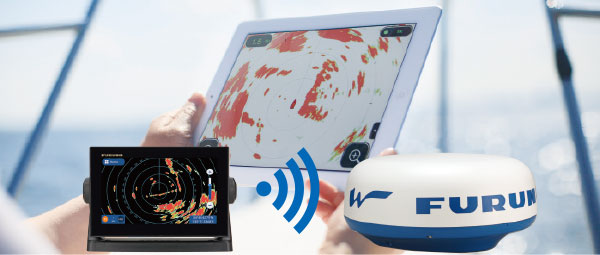

DRS4WSMD 9 / 7

1st Watch Wireless Radar

Diagram of DRS4W
  • 4 kW Radar antenna, powerful yet compact in size
  • Wireless LAN, no extra wiring needed except the power source, making installation a breeze.
Peak Output Power4 kW
Typeø488 mm Radome (19")
Antenna Rotation Speed24 rpm
Power Supply12-24 VDC, 2.1-1.0 A max.

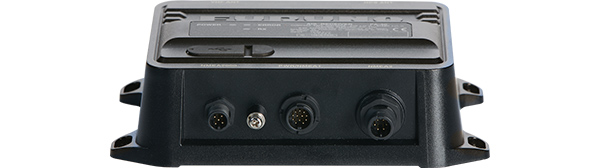

AIS RECEIVER

FA-40ALL SERIES

Picture of FA-40
  • Enhances navigation by receiving critical navigation information from local AIS-equipped vessels
Power Supply12-24 VDC, 0.3-0.2 A

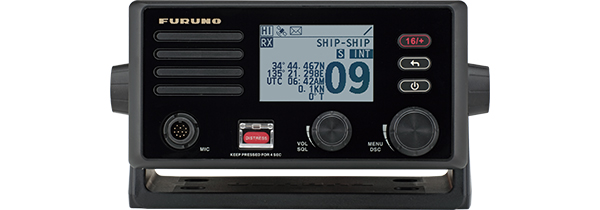

VHF RADIO TELEPHONE

FM-4800ALL SERIES

VHF RadioTelephone with bult-in AIS Receiver

Picture of FM-4800
  • Built-in AIS Receiver for situational awareness
  • Built-in 72 channels GPS Receiver
  • 25 W/1 W output power
  • Class D DSC with Distress, Individual and All Ship calls
  • 30 W PA/Loud Hailer with automatic fog signals and listen back
AIS ReceiverReceiving Frequency (CH): 161.975 MHz (AIS1), 162.025 MHz (AIS2)
Output PowerTransmitter: 25 W max., 1 W at power reduction. Loud Hailer/Fog Horn: 30 W max. (4 ohm)
Power Supply12 VDC (-10% to +30%), 5.0 A max.

SATELLITE COMPASS / HEADING SENSOR

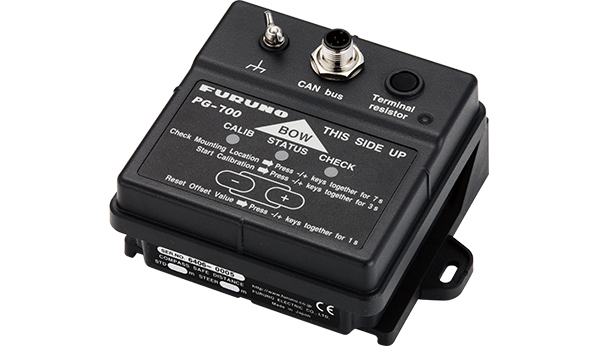

PG-700ALL SERIES

Integrated Heading Sensor

Picture of PG-700
  • Provides heading data of high accuracy
  • Black box type fluxgate magnetic sensor
  • CAN bus interface incorporated
Heading Accuracy±1.0° (horizontal)
PortCAN bus: 1
Power Supply12 VDC: 0.1 A (LEN: 3)

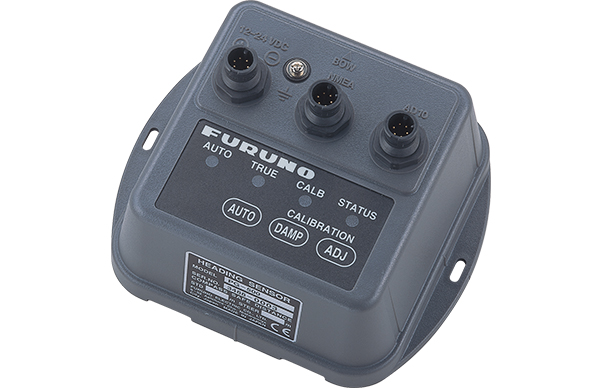

PG-500ALL SERIES

Integrated Heading Sensor

Picture of PG-500
  • Inexpensive heading sensor with the highest accuracy and stability in this class of equipment
  • High stability for a solid-state rate gyroscope
Heading Accuracy±1.0° (horizontal)
PortNMEA0183 Input: 1, Output: 2 ports (one port drives 3 outputs)
Power Supply12-24 VDC: 120-30 mA

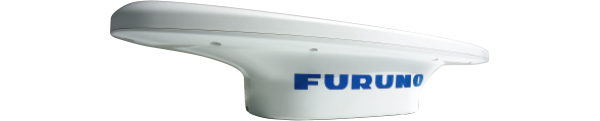

SC-33ALL SERIES

Satellite CompassTM

Picture of SC-33
  • Provides highly accurate heading data for Autopilot, Radar, and Chart Plotter
Heading Accuracy0.4° rms
PortNMEA2000:1 Port
Power Supply12-24 VDC: 0.4-0.2 A, LEN11

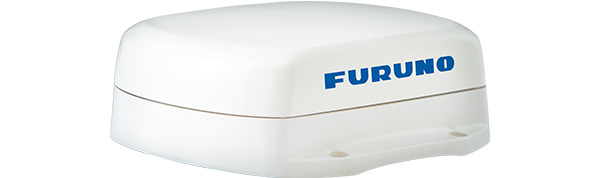

SCX-20ALL SERIES

Satellite CompassTM

Picture of SCX-20
  • Provides accurate heading data for Autopilot, Radar, and Chart Plotter
Heading Accuracy1.0° rms
PortNMEA2000:1 Port
Power Supply12-24 VDC: 0.2-0.1 A, LEN4

DISPLAY UNIT

Type7" Wide Color TFT LCD
Screen Size154 x 85 mm
Screen ResolutionWVGA 800 x 480 pixels
Screen Brightness1000 cd/m2 (typical)
LanguageEnglish (US & UK), French, Spanish, German, Italian, Portuguese, Danish, Swedish, Norwegian, Finnish, Greek, Japanese
Display ModesChart Plotter, Fish Finder, Radar*1, AIS*2, Instruments*3 (Nav Data, Engine, Wind, Fuel tank, Autopilot*4, etc.), GPS status, Weather Forecast
*1: Connection to the 1st Watch Wireless Radar DRS4W required *2: Connection to AIS sensor required *3: Connection to external sensors required
*4: Connection to the FURUNO NAVpilot-300 required
Memory Capacity30,000 points for ship's track and waypoints 1,000 planned routes (Max. 50 points per route) 5,000 quickpoints

GPS/WAAS

Receiver TypeGPS:72 channels / SBAS:1 channel (C/A mode, WAAS)
Receiving FrequencyL1 (1575.42 MHz)
Time to First FIX100 s (cold start)
Tracking Velocity999 kn
SBASWAAS, EGNOS, MSAS

ACCURACY

Internal AntennaGPS:10 m Max / WAAS:5 m Max / MSAS:7.5 m Max

CHART PLOTTER

CartographyC-MAP 4D
AlarmsAnchor, Depth, Arrival, Speed, Trip, Temperature, etc

RADAR

Display ModesHead-up, North-up*
*Heading input required.
Target Tracking**N/A

FISH FINDER (Built-in)

Transmit FrequencyCW: 50/200 kHz, CHIRP: 40 to 225 kHz
Transducer300 W or 600 W or 1 kW* (Transducer dependent) *Matching Box MB-1100 required for some specific FURUNO transducers
ModesTrueEcho CHIRPTM*, RezBoostTM**, ACCU-FISHTM**, Bottom Discrimination**, Auto gain (Fishing/Cruising), Manual gain, A-Scope, Marker Zoom, Bottom Zoom, Bottom Lock * CHIRP dedicated transducer required. ** Dual frequency compatible transducer required.

INTERFACE

CAN bus/NMEA20001 Port
Interface
(CAN bus/NMEA2000)
Input:126992, 127245/ 250/ 251/ 258/ 489/ 493/ 497/ 505, 128259/ 267/ 275, 129025/ 026/ 029/ 038/ 039/ 040/ 041/ 285/ 538/ 540, 129793/ 794/ 798/ 808/ 809/ 810, 130306/ 310/ 311/ 312/ 313/ 314/ 316, 130577/ 830/ 831/ 832/ 880
Output:126992, 127245/ 250/ 251/ 257/ 258/ 505, 128259/ 267/ 275, 129025/ 026/ 029/ 033/ 283/ 284/ 285, 130310/ 312/ 316/ 830/ 831/ 832
NMEA01831 Port
Interface (NMEA0183) OutputAAM, APB, BOD, BWR, DBT, DPT, GGA, GLL, GNS, GSA, GSV, GTD, HDG, HDT, MTW, MWV, RMA, RMB, RMC, RTE, THS, TLL, VHW, VTG, WPL, XTE, ZDA, PFEC (SDmrk/ SDtbd/ SDtfl/ pidat)
LANN/A
USBN/A
Video OutputN/A
Video InputN/A
AUX I/ON/A
SD Card Slot2 Slots, up to 32 GB (SD, SDHC Supported)
Wireless LANIEEE 802.11 b/g/n

ENVIRONMENT

Temperature (IEC60945)-15°C to +55°C
WaterproofingIP56

POWER

Power12-24 VDC / 1.0-0.5 A

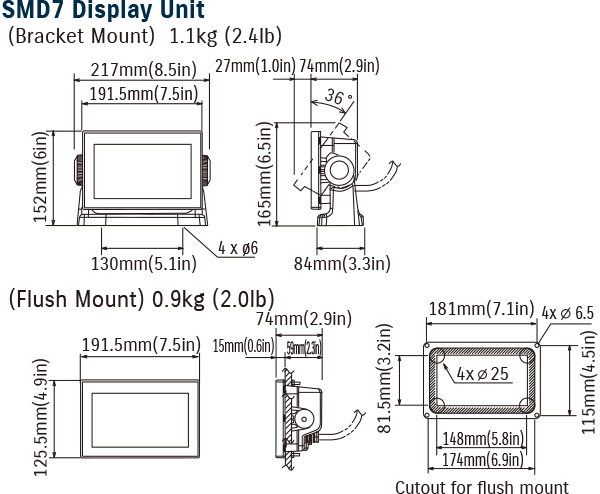

Diagram of SMD7 Display Unit

DISPLAY UNIT

Type9" Wide Color TFT LCD
Screen Size199 x 113 mm
Screen ResolutionWVGA 800 x 480 pixels
Screen Brightness1000 cd/m2 (typical)
LanguageEnglish (US & UK), French, Spanish, German, Italian, Portuguese, Danish, Swedish, Norwegian, Finnish, Greek, Japanese
Display ModesChart Plotter, Fish Finder, Radar*1, AIS*2, Instruments*3 (Nav Data, Engine, Wind, Fuel tank, Autopilot*4, etc.), GPS status, Weather Forecast
*1: Connection to the 1st Watch Wireless Radar DRS4W required *2: Connection to AIS sensor required *3: Connection to external sensors required
*4: Connection to the FURUNO NAVpilot-300 required
Memory Capacity30,000 points for ship's track and waypoints 1,000 planned routes (Max. 50 points per route) 5,000 quickpoints

GPS/WAAS

Receiver TypeGPS:72 channels / SBAS:1 channel (C/A mode, WAAS)
Receiving FrequencyL1 (1575.42 MHz)
Time to First FIX100 s (cold start)
Tracking Velocity999 kn
SBASWAAS, EGNOS, MSAS

ACCURACY

Internal AntennaGPS:10 m Max / WAAS:5 m Max / MSAS:7.5 m Max

CHART PLOTTER

CartographyC-MAP 4D
AlarmsAnchor, Depth, Arrival, Speed, Trip, Temperature, etc

RADAR

Display ModesHead-up, North-up*
*Heading input required.
Target Tracking**N/A

FISH FINDER (Built-in)

Transmit FrequencyCW: 50/200 kHz, CHIRP: 40 to 225 kHz
Transducer300 W or 600 W or 1 kW* (Transducer dependent) *Matching Box MB-1100 required for some specific FURUNO transducers
ModesTrueEcho CHIRPTM*, RezBoostTM**, ACCU-FISHTM**, Bottom Discrimination**, Auto gain (Fishing/Cruising), Manual gain, A-Scope, Marker Zoom, Bottom Zoom, Bottom Lock * CHIRP dedicated transducer required. ** Dual frequency compatible transducer required.

INTERFACE

CAN bus/NMEA20001 Port
Interface
(CAN bus/NMEA2000)
Input:126992, 127245/ 250/ 251/ 258/ 489/ 493/ 497/ 505, 128259/ 267/ 275, 129025/ 026/ 029/ 038/ 039/ 040/ 041/ 285/ 538/ 540, 129793/ 794/ 798/ 808/ 809/ 810, 130306/ 310/ 311/ 312/ 313/ 314/ 316, 130577/ 830/ 831/ 832/ 880
Output:126992, 127245/ 250/ 251/ 257/ 258/ 505, 128259/ 267/ 275, 129025/ 026/ 029/ 033/ 283/ 284/ 285, 130310/ 312/ 316/ 830/ 831/ 832
NMEA01831 Port
Interface (NMEA0183) OutputAAM, APB, BOD, BWR, DBT, DPT, GGA, GLL, GNS, GSA, GSV, GTD, HDG, HDT, MTW, MWV, RMA, RMB, RMC, RTE, THS, TLL, VHW, VTG, WPL, XTE, ZDA, PFEC (SDmrk/ SDtbd/ SDtfl/ pidat)
LANN/A
USBN/A
Video OutputN/A
Video InputN/A
AUX I/ON/A
SD Card Slot2 Slots, up to 32 GB (SD, SDHC Supported)
Wireless LANIEEE 802.11 b/g/n

ENVIRONMENT

Temperature (IEC60945)-15°C to +55°C
WaterproofingIP56

POWER

Power12-24 VDC / 1.0-0.5 A

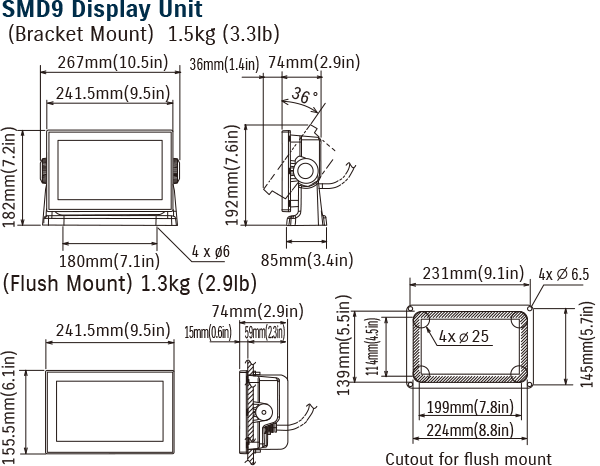

Diagram of SMD9 Display Unit

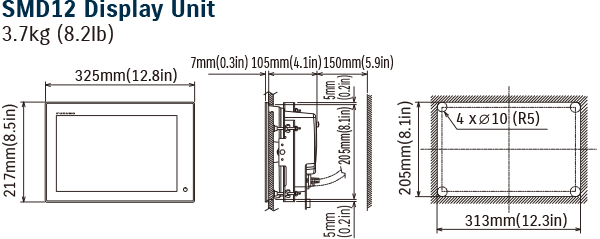

DISPLAY UNIT

TypeColor TFT multi touch LCD
Screen Size12.1" Wide
Screen ResolutionWXGA 1280 x 800 pixels
Screen Brightness1300 cd/m2 (typical)
LanguageChinese (simplified Chinese Characters), Danish, English (US & UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish
Display ModesGPS/WAAS/RADAR: Course plot, NAV data, Radar Chart Overlay, Head-up, North-up (heading data required), Fish Finder: ACCU-FISHTM, A-scope, Auto (Fishing/ Cruising), Bottom Discrimination, Others: Weather Forecast, Digital switching, Marine Audio
Memory Capacity30,000 user points, 30,000 points for ship's tracks, 200 planned routes (500 points per route)

GPS/WAAS

Receiver TypeGPS:56 channels / SBAS:1 channel (C/A mode, WAAS)
Receiving FrequencyL1 (1575.42 MHz)
Time to First FIX100 s (cold start)
Tracking Velocity999 kn
SBASWAAS, EGNOS, MSAS

ACCURACY

Internal AntennaGPS:10 m Max / WAAS:3 m Max / MSAS:7 m Max

CHART PLOTTER

CartographyMapMedia mm3d chart (C-MAP/Navionics/NOAA)
AlarmsAnchor Watch, XTE, Proximity, Depth, Temperature, Speed, etc.

RADAR

Display ModesHead-up, North-up*
*Heading input required.
Target Tracking**30 Targets*
*Heading input required.

FISH FINDER (Built-in)

Transmit Frequency50/200 kHz
Transducer600 W or 1 kW*
*Matching Box MB-1100 required for some specific FURUNO transducers
ModesRezBoostTM, ACCU-FISHTM, Bottom Discrimination, A-Scope, Auto (Fishing/Cruising), Manual, Bottom Zoom, Bottom Lock

INTERFACE

CAN bus/NMEA20001 Port
Interface
(CAN bus/NMEA2000)
Input:059392, 059904, 061184, 060928, 065280, 126208, 126720, 126992/ 996, 127237/ 245/ 250/ 251/ 257/ 258/ 488/ 489/ 505, 128259/ 267, 129025/ 026/ 029/ 033/ 038/ 039/ 040/ 041/ 291/ 538/ 540, 129793/ 794/ 798/ 808/ 809/ 810, 130306/ 310/ 311/ 312/ 313/ 314/ 316/ 577/ 578/ 817/ 818/ 820/ 822/ 823/ 826/ 827/ 828/ 880
Output:126992/ 127250/ 127251/ 127257/ 127258/ 128259/ 128267/ 128275/ 129025/ 129026/ 129029/ 129033/ 129283/ 129284/ 129285/ 130306/ 130310/ 130312/ 130313/ 130314/ 130316
NMEA01831 Integrated Output Port
Interface (NMEA0183) OutputAAM, APB, BOD, GGA, GLL, GNS, GSA, GSV, RMB, RTE, VTG, WPL, XTE, ZDA, DPT***, DBT***, RMC***, TTM***
LAN1 Port (100BASE-TX)
USB1 Port (USB2.0)
Video Output1 Port (HDMI)
Video Input2 Ports (NTSC/PAL)
AUX I/O1 Port (External Event/MOB Input/Operator Fitness/Alarm Output)
SD Card Slot1 Slot (Micro SDXC, rear), 2 Slots Card Unit (optional)
Wireless LANIEEE802.11b/g/n, Transmit frequency: 2.4 GHz band

ENVIRONMENT

Temperature (IEC60945)-15°C to +55°C
WaterproofingIP56

POWER

Power12-24 VDC / 3.0-1.5 A

** Not available with DRS4DL

Diagram of SMD12 Display Unit

DISPLAY UNIT

TypeColor TFT multi touch LCD
Screen Size15.6" Wide
Screen ResolutionFWXGA 1366 x 768 pixels
Screen Brightness1000 cd/m2 (typical)
LanguageChinese (simplified Chinese Characters), Danish, English (US & UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish
Display ModesGPS/WAAS/RADAR: Course plot, NAV data, Radar Chart Overlay, Head-up, North-up (heading data required), Fish Finder: ACCU-FISHTM, A-scope, Auto (Fishing/ Cruising), Bottom Discrimination, Others: Weather Forecast, Digital switching, Marine Audio
Memory Capacity30,000 user points, 30,000 points for ship's tracks, 200 planned routes (500 points per route)

GPS/WAAS

Receiver TypeGPS:56 channels / SBAS:1 channel (C/A mode, WAAS)
Receiving FrequencyL1 (1575.42 MHz)
Time to First FIX100 s (cold start)
Tracking Velocity999 kn
SBASWAAS, EGNOS, MSAS

ACCURACY

Internal AntennaGPS:10 m Max / WAAS:3 m Max / MSAS:7 m Max

CHART PLOTTER

CartographyMapMedia mm3d chart (C-MAP/Navionics/NOAA)
AlarmsAnchor Watch, XTE, Proximity, Depth, Temperature, Speed, etc.

RADAR

Display ModesHead-up, North-up*
*Heading input required.
Target Tracking**30 Targets*
*Heading input required.

FISH FINDER (Built-in)

Transmit Frequency50/200 kHz
Transducer600 W or 1 kW*
*Matching Box MB-1100 required for some specific FURUNO transducers
ModesRezBoostTM, ACCU-FISHTM, Bottom Discrimination, A-Scope, Auto (Fishing/Cruising), Manual, Bottom Zoom, Bottom Lock

INTERFACE

CAN bus/NMEA20001 Port
Interface
(CAN bus/NMEA2000)
Input:059392, 059904, 061184, 060928, 065280, 126208, 126720, 126992/ 996, 127237/ 245/ 250/ 251/ 257/ 258/ 488/ 489/ 505, 128259/ 267, 129025/ 026/ 029/ 033/ 038/ 039/ 040/ 041/ 291/ 538/ 540, 129793/ 794/ 798/ 808/ 809/ 810, 130306/ 310/ 311/ 312/ 313/ 314/ 316/ 577/ 578/ 817/ 818/ 820/ 822/ 823/ 826/ 827/ 828/ 880
Output:126992/ 127250/ 127251/ 127257/ 127258/ 128259/ 128267/ 128275/ 129025/ 129026/ 129029/ 129033/ 129283/ 129284/ 129285/ 130306/ 130310/ 130312/ 130313/ 130314/ 130316
NMEA01831 Integrated Output Port
Interface (NMEA0183) OutputAAM, APB, BOD, GGA, GLL, GNS, GSA, GSV, RMB, RTE, VTG, WPL, XTE, ZDA, DPT***, DBT***, RMC***, TTM***
LAN1 Port (100BASE-TX)
USB1 Port (USB2.0)
Video Output1 Port (HDMI)
Video Input2 Ports (NTSC/PAL)
AUX I/O1 Port (External Event/MOB Input/Operator Fitness/Alarm Output)
SD Card Slot1 Slot (Micro SDXC, rear), 2 Slots Card Unit (optional)
Wireless LANIEEE802.11b/g/n, Transmit frequency: 2.4 GHz band

ENVIRONMENT

Temperature (IEC60945)-15°C to +55°C
WaterproofingIP56

POWER

Power12-24 VDC / 3.6-1.8 A

** Not available with DRS4DL

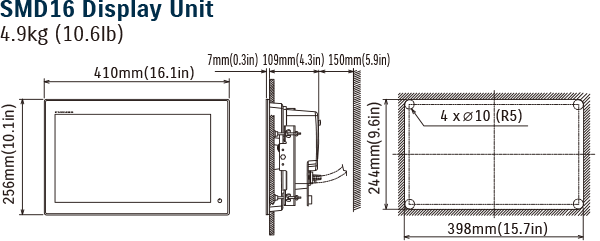

Diagram of SMD16 Display Unit

PROMOTIONAL VIDEO

Get information for your country or region.

GLOBAL LINKS

GLOBAL SUZUKI HOME > MARINE TOP PAGE > MODELS > SUZUKI MULTI-FUNCTION DISPLAY
