FOR COMMERCIAL USERS

CARGO SERIES

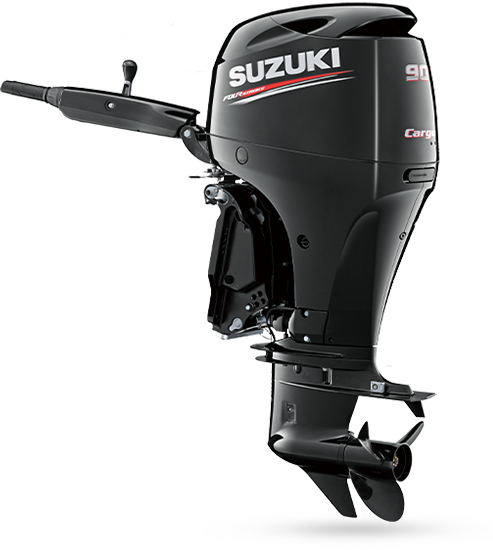

DF90AWQH

DF90AWQH

Suzuki’s first commercial series

GAS ASSIST + 4-STROKE ENGINE =
DEPENDABLE FRIEND FOR FISHERMEN

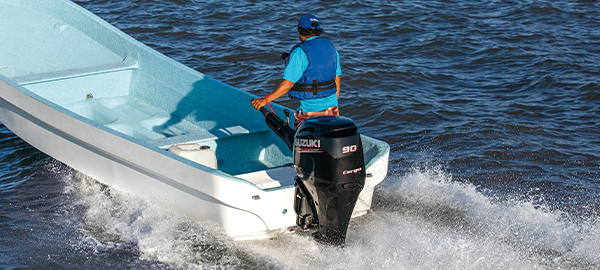

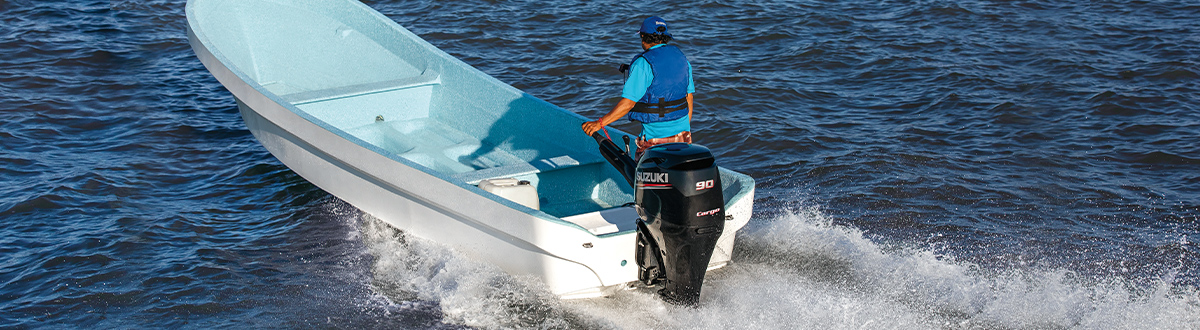

Picture of boat using DF90AWQH Picture of boat using DF90AWQH
CARGO SERIES ■Suzuki’s first commercial series ■Each model designed to fit the needs of commercial users ■Red stripe decal on side ■“Cargo” decal on back CARGO SERIES ■Suzuki’s first commercial series ■Each model designed to fit the needs of commercial users ■Red stripe decal on side ■“Cargo” decal on back

POWERFUL

  • Powerful Torque
  • Enable to use high Pitch Prop

FUEL EFFICIENT

  • Reduce Vibration
  • Excellent Fuel Efficiency

RELIABLE

  • High Durability Tilt-up
  • Prevent algae from Clogging up the water inlet
  • High Protect the Engine from Water in the Fuel
  • Protection Against Corrosion
  • Battery Chargable at Idle Speed

INNOVATIVE

  • Quick and Easy Trim up
  • Simplified Tiller Handle
  • Easy & Smooth Engine Start
Multi Point Sequential Electronic Fuel Injection
Off set Driveshaft
Two-Stage Gear Reduction System
Over-Rev. Limiter
Oil Change Reminder System
Low Oil Pressure Caution
Emergency Stop Switch
Fully Transistorized Ignition
Direct Ignition
Suzuki Easy Start System
Oil-Bathed Timing Chain
Start-in-Gear Protection
Gas Assisted Tilt
Streamed Gear Case
Anti-abrasion Water Pump Sleeve
Dual Freshwater Flushing Ports
Stainless Steel Propeller
Aluminum Propeller
Anti-Corrosion System
Sub Water Inlet

Code: ●=Standard Equip, ○=Optional Equip.

POWERFUL
  • GEAR RATIO
  • OFFSET DRIVESHAFT
RELIABLE
INNOVATIVE
  • GAS ASSIST SYSTEM

POWERFUL

OFFSET DRIVESHAFT

  • Reduces vibration and outboard size
  • Improves steering stability
Diagram of OFFSET DRIVESHAFT

FUEL EFFICIENT

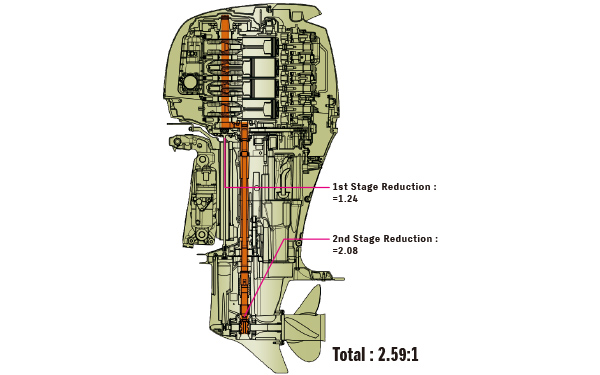

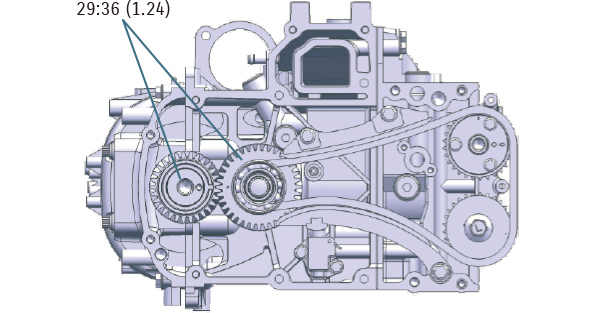

TWO-STAGE GEAR REDUCTION

  • Enables high torque
  • Maintains propeller rotation even when carrying heavy loads
Diagram of TWO-STAGE GEAR REDUCTION

EXCELLENT FUEL EFFICIENCY

  • Better fuel efficiency than 2-stroke engines
  • Improved fuel efficiency using the newly developed technology designed for professional use

RELIABLE

HIGH DURABILITY TILT-UP

  • Increased durability by using stainless rivet

SUB WATER INLET(OPTIONAL FUNCTION)

  • Prevents algae from clogging up the water inlets which causes the engine to overheat.

SUZUKI WATER DETECTION SYSTEM

  • Helps protect the engine from water in the fuel
  • Prevents poor combustion, lower power output, and corrosion

BATTERY CHARGEABLE AT IDLE SPEED

  • Long lasting battery and no need for battery charger

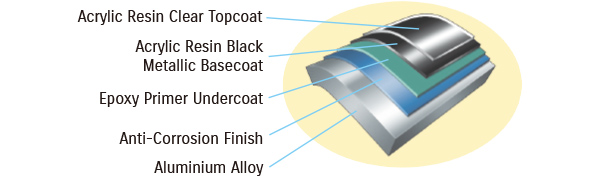

SUZUKI ANTI-CORROSION FINISH

  • Protection against corrosion helps increase the overall engine durability
Diagram of SUZUKI ANTI-CORROSION FINISH

INNOVATIVE

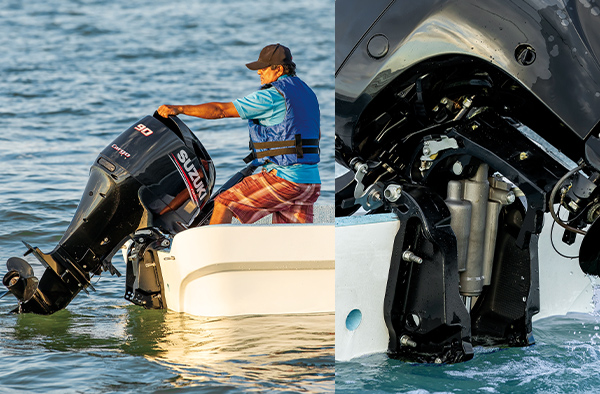

GAS ASSIST SYSTEM

  • Enables the outboard motor to be tilted up or down quickly with minimal force
  • First Suzuki 66.2kw (90ps) class outboard motor to have this feature
Picture of GAS ASSIST SYSTEM

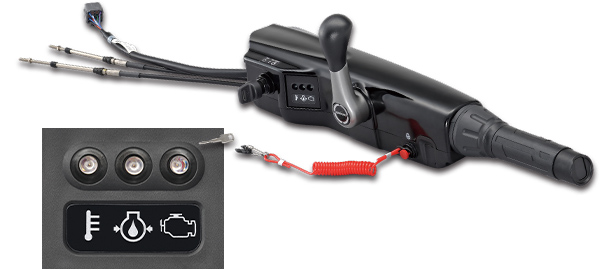

MULTI FUNCTION TILLER HANDLE(ADJUSTABLE 3 LEVELS)

  • Easy to use, simple tiller handle
  • Adjustable in 3 levels
Diagram of MULTI-FUNCTION TILLER HANDLE

SUZUKI EASY START SYSTEM

  • Starts the engine smoothing
ModelsDF90AWQH
SHAFT LENGTH mmL:508 (20”), X:635 (25”)
STARTING SYSTEMElectric
WEIGHT kg*L158, X162
ENGINE TYPEDOHC 16-Valve
FUEL DELIVERY SYSTEMMulti Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS4
PISTON DISPLACEMENT cm31,502
BORE X STROKE mm75 X 85
MAXIMUM OUTPUT kW (PS)66.2 (90)
FULL THROTTLE OPERATING RANGE rpm5,300–6,300
STEERINGTiller
OIL PAN CAPACITY Lit.4.3
IGNITION SYSTEMFully-transistorized
ALTERNATOR12V 27A
ENGINE MOUNTINGShear Mount
TRIM METHODGas Assisted Tilt
GEAR RATIO2.59:1
GEAR SHIFTF-N-R
EXHAUSTThrough Prop Hub Exhaust
DRIVE PROTECTIONRubber Hub
PROPELLER SELECTION (Pitch)
All propellers are the 3-blade type
13” — 25”

*Dry weight: Including battery cable, not including propeller and engine oil.

The appearance, colors, and equipment of outboard motors may differ according to market and grade.
Specifications may change without prior notice.
*Manufacture data
