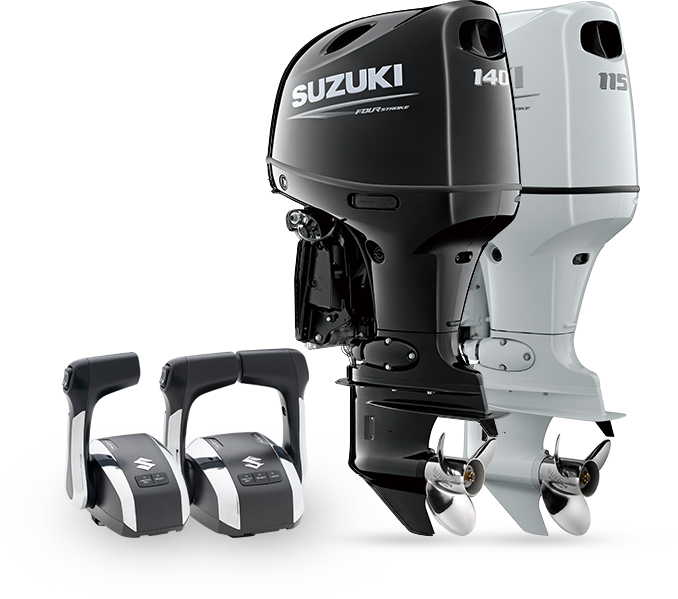

World's First Drive By Wire Model in 4-stroke 140 / 115PS.

IN-LINE 4 140-70HP

DF140BG / DF115BG

DF140BG/DF115BG

DF140A/115A's Reliability & Fuel Efficiency + Cutting Edge Technology.

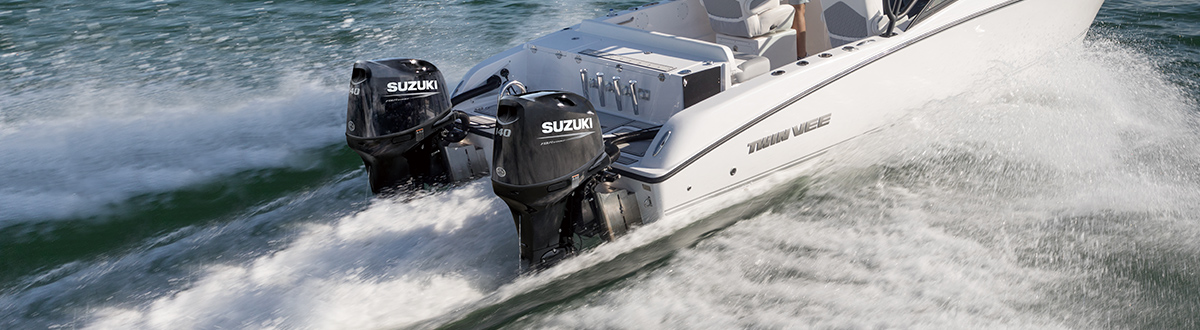

Picture of boat using DF140BG / DF115BG Picture of boat using DF140BG / DF115BG

Drive By Wire

  • Operation from the remote control is delivered to outboard via an electric signal and not by the traditional mechanical control cables.

Advantage

  • Smooth Shift & Operation
  • Easy Rigging
  • Increased Fuel Efficiency
  • Luxury Remote Control
Picture of Drive By Wire

Easy Maintenance

  • Designed to be easy maintenance for the benefits of the customers

Advantage

  • Easy access oil filter : Can be replaced simply by removing the top cover
  • Oil Spill Catcher : A tray is added around the oil filter to catch oil which comes out when exchanging the oil filter
  • Oil Level Gauge : Able to use Φ15 oil changer hose
Diagram of Easy Maintenance1
Easy access Oil Filter
Diagram of Easy Maintenance2
Oil Spill Catcher & Oil Level Gauge

High Durability

Improved Gear Case

  • By optimizing the gear oil passage, the spinning pinion gear generates negative pressure and it helps gear oil circulation.

Advantage

  • It lowers gear oil temperature and contributes to the increased durability of pinion gear.
Diagram of High Durability1
Gear Case(Bottom View)
Diagram of High Durability2
Gear Case(Side View)

Dynamic & Smooth Design

Picture of Dynamic & Smooth Design
Picture of Dynamic & Smooth Design
DURABILITY & RELIABILITY

*1 Available with SMD or SMG

PERFORMANCE
  • OFFSET DRIVESHAFT
  • GEAR RATIO
EASE & COMFORT

*2 Available with SMD, SMG, or Troll Mode Switch Panel

ECOLOGY & ECONOMY
  • LEAN BURN CONTROL SYSTEM

DURABILITY & RELIABILITY

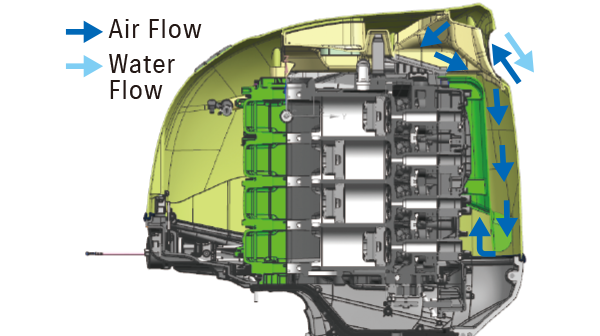

Newly Designed Air Intake System

  • The air intake structure was reviewed

Advantage

  • Delivers higher power output
  • Increased ability to remove water from air taken into cowl
  • Decrease in the air intake temperature
Diagram of Newly Designed Air Intake System

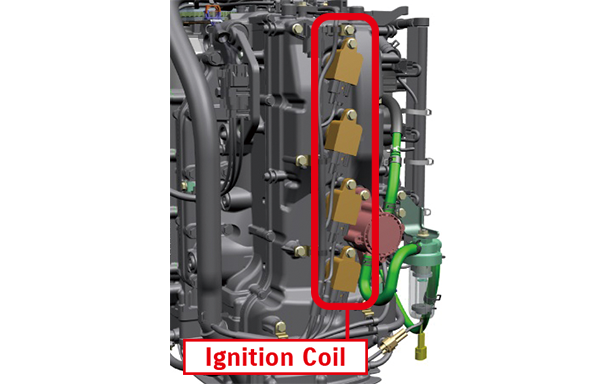

Direct Ignition

  • Integrates the ignition coils into the spark plug caps

Advantage

  • Reduces the number of parts and simplifies the wiring system
  • Removing the high tension cord enables the ignition to generate spark efficiently which leads to the improvement of combustion efficiency
Diagram of Direct Ignition

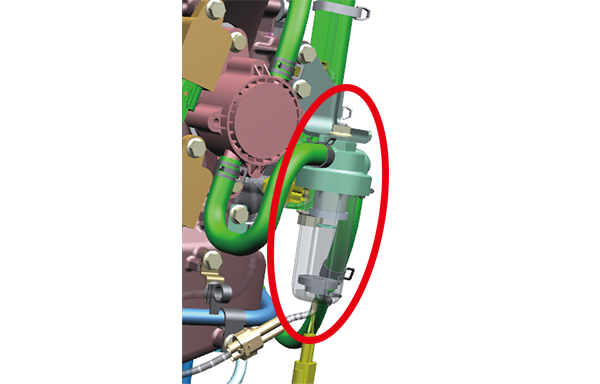

Water Detecting System

  • It helps to protect the engine from water in the fuel
  • Using bigger fuel filter than DF140A/115A
  • Optimized Fuel Filter position

Advantage

  • Can avoid water in fuel
  • Increased Durability & Reliability
  • Easy replacement of fuel filter
Diagram of Water Detecting System
Bigger Fuel Filter

More Features to contribute to Durability

  • Large capacity Fuel Pump : Capable to rig on various kinds of boats
  • Optimized O2 Sensor mounting position : Increased Durability
  • Using Zinc-containing Rustproof Coating bolt : Increased Durability

PERFORMANCE

High Compression Ratio

  • To achieve the optimized mask, port and piston combination, the shape of parts was simulated over 1,000 combinations and then tested thoroughly with the carefully selected parts.

Advantage

  • Achieved 10.6 Compression Ratio which contributes to high torque.
Diagram of High Compression Ratio

Offset Drive Shaft

  • The engine powerhead is positioned closer to the front, moving the outboard’s center of gravity forward.

Advantage

  • Less vibration
  • More compact
  • Stable steering performance

2-Stage Gear Reduction

  • This system which incorporates the Offset Driveshaft features a first stage reduction between the crankshaft and drive shaft, and a second stage reduction inside the gear case.

Advantage

  • High Torque even with big loads.
  • Powerful enough to rotate larger propeller

EASE & COMFORT

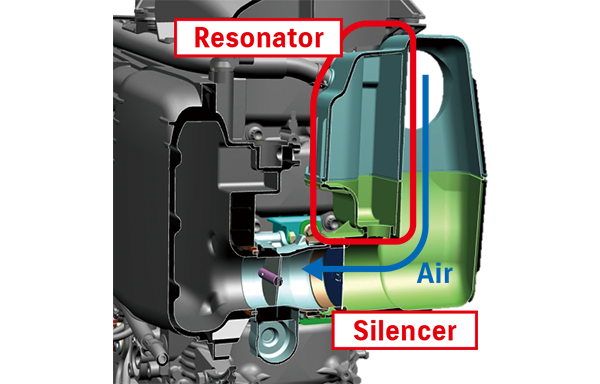

Quiet Operation

  • Intake noise is suppressed with a resonator, which makes the noise from the outboard quieter.

Advantage

  • Less noise, making boating more pleasant.
Diagram of Quiet Operation

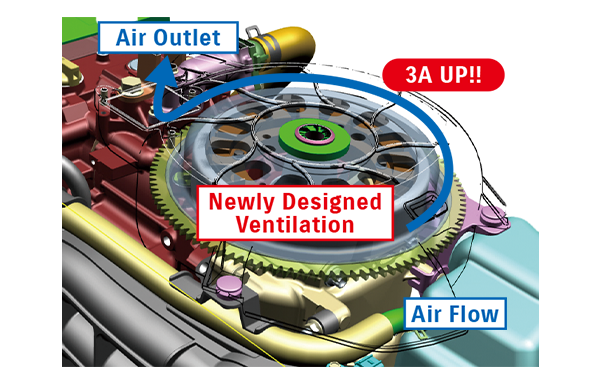

Alternator Output

  • Newly designed ventilation which cools the coils better

Advantage

  • 3Amp better alternator output at idle speed range that is roughly equivalent to the necessary output of SMD12/SMD16.
Diagram of Alternator Output

ECOLOGY & ECONOMY

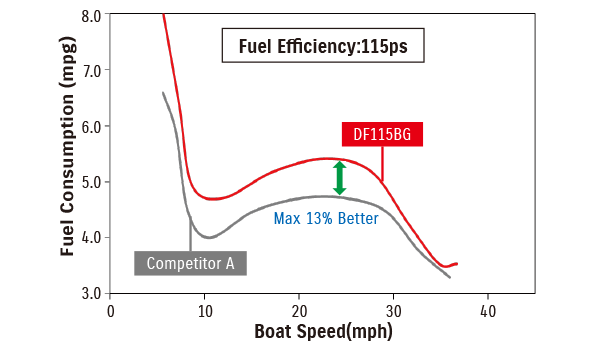

Lean Burn Control System

  • The Lean Burn Control System supplies the appropriate amount of fuel and air mixture depending on the navigation conditions.

Advantage

  • Significant improvement in fuel economy in all speed ranges especially at cruising speed.
  • Fuel is saved and gasoline costs are cut thanks to improved fuel economy.
Diagram of Lean Burn Control System
Based on the Suzuki's test data.
* This fuel data may vary depending on the condition.
MODELDF140BG
RECOMMENDED TRANSOM HEIGHT mmL:511 / X:638
STARTING SYSTEMElectric
WEIGHT kg *1L: 188, X: 192
ENGINE TYPEDOHC 16-Valve
FUEL DELIVERY SYSTEMMulti-Point Sequential Electric Fuel Injection
NO. OF CYLINDERS4
PISTON DISPLACEMENT cm32,045
COMPRESSION RATIO10.6
BORE × STROKE mm86 x 88
MAXIMUM OUTPUT kW84.6 / 103
FULL THROTTLE OPERATING RANGE rpm5,600-6,200
STEERINGRemote
OIL PAN CAPACITY Lit.5.5
RECOMMENDED FUELRON91 / AKI87
IGNITION SYSTEMFully-transistorized
ALTERNATOR20A/700rpm , 40A/6000rpm
ENGINE MOUNTINGShear Mount
TRIM METHODPower Trim and Tilt
GEAR RATIO2.59:1
GEAR SHIFTF-N-R
EXHAUSTThrough Prop Hub Exhaust
PROPELLER SELECTION (Pitch)15"-25"(RR), 17"-23"(CR)
MODELDF115BG
RECOMMENDED TRANSOM HEIGHT mmL:511 / X:638
STARTING SYSTEMElectric
WEIGHT kg *1L: 190, X: 194
ENGINE TYPEDOHC 16-Valve
FUEL DELIVERY SYSTEMMulti-Point Sequential Electric Fuel Injection
NO. OF CYLINDERS4
PISTON DISPLACEMENT cm32,045
COMPRESSION RATIO10.6
BORE × STROKE mm86 x 88
MAXIMUM OUTPUT kW84.6 / 103
FULL THROTTLE OPERATING RANGE rpm5,000-6,000
STEERINGRemote
OIL PAN CAPACITY Lit.5.5
RECOMMENDED FUELRON91 / AKI87
IGNITION SYSTEMFully-transistorized
ALTERNATOR20A/700rpm , 40A/6000rpm
ENGINE MOUNTINGShear Mount
TRIM METHODPower Trim and Tilt
GEAR RATIO2.59:1
GEAR SHIFTF-N-R
EXHAUSTThrough Prop Hub Exhaust
PROPELLER SELECTION (Pitch)15"-25"(RR), 17"-23"(CR)

The appearance, colors, and equipment of outboard motors may differ according to market and grade.
Specifications may change without prior notice.
*Manufacture data
