Famed for its abundant power, agility and majestic presence. Legendary for establishing new levels of ultimate sport performance, and for retaining the number one position for the past two decades in the class it created.
Fast forward to today. Total commitment and tireless effort give birth to a new generation perfectly poised to carry riders boldly into the future. Its further enhanced riding experience features even smoother power delivery and nimbler handling, a collection of the latest electronic systems designed to optimize performance characteristics and make the Hayabusa more controllable and predictable, as well as unshakeable reliability. And it wraps all this in a package that will instantly turn heads with its breathtaking style and grace.
Perfectly Poised
The image includes an optional accessory.
Suzuki Intelligent Ride System (S.I.R.S.)
SDMS-α for a smarter, surer ride
Suzuki Drive Mode Selector Alpha (SDMS-α) groups together five advanced electronic control systems while enabling riders to select individual settings for each. It optimizes performance characteristics and behavior to best suit varying road surfaces, riding conditions and preferred riding styles. Experiment with the different settings and benefit from the feedback each offers to hone your riding skills and build greater confidence while enjoying the ultimate riding experience. In addition to three factory presets, (A, B, C), SDMS-α offers a choice between three user-defined groups of settings (U1, U2, U3). Modes and settings can be changed using switches on the left handlebar and the current settings are displayed on the TFT LCD panel located in the center of the instrument cluster.
1Power Mode Selector
2Anti-lift Control system
3Bi-directional Quick Shift System
4Engine Brake Control system
5Motion Track Traction Control System
  • IMU

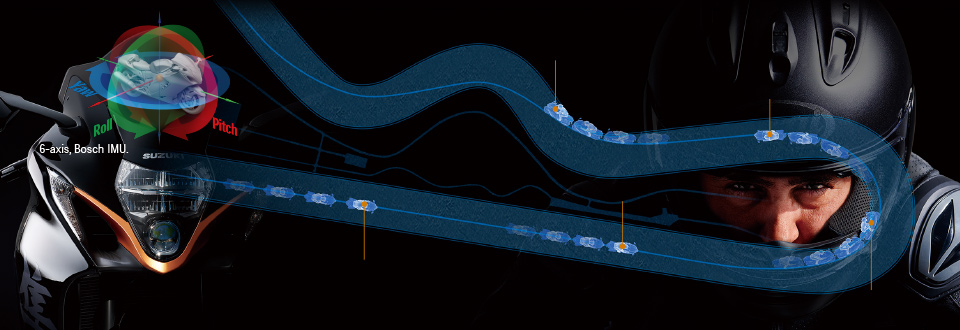

    A 6-axis, Bosch IMU (Inertial Measurement Unit) combines accelerometers and gyroscopes in a single compact package that constantly monitors pitch (forward or backward tilt), roll (leaning from side to side), and yaw (turning in relation to initial direction). These measurements are compared against one another as well as readings from wheel speed sensors to keep the Hayabusa aware of its situation at all times and realize several of the advanced S.I.R.S. controls.
  • 1
    Power Mode Selector
    Select between three different engine output modes that control power delivery to match road and riding conditions. Mode 1 provides the sharpest throttle response and delivers maximum power. It's a solid choice for the experienced rider out for a sporty run. Mode 2 provides softer throttle response and more linear power delivery. That makes it a practical mode for daily riding. Mode 3 provides the softest throttle response and features a more gentle power curve with reduced maximum output. It's well suited to riding on wet or slippery roads, or while still getting used to the potential of the Ultimate Sport Bike.
  • 2
    Anti-lift Control system
    Suzuki has successfully developed an advanced system that maximizes acceleration performance while preventing the front wheel from lifting off the ground. The system offers a choice of 10 mode settings when turned on, with Mode 1 providing minimal control and Mode 10 making it virtually impossible to lift the front wheel, even when fully opening the throttle with a passenger on the back.
  • 3
    Bi-directional Quick Shift System
    Shift up or down more quickly and easily without the need to operate the clutch or throttle. Quick Shift offers two modes. Mode 1 reacts more quickly to replicate racing-style response, while Mode 2 offers a lighter touch. To ensure smooth shift action when using Quick Shift, the ECM retards ignition when accelerating or maintaining steady speed and opens the throttle valve when decelerating. Performance of the new assist & slipper®* clutch ensures even smoother shifts.
    * Assist & Slipper is trademark registered or exclusively used by F.C.C. Co., Ltd. in Japan and other countries and jurisdictions.
    The image includes an optional accessory.
  • 4
    Engine Brake Control system
    This system cancels out the effect of engine braking to suppress rear tire sliding or skipping and provide smoother, more controllable behavior. A choice of three modes plus an OFF setting let you control the effective strength of engine braking to match riding conditions or your preference.
  • 5
    Motion Track Traction Control System
    This takes traction control to a new level by employing data from the IMU to constantly monitor the amount of lean angle and effectively limit slip in corners as well as on straightaways. It provides greater stability at all times, enabling confident control in varying riding conditions while reducing stress and fatigue. The system offers a choice of 10 mode settings, and it can be turned off when preferred. The higher number the mode, the faster traction control is engaged and the more proactive the system is in limiting wheel spin.
    Note: The Motion Track Traction Control System is not a substitute for the rider's throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Neither can it prevent the front wheel from losing grip.
Poised for Action
The robust collection of advanced electronic control systems that comprise the Suzuki Intelligent Ride System (S.I.R.S.) extend well beyond those of SDMS-α. Each is designed to add convenience, build rider confidence or optimize performance characteristics to match the needs of the moment and make the Hayabusa more controllable and predictable. These systems create a stronger sense of communicating directly with the bike's heart and brain as you explore the potential of the Ultimate Sport Bike.
The image includes an optional accessory.
  • Launch Control System
    Turn the throttle and experience an efficient launch and acceleration in similar fashion to the way racers leave the starting line. A selection of three mode settings let you match the engine speed at launch to your level of experience or confidence. Mode 1 limits engine speed on launch to 4,000 rpm, Mode 2 operates at 6,000 rpm, and Mode 3 - the fastest mode - operates at 8,000 rpm.
    Active Speed Limiter
    A first in the motorcycle industry, this system lets you set a speed you do not wish to exceed and then accelerate and decelerate as you please up to that speed. This helps lessen worries about the bike exceeding your chosen speed limit.
    Cruise Control System
    Cruise Control reduces fatigue on long rides by allowing you to maintain a set speed without operating the throttle. The speed can be easily adjusted upward or downward using the mode/set switch on the left handlebar and set from 31km/h to 200km/h while riding at 2,000 to 7,000 rpm in second gear or higher. The handy resume function re-engages the system and accelerates to the most recent speed setting after braking.
  • Emergency Stop Signal
    Another first on a motorcycle in Suzuki, this function rapidly flashes the front and rear turn signals to alert following vehicles if you brake suddenly at speeds of 55 km/h or higher. Note: Emergency Stop Signal is not available on North American, Indian or Canadian specification units.
    Motion Track Brake System
    The system combines vehicle posture data from the IMU with front and rear wheel speed sensor data to allow ABS activation not only in a straight line but also when leaning into a corner. The bike is therefore less likely to try to push itself upright or lose traction, instead maintaining its radius and lean angle to better trace your intended line through the corner.
    Note: ABS is not designed to shorten the braking distance. Please always ride at a safe speed for road and weather conditions, including while cornering.
  • Slope Dependent Control System
    Monitors the motorcycle’s posture and angle to help prevent rear wheel lift by using the ABS to control brake pressure and compensate when applying the brakes while travelling downhill.
    Hill Hold Control System
    Hill Hold Control is designed to automatically engage the rear brake for 30 seconds after coming to a stop while facing uphill on an incline, even when you release the brake lever or pedal.
    This helps ensure a smother restart free of worries that the bike will roll backward. The system is disengaged either by quickly squeezing the front brake lever twice, or by accelerating to pull away from a standing start.
The image includes an optional accessory.
Legendary power and reliability

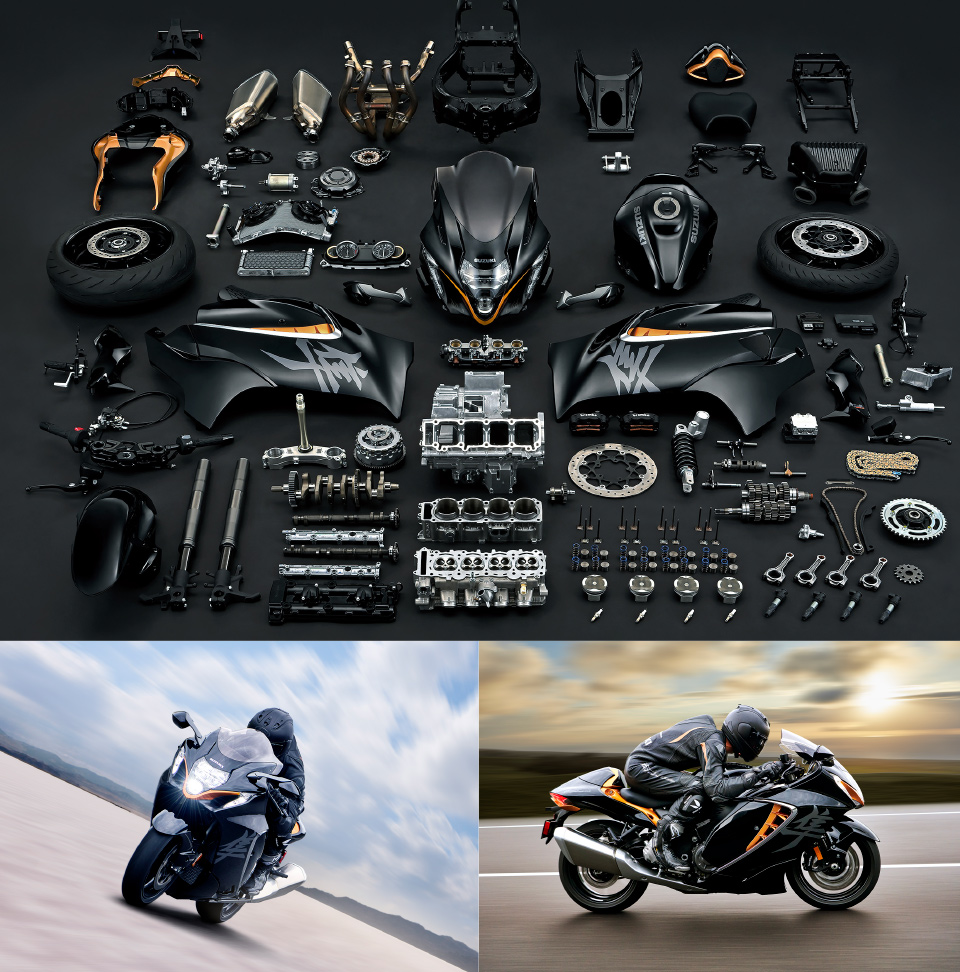

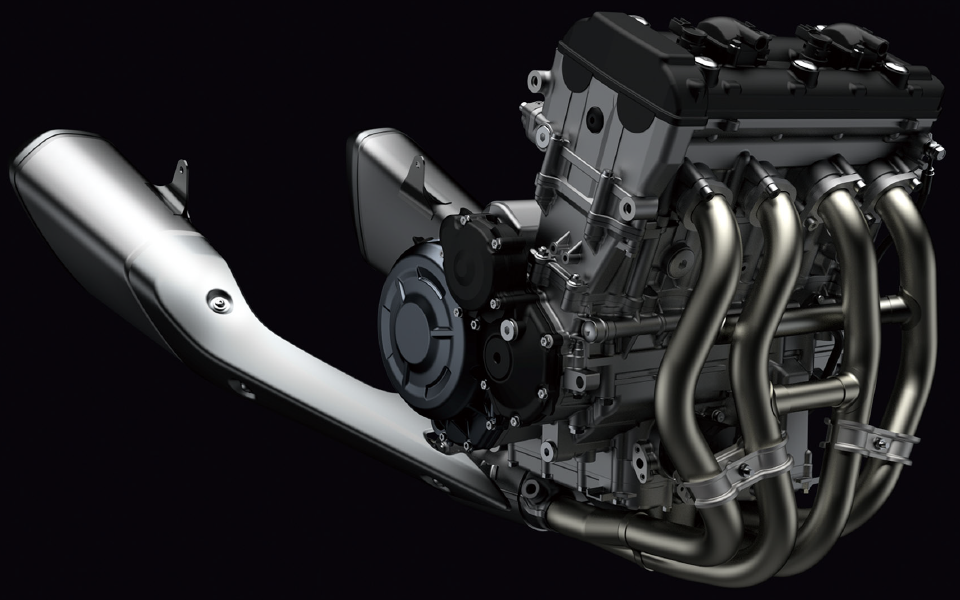

Refinements implemented throughout the Hayabusa's legendary 1,340cm³ liquid-cooled inline-four engine achieve an even better balance of overall performance, yet greater efficiency and durability, while also satisfying Euro 5 emissions standards. Inheriting the proud legacy of the Ultimate Sport Bike that established the category in 1999, the Hayabusa continues to deliver more torque and power than any other sport bike at the engine speeds typically used in daily riding. A symbol of engineering pride and prowess, it is built to deliver the ultimate riding experience for the long run.
1,340cm³ liquid-cooled inline-four engine
Optimum power, durability and control
Though the engine is already renowned for its to improve durability and longevity, the following refinements aim to take it to another level. New pistons and connecting rods reduce the weight of moving parts within the engine. Changes to the crankshaft oil passages improve engine lubrication. The transmission shaft needle bearings are extended in length. Attention to detail goes as far as changing the way the engine case bolts are tightened, and even to the threading for the screw holes in the upper crankcase.
The new pistons and Twin Swirl Combustion Chamber (TSCC) design fully leverage advances in CAE analysis to bring in more air as the valves begin to lift and thereby increase combustion efficiency. Suzuki Side Feed Injectors (S-SFI) feature a new dual injector design that positions the secondary injector so its spray strikes a reflecting plate in the funnel and enters the combustion chamber as a fine mist. This combines with the increased capacity of a new air cleaner and longer intake pipe design to optimize low- to mid-range power output and make the Hayabusa more controllable in typical daily riding situations.
Suzuki's ride-by-wire throttle control system provides natural response with linear control, while a related change to a 43mm bore size for the throttle bodies boosts low- and mid-range power output. Also helping to improve performance and controllability at the most commonly used low- to mid-range speeds are the new engine's reduced valve lift overlap and a new pipe on the exhaust header connecting cylinders #1 and #4.
The Perfect Marriage of Power and Poise
Ultimate performance is born of the perfect marriage between power and poise, and between the rider and the bike. The Hayabusa delivers this in spades. Abundant power and torque offer a more confident ride in any gear and at any speed. Its chassis and running gear ensure the nimble handling to put the rider in full control. All this is skillfully wedded in a bold design with an aggressive stance that highlights its luxurious details and speaks of fine craftsmanship. Like its namesake, the Japanese peregrine falcon, the Hayabusa earns its position as the fastest, most agile predator in the wild. It's far more than the sum of its parts.
Superior core strength
The Hayabusa's chassis is designed to empower you with sure footing, nimble handling and predictable control that combine to build confidence and enhance the riding experience. It delivers a smooth and comfortable ride that absorbs irregularities in the road surface and responds faithfully to your will. It effectively transfers the abundant power of its legendary powerplant to the pavement while fully leveraging its onboard intelligent control systems to run and brake effectively, whether barreling down a straight section of road or leaning through corners.
At the core of this outstanding chassis is the Hayabusa’s tried-and-true twin-spar aluminum frame and swingarm. Though Suzuki built and track-tested a number of different prototype frames during the development phase, the proven combination of extruded aluminum sections and aluminum castings continues to lend the right amount of suppleness and strength to the overall rigid alloy frame structure. While more costly and demanding to fabricate, extruded aluminum sections pay off in achieving the overall balance required by a machine that delivers ultimate performance and reaches a nominal top speed of 299km/h. This is why extruded aluminum frame members can also be found on a number of supercars.
Optimized suspension
KYB inverted cartridge forks provide 120mm of front wheel travel and feature diamond-like carbon (DLC) coating on the 43mm outer diameter inner fork tubes to reduce friction and improve reaction to small irregularities in the road surface. Spring preload, compression damping and rebound damping are all fully adjustable. The internal structure has been upgraded to better to absorb the road surface and ensure an even smoother, more stable ride with optimum grip. The internal structure of the fully adjustable KYB link-type rear suspension was also revised to maximize comfort and straight-line stability. Additionally, settings for both the front and rear suspension are optimized to achieve a stable ride with neutral feel at all speeds.
Maximizing grip, agility and stopping power
The image includes an optional accessory.

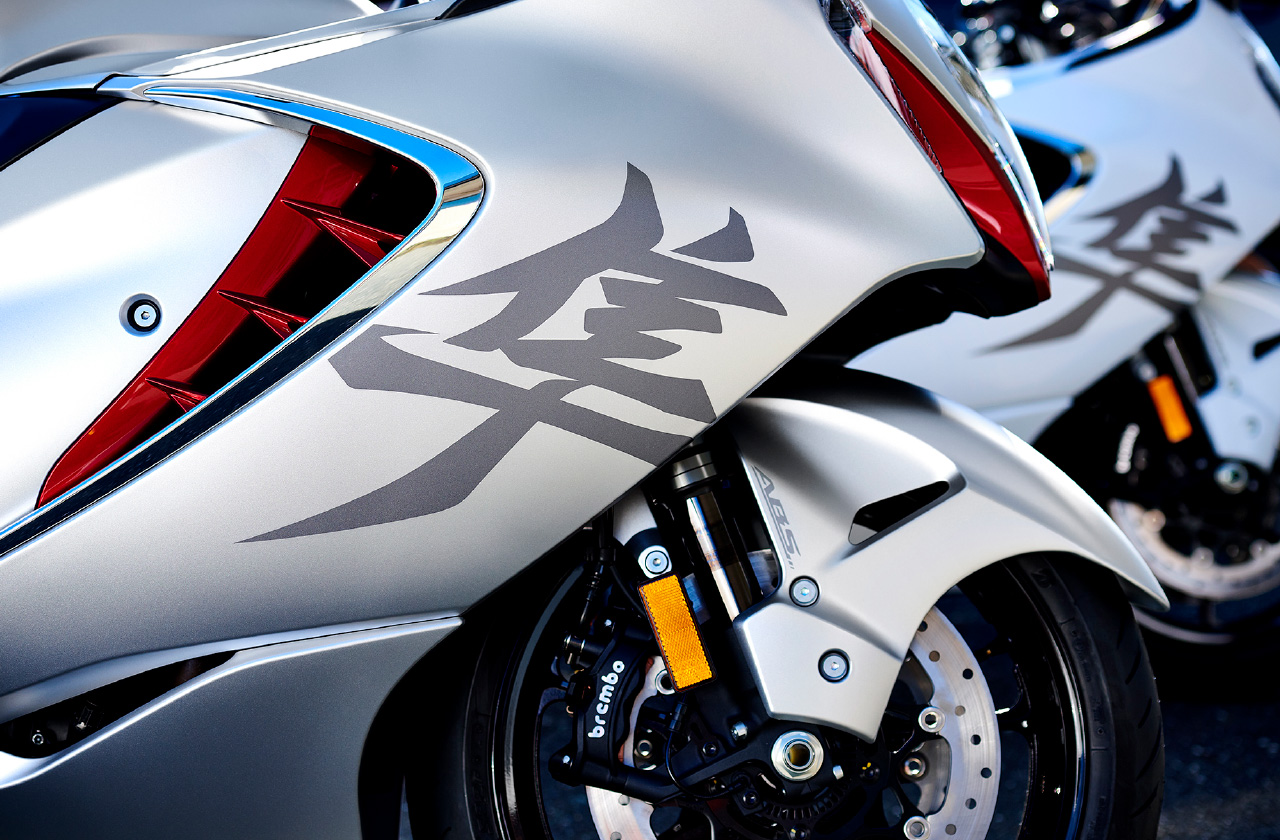

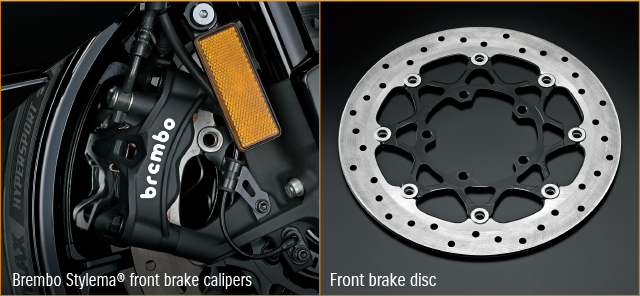

  • Brembo Stylema® front brake calipers
    The Hayabusa adopts Brembo's latest Stylema® front brake calipers. Featuring a lighter, more compact and carefully sculpted design intended for use on high-performance motorcycles, these new calipers increase airflow around the brake pads to cool more quickly and deliver immediate response. These are paired with front discs with a diameter increased from 310mm to 320mm and featuring a new hole pattern that further helps optimize cooling efficiency.

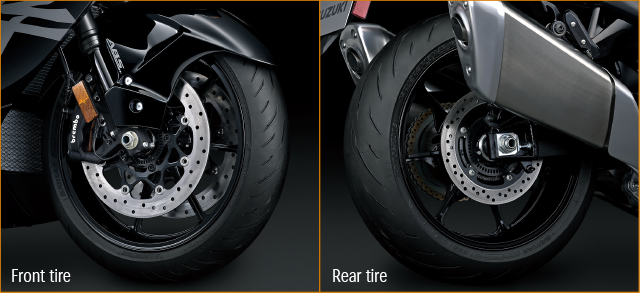

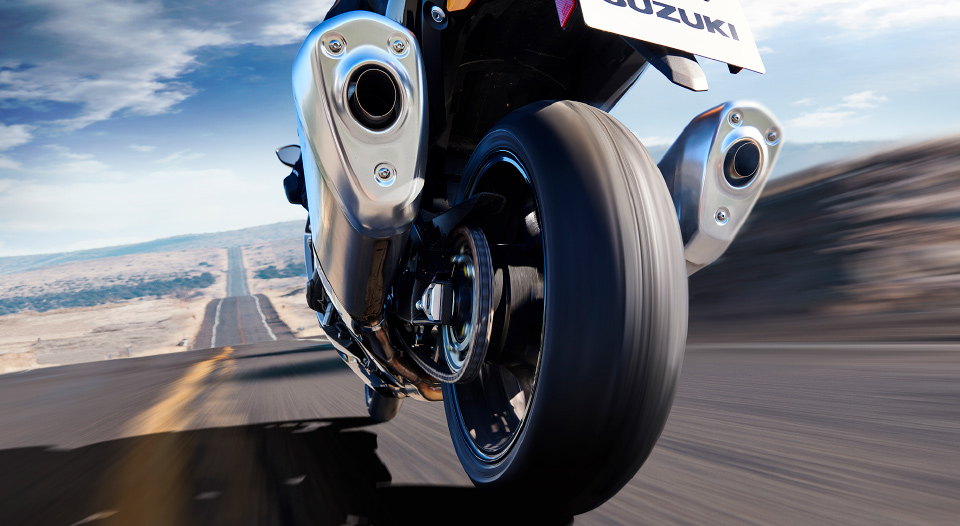

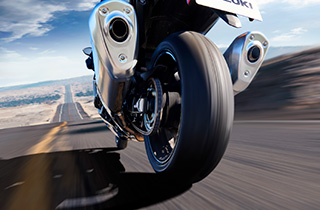

  • Exclusively designed Bridgestone tires
    Suzuki worked closely with Bridgestone for years in developing the new BATTLAX HYPERSPORT S22 tires especially to meet the true needs of the Hayabusa. The new tires boast improved dry grip, performance in wet conditions, greater all-round traction and agility, while retaining a great level of durability. Featuring a new compound and construction, the marked difference these tires demonstrate in straight-line stability and cornering grip offers every rider a more exciting and confidence-building experience.
    The tires are mounted on new 7-spoke wheels that not only look great, but also help improve grip feel.
    • Aggressive, elegant and delightfully inviting
    The image includes an optional accessory.
    The image includes an optional accessory.

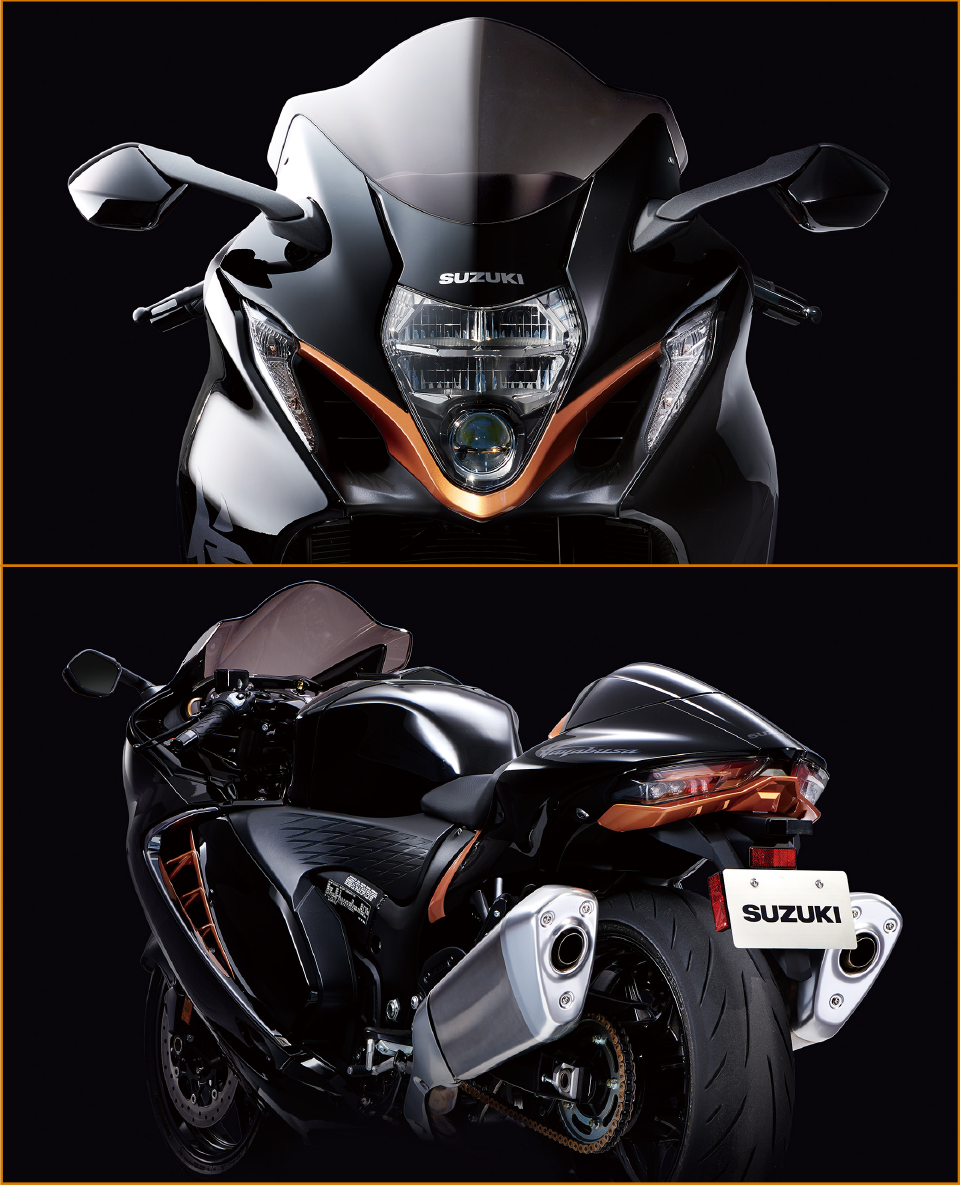

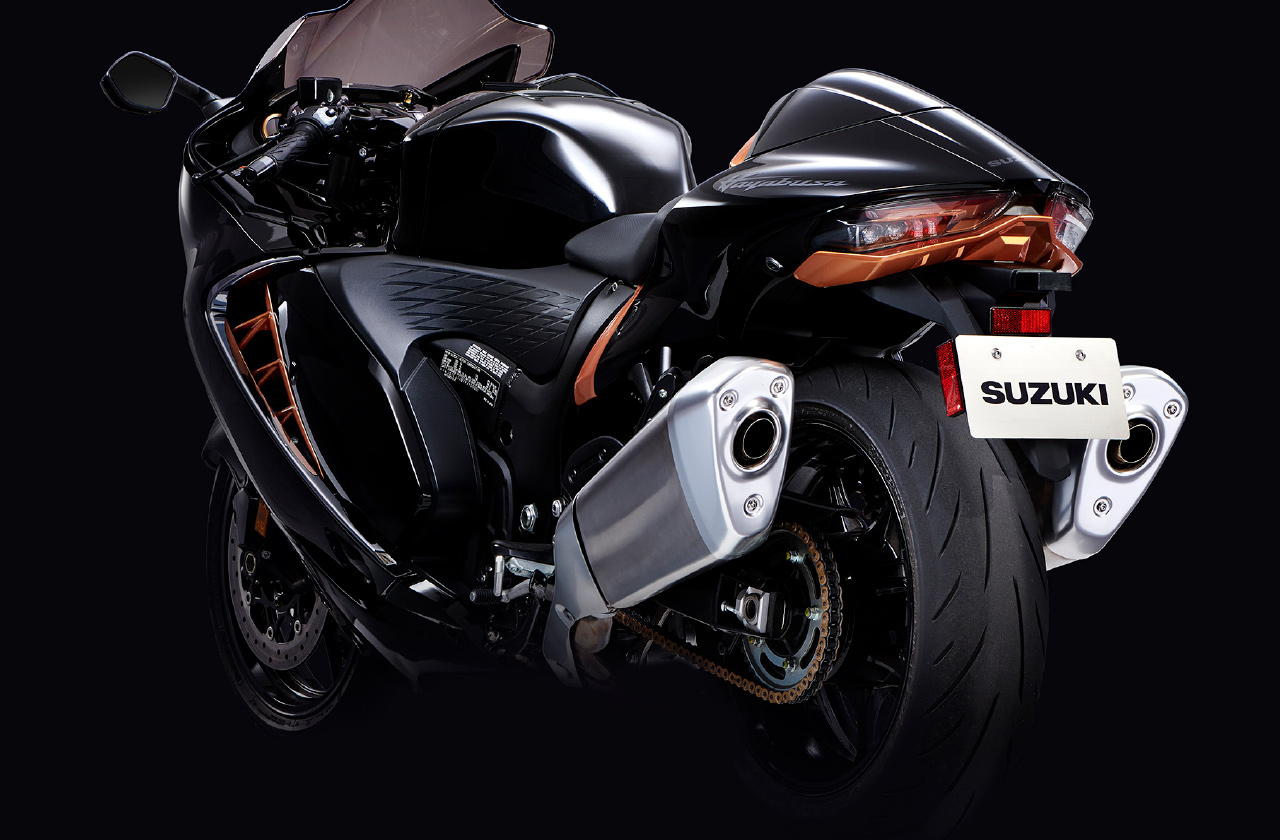

    Poised and ready to fly
    The sleek, aerodynamic silhouette is unmistakably that of the Hayabusa. But the modern look of its styling and luxurious attention to the finest details say it's a whole lot more. True to its design concept, "The Refined Beast", the new Hayabusa's long, low stance screams of the power, performance, poise and keen perceptive abilities possessed by a bird of prey. With an upswept tail and mufflers lending to the aggressive stance of its mass-forward image, this Hayabusa appears to be poised and ready to take flight on an exciting ride. The new mufflers take on coloring unique to your riding style over time, adding a personal touch to your Hayabusa. Splashes of color and chrome accents contrast blacked-out panel sections to create a visual impression of the incredible performance potential waiting to be tapped. Even the new English and Japanese logos speak of speed. The Hayabusa. It's a true tour de force.
    Aerodynamic performance is critically important on a motorcycle capable of reaching top speeds nearing 300km/h. Extensive wind tunnel testing, full use of the latest CAE tools and years of experience all contribute to achieving refined styling by which the rider and bike become one wind-cutting beast. The Hayabusa features one of the best drag coefficients found on any street legal motorcycle, while also achieving excellent CdA and lift values to maximize top speed potential and stability at top speed.
    By any measure, ultimate performance is what the Hayabusa is all about.
    The beauty of fine instrumentation
    Riders love the familiar layout and outstanding functionality of the Hayabusa's instrument cluster. Now it benefits from a number of carefully considered touches that make its functional brilliance shine even brighter. Bigger, bolder numbering on the analog tach and speedometer improve readability, as do the backlit raised scale markings around the periphery. One standout item is the new TFT LCD panel mounted in the center. In addition to the current SDMS-α systems settings, it features an Active Data display that enhances the ride by offering a bird's-eye view of the bike's current operating status. This includes real-time display of the lean angle (with peak-hold function), front and rear brake pressure, rate of acceleration, and throttle position.

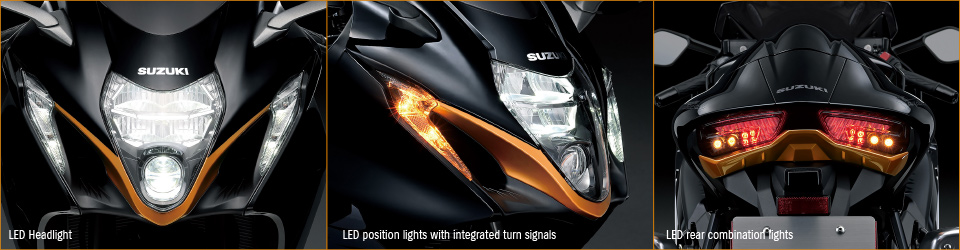

    Lighting your way in style

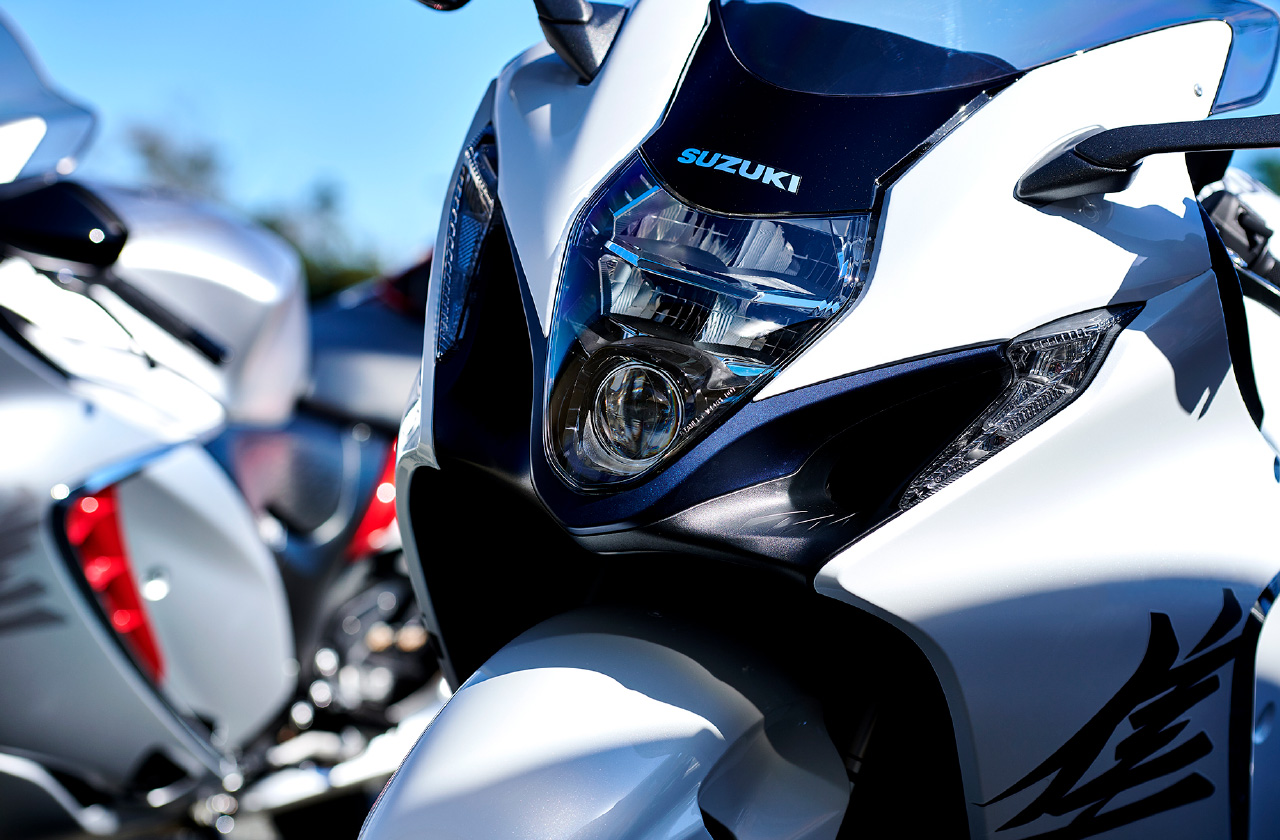

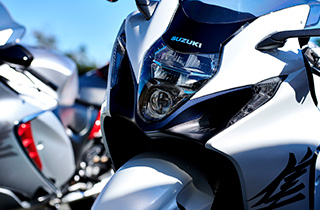

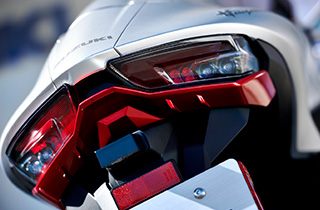

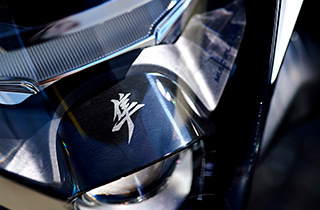

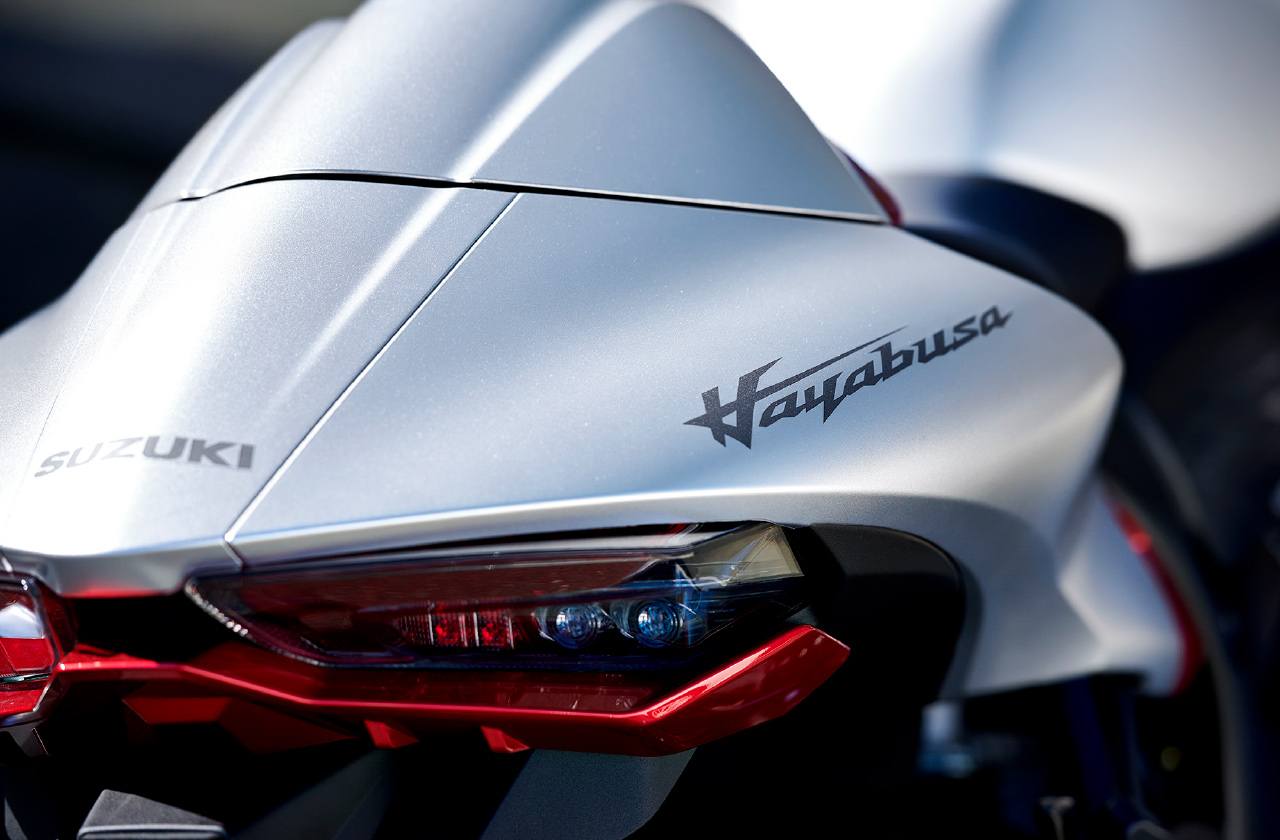

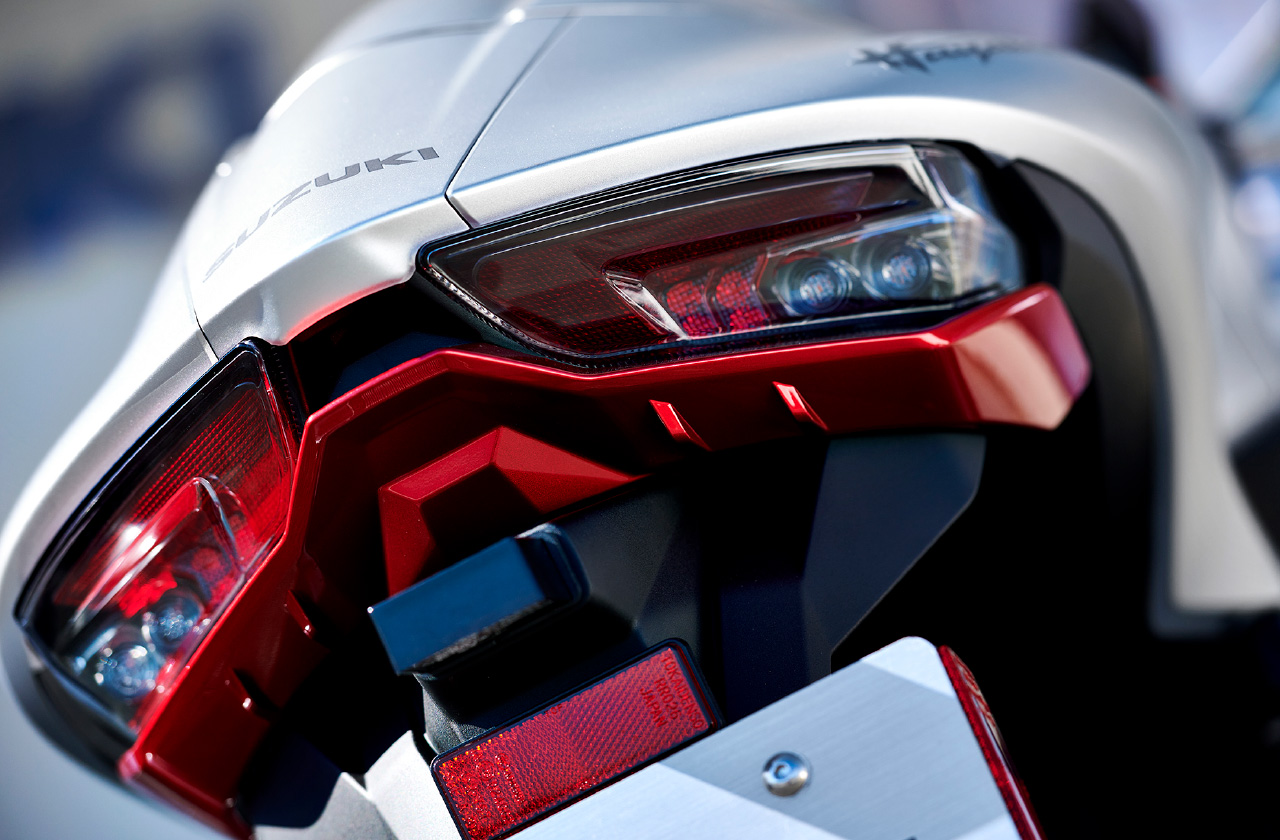

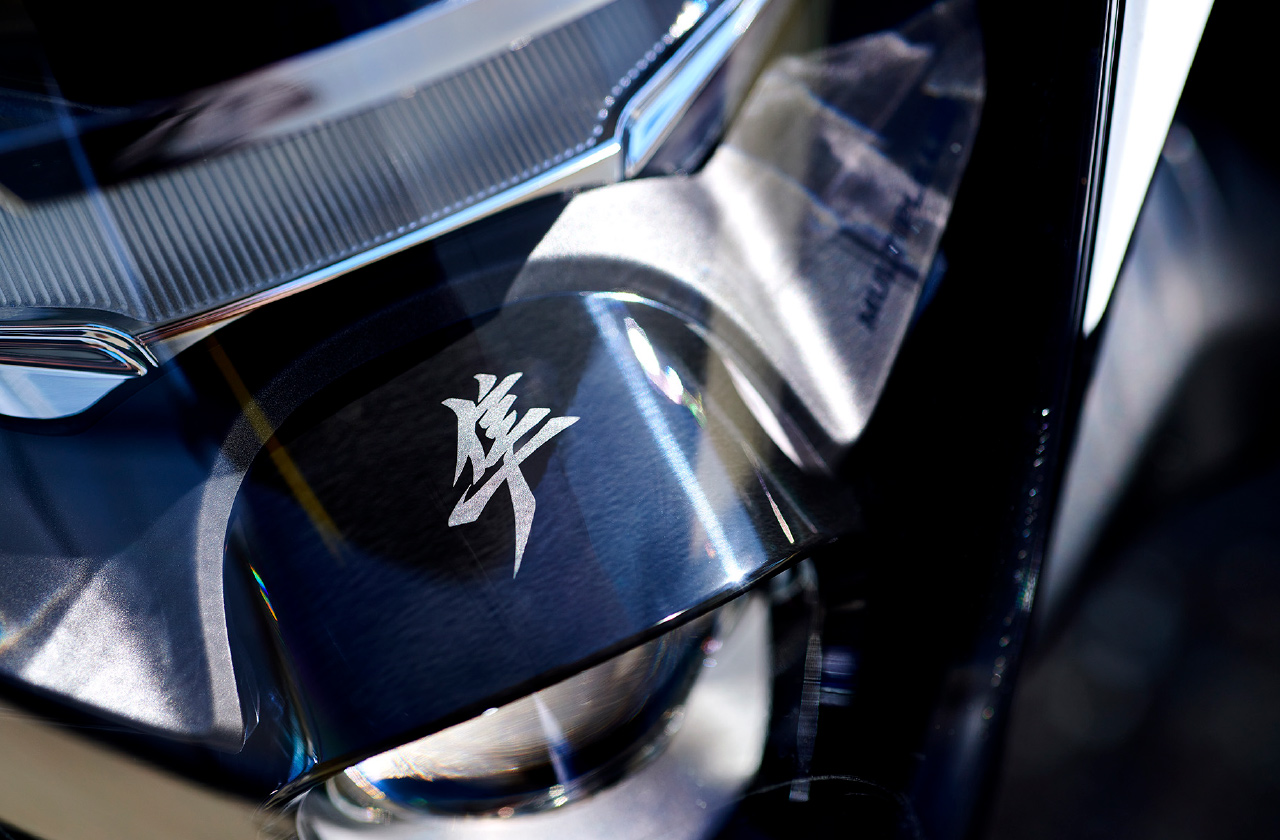

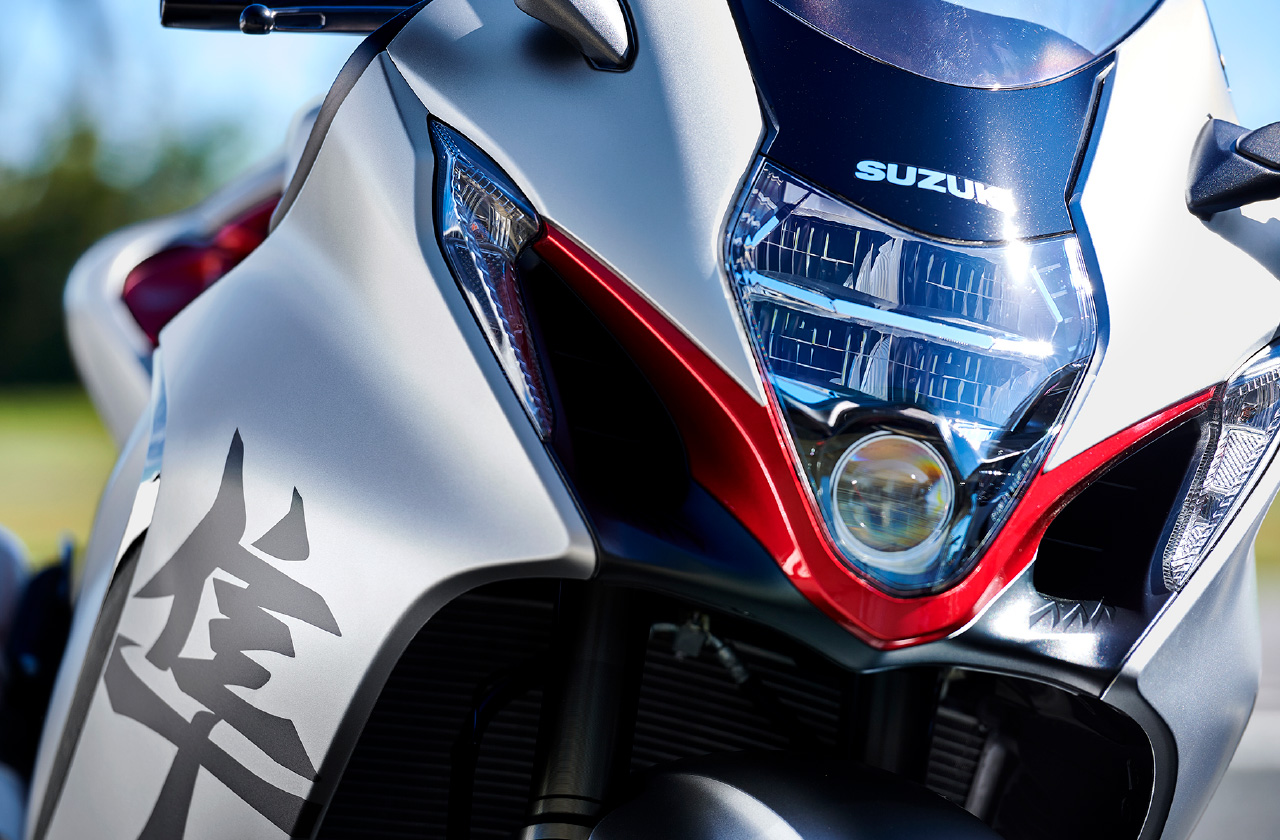

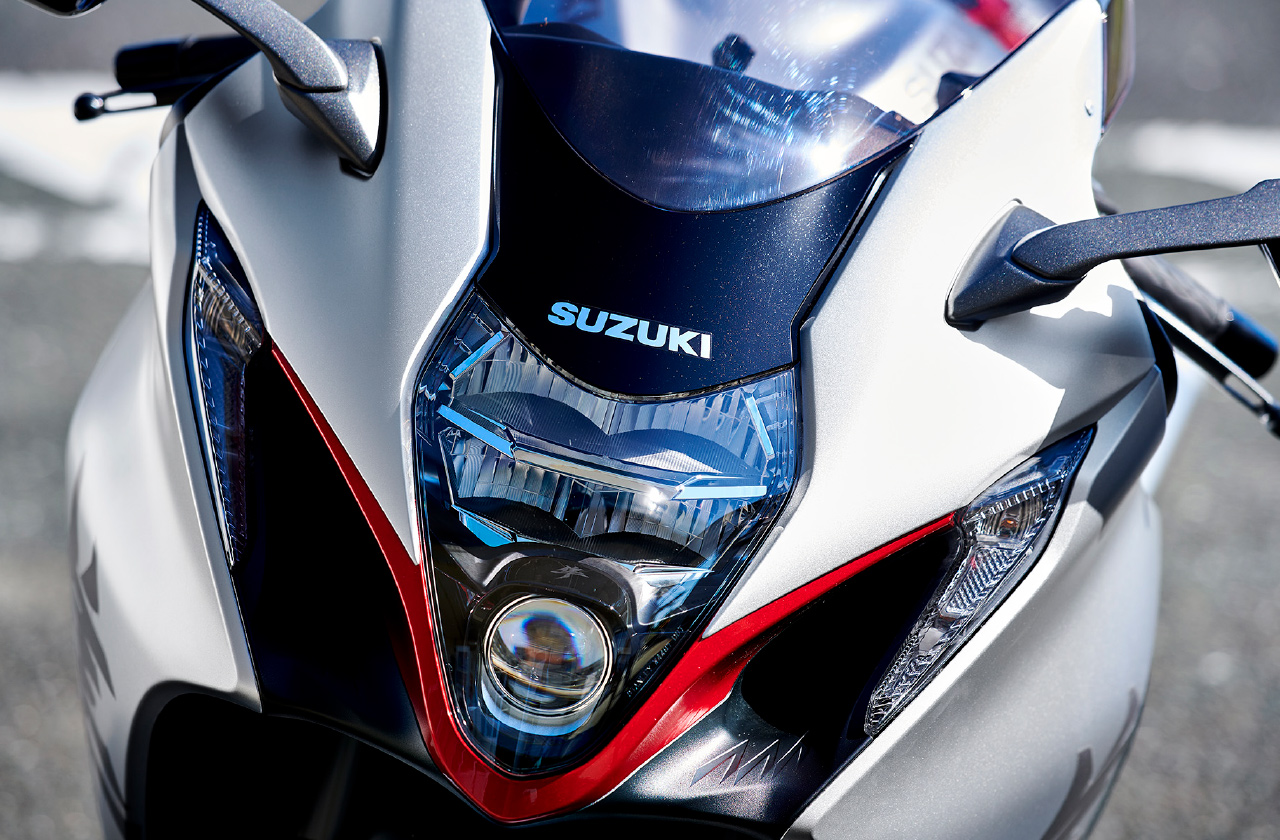

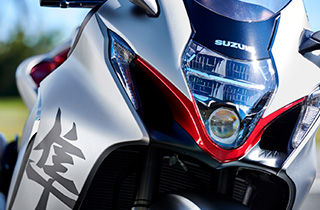

    The Hayabusa's vertically stacked low beam and projector-type high beam headlights adopt LEDs. The distinctive signature of their lighting pattern provides clear illumination at night and makes the Hayabusa highly visible to pedestrians and other traffic. Position lights with integrated turn signals*, a first on a Suzuki motorcycle, neatly flank the outer edges of the large SRAD air intakes. In the rear, a bold new LED taillight and rear turn signal design creates a single wide, sharp accent running horizontally across the bottom of the tail section.
    Note: *Not available on Indian specification units.
    Poised to create a new legend
    Get ready for the ultimate riding experience. And to create new legends of your own as you tame the beast that is destined to create its own new legend.
    The image includes an optional accessory.
    Accessories

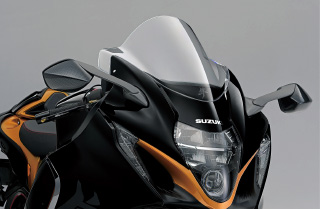

    • Touring screen

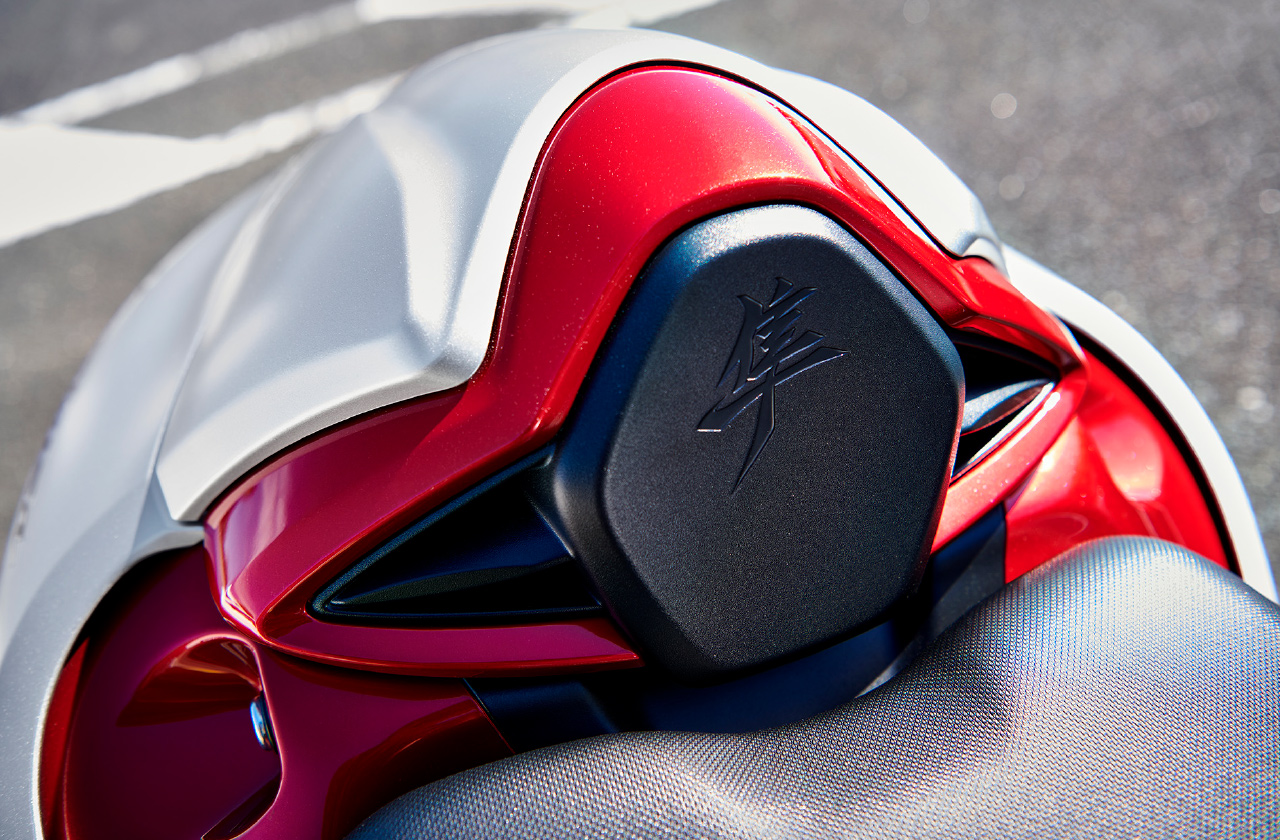

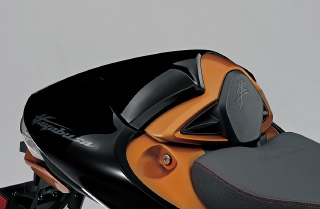

    • Single seat cowling

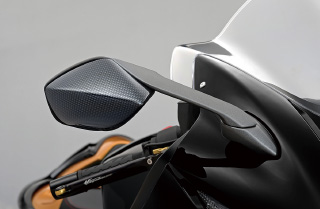

    • Carbon look mirror cover

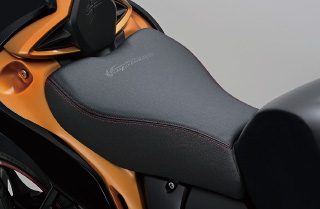

    • Color seat

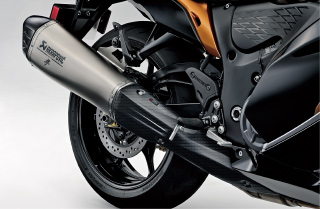

    • Hayabusa slip-on muffler by
      Akrapovič *1

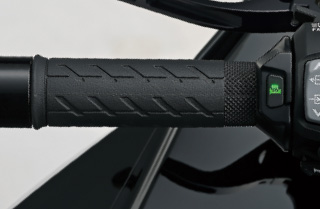

    • Grip heater

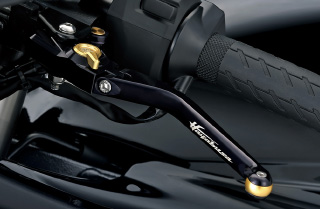

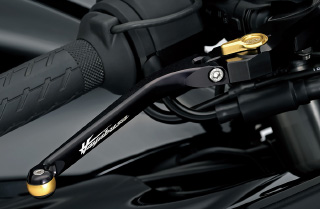

    • Billet brake lever
    • Billet clutch lever
    • Chrome plated filler cap

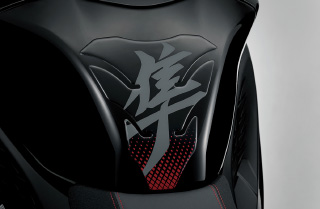

    • Hayabusa fuel tank pad (Gold)
    • Hayabusa fuel tank pad (Red)

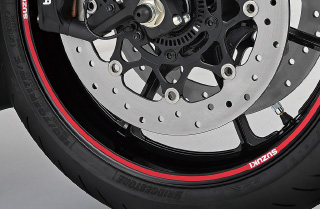

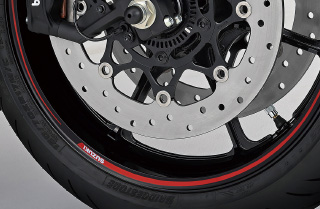

    • Wheel rim decal
      (With SUZUKI logo)
    • Wheel rim decal
      (Cutting type with SUZUKI logo)

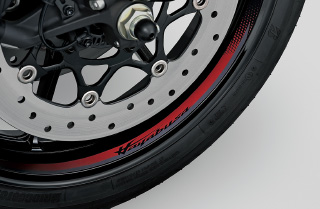

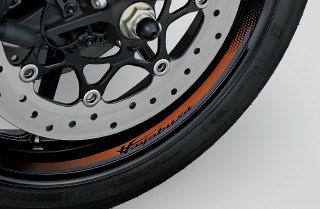

    • Hayabusa rim decal (Gold)
    • Hayabusa rim decal (Red)

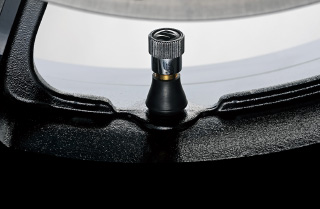

    • Tire valve cap

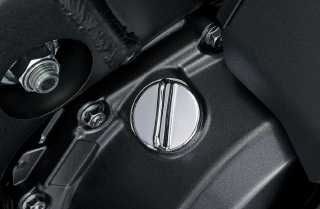

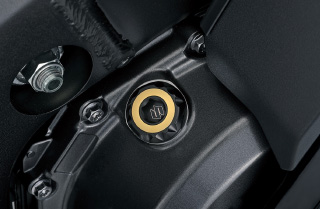

    • Aluminum oil filler cap

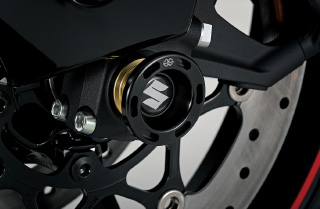

    • Front axle slider

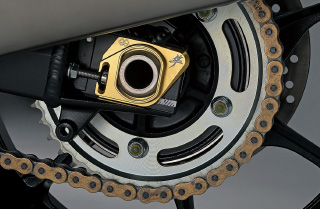

    • Aluminum chain adjuster

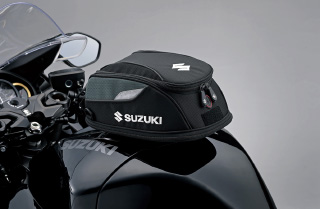

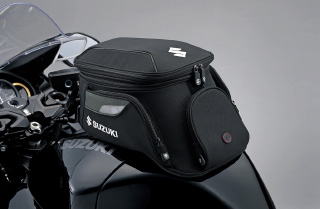

    • Fuel tank bag (Large) *2
    • Fuel tank bag (Small) *2

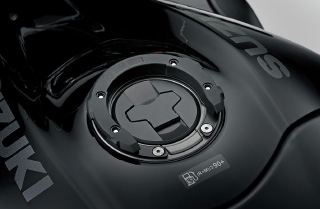

    • Tank ring for textile tank bag

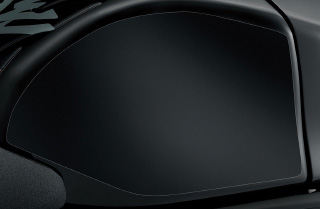

    • Fuel tank protection sticker

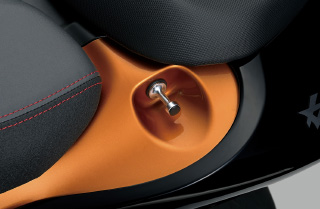

    • Luggage hook
    *1
    Available at EU market only. The accessory obtains EC - type approval, and photo shows the image of the accessory with its approval to install the bike.
    *2
    Max load 2.5kg
    Max speed 130km/h (Please use the item in the speed of less than 130km/h.)
    Note: SUZUKI MOTOR CORPORATION reserves the right to add any improvement to change the design or to discontinue any Suzuki Genuine Accessories at any time without notice. Some Suzuki Genuine Accessories might not be compatible with local standards or statutory requirements. Please check with your local AUTHORIZED SUZUKI DEALER for details at the time of ordering.
    Videos
    Photos
    Specifications
    Overall Length 2,180 mm (85.8 in.)
    Overall width 735 mm (28.9 in.)
    Overall height 1,165 mm (45.9 in.)
    Wheelbase 1,480 mm (58.3 in.)
    Ground clearance 125 mm (4.9 in.)
    Seat height 800 mm (31.5 in.)
    Curb weight 264 kg (582 lbs.)
    Engine type Four-stroke, liquid-cooled, DOHC, in-line four
    Bore x stroke 81.0 mm x 65.0 mm (3.189 in. x 2.559 in.)
    Engine displacement 1,340 cm³ (81.8 cu. in.)
    Compression ratio 12.5:1
    Fuel system Fuel injection
    Starter system Electric
    Lubrication system Wet sump
    Transmission 6-speed constant mesh
    Front suspension Inverted telescopic, coil spring, oil damped
    Rear suspension Link type, coil spring, oil damped
    Rake / trail 23° 00' / 90 mm (3.54 in.)
    Front brakes Brembo Stylema®, 4-piston, twin disc, ABS-equipped
    Rear brake Nissin, 1-piston, single disc, ABS-equipped
    Front tire size 120/70ZR17M/C (58W), tubeless
    Rear tire size 190/50ZR17M/C (73W), tubeless
    Ignition system Electronic ignition (transistorized)
    Fuel tank capacity 20.0 L (5.3 US gal)

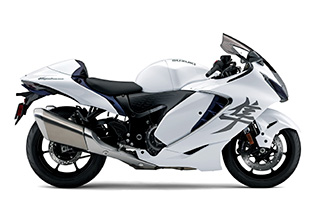

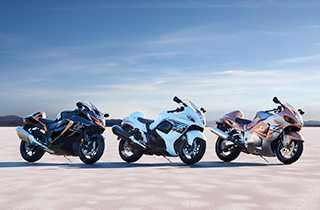

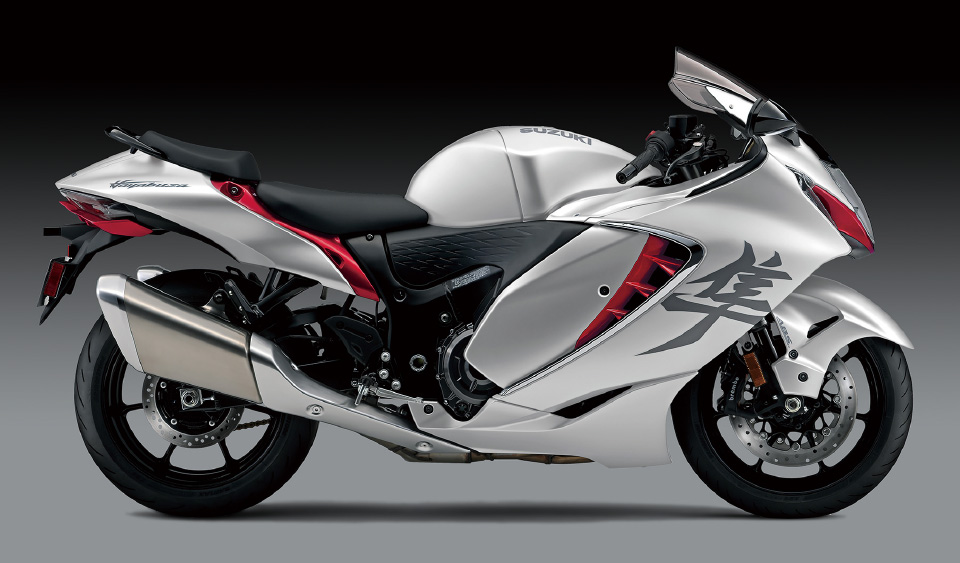

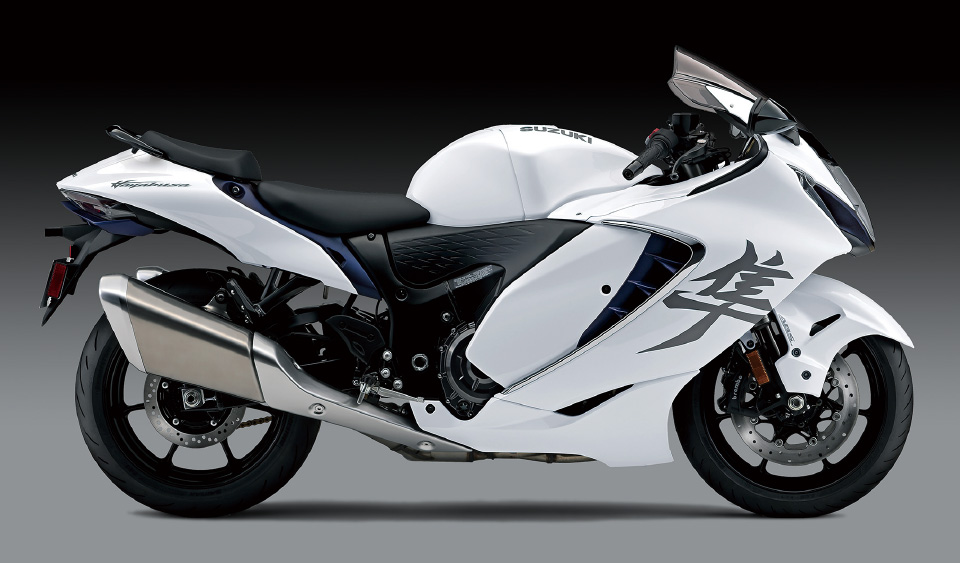

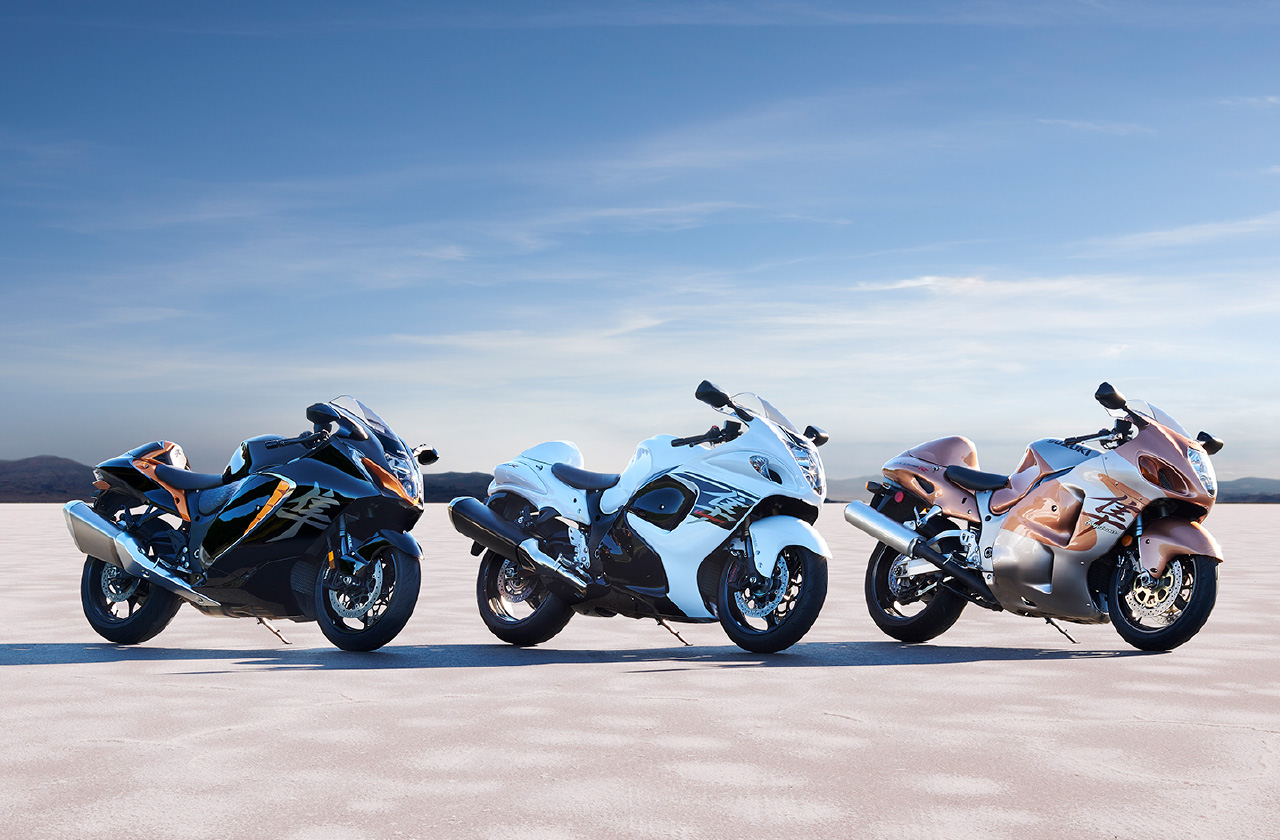

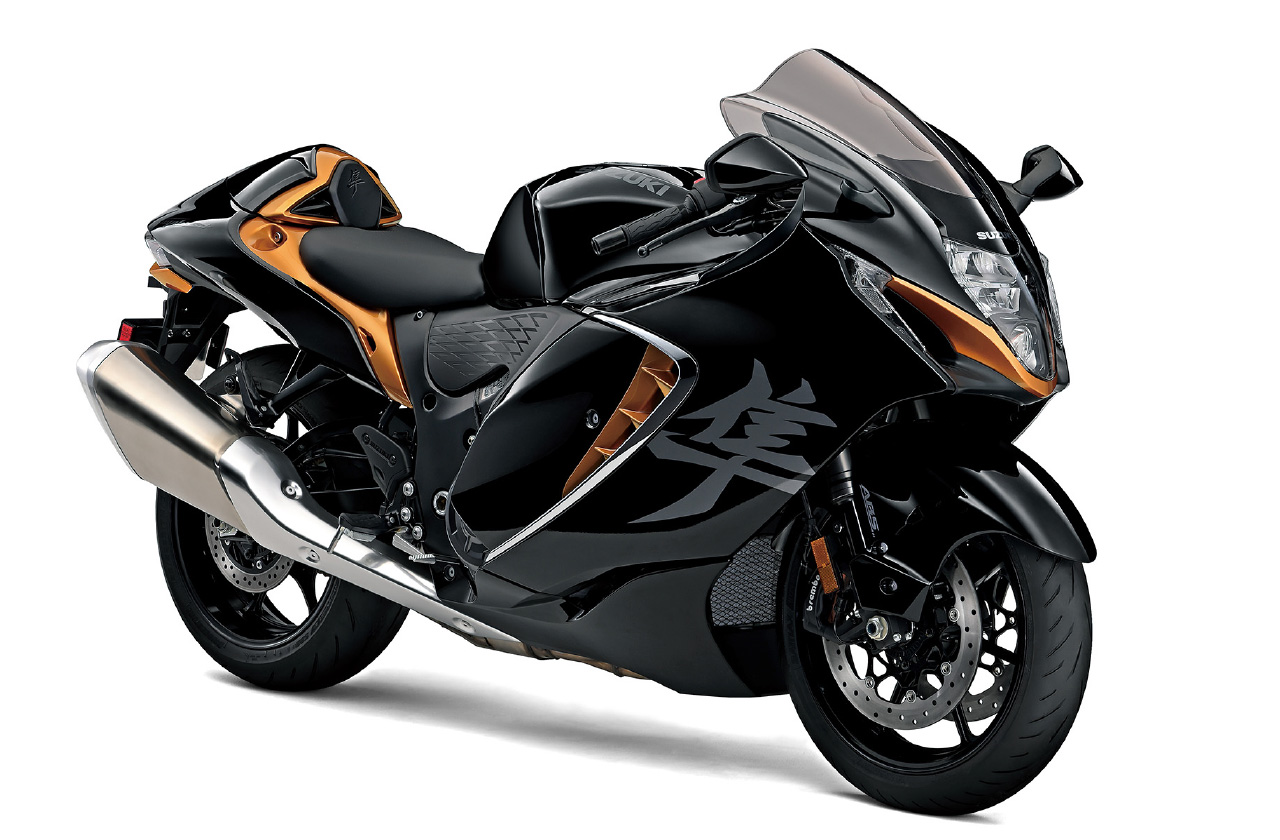

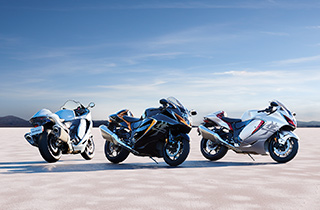

    • B5L (Glass Sparkle Black / Candy Burnt Gold)

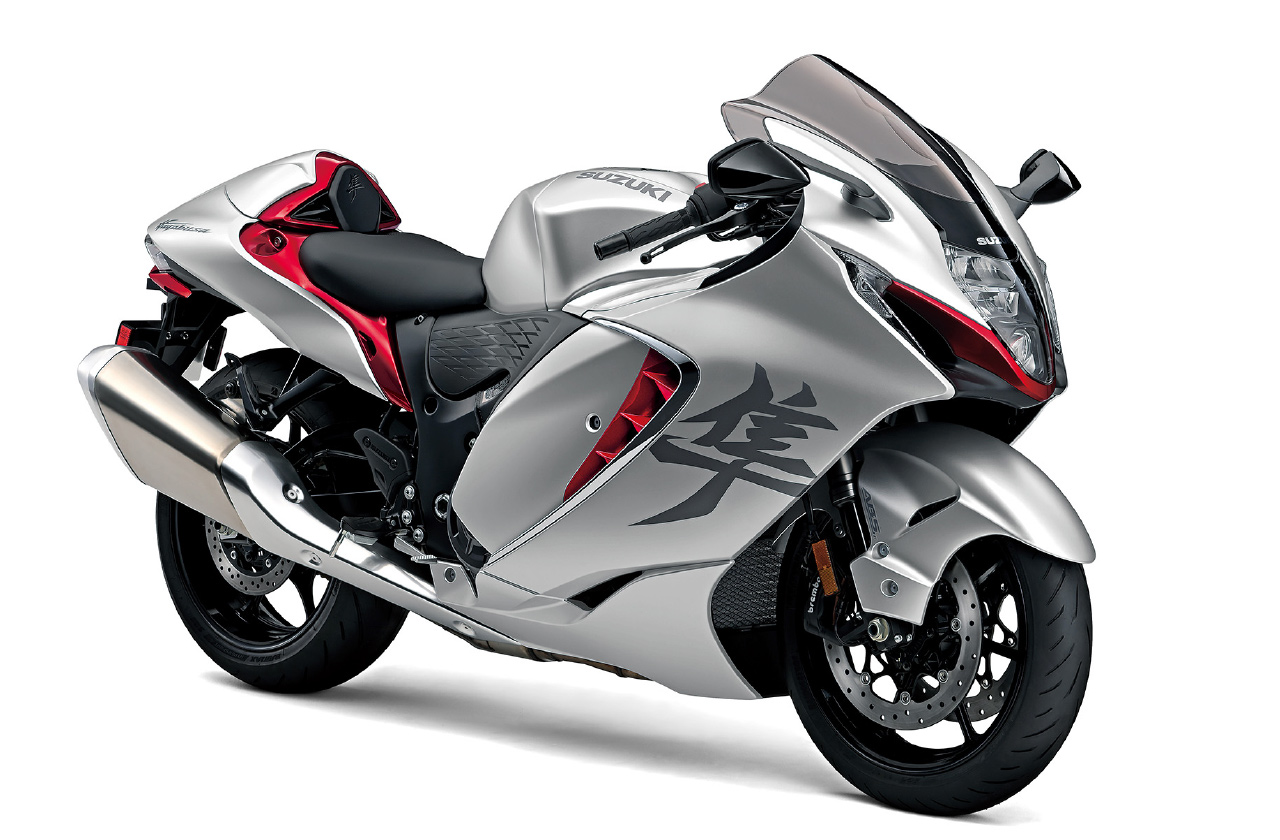

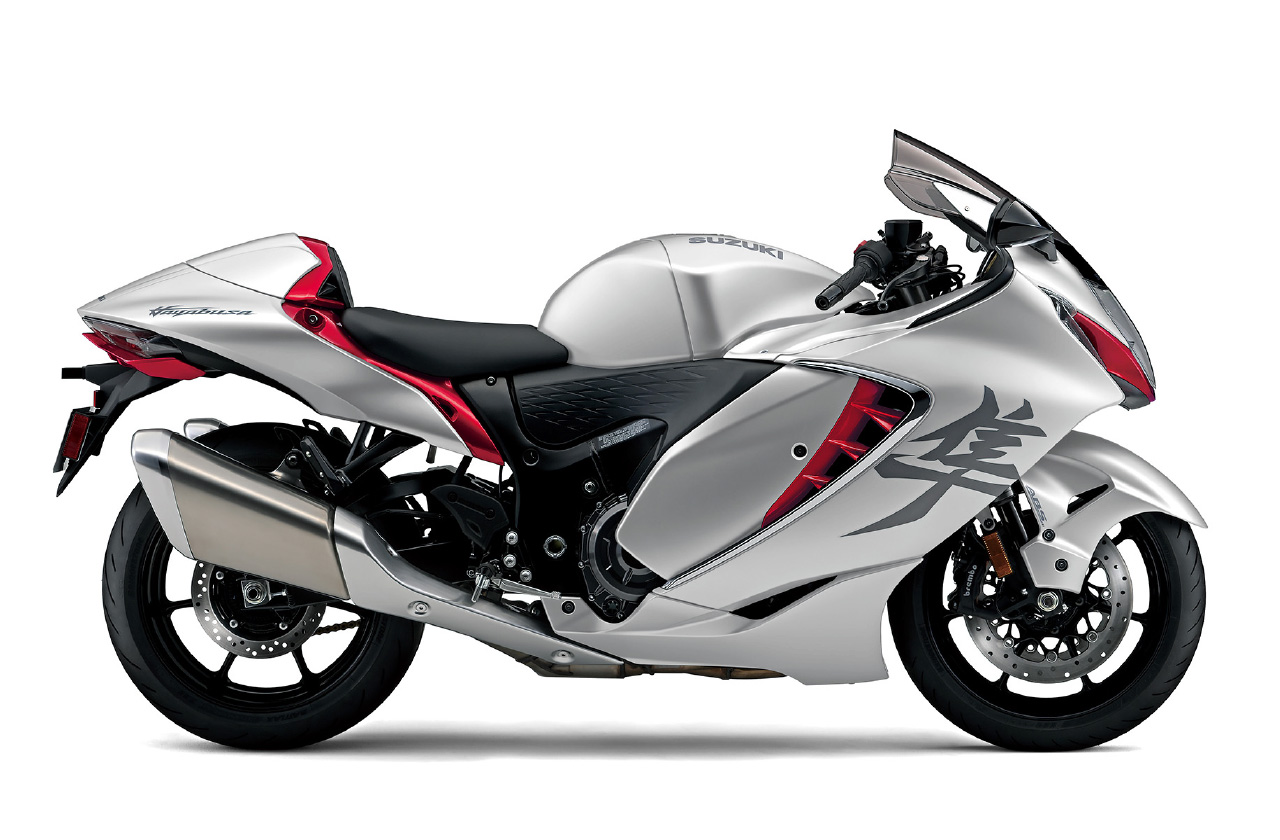

    • B5M (Metallic Mat Sword Silver / Candy Daring Red)

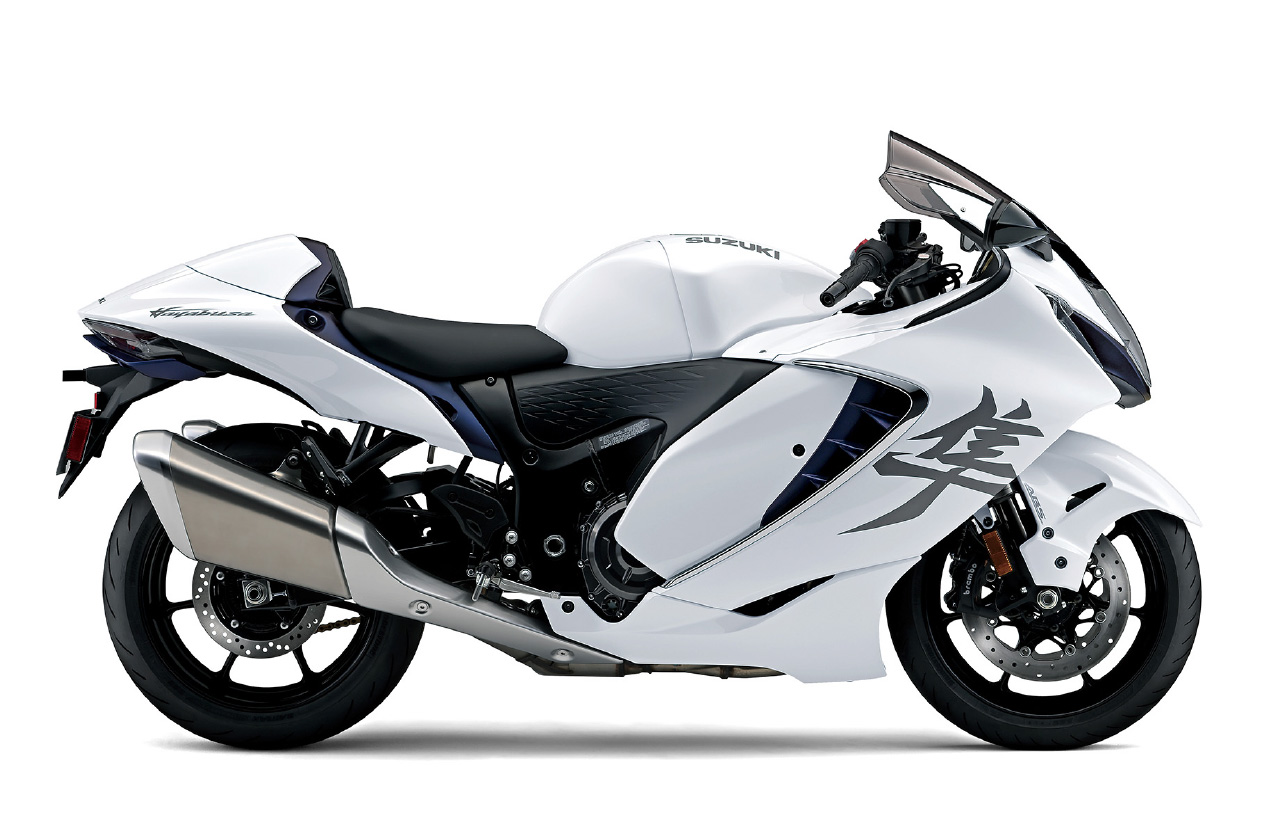

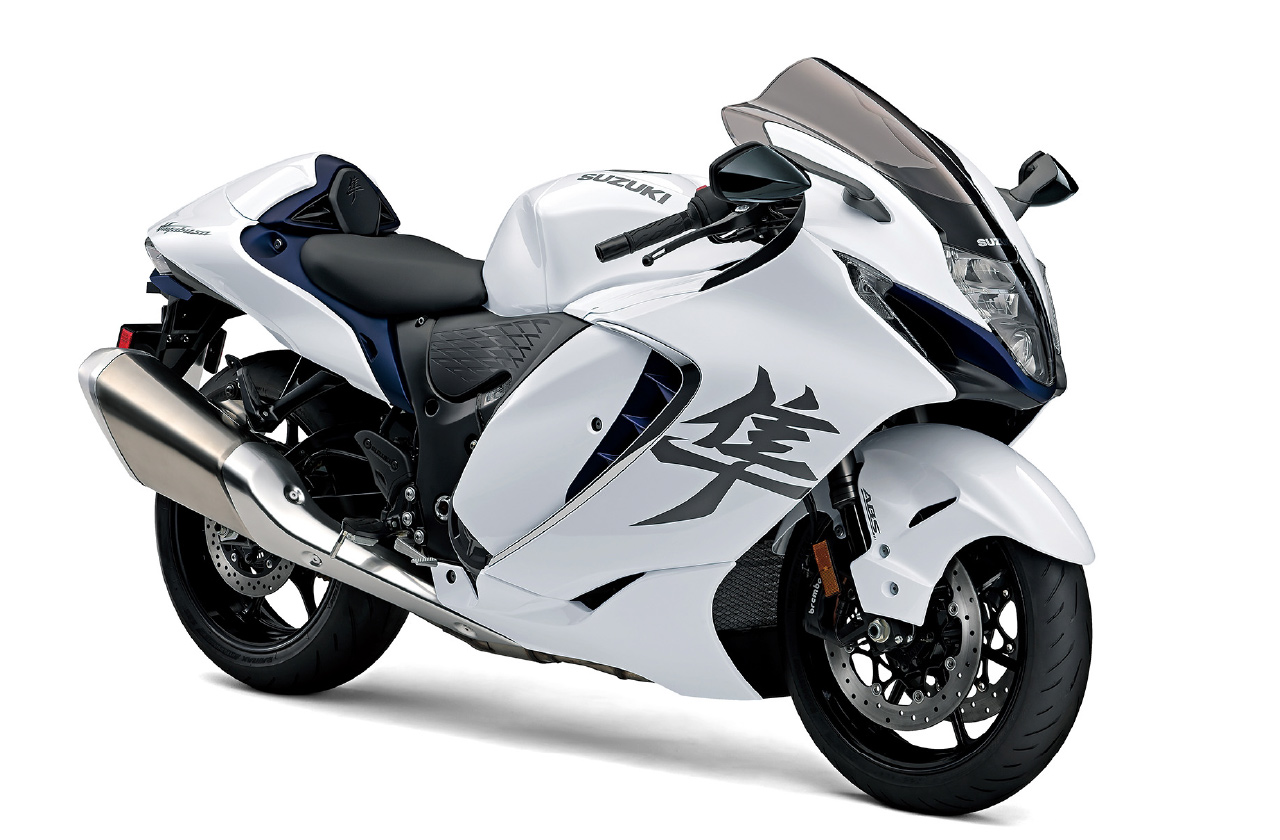

    • B5N (Pearl Brilliant White / Metallic Mat Stellar Blue)
