The Elegant Athlete

It fits well, like a fine handmade suit. It rides comfortably and performs like a champion. It manoeuvres brilliantly. And it delivers a winning combination of stylish design, practicality and convenience.

The BURGMAN 400 - bringing greater class and pleasure to your journey.

Lubrication system

Transmission

Front suspension

Rear

Rake / Trail

Front brake

Rear

Front tire size

Rear

Ignition system

Fuel tank capacity

Oil capacity (Overhaul)

Like a top athlete in peak form, the BURGMAN 400 is lean, toned and ready to perform optimally, even on narrow, twisty, or congested streets. Not only are its front and rear end slim, sharpe and sexy, this BURGMAN remains true to its family name by offering fine style that will turn as many heads out front of the office as it will in front of your favourite café or out on the road.

A well-informed rider is a happier and more confident rider.

From the instant response and powerful acceleration of its 400cm3 DOHC engine, and the exhilarating sound of the tuned intake note, to the nimble handling provided by the link-type rear suspension and 15-inch wheel in the front, the BURGMAN 400 is built to deliver winning performance.

Svelte sophistication

Riding smarter

Winning Performance

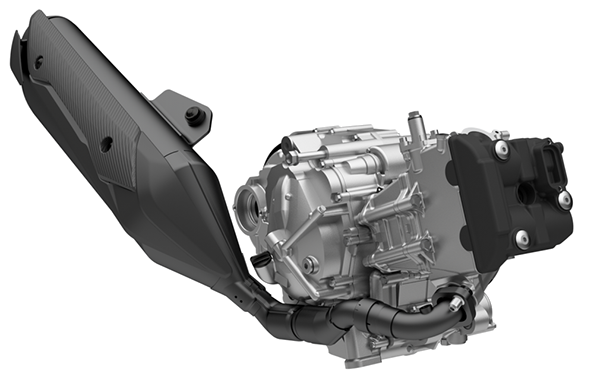

Powerful DOHC 4-valve engine

Updated to meet Euro 5 emissions standards, the 400cm3 liquid-cooled, four-stroke, DOHC, single-cylinder, fuel-injected engine produces well balanced low-to-midrange torque with improved throttle control and offers a sophisticated ride higher in the rev range for easy highway cruising, both of which are thanks to revised engine parts including cylinder heads, pistons, injectors, as well as revised highly optimized combustion.

Catalytic converter

New catalytic converter with honeycomb construction uses a metal catalyst carrier as the base for catalyst retention, and increases the number of catalysts from one to two to further purify exhaust gases.

Stop on a dime

The Antilock Brake System (ABS)* monitors wheel speed and matches stopping power to available traction to provide greater confidence and control. The system adopts a new lightweight ABS control unit that reduces weight by 36g over the current model.

* ABS is not designed to shorten the braking distance. ABS cannot prevent wheel skidding caused by braking while cornering. Please drive carefully and do not overly rely on ABS.

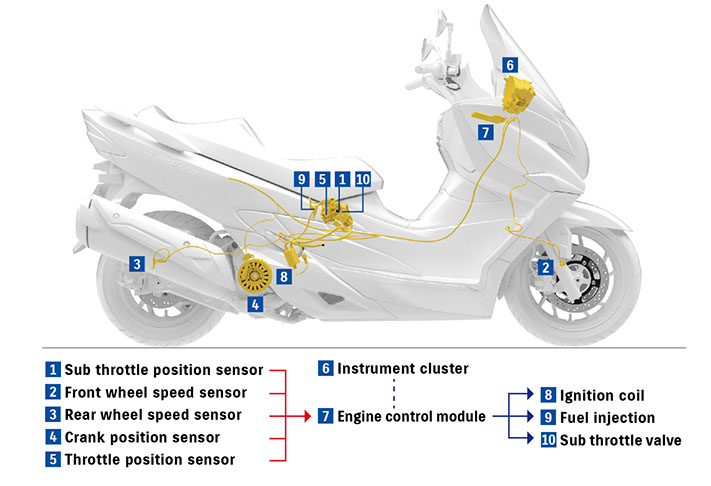

Traction control system

New traction control system reduces slipping when taking off from a stop with the throttle fully open and lowers wheel spin on slippery or uneven road surfaces to maintain efficient forward movement. Whether riding across wet asphalt, cobblestone streets, traction control offers the rider peace of mind and excellent road-holding ability. The system can be switched on and off with a switch on the right handlebar.

Suzuki Dual Spark Technology

Newly adopted Suzuki Dual Spark Technology increases the number of spark plugs to two to improve combustion efficiency, reduce fuel consumption and achieve more stable power output. These spark plugs offer simultaneous ignition timing fine-tuned for AN400. This combined with new catalytic technology strikes the ideal balance between purifying exhaust gases yet providing strong power output while also increasing engine combustion efficiency. Adjusted ignition timing also contributes to easier engine startup and a more stable idle.

Seat

The stepped dual seat combines a 78.5 mm thick cushion with a slim design to provide luxurious comfort for rider and passenger alike.

Suzuki Easy Start System

Suzuki Easy Start System introduced to make engine startup simple, requiring only a single quick push of the starter switch with the brake applied.

Front compartments

Two front compartments provide 2.8 litres*1 of storage space on the left side and 3.5 litres*2 on the right.

*1 The weight limit for items in the left storage compartment is 0.5 kg.

*2 The weight limit for items in the right storage compartment is 1.5 kg.

Cut-away footboards

Cut-away footboards do not flare out behind the rider’s foot. They help make it easier for the rider to place their feet firmly on the ground when stopping, contributing to greater confidence and creating a smart line to the design’s curvature.

Long screen

* 7.5 cm taller than normal screen.

Adjustable backrest

The rider’s backrest can be adjusted forward by either 15mm or 30mm to provide optimal support and comfort for riders of various builds on longer outings.

12V DC outlet

One compartment houses a 12V DC outlet* for charging a mobile phone or other electronic devices.

* To prevent draining the battery, use the outlet only while the engine is running.

Rear brake lock system

Located on the same side as the ignition key, the easy-to-operate brake lock lever applies a lock system that acts on the rear brake when parked. The rear brake lock system can prove useful when parking on an incline.

Top case

* Maximum loading capacity is 3 kg.

Chain lock gate

A chain lock gate allows the rider to pass a chain lock through the bodywork, around the frame, and then around a pole or other immovable object.

* Chain lock is not standard equipment.

Heated grips

Heated grips with three different heat settings and pushbutton operation have a slim, easy-to-grasp design that is almost the same thickness as standard grips.

Note: SUZUKI MOTOR CORPORATION reserves the right to add any improvement to change the design or to discontinue any Suzuki Genuine Accessory at any time without notice. Some Suzuki Genuine Accessories might not be compatible with local standards or statutory requirements. Please check with your local AUTHORIZED SUZUKI DEALER for details at the time of ordering.

Knuckle covers

Front and rear suspension

The Φ41mm telescopic front forks, which provide a generous 110mm of suspension stroke, pair with a unique link-type monoshock rear suspension with 7-way adjustable spring preload to maximise the balance between comfort and sporty performance with 100mm of wheel travel, and to deliver exceptional handling and maneuverability.

15-inch front wheel

Large 15-inch front wheel presents a bold image and conveys a sense of stability.

Underseat storage

Even with a slim, compact rear end design, there is still ample storage room under the seat. 42 litres of space allows for the storage of two helmets (one full face and one demi-jet helmet) or an ample amount of riding gear.

* The weight limit for items in the underseat compartment is 10 kg.

* Helmets of certain shapes may not fit in the underseat compartment.

Suzuki Advanced Immobiliser System (SAIS)

The Suzuki Advanced Immobiliser System (SAIS)* uses an electronic identification system in the owner’s key to prevent unauthorized people from starting the engine. A magnetic cover that opens only for the owner’s key protects the ignition switch for added security.

* Not available on North American, Brazilian or Korean specification.

Elegant and efficient

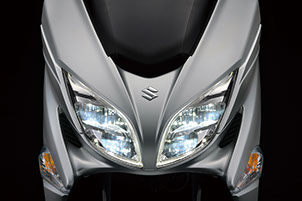

LED headlight design

The nose features sharply styled dual LED headlights with integrated LED position lights and turn signals mounted beneath. The lightweight, clean-looking front end is instantly recognizable as belonging to the BURGMAN family.

New Coloring

A matte finish, known for the cool and modern look it creates, was chosen for the BURGMAN 400’s new “Metallic Matte Sword Silver” color. It has the high-quality, metallic appearance of a sword or blade, and further accentuates the BURGMAN 400’s sporty and elegant looks.

Slim, lightweight chassis

The BURGMAN 400 features a slim, lightweight body. Its slim, compact exterior components are instantly recognizable as those of a BURGMAN, making the machine easy to handle, particularly on narrow streets and in congested traffic. Strong frame rigidity offers a sense of stability and high cornering performance.



LED rear combination lights

The slim rear end of the BURGMAN 400 features independent LED rear combination lights with the turn signals at their tips. It’s a sharply sculpted design that expresses elegance and agility.

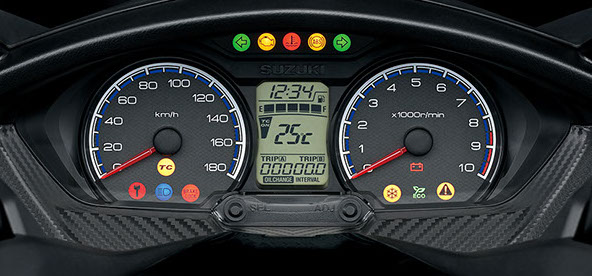

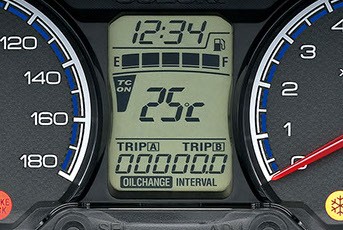

Multi-function instrumentation

Large, easy-to-read analogue speedometer and tachometer dials flank a digital display showing an odometer, dual trip meters, fuel gauge, average fuel consumption meter, ambient temperature indicator, and clock. The updated BURGMAN 400 instrument cluster can also now display riding range and instant fuel consumption, contributing to more fuel efficient riding.

Suzuki’s Eco Drive Indicator lights on the tachometer when the machine is ridden in a fuel-efficient manner and may help riders learn techniques to better conserve fuel*.

*The Eco Drive Indicator does not automatically improve fuel economy but may help riders refine their riding efficiency and improve fuel consumption.

A traction control indicator on the speedometer lets the rider know when traction control is activated.

The freeze indicator on the tachometer blinks to let the rider know there may be ice on the road.

*The freeze indicator starts blinking when the ambient temperature falls below 3°C. It continues to blink for 30seconds then remains lit until the ambient temperature rises above 5°C.

*All lights and indicators are illuminated in the photo for illustrative purposes.

suspension

brake

tire size

Wet sump

CVT

Telescopic, coil spring, oil damped

Link type, coil spring, oil damped

25° / 101 mm (3.98 in)

Disc, twin

Disc

120/70-15M/C 56S, tubeless

150/70-13M/C 64S, tubeless

Electronic ignition

13.5 L (3.6/3.0 US/Imp gal)

1.5 L (1.6/1.3 US/lmp qt)

Specifications

Accessories

Overall length

Overall width

Overall height

Wheelbase

Ground clearance

Seat height

Curb mass

Engine type

Bore × Stroke

Displacement

Compression ratio

Fuel system

Starter system

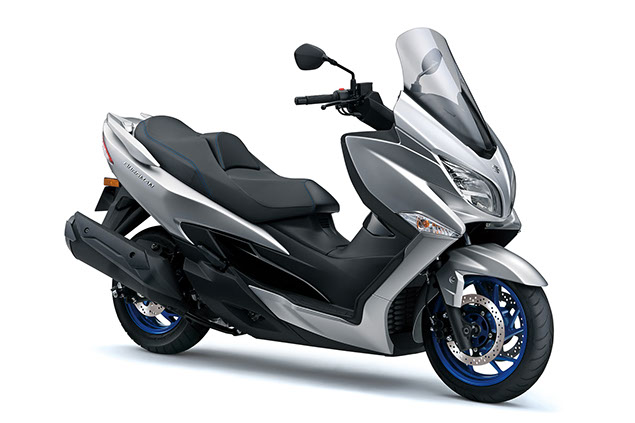

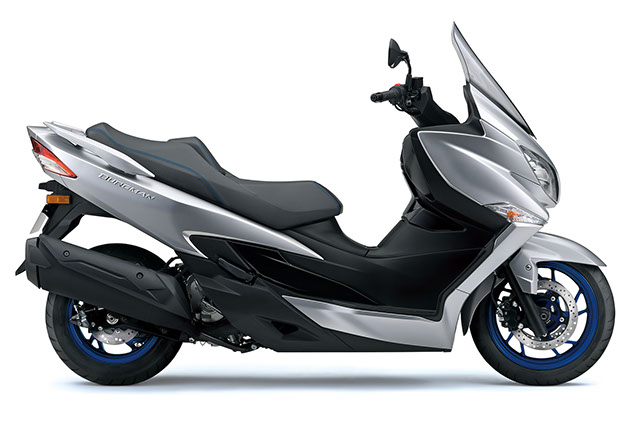

Metallic Mat Sword Silver (QKA)

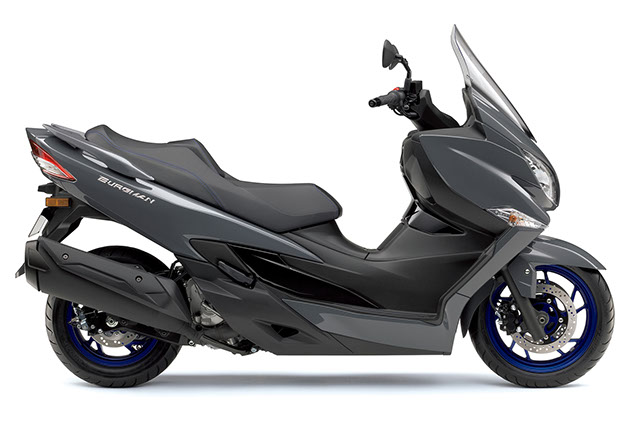

Solid Iron Gray (YUD)

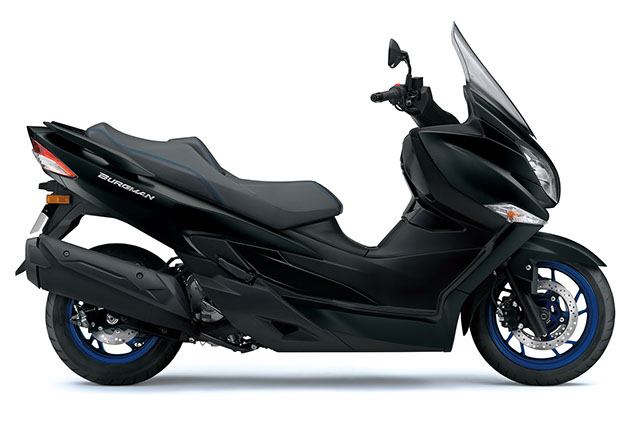

Metallic Mat Black No.2 (YKV)

Photos

Windscreen

The upswept windscreen design creates a clean and compact look from the front or sides while delivering optimum wind protection for rider comfort and a clear view of the road.

Maximum comfort and practicality of the highest level are important elements in achieving winning performance. With the BURGMAN 400, all these essential elements are firmly in place.

Maximising Comfort and Utility

2,235

765

1,350

1,580

125

755

218

4-stroke, 1-cylinder, liquid-cooled, DOHC

81.0 mm x 77.6 mm (3.189 in x 3.055 in)

400 cm3 (24.4 cu. in)

10.6 : 1

Fuel injection

Electric

mm

mm

mm

mm

mm

mm

kg

in)

in)

in)

in)

in)

in)

lbs)

(88.0

(30.1

(53.1

(62.2

(4.9

(29.7

(481

Shutter open

Shutter closed

Videos

Metallic Mat Sword Silver (QKA)

Solid Iron Gray (YUD)

Metallic Mat Black No.2 (YKV)

Eco Drive

Indicator

Traction Control Indicator

Freeze

Indicator

Traction control switch

Traction control mode display
