Making every ride
a new adventure.
V-Strom 1050XT
V-Strom 650XT
*European Spec. shown with optional accessories.
V-Strom 250
The V-Strom 250 combines slim styling and massive presence in a unique design
that defies its modest engine displacement.
It is highly manoeuvrable on city streets, wonderfully exciting on winding roads,
and thoroughly pleasing as an adventure touring motorcycle.
Proudly carrying on the heritage of the V-Strom series,
the V-Strom 250 is dedicated to fine quality that will ignite your spirit of adventure.
The instant you take to the road, you sense a change in the breeze and in the air that surrounds you.
It’s a feeling that makes you want to ride as far as you can for as long as you can,
while enjoying the bike’s highly emotional styling.
The V-Strom 250 is crafted to soundly respond to all these expectations.
*European Spec. shown with optional accessories.
Massive and
smart

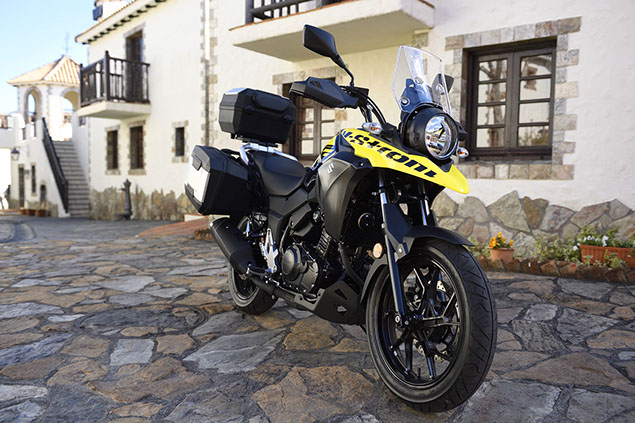

*European Spec. shown with optional accessories.
The V-Strom 250 design concept is “Massive and Smart”: Massive for the solid feel of its well-balanced body and Smart for its sophisticated and practical design that provides ease of handling. Naturally, the V-Strom 250 shares the same outdoor adventure DNA as its siblings, with design cues such as its yellow color scheme and unique ‘beak’ paying tribute to Suzuki’s famed DR-Z and DR-BIG desert racers.
800mm
Note: All light and indicators are illuminated in the photo for illustrative purposes.
Photo: V-Strom 250 ABS

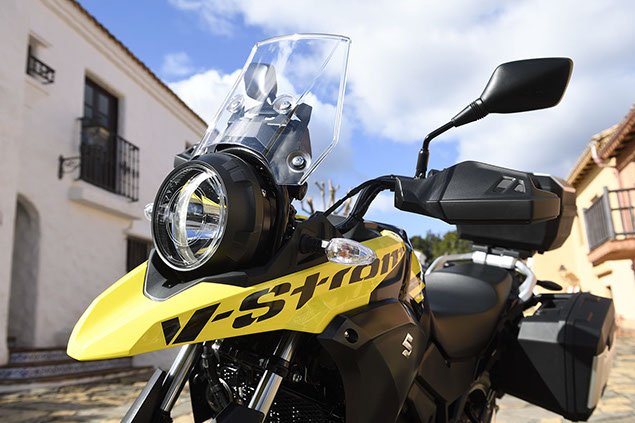

Headlight
The shell surrounding the headlight is designed to resemble a hard anodized finish flashlight.
Rear combination lights
The taillight adopts a surface-emitting LED.
Multi-function instrument panel
LED indicators include those for the turn signals, high beam, neutral, malfunction, ABS (Only for ABS model), RPM indicator, coolant temperature and oil pressure. The indicators are designed to be easy to recognize. The LCD instruments include: Speedometer, Tachometer, Odometer, Dual trip meters, Gear position, Driving range, Average fuel consumption, Fuel gauge, RPM indicator ON/OFF, Oil change timing indicator, Clock.
DC outlet
12V/36W when riding
12V/12W at idle
*To prevent draining the battery, do not use the DC outlet under the engine stop or idling condition.
Engine performance
*European Spec. shown with optional accessories.

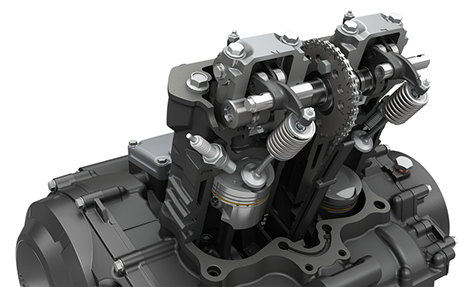

Camshaft
The cam profile for the V-Strom 250 delivers maximum acceleration performance at speeds between 20km/h to 90km/h, as this is the range that is used most often. As an additional benefit, the cam profile also suppresses noise generation to deliver a smoother, more pleasant ride.
Cylinder
The honing pattern used for the cylinder barrels maintains lubrication for the pistons in a manner that helps minimize any loss of performance due to friction.
Cylinder head
The cylinder head adopts roller type rocker arms that minimize friction loss.
Piston
Thin, low tension piston rings were adopted to reduce friction and the shape of the piston ring grooves was also optimized.
Rectifier
Adopting an open type rectifier contributes to improved fuel economy.
Intake valve
The port sections on the intake valves are designed to optimize airflow into the combustion chamber. This helps achieve a high level of thermal efficiency for improved performance and reduced emissions.

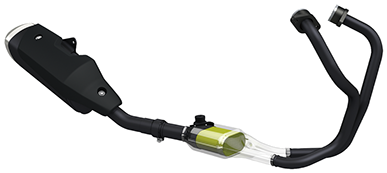

Highly efficient, lightweight exhaust system
The two-into-one exhaust system for the V-Strom 250 features an optimized shape for the chamber in front of the catalyzer. This maximizes acceleration performance at mid-range speeds, while the efficiency of the system also reduces exhaust emissions.
Spark plug
Adopting the use of projected tip spark plugs speeds up the rate of combustion. This improves response, especially when the throttle is not open far, and also improves fuel economy.
The 248cm3 parallel-twin engine that powers the V-Strom 250 underwent thorough analysis and optimization to maximize low- to mid-range torque and provide a powerful ride that features ease of control. The overall efficiency achieved also helps realize better fuel economy and clean performance that satisfies the stringent Euro 4 emission regulations. With a full tank of gasoline, the V-Strom 250 has a riding range of over 500km*1.
*1: Calculated based on the Worldwide Motorcycle Test Cycle (WMTC) mode exhaust emissions measuring conditions.
Actual fuel economy and riding range may differ owing to differences in conditions such as the weather, road, rider behavior and maintenance.
Chassis design
*European Spec. shown with optional accessories.
Wind-screen
While compact, the windscreen benefits from repeated wind tunnel testing to optimize its shape, providing highly effective shielding for a more comfortable ride.

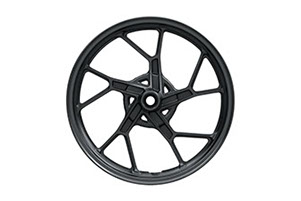

Front wheel

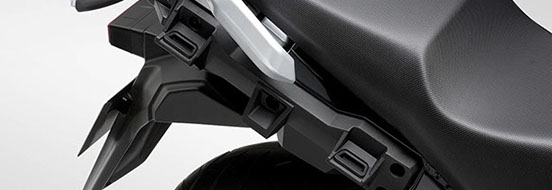

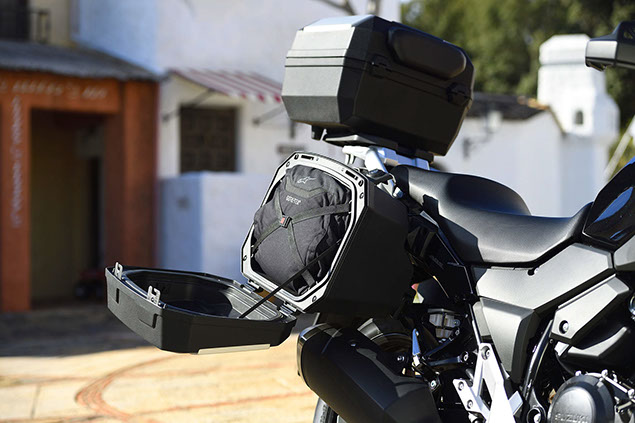

Side case attachment
Designing dedicated mounting clips to accommodate the optional side cases makes realizes an integrated design that matches the bike. The large aluminum rear carrier with 8.5kg maximum capacity is fitted with hooks for attaching straps and that can also be used for attaching the optional top case.
Petal Type Brake Disc
ABS Unit
Wheels, tires and brakes
The sporty flair designed 10-spoke wheels pairs with IRC tires that provide a solid grip on the road. Stopping power is provided by
Petal-type front and rear disc brakes. An Antilock Brake System (ABS)*2 made by BOSCH is also available*3 to deliver yet greater confidence and control.
*2: ABS is not designed to shorten the braking distance. ABS cannot prevent wheel skidding caused by braking while cornering. Please drive carefully and do not overly rely on ABS.
*3: Only equipped on ABS model.
Accessories
The sufficient Accessories line-up will support you and your partner at all levels of adventure.

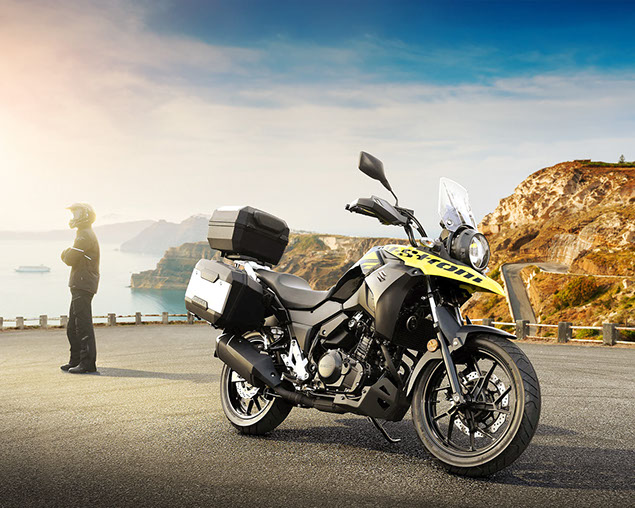

*European Spec. shown with optional accessories.

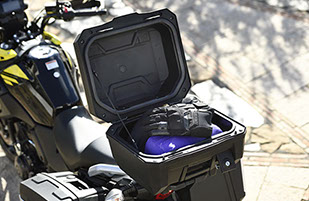

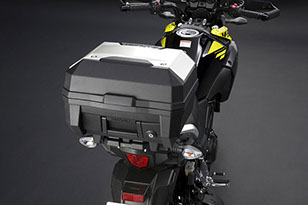

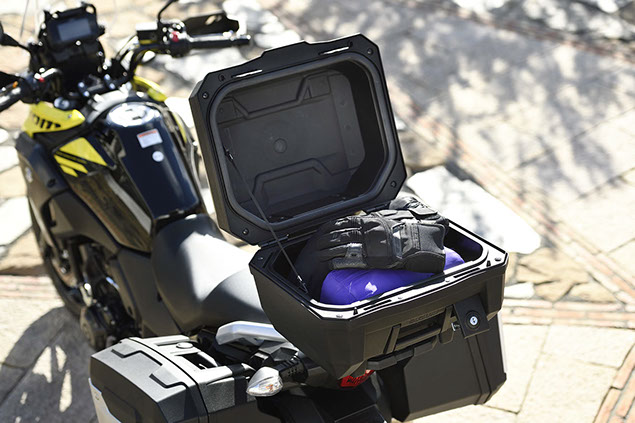

23L top case*4

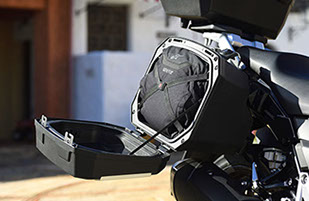

20L side cases*4

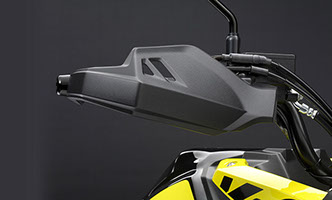

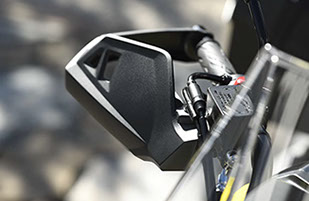

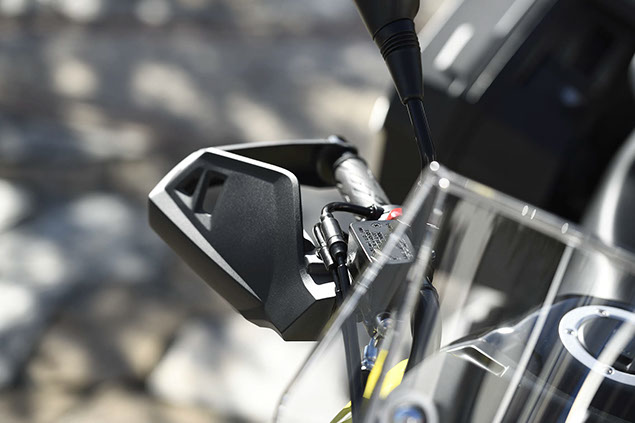

Knuckle Cover

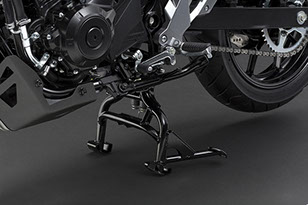

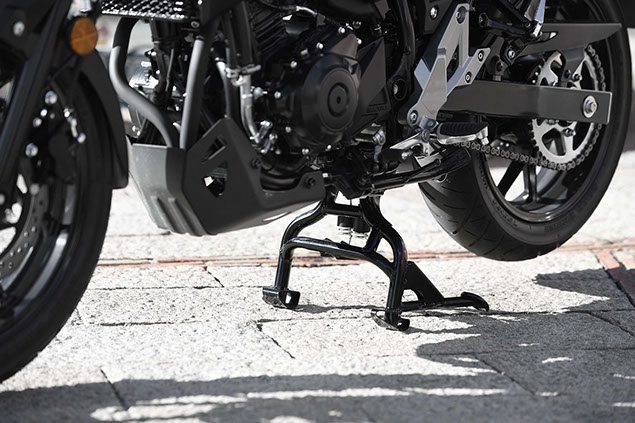

Centerstand
*4 The top case and side case each have a maximum loading capacity of 3kg.
*SUZUKI MOTOR CORPORATION reserves the right to add any improvement to change the design or to discontinue any Suzuki Genuine Accessories at any time without notice. Some Suzuki Genuine Accessories might not be compatible with local standards or statutory requirement. Please check with your local AUTHORIZED SUZUKI DEALER for details at the time of ordering.

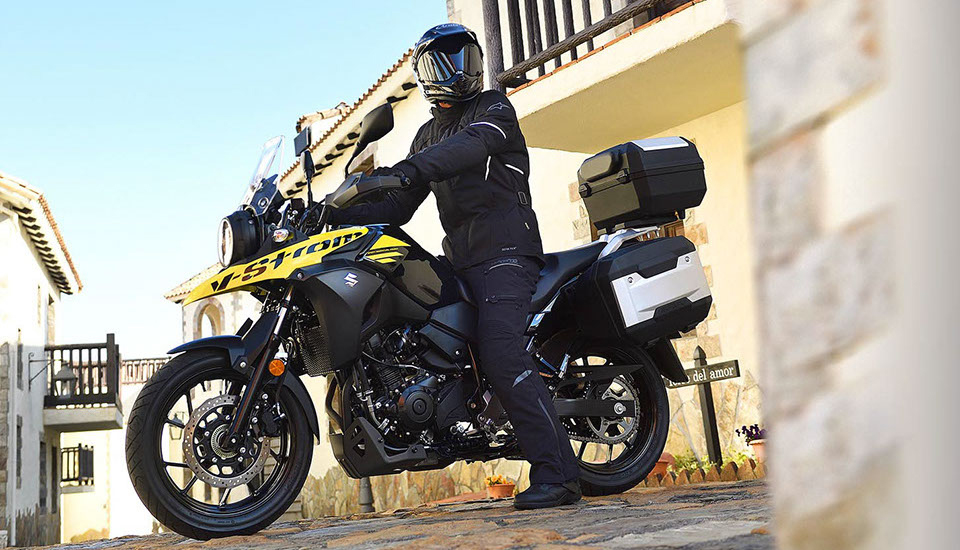

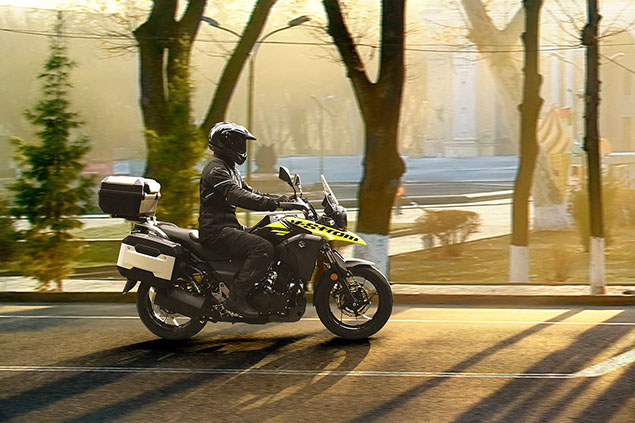

Get ready for your next adventure.
For a ride only true nature lovers can appreciate.
A ride that is agile, powerful and highly controllable.
It’s a feeling that heightens the desire to get out and enjoy new adventures.
*European Spec. shown with optional accessories.
360° Viewer
(2018 model)
Suzuki VR Experience
Smart Touring
Videos
Photos
Overall length
Overall width
Overall height
Wheelbase
Ground clearance
Seat height
Curb mass
Engine type
Bore × Stroke
Engine displacement
Compression ratio
Fuel system
Starter system
Lubrication system
Specif ications
2,150 mm (84.6 in)
790 mm (31.1 in)
1,295 mm (51.0 in)
1,425 mm (56.1 in)
160 mm (6.3 in)
800 mm (31.5 in)
188 kg (414 lbs)
4-stroke, 2-cylinder, liquid-cooled, SOHC
53.5 mm x 55.2 mm (2.1 in x 2.2 in)
248 cm3 (15.1 cu. in)
11.5 : 1
Fuel injection
Electric
Wet sump
Transmission
Primary reduction ratio
Final reduction ratio
Front suspension
Rear suspension
Rake / Trail
Front brake
Rear brake
Front tire size
Rear tire size
Ignition system
Fuel tank capacity
Oil capacity (Overhaul)
6-speed constant mesh
3.238 (68/21)
3.357 (47/14)
Telescopic, coil spring, oil damped
Swingarm type, coil spring, oil damped
25.2° / 100 mm (3.9 in)
Disc brake
Disc brake
110/80-17M/C 57H, tubeless
140/70-17M/C 66H, tubeless
Electronic ignition (Transistorized)
17.3 L (4.6/3.8 US/lmp gal)
2.4 L (2.5/2.1 US/lmp qt)

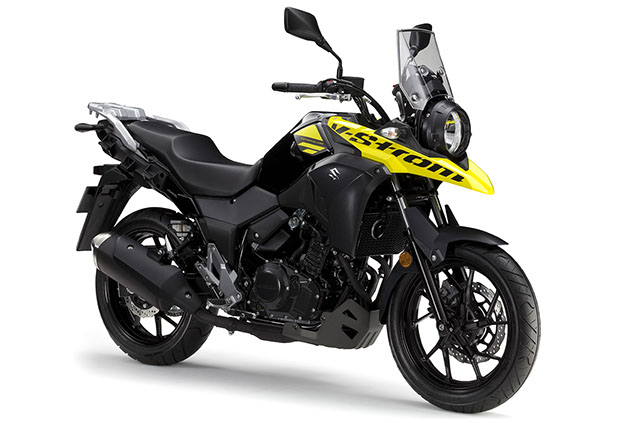

Pearl Nebular Black /
Solid Dazzling Cool Yellow (BJE)

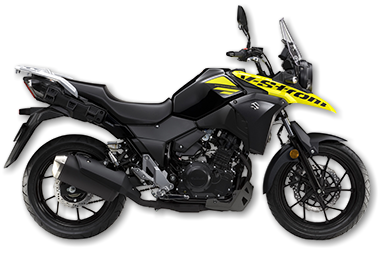

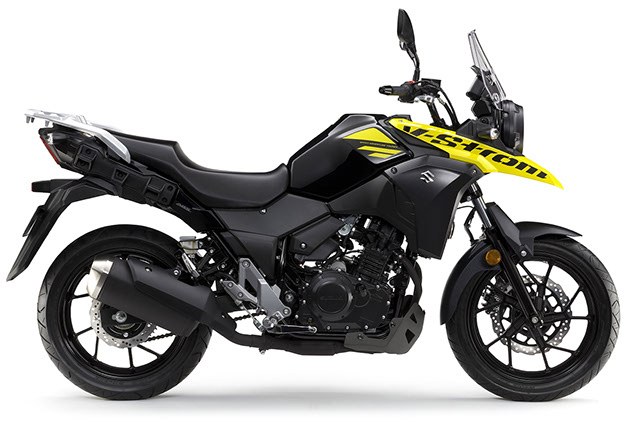

Photo: V-Strom 250

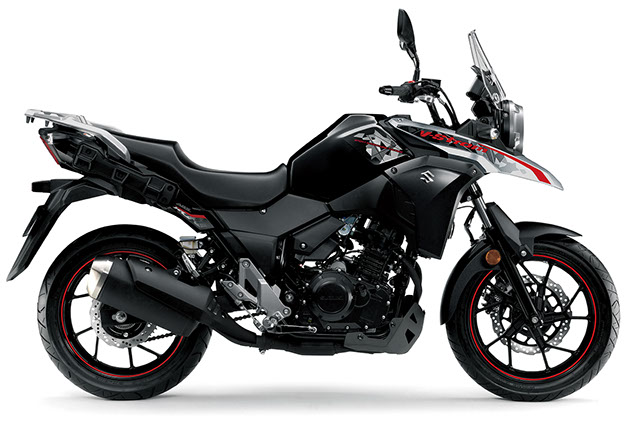

Pearl Nebular Black /
Metallic Hightech Silver (BY6)
*European Spec. shown
*European Spec. shown with optional accessories.
