Lets you freely escape into the wilderness and

explore to your heart’s content.

A sleek look with the latest features allows for

a smooth and comfortable ride.

Limitless potential to continue your adventure.

Ride on my friend.

The V-STROM 1050/XT isalways by your side.

EXPLORATION HAS NO LIMITS.

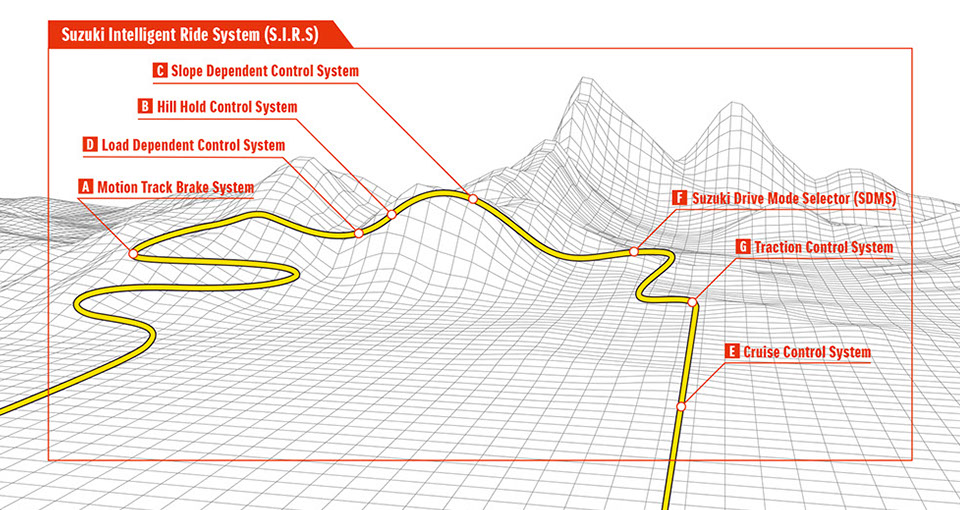

Suzuki Intelligent Ride System (S.I.R.S)

The Suzuki Intelligent Ride System (S.I.R.S) includes the Motion Track Brake System, Hill Hold Control System, Slope Dependent Control System and Load Dependent Control System that assist in braking, and the Cruise Control System, Suzuki Drive Mode Selector (SDMS), and Traction Control System that assist in driving. The system provides users with intelligent controls to enhance ease of use and convenience in touring and daily life.

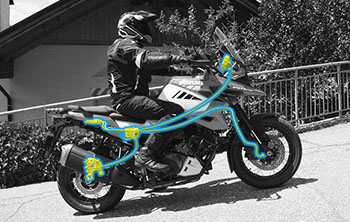

000Hill Hold Control System

When the vehicle stops on an upward slope and applies the brakes, this system automatically operates the rear brake for around 30 seconds to prevent the vehicle from backing down the hill even if the rider releases the brake lever/pedal. This allows the rider to focus on a smooth start on a hill.

Operating conditions:

1. When hill-hold mode is ON.

2. When stopped completely on an incline.

3. When the gear is not in the “N” position.

4. When the side stand is stowed.

5. When the brakes are applied.

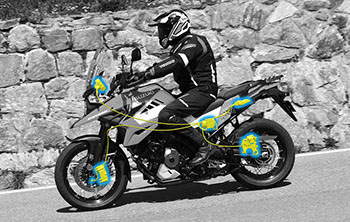

000Slope Dependent Control System

The Slope Dependent Control System constantly monitors the posture of the vehicle even when the vehicle is traveling downhill. When the rider operates the brake lever or pedal on a downhill, the electronic control unit controls brake pressure to prevent rear wheel lift.

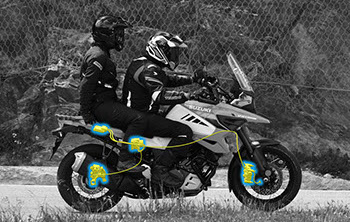

000Load Dependent Control System

This system supports optimal braking in response to load conditions. The system constantly learns changes in the braking deceleration through the input of hydraulic pressure as the load increases or decreases when riding with a load or in tandem.

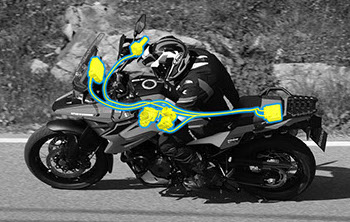

000Suzuki Drive Mode Selector (SDMS)*

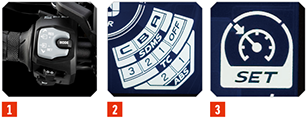

Suzuki Drive Mode Selector is a system that allows the rider to select from three different output characteristic modes (A, B, and C).

*Not available for 35kw specs.

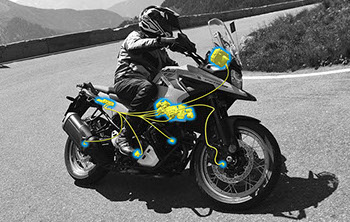

000Traction Control System

An updated traction control system is used to let the rider be in control with more confidence in diverse conditions with less stress and fatigue. The traction control mode is increased to three modes plus off mode for diverse road conditions, or to match the rider’s preference more. The traction control system continuously monitors the front and rear wheel speed, throttle position, crank position and gear position. When wheel spin is detected, the system quickly controls power output by managing ignition timing and air delivery.

Note: Traction control system is not a substitute for rider’s throttle control under the various conditions, and traction control cannot prevent loss of traction due to excessive speed when entering turns, or while braking, and it does not control front wheel traction.

Ride-by-wire Electronic Throttle System

Much simpler, lighter and more compact than the previous mechanical throttle. There are no mechanical cables used and one is independently installed to both the front and rear cylinder. Ride-by-wire electronic throttle control system offers a light feeling of control that is natural and linear like a conventional throttle.

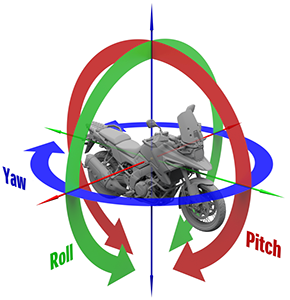

IMU

The inertial measurement unit (IMU) works on 6-direction along 3-axis rather than the 5-axis of the previous system. This allows it to detect pitch, roll, and yaw movement based on the angular rate and acceleration. The high-performance 6-directions IMU from Bosch combines a 3-axis angular rate sensor (gyrometer) and a 3-axis acceleration sensor in a single compact unit.

Power delivery image by mode

IMU/6-directions, along 3-axis, pitch, roll and yaw

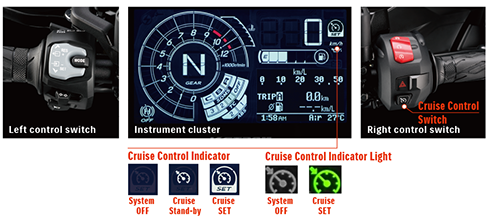

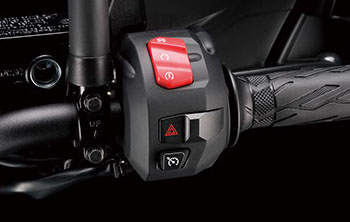

000Cruise Control System

The newly equipped cruise control system maintains the set speed without the rider having to operate the throttle-a feature for long-distance touring that helps reduce rider fatigue. The model features a range of technology such as ride-by-wire throttle system and the newly programmed ECM, which result in an easy-to-use cruise control. Crusing speed can be set from approximately 50km/h to 160km/h at fourth gear or above. A switch on the right handlebars can be pressed to put cruise control into standby, and a selector switch (up/down) on the left handlebars allows the rider to adjust the speed.

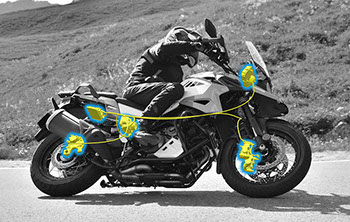

000Motion Track Brake System

The updated Motion Track Brake System combines information of the posture of the vehicle with the front and rear wheel speeds. This allows the ABS to activate not only in a straight line but also when the vehicle is leaning.

Note: ABS is not designed to shorten the braking distance. Please always ride at a safe speed for road and weather conditions, including while cornering.

New Styling

The distinctive styling incorporates elements of both Suzuki’s legendary DR-Z desert racer and the large off-road model DR-BIG. The characteristic beak design first adopted by Suzuki stays true to Suzuki’s heritage while also further evolving the design to be more aggressive and bolder for the new generation V-STROM.

Designing the V-STROM 1050/XT

There is a new design featuring a vertically stacked headlight with a unique rectangular shape. The headlight clearly illuminates the road surfaces and shoulders for excellent visibility. The headlight unit is lightweight for excellent balance with the overall weight of the vehicle. This model is equipped with aluminum tapered handlebars. The shape enhances the off-road style feel and is lightweight while maintaining high rigidity. The cylinder head, magneto cover, water pump case and clutch covers are finished with a bronze color for a beautiful contrast with the black engine body.

A COMPLETE PACKAGE

B

C

D

F

G

E

A

Image sketch

*All lights and indicators are illuminated in the photo for illustrative purposes.

DESIGN IS IN OUR DNA

*Above photos shown in this section are 2020 model.

*Image shown with optional accessories.

*Image shown with optional accessories.

*Image shown with optional accessories.

GRAND EVOLUTION

V-twin engine keeps evolving.

The Refined V-Twin Engine

The liquid-cooled, DOHC, 1037cm3 90° V-twin engine further evolved. It meets new Euro 5 emission control standards while achieving high power of 79.0kW / 8,500rpm while maintaining low fuel consumption (4.9L / 100km). Also, a 35kW version has been added for the European Driving License Directive. The engine delivers deep rumble in the low rpm range, strong and linear torque in the mid-range and a maximum horsepower in the high rpm range with a smooth run up. This refined engine will support the rider to enjoy various situations such as city and rural roads, winding passes, flat dirt roads and highways.

Note: Actual fuel economy may differ owing to differences in conditions such as the weather, road, rider behavior and maintenance.

Low RPM Assist

The Low RPM assist system monitors and automatically raise the idle speed when taking off from a stop or when riding slowly. Using the electronic throttle, a even finer level control is made possible. The system makes it easier for the rider to pull away from a standstill or maneuver in heavy traffic or through a crowded parking lot.

Suzuki Easy Start System

The Suzuki Easy Start System allows the rider to easily start the engine with a single press of the starter button in any weather conditions or engine state—whether cold or hot. There is no need to continue to press the starter button until the starter ignites and turns the engine.

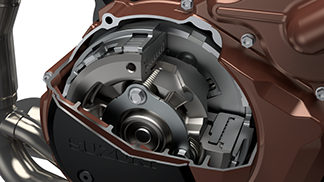

Suzuki Clutch Assist System (SCAS)

The Suzuki Clutch Assist System (SCAS) works as an assist clutch to make the lever easier to pull while transmitting the power output, reducing fatigue on long touring.

Dual Spark Technology

Each cylinder head is equipped with two iridium spark plugs. The ignition timing is controlled independently contributing to high combustion efficiency, higher power output, a more linear throttle response, easier engine startup and a more stable idle.

Electronical Throttle Body

Now, ride-by-wire throttle system is simpler, lighter and more compact than the previous model, with a larger bore (49mm compared to 45mm of the previous model). The throttle body is independently installed to both the front and rear cylinder. Each throttle body has a single butterfly valve, allowing each to be opened and closed using its own independent motor for precise control.

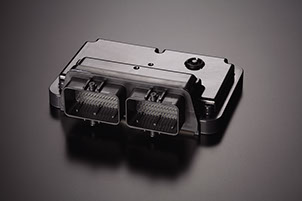

ECM

The newly programed ECM (Engine Control Module) provides state-of-the-art engine management and has optimized settings to meet Euro 5 regulations.

Camshafts and Cam-timing

Both the exhaust and intake cam profile are changed so that  the amount of lift is increased and the cam-timing has been set with less overlap. This provides better combustion efficiency and contributes to higher power output and low fuel consumption.

Liquid-cooled Oil Cooler

Uses a new liquid-cooled oil cooler. Located where the oil filter is attached, it takes up less space and is both lightweight and compact. The liquid-cooled oil cooler provides flawless lubrication for a more powerful engine.

Suzuki Clutch Assist System (SCAS)

Dual spark plugs

Liquid-cooled oil cooler

Electronical throttle body

ECM

Cam profile

Photos

Specifications

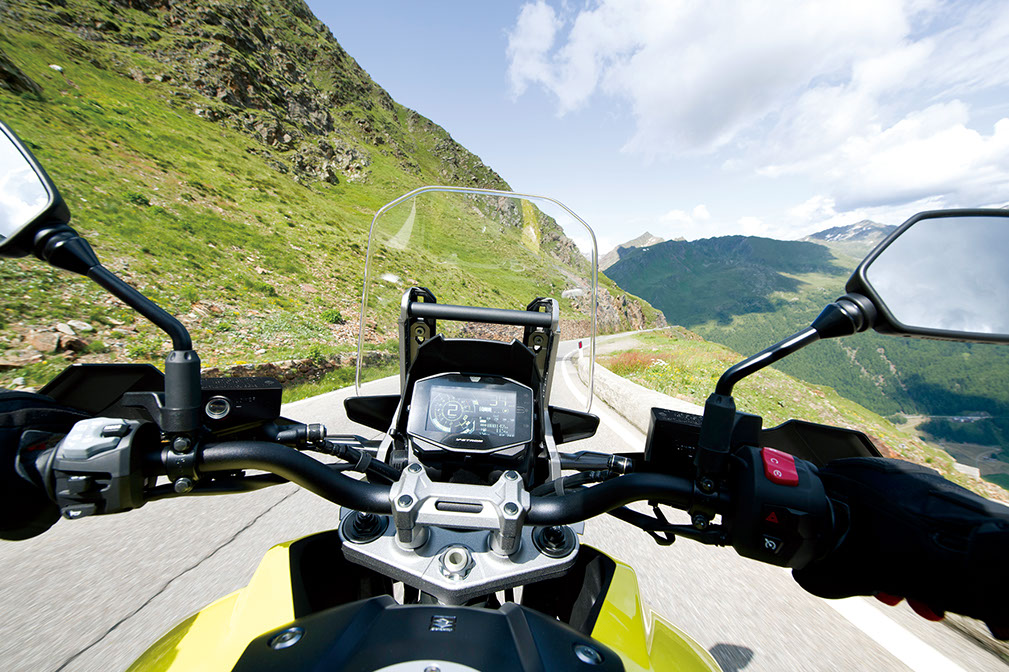

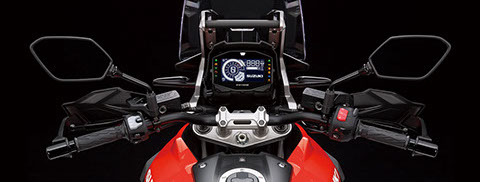

Multi-function Instrument Cluster

The instrument panel presents all required information on a full LCD screen using a clean and intuitive layout with information displayed in order of priority. Included in the display are the speedometer, tachometer (full pixel digital display), gear position indicator, odometer, trip meter (A, B), instantaneous fuel consumption, average fuel consumption, driving range, fuel level indicator, engine coolant temperature indicator, ambient air temperature indicator, clock, voltage meter, service reminder, SDMS mode, traction control mode, cruise control indicator, ABS mode, hill hold indicator, engine rpm indicator light, freeze indicator light, turn signal indicator light, high beam indicator light, traction control indicator light, ABS indicator light, and neutral indicator light.

Adjustable Suspension with Excellent Wheel Selection

With an inner tube diameter of only 43mm, the spring preload and compression/rebound damping of the KYB inverted front forks can be fully adjusted, allowing the suspension to be set based on the preference of the rider or the usage conditions. The rear suspension is a bottom link type mono-shock, and the preload can be adjusted simply by turning the dial by hand. The V-STROM 1050XT model uses DID aluminum wire-spoked wheel rims, while the V-STROM1050 model is equipped with 10-spoke aluminum cast wheels. Bridgestone Battlax Adventure A41 tires are standard equipped with a 110/80R19 radial tire on the front and 150/70R17 on the rear.

Exclusive Equipments Only for V-STROM 1050XT

V-STROM 1050XT is standard equipped with special parts such as an aluminum under cowling, accessory bar, knuckle cover, LED turn signals and center stand. The seat has a front/rear segmented design, and the rider seat can be easily adjusted 20mm higher than the standard position. The windscreen height can be adjusted without any tools. A 12V DC socket is equipped under pillion rider seat. This convenient outlet can be used to charge or power a range of electrical devices.

Accessories

*In order to prevent draining the battery, do not use the outlet during an engine stop. Please make sure to keep at 12W or less during idling.

*6: Above photos shown in this section are 2020 model.

Durable Twin-spar Aluminum Frame

The lightweight cast aluminum twin-spar frame realizes the optimal rigidity balance for stability and handling performance. The swingarm is also aluminum supporting the balance and light handling.

USB Outlet

A USB port is located left side of the meter panel. It can be used as a power source for a smartphone, navigation system, or other similar device.

*In order to prevent draining the battery, do not use during an engine stop. Please refer to the owner’s manual for other usage conditions.

Height Adjustable

Windscreen

The windscreen reduces

fatigue when riding at high

speeds. Height is adjustable

on the V-STROM 1050XT without any tools.

Comfortable Seat

The seat has a front/rear separate design and is just the right firmness to provide a comfortable ride with less fatigue even on long rides. The height of the rider’s seat can be adjusted 20mm higher on the V-STROM 1050XT.

Aluminum Tapered Handlebars

This model is equipped with aluminum tapered handlebars. The shape enhances the off-road style feel.

2,265 mm (89.2in)

V-STROM 1050XT : 940 mm (37.0 in)

V-STROM 1050    : 870 mm (34.3 in)

V-STROM 1050XT : 1,465 mm (57.7 in)

V-STROM 1050    : 1,515 mm (59.6 in)

1,555 mm (61.2 in)

V-STROM 1050XT : 160 mm (6.3 in)

V-STROM 1050    : 165 mm (6.5 in)

V-STROM 1050XT : 850 mm (33.5 in)

V-STROM 1050    : 855 mm (33.7 in)

V-STROM 1050XT : 247 kg (544.5 lbs)

V-STROM 1050    : 236 kg (520.3 lbs)

4-stroke, 2-cylinder, liquid-cooled, DOHC

100.0 mm x 66.0 mm (3.9 in x 2.6 in)

1,037 cm3 (63.3 cu.in)

11.5 : 1

Fuel system

Starter system

Lubrication system

Transmission

Primary reduction ratio

Final reduction ratio

Front suspension

Rear suspension

Rake / Trail

Front brake

Rear brake

Front tire size

Rear tire size

Ignition system

Fuel tank capacity

Oil capacity (Overhaul)

Fuel injection

Electric

Wet sump

6-speed constant mesh

1.838 (57/31)

2.411 (41/17)

Inverted telescopic, coil spring, oil damped

Link type, coil spring, oil damped

25° 30' / 109 mm (4.3 in)

Disc, twin

Disc

110/80R19M/C 59V, tubeless

150/70R17M/C 69V, tubeless

Electronic ignition

20.0 L (5.3/4.4 US/lmp gal)

3.5 L (3.7/3.1 US/lmp qt)

Overall length

Overall width

Overall height

Wheelbase

Ground clearance

Seat height

Curb mass

Engine type

Bore × Stroke

Engine displacement

Compression ratio

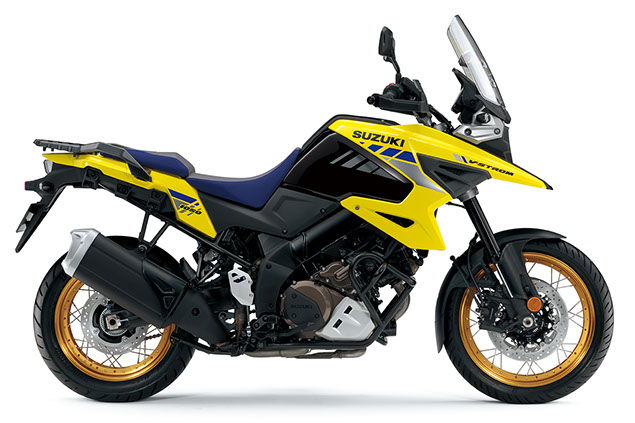

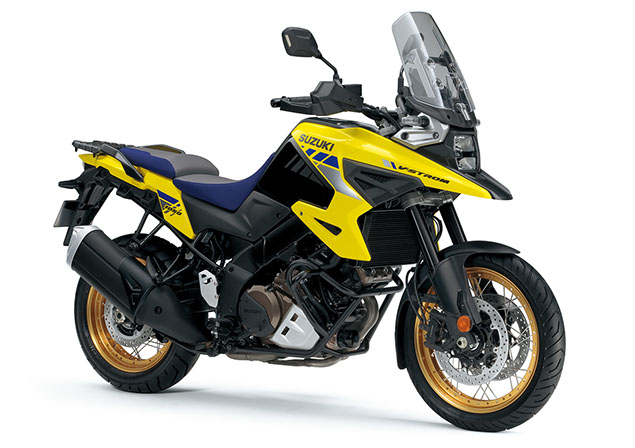

Champion Yellow No.2 / Glass Sparkle Black (BT1)

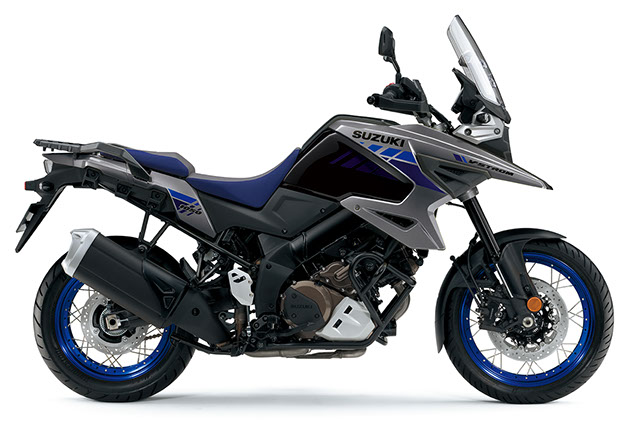

Metallic Oort Gray No.3 / Glass Sparkle Black (BD7)

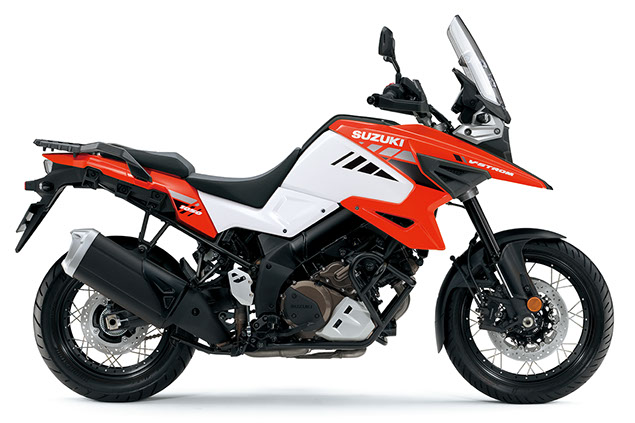

Pearl Brilliant White / Glass Blaze Orange (B1F)

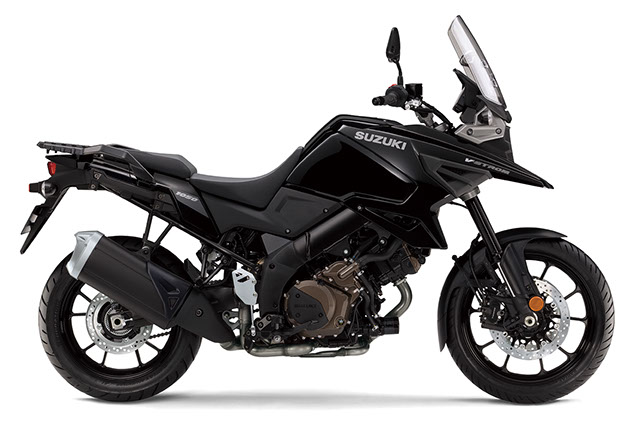

Glass Sparkle Black (YVB)

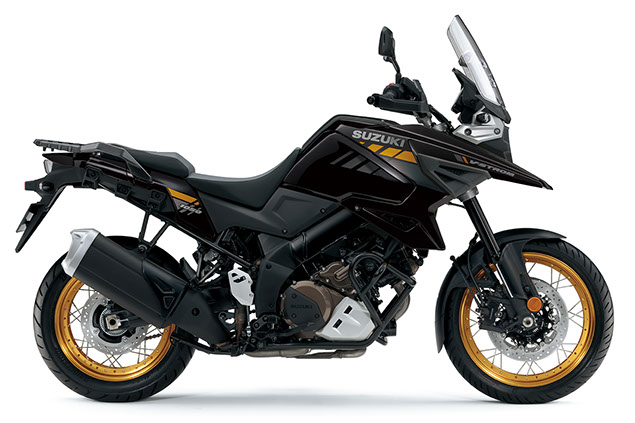

Glass Sparkle Black (YVB)

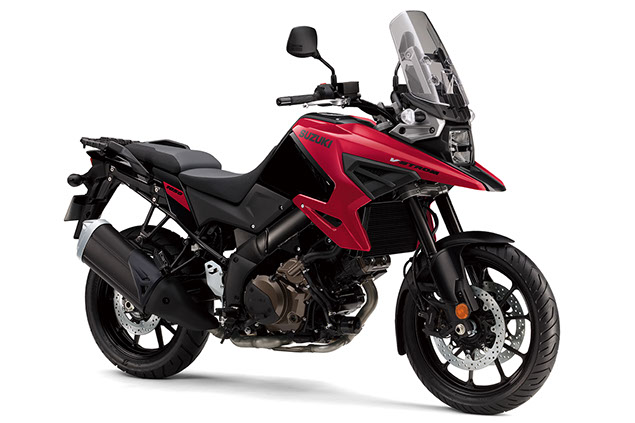

Candy Daring Red / Glass Sparkle Black (AV4)

EXPAND YOUR HORIZON.

Release your inhibitions and go out in the wild.

The adventurous spirit of the new generation

V-STROM 1050/XT with its intelligent functionality

gives you limitless potential.

Go beyond your boundaries and dive into

your next adventure with the V-STROM 1050/XT.

Videos

LEADING A NEW GENERATION

The new generation V-STROM leads the way with the latest features..

*All lights and indicators are illuminated in the photo for illustrative purposes.

Front folk adjuster

USB outlet

Aluminum under cowling

LED FOG LAMP SET *6

*1: Max loading capacity : 5kg   *2: Max loading capacity : 3 kg each   *3: Not in combination with plastic side case set. Max loading capacity : 3kg

*4: Max loading capacity : 3kg   *5: Max loading capacity : 2.5kg

*For installation conditions, please contact your local Suzuki dealers.

ALUMINUM SKID PLATE BLACK

ALUMINUM SKID PLATE SILVER

LARGE FOOTREST

Adjustable windscreen

Rear suspension adjuster

Windscreen

Accessory bar

Seat (height adjustable)

V-STROM 1050XT

Seat

LED turn signal

Center stand

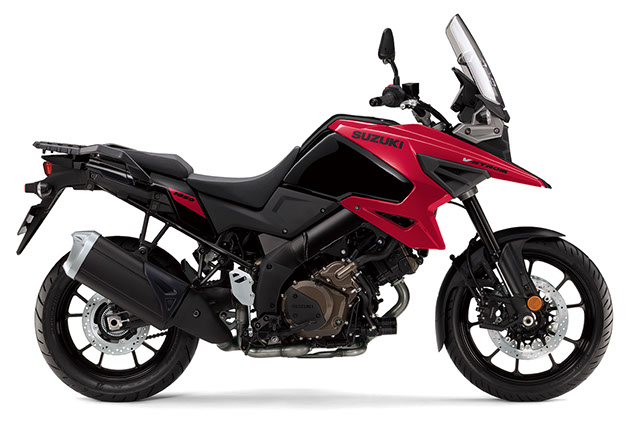

V-STROM 1050

Handlebars

Knuckle covers

12V DC socket

*Image shown with optional accessories.
