2,140 mm (84.3 in)

760 mm (29.9 in)

1,090 mm (42.9 in)

1,445 mm (56.9 in)

135 mm (5.3 in)

785 mm (30.9 in)

200 kg (441 lbs)

4-stroke, 2-cylinder, liquid-cooled,

DOHC

81.0 mm × 62.6 mm (3.2 in × 2.5 in)

645 cm3 (39.4 cu.in)

11.2 : 1

Fuel injection

Electric

Wet sump

Brakes & ABS

Large 290mm dual front disc brakes with ABS and 240mm rear brake disc provide incredible stopping performance and control. Compact and lightweight, the SV650 introduces state-of-the-art ABS technology manufactured by Nissin, thus making it possible to further reduce vehicle weight without sacrificing performance. ABS control unit monitors wheel revolutions at 50 times per revolution and uses over 100 separate sensor data criteria in order to deliver a high degree of braking and stabilisation control. Stopping distance performance is maintained relatively the same across various  road conditions.

* Please note that ABS is not designed to shorten the braking distance. ABS cannot prevent wheel skidding caused by braking while cornering. Please drive carefully and do not overly rely on ABS.

What started in 1999 as a motorcycle built to deliver “V-Twin fun”,

the Suzuki SV650 quickly became a rider’s phenomenon around the world.

Not only was this universal motorcycle well-suited for urban roads but it was right at home on the racetrack too.

Raising the “V-Twin fun machine” performance even higher with latest Suzuki innovations,

the SV650 now sets a higher standard. The SV650 is a rider’s go-anywhere dream machine.

The “SV” designation  in the SV650 stands for many things: Sporty V-Twin, Superior Value, Simple and Versatile. Yet, it quite simply is a concept that you actually experience rather than try to define. Loaded with capabilities and exuding personality, your daily commutes or weekend excursions on winding roads are an unforgettable ride. The SV650’s lightweight and ultra-slim profile give you the confidence to take to the road.

Suzuki’s V-Twin engine’s calibrated irregular firing intervals create a unique heartbeat-like sound and linear power delivery. The engine has broad range of potential. In local club racing V-Twin cup, the starting grid is still filled with SV650’s. While it has such a great potential, the motorcycle easily fit in the city riding conditions. Combine this power plant with the SV650’s slim design and lightweight body, and you have a ride experience that can amplify seemingly endless potential.

V-Twin Fun And Excitement

More Than Just An Easy Ride

V-Twin Power For The Street

Light Weight

With a remarkable weight of only 200kg, the SV650 makes manoeuvring and handling a sheer joy. The benefits of making the motorcycle lightweight are multi-fold - more responsive acceleration, nimble handling and greater confidence in manoeuvring. Riders of all levels can take

to the city or winding roads and experience unrestricted fun.

200kg

Slim Body

Achieving a slim body isn’t only about the motorcycle’s seat height. The SV650’s streamlined profile is the result of ergonomically shaped side covers and optimised seat design, which let you straddle the motorcycle with your feet on the ground comfortably while stopped and easily lean into and manage corners while riding.

Truss Pipe Frame

The truss is constructed of lightweight steel material that allows an overall slimmed down appearance while proudly emphasising the beauty of the robust V-Twin engine.

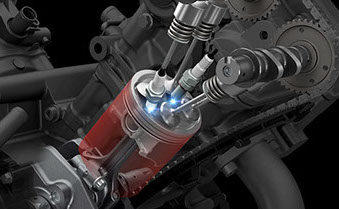

Dual Spark Technology

Suzuki’s Dual Spark Technology utilises two spark plugs per cylinder for precision ignition. The result is high combustion efficiency, smooth power delivery, low fuel consumption and low emissions.

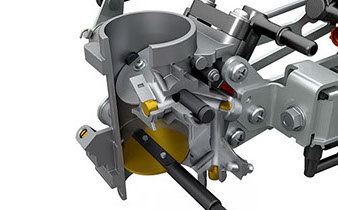

Low RPM Assist

TI-ISC has the Low RPM Assist control function. In the launching operation or low rpm riding conditions, ECM activates ISC system. By opening the ISC circuits, engine rpm slightly raises. Normally in launching the motorcycle, engine rpm drops when the clutch is engaged. This general behavior causes engine stall. The Low RPM Assist helps rider for smooth launching operation in low rpm range. It also makes easy to ride at low speed in stop and go traffic.

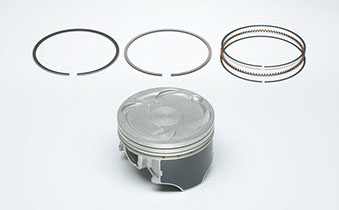

Pistons & Rings

In order to support overall fuel efficiency and emissions control, the V-Twin engine adopts two innovations: resin coating on the piston skirt for minimised friction between the cylinder and piston, and a special L-shaped piston ring for enhanced seal performance and blow-by gas reduction.

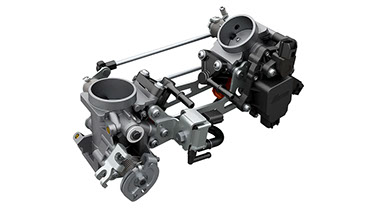

SDTV Fuel injection

The SV650 features Suzuki’s performance-proven Dual Throttle Valve fuel-injection system, which includes dual butterfly valves per cylinder for enhanced power output efficiency. Combined with the ten-hole fuel injectors, fuel-combustion efficiency is further optimised as well as smooth power delivery and fuel economy. Furthermore, the system includes a thin and light 39mm throttle body with a built-in ISC (Idle Speed Control), providing optimized idling stability and environmental performance.

Dual Spark 90° V-Twin

The Suzuki V-Twin engine is a marvel of engineering and superb versatility. While at lower RPMs, this engine delivers powerful torque that’s easy to handle and a deep robust sound. Open the throttle to mid-range, and the power of the engine responds linearly and smoothly, yet always under your control. Finally at higher RPMs, the V-Twin cruises with performance ready to go, even at higher gears.  The V-Twin meets the latest EURO5 emissions regulations while achieving class-leading fuel economy (4.1L / 100km [24.3km / L] * ) and high maximum output.

*In WMTC mode measured by SUZUKI

SCEM

The aluminium die-cast cylinder adopts the patented Suzuki Composite Electrochemical Material (SCEM) chrome-plated cylinder, which provides high heat dissipation properties and resistance to wear. The hard exterior coat makes it possible to efficiently dissipate high heat while reducing friction, and achieve a consistent wear resistant seal on the piston rings.

The more you ride the SV650, the more you’ll love it. Its smart design simplicity, distinctive form and functionality combine to make this motorcycle a centrepiece of attraction, wherever you go.

Features For Your Fun

And Excitement

Head Light

The round multi-reflector headlight is designed to distribute maximum amount of light to increase both rider and on-the-road safety. The refined design also makes the mounting harness invisible.

LED Tail & Stop Lights

An integrated twin-LED tail light and brake light configuration is compact yet slim. High-performance LEDs contribute to deliver excellent visibility and high durability, and makes for a sharp, sleek rear section.

Suzuki Easy Start System

The Suzuki Easy Start System engages the starter motor at a precisely timed preset interval to start the motorcycle with just a push of a button. A computerised ECM checks the status and disengages the starter motor immediately after start.

Suspension

The front suspension system employs durable 41mm telescopic front forks, while the rear features a link-type suspension. Together, the SV650’s suspension system ensures consistent ride-ability and sporty handling performance.

Five-spoke Aluminium Wheels

With Radial Tires

The five-spoke cast aluminium wheels create a sporty look. For excellent balance of cornering performance and straight-line speed stability, the SV650 uses the Dunlop radial sport 120/70ZR17M/C for the front and 160/60ZR17M/C for the rear.

Fuel Tank

Despite its large 14.5-litre capacity, the fuel tank is slim yet sports an ergonomic form that is never cumbersome. The tank’s emblem has been changed from the signature “S” mark to the SUZUKI logo.

Exhaust System

The SV650’s advanced exhaust system is designed to be light and compact, while conforming to EURO5 emissions standards and delivering excellent power.

Narrow Seat

The narrow, streamlined seat is measures only 785mm and is designed nearly flat from front to back, yet gives riders a superior degree of comfort and grip in

the upright position, especially from the front side where good foothold is essential. In addition, a luggage loop is available for securing on cargo.

Full LCD Instrument Panel

A multifunction LCD instrument panel displays gear position, digital speedometer, tachometer, as well as indicators for odometer, trip meter, average/instantaneous fuel consumption, driving range, clock, water temperature gauge and fuel gauge. Backlight is adjustable in six levels of brightness and can be set to your preference.

Thanks to its simple base design, a wide range of accessories are available for the SV650 -

everything from those that add functional convenience to exterior parts that impact the look and impression.

Note1) The shown accessory prototypes gives you an impression how your Motorcycle can look like.

Note2) SUZUKI MOTOR CORPORATION reserves the right to add any improvement to change the design or to discontinue any Suzuki Genuine Accessories at any time without notice.Some Suzuki Genuine Accessories might not be compatible with local standards or statutory requirements. Please check with your local AUTHORIZED SUZUKI DEALER for details at the time of ordering.

The simple base design of the SV650 is right at home on all roads - whether it’s a sprawling modern city or the suburban country side. Engineered to all riders, this motorcycle delivers an unforgettable experience with every ride you take now and a long way down the road. Take the keys, then take command of

the excitement.

Simplicity Means Freedom To Make It Yours

Transmission

Primary reduction ratio

Final reduction ratio

Front suspension

Rear suspension

-

Rake / Trail

Front brake

Rear brake

Front tire size

Rear tire size

Ignition system

Fuel tank capacity

Oil capacity (Overhaul)

6-speed constant mesh

2.088 (71 / 34)

3.066 (46 / 15)

Telescopic, coil spring, oil damped

Link type, coil spring, oil damped,

spring preload adjustable

25° / 106 mm (4.2 in)

Disc, twin

Disc

120/70ZR17M/C (58W), tubeless

160/60ZR17M/C (69W), tubeless

Electronic ignition (Transistorized)

14.5 L (3.8/3.2 US/Imp gal)

3.0 L (3.2/2.6 US/Imp qt)

Specifications

Overall length

Overall width

Overall height

Wheelbase

Ground clearance

Seat height

Curb mass

Engine type

-

Bore × Stroke

Displacement

Compression ratio

Fuel system

Starter system

Lubrication system

Riding Pleasure Unlimited

*Image shown with optional accessories.

*Photo : 2018 model

Photos

(2018 model)

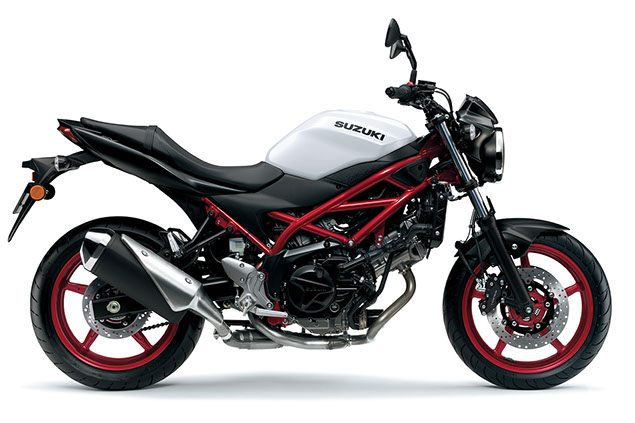

Pearl Brilliant White / Glass Sparkle Black (B1G)

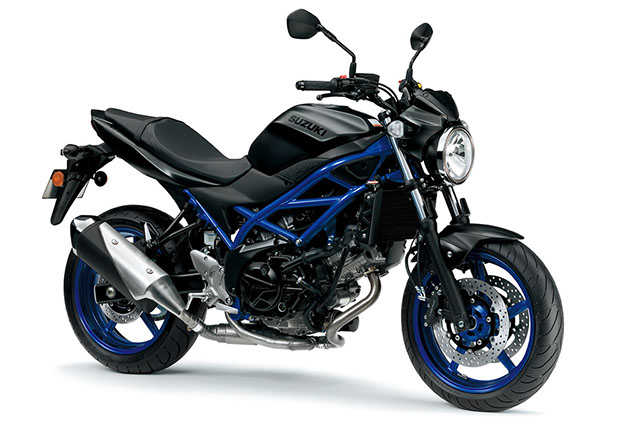

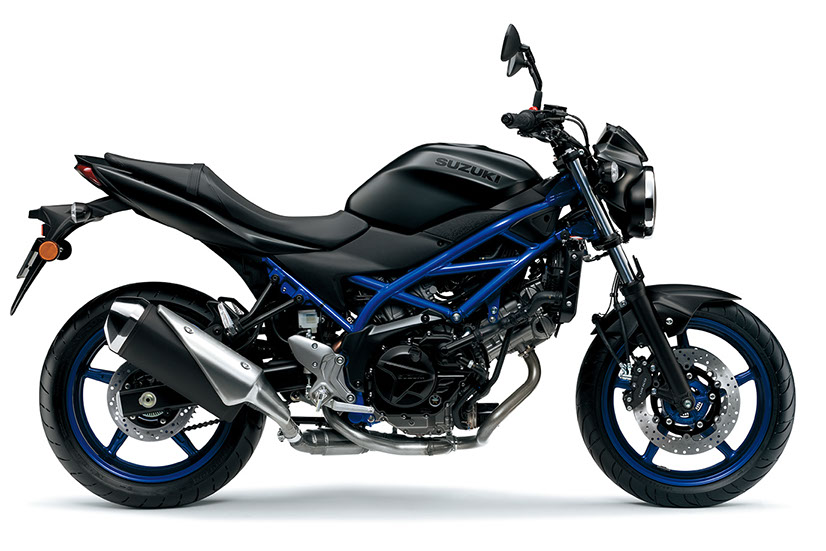

Metallic Mat Black No.2 (YKV)

Glass Sparkle Black (ACX)

*European Spec. shown

*Above photos shown in this section are 2020 model.
