    QuadSport Z90 (LT-Z90)

Fun Redefined

Suzuki redefines fun with the QuadSport Z90. This youth-sized four-stroke machine is the perfect compliment
to your adult-sized four-stroke machine. Value, aggressive QuadSport Z400-like styling, ease of use, reliability,
these are the traits of the QuadSport Z90.

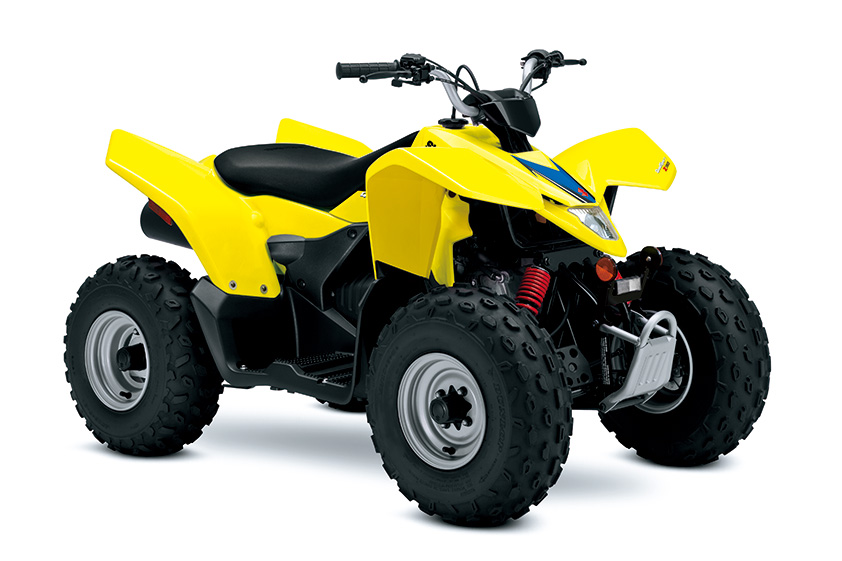

Photo : U.S. Spec.

Features

  • Full floorboards

  • T-shaped seat

  • Electric starter switch

  • Front bumper

*Click the icons

Specifications

Engine Type
4-stroke, 1-cylinder, air-cooled
Engine Displacement
90 cm3 (5.5 cu. in)
Bore x Stroke
45.5 mm x 55.2 mm (1.8 in x 2.2 in)
Transmission
CVT
Overall Length
1,505 mm (59.3 in)
Overall Width
875 mm (34.4 in)
Overall Height
915 mm (36.0 in)
Wheelbase
1,005 mm (39.6 in)
Ground Clearance
150 mm (5.9 in)
Seat Height
650 mm (25.6 in)
Curb Mass
127 kg (280 lbs)
Suspension Front
Independent, swing axle, coil spring,
oil damped
Rear
Swingarm type, coil spring, oil damped
Brakes Front
Drum
Rear
Drum
Tires Front
AT19x7-8 , tubeless
Rear
AT19x7-8 , tubeless
Fuel Tank Capacity
6.0 L (1.6/1.3 US/Imp gal)
