Built Tough for Every Ride

These ATVs achieve a higher level of balance between practical use and leisure riding. So, they are equally suitable for ranching and agriculture or for trail riding and outdoors use.

Suzuki believes, there is a wide array of customers who could use and enjoy these ATVs while using them for farming, ranching, chores, trail riding, hunting or other types of pleasure.

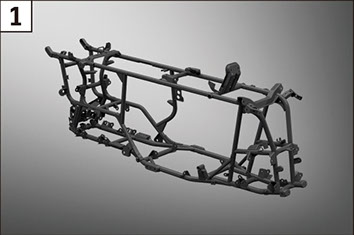

Frame rigidity is increased and the rear suspension and final drive case brackets are reinforced.

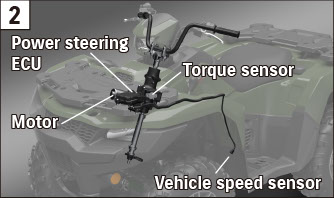

Updated power steering system enables more comfortable operation with less rider fatigue.

Fully independent suspension system with 5-way spring preload adjustable shock absorbers.

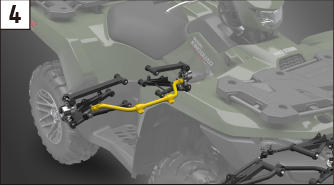

High rigidity stabilizer bar.

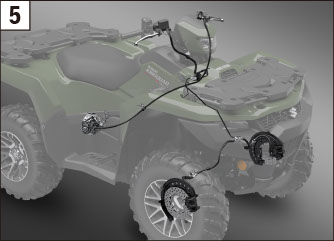

Updated front and rear brakes deliver strong and consistent stopping performance.

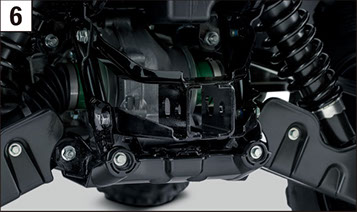

Trailer hitch mount is changed from plate type to receiver type.

 Towing capacity increased to 600kg.

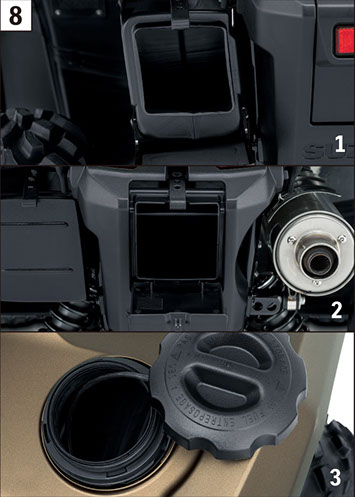

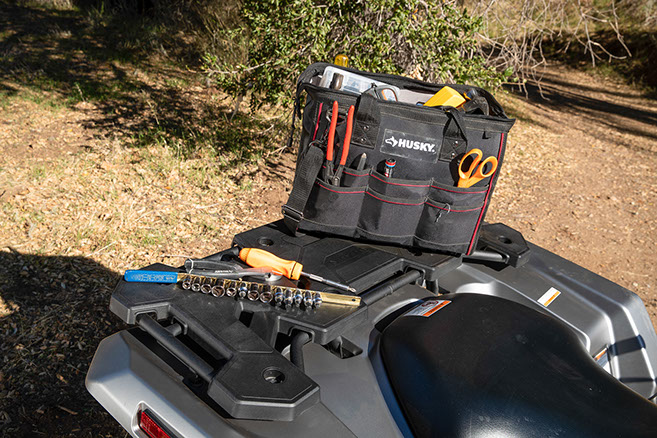

Three storage compartments for optimum convenience:

 1. Rear, left (4L) *1

 2. Rear, center (4L) *2

 3. Front (2.8L) *3

 *1: Weight limit for rear left storage is 1kg.

 *2: Weight limit for rear center storage is 0.5kg.

 *3: Weight limit for front storage is 0.5kg.

For improved ease-of-maintenance, fuel filter can be accessed by simply removing the seat and harness cover.

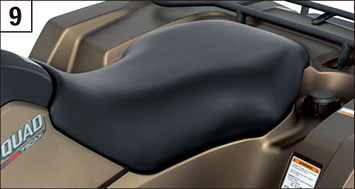

Suzuki’s exclusive T-shaped seat delivers maximum rider maneuverability and a comfortable ride.

Roomy, durable floorboards.

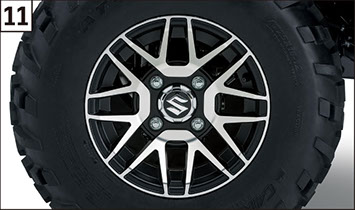

Stylish, lightweight aluminum wheels.

 * Available on LT-A750XPZ, LT-A500XPZ, and as an option on other models.

Engine

Electrical

Chassis

New KINGQUAD ATV Technical Updates

Photo: KINGQUAD 750AXi 4x4 / Power Steering

High output engine tuned for smooth power and torque delivery in all situations.　Ideal for agricultural and outdoor sports use, as well as trail riding.

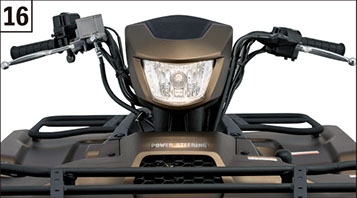

Handlebar-mounted headlight.

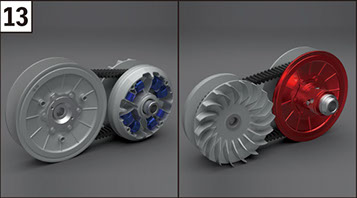

Updated CVT delivers stronger acceleration from standstill with more effective engine braking.

 * On KINGQUAD 750AXi 4x4 / Power Steering only

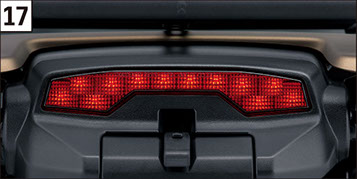

LED taillight.

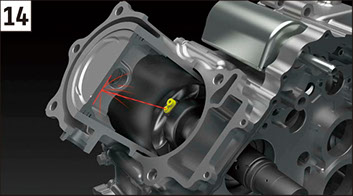

Oil jet piston cooling enhances engine durability.

 * On KINGQUAD 750AXi 4x4 / Power Steering only

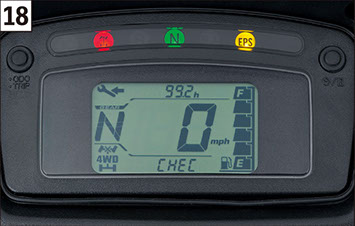

Multi-function LCD instrument panel with service reminder.

Fully compliant with newly-enacted California, USA evaporative emission standards.

Dual, bright multi-reflector halogen headlights.

All lights and indicators are illuminated in the photo for illustrative purposes.

*Above photos shown in this section are 2019 model.

Specifications

Overall length

Overall width

Overall height

Wheelbase

Ground clearance

Seat height

Curb mass

Engine type

Bore

Stroke

Engine displacement

Compression ratio

Fuel system

Starter system

Lubrication system

Transmission

Automatic transmission ratio

Secondary reduction ratio

Final reduction ratio

Front

Rear

Rake

 Trail

Front

Rear

Front

Rear

Ignition type

Fuel tank capacity

Engine oil (overhaul)

2150 mm (84.6 in)

1215 mm (47.8 in)

1285 mm (50.6 in)

1285mm (50.6 in)

260 mm (10.2 in)

920 mm (36.2 in)

9.9 : 1

Fuel injection

Electric

Wet sump

Automatic variable ratio (V-belt)

3.600 (36/10)

Independent double wishbone, coil spring, oil damped

Independent double wishbone, coil spring, oil damped

Disc, twin

Sealed oil-bathed multi-disc

AT25 × 8-12✩✩ , tubeless

AT25 × 10-12✩✩ , tubeless

Electronic ignition

17.5 L (4.6/3.8 US/Imp gal)

For Californian specs.

LT-A750X: 321kg (708 lbs)

LT-A750XP: 330kg (728 lbs)

LT-A750XPZ: 328kg (723 lbs)

Except for Californian specs.

LT-A750X: 320kg (706 lbs)

LT-A750XP: 329kg (725 lbs)

LT-A750XPZ: 327kg (721 lbs)

4-stroke, 1-cylinder, liquid-cooled, DOHC

104.0 mm (4.1 in)

85.0 mm (3.3 in)

722 cm3 (44.1 cu.in)

2.763 - 0.779 (Variable change)

2.158 (40/21 x 17/15)

3.0 L (3.2/2.6 US/Imp qt)

LT-A750X: 1.6°

LT-A750XP/XPZ: 3.3°

LT-A750X: 3.4 mm (0.13 in)

LT-A750XP/XPZ: 16.7 mm (0.66 in)

2.902 - 0.779 (Variable change)

2.603 (37/18 x 19/15)

3.2 L (3.4/2.8 US/Imp qt)

LT-A500X: 1.6°

LT-A500XP/XPZ: 3.7°

LT-A500X: 3.4 mm (0.13 in)

LT-A500XP/XPZ: 18.4 mm (0.72 in)

For Californian specs.

LT-A500X: 316kg (697 lbs)

LT-A500XP: 325kg (716 lbs)

LT-A500XPZ: 323kg (712 lbs)

Except for Californian specs.

LT-A500X: 315kg (695 lbs)

LT-A500XP: 324kg (714 lbs)

LT-A500XPZ: 322kg (710 lbs)

4-stroke, 1-cylinder, liquid-cooled, SOHC

87.5 mm (3.4 in)

82.0 mm (3.2 in)

493 cm3 (30.1 cu.in)

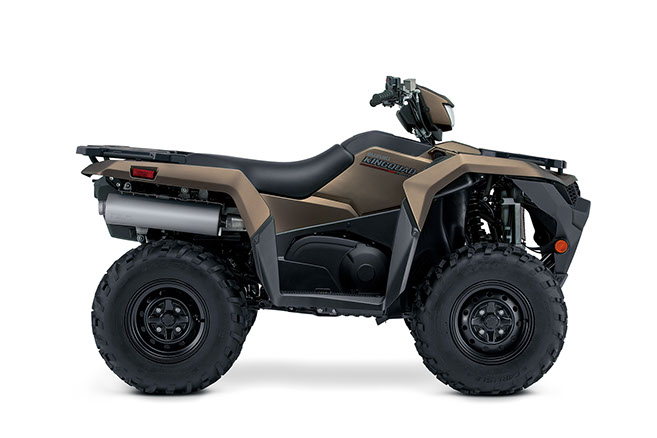

Metallic Mat Colorado Bronze (QMA)

Metallic Mat Colorado Bronze (QMA)

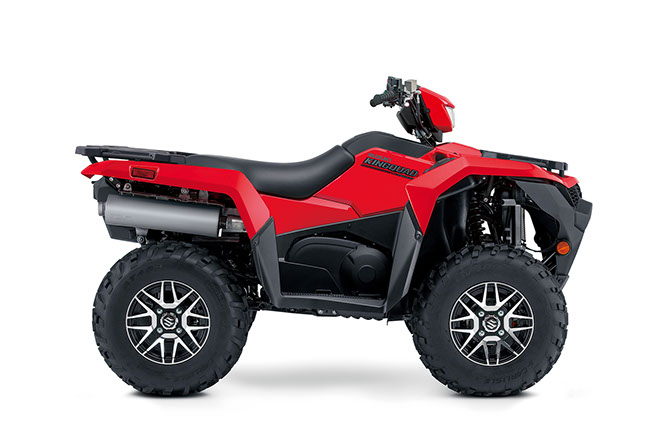

Flame Red (YT9)

Flame Red (YT9)

Solid Special White No. 2 (30H)

Solid Special White No. 2 (30H)

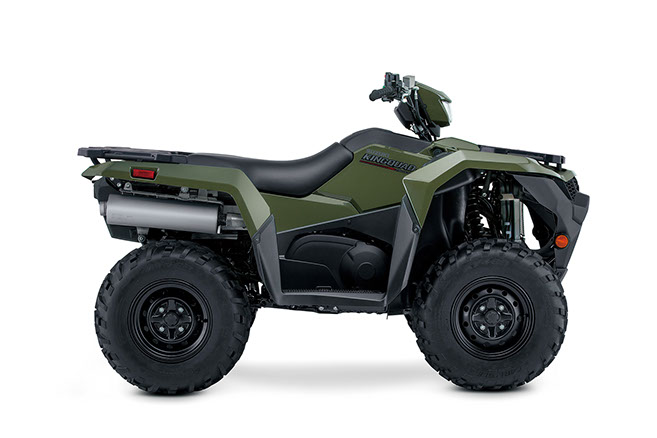

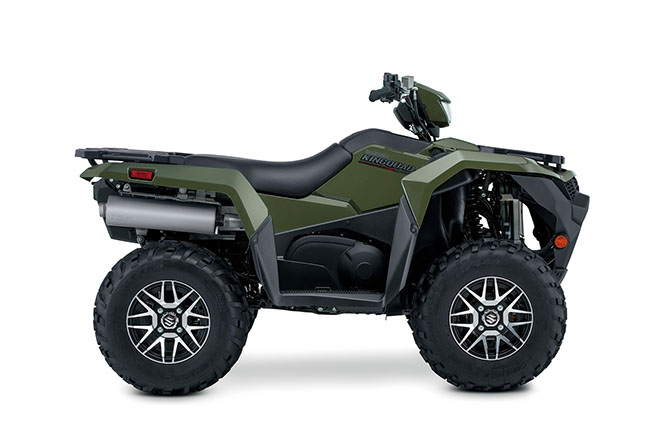

Terra Green (YLG)

Terra Green (YLG)

Metallic Mat Rocky Gray (QTF)

Metallic Mat Rocky Gray (QTF)

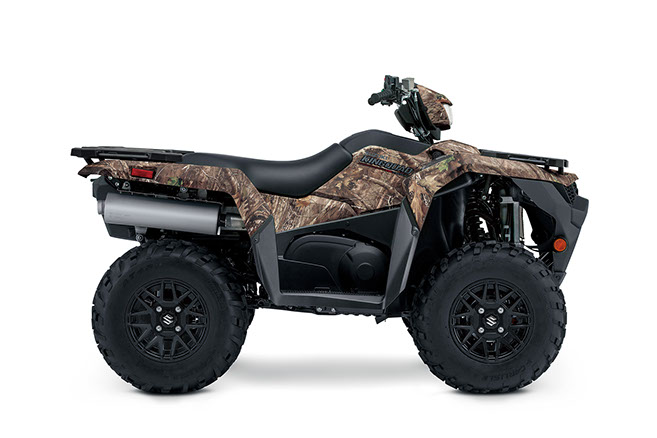

True Timber Kanati (QTM)

True Timber Kanati (QTM)

Suspension

Brakes

Tires

KINGQUAD 750AXi 4x4 / POWER STEERING

/ Special Edition (LT-A750X/XP/XPZ)

KINGQUAD 500AXi 4x4 / POWER STEERING

/ Special Edition (LT-A500X/XP/XPZ)

KINGQUAD 750AXi 4x4 POWER STEERING

 Special Edition (LT-A750XPZ)

KINGQUAD 750AXi 4x4 / POWER STEERING

 (LT-A750X/XP)

KINGQUAD 500AXi 4x4 POWER STEERING

Special Edition (LT-A500XPZ)

KINGQUAD 500AXi 4x4 / POWER STEERING

(LT-A500X/XP)

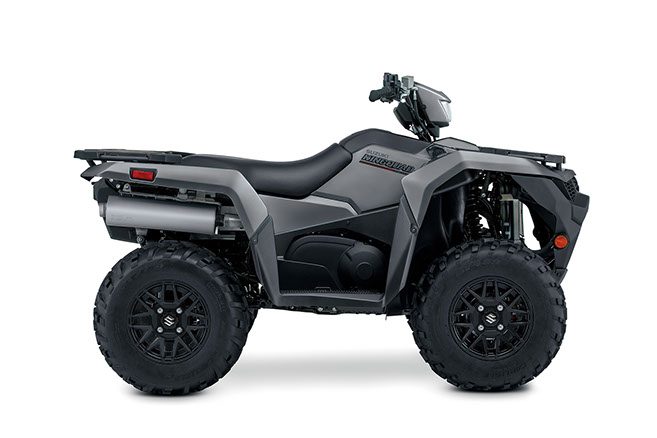

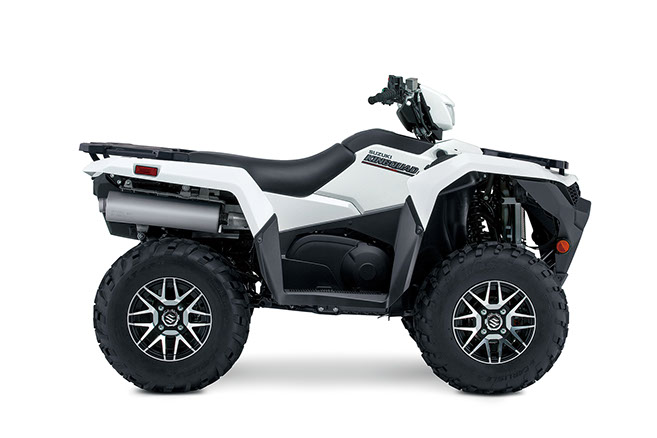

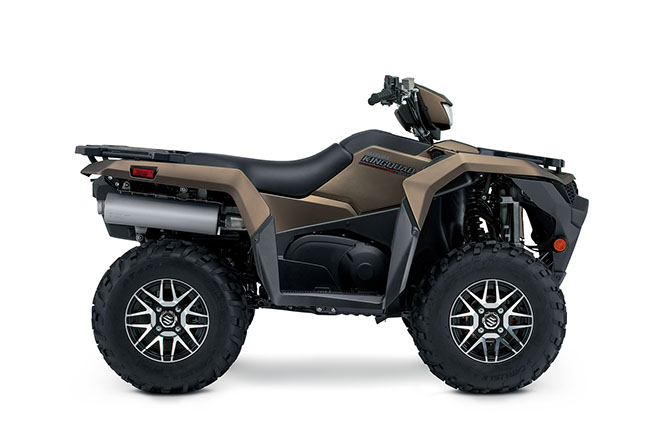

Photo : KINGQUAD 750AXi 4x4 POWER STEERING Special Edition (LT-A750XPZ) for North American Spec.

*North American Spec. shown

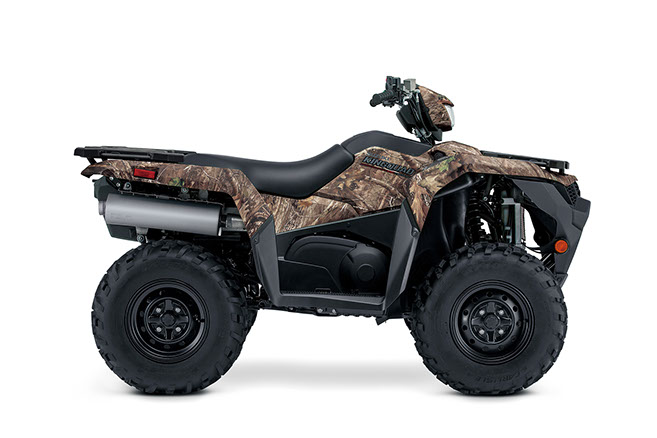

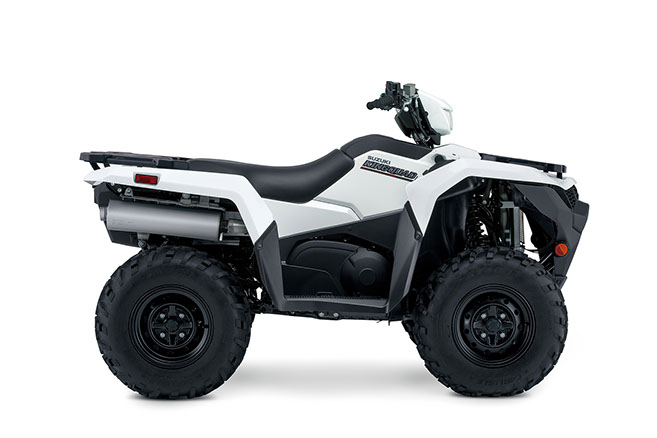

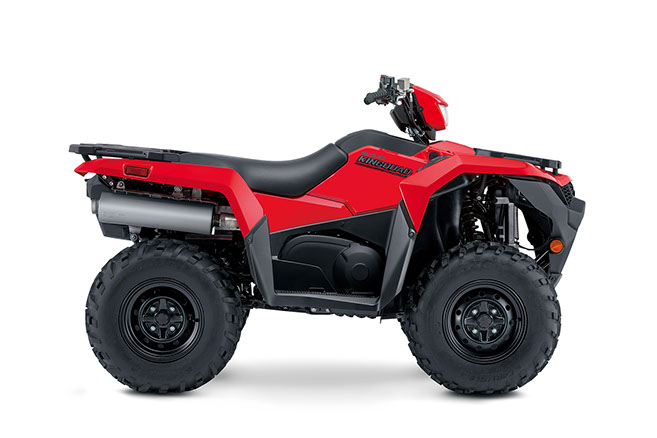

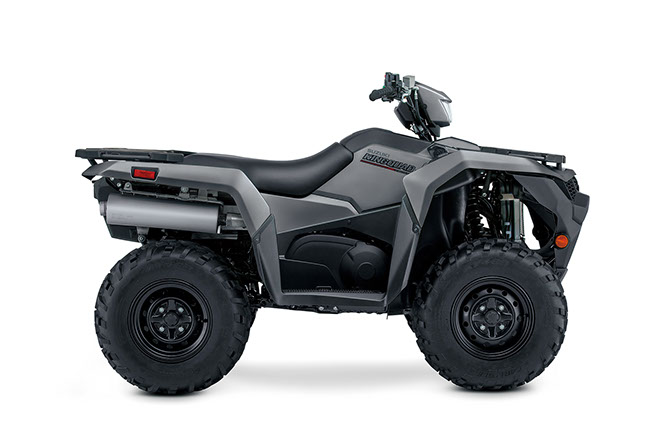

Photo : KINGQUAD 750AXi 4x4 POWER STEERING (LT-A750XP) for North American Spec.

Photos

Suzuki ATV History

1983

1984

1987

1991

2003

2005

2009

2002

2006

2019

QuadRunner 125 (LT125)

QuadRunner 4WD (LT-4WD)

EIGER (LT-A400/F)

QuadRacer R450 (LT-R450)

KINGQUAD 500AXi 4x4 /

POWER STEERING /

Special Edition (LT-A500X/XP/XPZ)

KINGQUAD 750AXi 4x4 /

POWER STEERING /

Special Edition (LT-A750X/XP/XPZ)

VINSON (LT-A500F)

Suzuki brought the first four-wheeled ATV to the sport with the release of the 1983 QuadRunner 125, 4 x 6. This original quad, with the designation LT125, positively surprised riders and dealers not only with its well-planted four-wheel chassis, but it featured a automatic clutch with five forward speeds plus reverse. The “4” in the sub-name stood for the four wheels, while the “6” represented the six speed transmission.

QuadRunner 50 (LT50)

KINGQUAD (LT-F4WDX)

QuadSport Z400 (LT-Z400)

KINGQUAD 700 (LT-A700X)

KINGQUAD 500AXi 4x4

POWER STEERING (LT-A500XP)

KINGQUAD 750AXi 4x4

POWER STEERING (LT-A750XP)

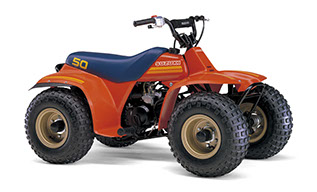

Another innovation came in the following model year when the 1984 QuadRunner 50 (LT50) was announced. Youth ATVs became viable with the QuadRunner 50 as it was a stable platform for beginners with a sound engine, automatic transmission, and included safety features like a throttle limited and a remote tether so adults could control the action. Suzuki four-wheelers were now available for the whole family and today’s generation of ATV rider’s most likely got their start on a Suzuki QuadRunner 50.

The QuadRunner 4WD was a phenomenon as riders eagerly sought out this ATV for a variety of outdoor and agricultural uses. Suzuki then raised the standard of a utility ATV again with the introduction of the 1991 KINGQUAD. This new “King of the Quads” model employed many of the QuadRunner 4WD’s features but with increased capacity and capability. Suzuki increased the engine displacement from 246cm3 to 280cm3, added a oil cooler to control temperature when navigating rough terrain at slow speeds, and used larger wheels and tires to increase traction and riding comfort. Like the 4WD, the KINGQUAD used fully independent suspension on the front and rear of the ATV.

With the 2003 Suzuki QuadSport Z400 Suzuki took advantage of it’s expertise in both the ATV and motorcycle worlds. This new machine combined a engine based on the proven DR-Z400E off-road motorcycle and an advanced electronic fuel injection system. The high performance 398cm3 4-stroke, liquid-cooled, DOHC single-cylinder powerplant runs through a smooth-shifting five speed transmission that also has a easy-to-use reverse system.  The chassis is reminiscent of earlier QuadRacer and QuadSport designs with a long-travel double A-arm front suspension and single rear shock, aggressively-styled bodywork with high fenders, plus vents that route cooling air to the radiator.  The QuadSport Z400’s balance of performance, ease of use and reliability makes it a favorite among sport ATV riders world-wide.

The KINGQUAD name returned to Suzuki ATV line up with the 2005 KINGQUAD 700. Along with its revived name this new ATV brought a new liquid-cooled, four-stroke engine fed by a first and modern electronic fuel injection system.

The KINGQUAD 700 FI 4x4 engine was canted forward at a 48-degree angle to help the ATV maintain optimum weight balance and efficient air-intake design. The 700’s chassis featured fully independent suspension with dual disc brakes up front and a wet, multi-plate style rear brake that delivered longevity and superb stopping performance in all types of riding conditions.

For 2009, the Suzuki added both a KINGQUAD 750AXi and KINGQUAD 500AXi model with standard electronic power steering. A novel feature at the time, this system uses a version of the proven technology used on Suzuki’s cars and SUVs.  Designed to reduce steering effort for the rider, Suzuki’s power steering system also damps vibration to help deliver a more comfortable ride. Basically the power steering unit senses torque loads at both ends of the steering – input from the handlebar and the resistance from the tires. The unit then senses the amount of effort needed to twist the handlebars, thus allowing more steering assistance from the unit at slower speeds and less at higher speeds to reduce the amount of leverage the rider must use to turn the ATV.

With the announcement of the 1987 QuadRunner 4WD (LT-4WD) Suzuki innovation now provided riders with terrain conquering capability never before available from a ATV. This four-wheeler, as it’s designation implied, had four-wheel drive. And that drive system allowed the rider to select 2WD or 4WD modes, plus it offered a front differential lock so the QuadRunner 4WD could crawl out of just about any situation. The rider could also route the power from the 246cm3 four-stroke engine through a sub-transmission that had both high and low ratios so the ATV was great on tight trails but could also get you quickly out to work on the far side of the ranch.  Additionally, the QuadRunner 4WD was designed with a engine configuration and fuel tank location that resulted in a comfortable and low seat height. The path forward to the KINGQUAD legacy was becoming clear.

For the 2003 model year Suzuki revised some of its ATV models to take advantage of its new, Rome, Georgia manufacturing plant (see SMAC) and to drive awareness of its sports-utility line-up. Some of Suzuki’s sports-utility models adopted the names of famous mountains at the same time they got technical improvements. The air-oil cooled 400cm3 model, in both 2WD and 4WD versions was named the Eiger (per the famous mountain in Bernese Alps) and the larger, liquid-cooled 500cm3 4WD model was dubbed the Vinson (per the large mountain in the Antarctic). Both models became intermediate models to past and future KINGQUAD’s in both features and performance.

Designed with the help of leading ATV MX championship racers, Suzuki brought the QuadRacer R450 to market in 2006. Like the original QuadRacer 250 that revolutionized  ATV racing in 1985, this new quad combined Suzuki’s vast motocross knowledge with a fuel-injected four-stroke engine held in an intelligent chassis design that features wide front A-arms, a sturdy steel swingarm and small diameter, low mass MX wheels. This ATV achieved racing success quickly and is still used in competition today.

Introducing the new 2019 Suzuki KINGQUAD 750AXi and KINGQUAD 500AXi.

What are the new 2019 KINGQUAD 750AXi and KINGQUAD 500AXi models? They are the only way a rider can get an ATV that’s better than a KINGQUAD.

They are Suzuki KINGQUAD's through and through that are the culmination of 30 years of engineering expertise, refinement through feedback from dealers and customers on the earth, and an unequalled reputation for quality that Suzuki has earned building each one.

Over the past three decades there have been countless competitors to the iconic KINGQUAD - which is why Suzuki’s engineers and designers are constantly looking to innovate and improve. The list of improvements that they have put into the 2019 KINGQUAD 750AXi and KINGQUAD 500AXi are sure to shake up the industry once again.

As in the case of many types of products, Suzuki has been an innovator with All Terrain Vehicles (ATVs).

In the early 1980’s most ATVs were known as All Terrain Cycles or “three wheeler”. To expand ATV ridership Suzuki created and brought the first four-wheel ATVs to market in 1983. Eventually that advance began the movement away from the controversial three-wheelers.

Always committed to innovation, and attentive to the needs and desires of riders, Suzuki has had a series of important firsts in the ATV market. The models on the following slides are an indication of Suzuki leadership in ATVs.

Suzuki is “First on Four Wheels”
