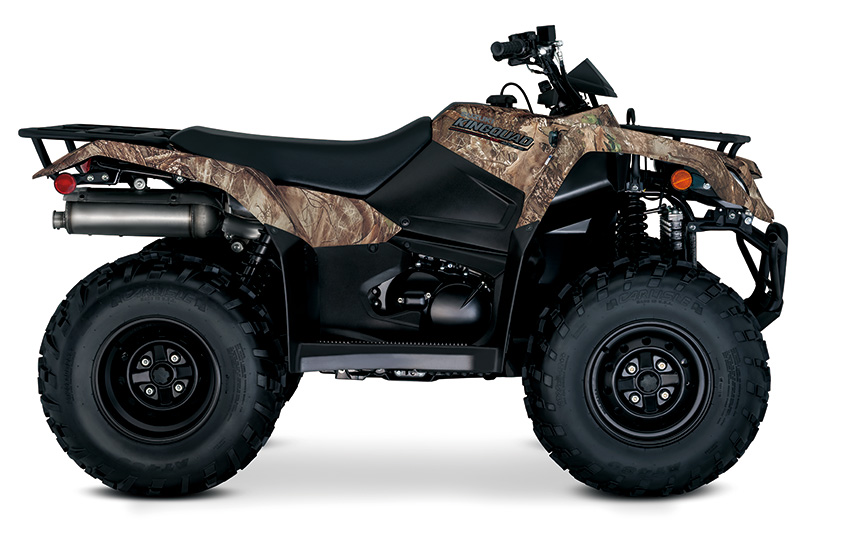

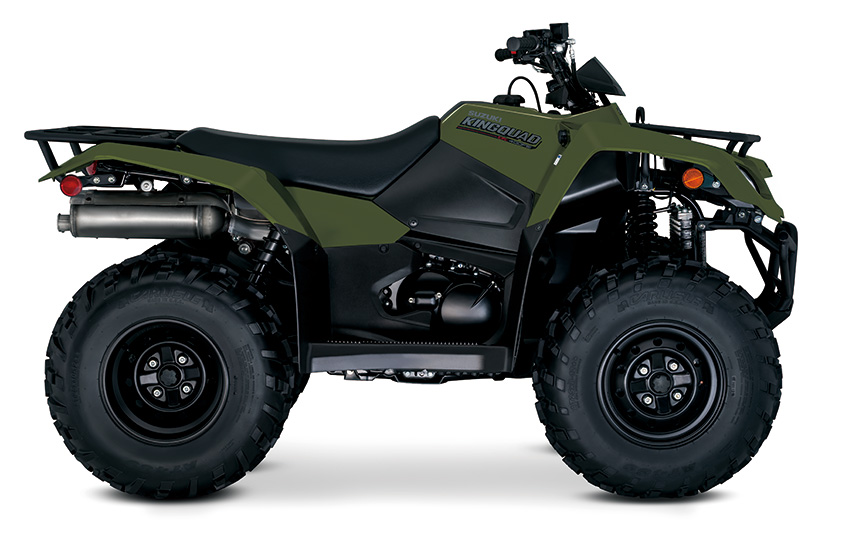

KINGQUAD 400FSi 4x4 (LT-F400F)
Performance With Function And Style
Sporty and stylish bodywork. A comprehensive set of features for user convenience and comfort.
The KINGQUAD 400FSi/4x4, powered by an efficient fuel-injected 376cm3 4-valve engine matched to a functional
semi-automatic 5-speed transmission, is designed, equipped and ready to deliver class-leading performance.
Features
-
Large, 25-inch CARLISLE tires
-
Exclusive T-shaped seat
-
Gate-type shift lever
-
Front bumper with large-diameter steel tubing
Specifications
- Engine Type
- 4-stroke, 1-cylinder, air-cooled with SACS, SOHC
- Engine Displacement
- 376 cm3 (22.9 cu. in)
- Bore x Stroke
- 82.0 mm x 71.2 mm (3.2 in x 2.8 in)
- Transmission
-
5-speed forward constant mesh,
2-speed forward with reverse
- Overall Length
- 2,060 mm (81.1 in)
- Overall Width
- 1,145 mm (45.1 in)
- Overall Height
- 1,220 mm (48.0 in)
- Wheelbase
- 1,270 mm (50.0 in)
- Ground Clearance
- 250 mm (9.8 in)
- Seat Height
- 840 mm (33.1 in)
- Curb Mass
- 281 kg (619 lbs)
- Suspension Front
-
Independent, double wishbone,
coil spring, oil damped
- Rear
- Swingarm type, coil spring, oil damped
- Brakes Front
- Disc, twin
- Rear
- Drum
- Tires Front
- AT25x8-12☆☆ , tubeless
- Rear
- AT25x10-12☆☆ , tubeless
- Fuel Tank Capacity
- 16.0 L (4.2/3.5 US/Imp gal)
*North American Spec. shown
