KINGQUAD 400ASi 4x4/Special Edition (LT-A400F/FZ)
Equipped And Styled To Impress
Styled to impress with its edgy, sporty bodywork. Tailored to user comfort and convenience.
The KINGQUAD 400ASi 4x4, powered by a responsive, fuel-injected 376cm3 4-valve engine mated to a convenient,
fully automatic CVT transmission, delivers a comprehensive package of features, performance and affordability.

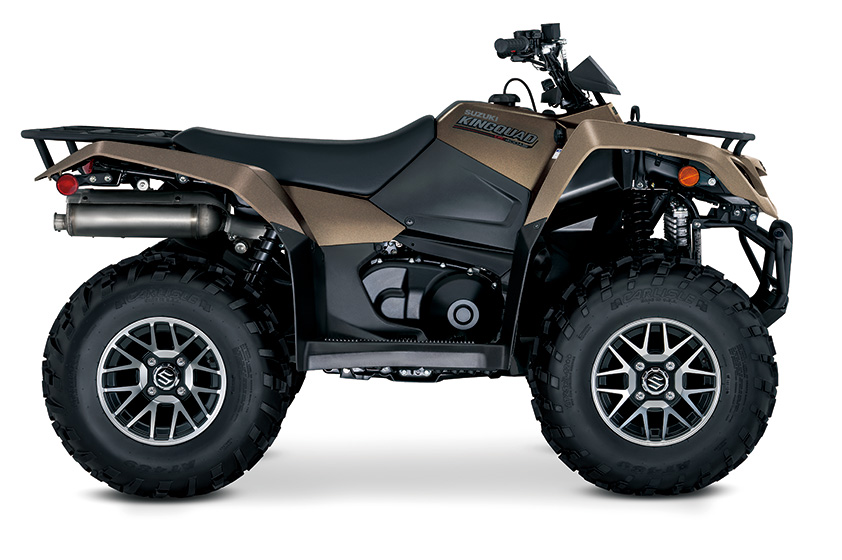

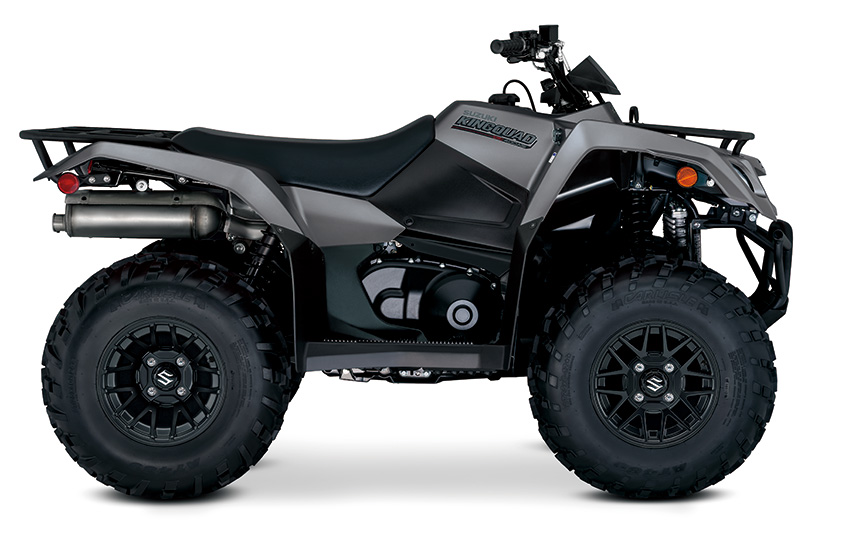

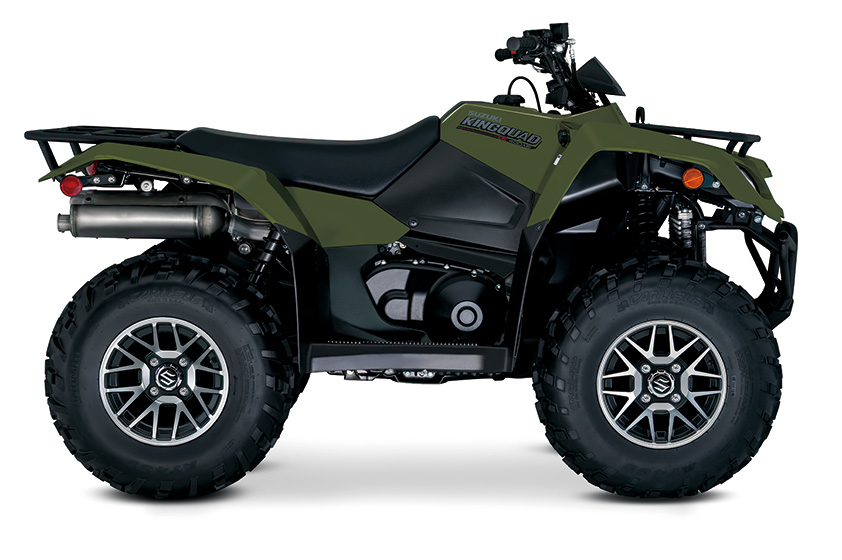

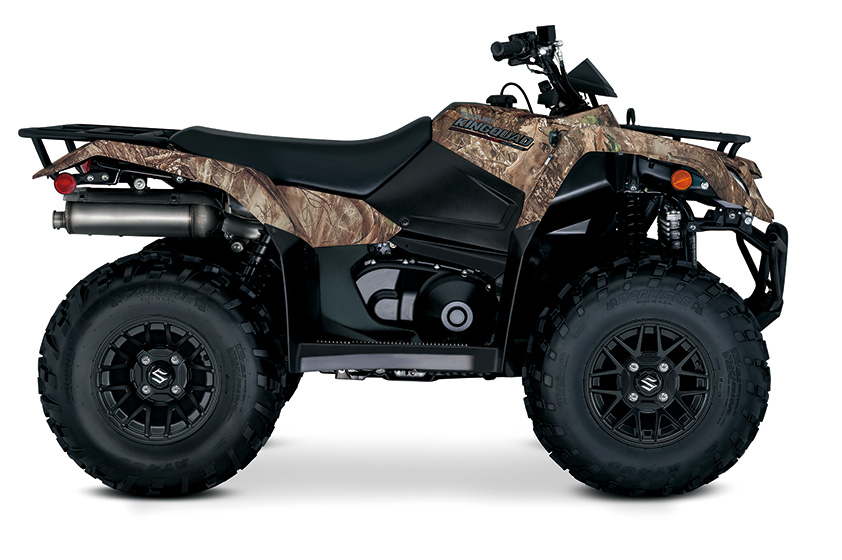

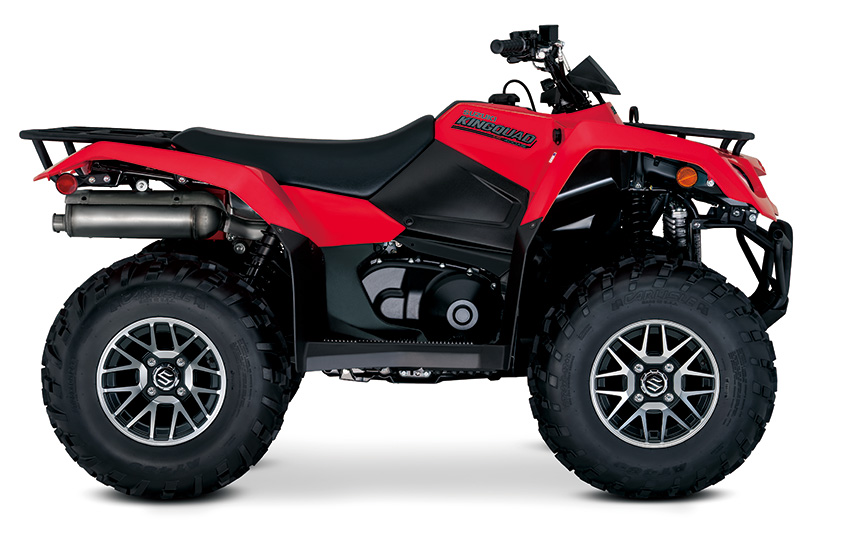

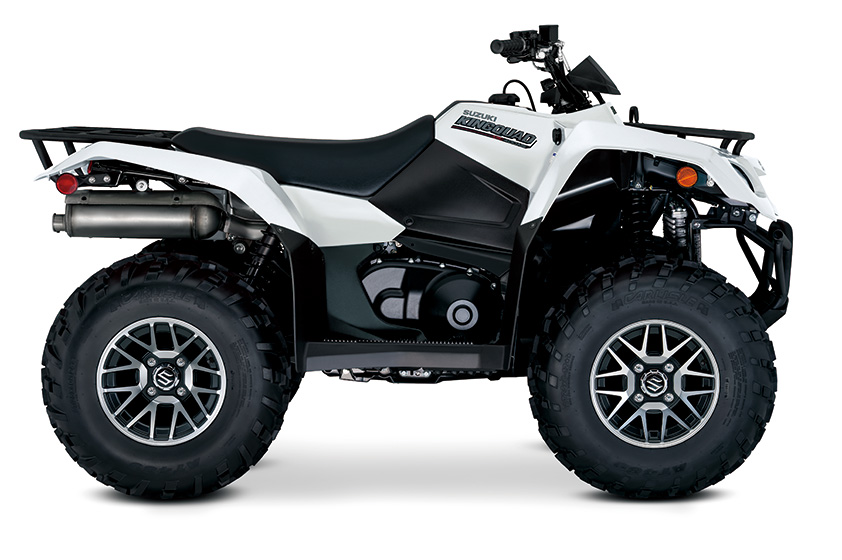

Photo : KINGQUAD 400ASi 4x4 Special Edition (LT-A400FZ) for North American Spec.
Features
-
Dual 35W headlights
with high and low settings -
Convenient rear rack
-
12V DC power outlet
-
LCD digital instrumentation

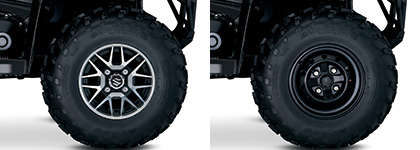

Choice of wheels
Cast-aluminum wheels
(LT-A400FZ)
(LT-A400FZ)
Steel-press wheels
(LT-A400F)
(LT-A400F)
Specifications
- Engine Type
- 4-stroke, 1-cylinder, air-cooled with SACS, SOHC
- Engine Displacement
- 376 cm3 (22.9 cu. in)
- Bore x Stroke
- 82.0 mm x 71.2 mm (3.2 in x 2.8 in)
- Transmission
- CVT, 2-speed forward with reverse
- Overall Length
- 2,060 mm (81.1 in)
- Overall Width
- 1,145 mm (45.1 in)
- Overall Height
- 1,220 mm (48.0 in)
- Wheelbase
- 1,270 mm (50.0 in)
- Ground Clearance
- 250 mm (9.8 in)
- Seat Height
- 840 mm (33.1 in)
- Curb Mass
- 287 kg (633 lbs)
- Suspension Front
-
Independent, double wishbone,
coil spring, oil damped
- Rear
- Swingarm type, coil spring, oil damped
- Brakes Front
- Disc, twin
- Rear
- Drum
- Tires Front
- AT25x8-12☆☆ , tubeless
- Rear
- AT25x10-12☆☆ , tubeless
- Fuel Tank Capacity
- 16.0 L (4.2/3.5 US/Imp gal)
*North American Spec. shown
