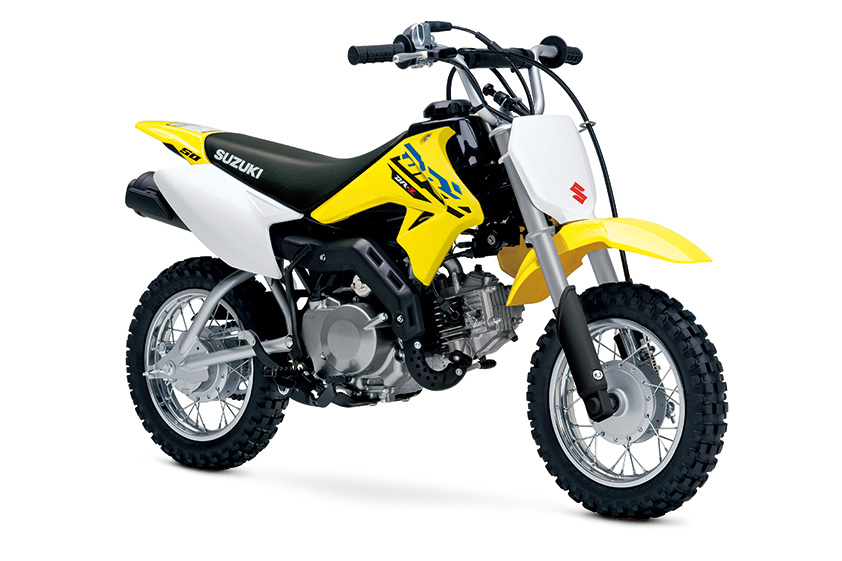

DR-Z50
Laying The Foundation Of Riding Fun
Torque-packed, electric-starting 50cm3 4-stroke engine. Super-cool race-style looks.
An easy and fun choice for children to learn the fundamentals of riding.
With an adequately sized engine and adequately sized chassis, the user-friendly DR-Z50 is ready for many enjoyable years down the road.
Features
-
Convenient dual starting system (Push-button electric starter and traditional kick starter)
Photo : Electric starter switch -
Powerful, high compression ratio engine
-
Starter lever
-
Comfortable seat
Specifications
- Engine Type
- 4-stroke, 1-cylinder, air-cooled, SOHC
- Engine Displacement
- 50 cm3 (3.1 cu. in)
- Bore x Stroke
- 39.0 mm x 41.8 mm (1.5 in x 1.6 in)
- Transmission
- 3-speed constant mesh
- Overall Length
- 1,320 mm (52.0 in)
- Overall Width
- 580 mm (22.8 in)
- Overall Height
- 790 mm (31.1 in)
- Wheelbase
- 935 mm (36.8 in)
- Ground Clearance
- 135 mm (5.3 in)
- Seat Height
- 560 mm (22.0 in)
- Curb Mass
- 54 kg (119 lbs)
- Suspension Front
- Inverted telescopic, coil spring
- Rear
- Swingarm type, coil spring, oil damped
- Brakes Front
- Drum
- Rear
- Drum
- Tires Front
- 2.50-10 33J, tube type
- Rear
- 2.50-10 33J, tube type
- Fuel Tank Capacity
- 3.0 L (0.8/0.7 US/Imp gal)
