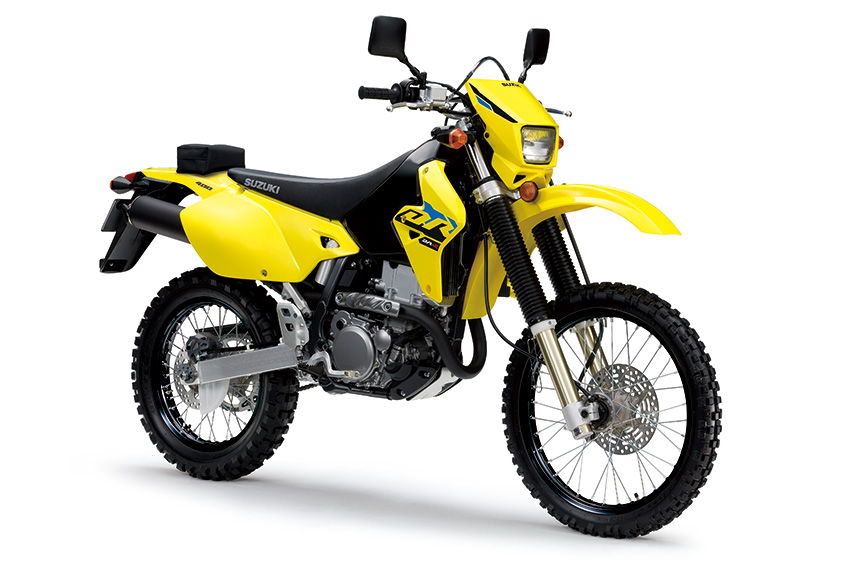

DR-Z400E
High-Performance Machine Arrives At The Off Road Arena
Compact, lightweight and agile like a 2-stroke motocrosser, and the broad, tractable power and torque of a large-
displacement 4-stroke engine - you can have it all, with the DR-Z400E. The powerful engine, narrowly shaped and
highly rigid frame, long-travel suspension, large disc brakes and lightweight wheels - all coming together for an
exhilarating, dirt-kicking, mud-slinging and hill-climbing performance.
Features
-
Compact and powerful engine
-
Aluminum-alloy engine protector
-
250mm (9.8 in) front disc brake
-
55W headlight
*Click the icons
Specifications
- Engine Type
- 4-stroke, 1-cylinder, liquid-cooled, DOHC
- Engine Displacement
- 398 cm3 (24.3 cu. in)
- Bore x Stroke
- 90.0 mm x 62.6 mm (3.5 in x 2.5 in)
- Transmission
- 5-speed constant mesh
- Overall Length
- 2,310 mm (90.9 in)
- Overall Width
- 825 mm (32.5 in)
- Overall Height
- 1,235 mm (48.6 in)
- Wheelbase
- 1,475 mm (58.1 in)
- Ground Clearance
- 315 mm (12.4 in)
- Seat Height
- 935 mm (36.8 in)
- Curb Mass
- 138 kg (304 lbs)
- Suspension Front
- Inverted telescopic, coil spring,
oil damped
- Rear
- Link type, coil spring, oil damped
- Brakes Front
- Disc
- Rear
- Disc
- Tires Front
- 80/100-21 M/C 51P, tube type
- Rear
- 120/90-18 M/C 65P, tube type
- Fuel Tank Capacity
- 10.0 L (2.6/2.2 US/Imp gal)
