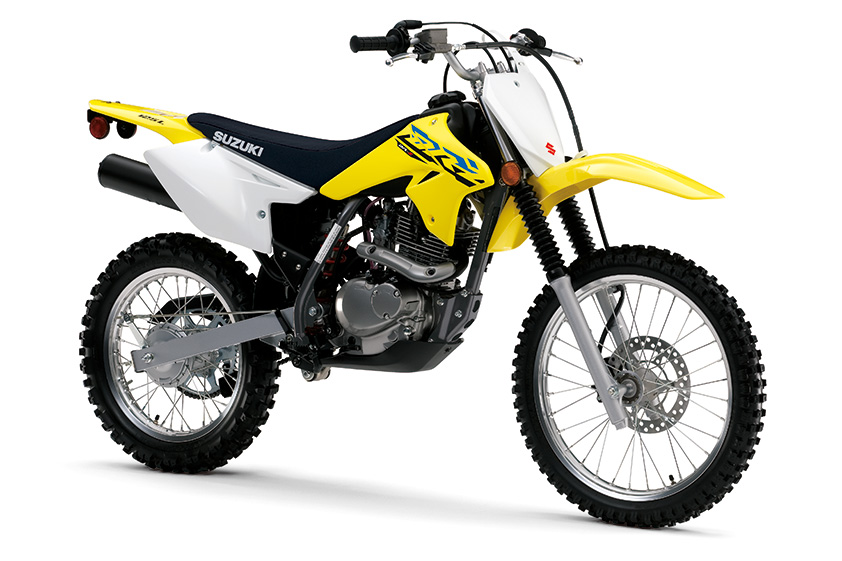

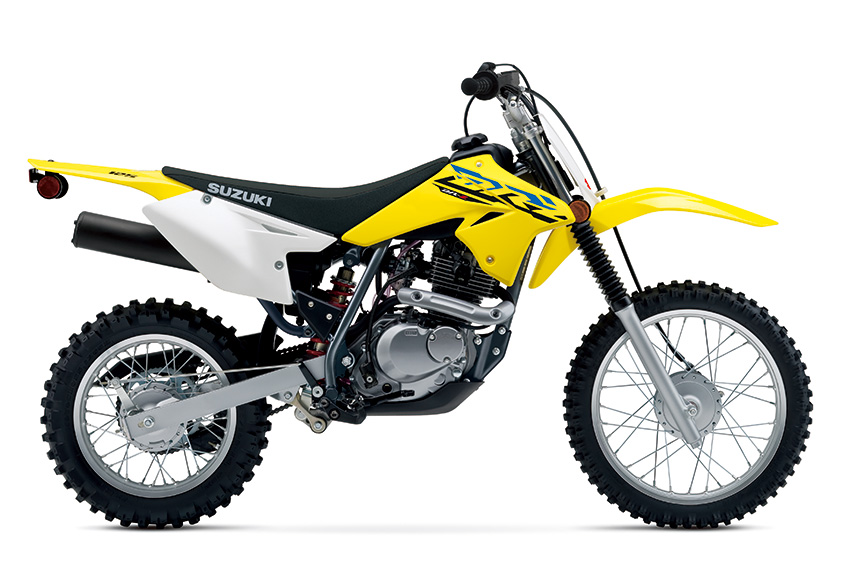

DR-Z125/L
Two For The Trails
Blending race inspired looks along with an exciting entry-level off road package creates the DR-Z125/L.
Built around a time proven chassis and engine package. Inheriting sleek designs from its RM-Z brothers,
the DR-Z125/L yields motocross styling that looks good at the local track or a favorite trail.
Features
-
Lightweight engine skid plate
-
Link-type rear suspension
-
Telescopic front forks
-
Front disc brake (DR-Z125L only)
Specifications
- Engine Type
- 4-stroke, 1-cylinder, air-cooled, SOHC
- Engine Displacement
- 124 cm3 (7.6 cu. in)
- Bore x Stroke
- 57.0 mm x 48.8 mm (2.2 in x 1.9 in)
- Transmission
- 5-speed constant mesh
- Overall Length
- 1,835 mm (72.2 in) [DR-Z125]
1,885 mm (74.2 in) [DR-Z125L]
- Overall Width
- 770 mm (30.3 in)
- Overall Height
- 1,085 mm (42.7 in) [DR-Z125]
1,110 mm (43.7 in) [DR-Z125L]
- Wheelbase
- 1,245 mm (49.0 in) [DR-Z125]
1,270 mm (50.0 in) [DR-Z125L]
- Ground Clearance
- 260 mm (10.2in.) [DR-Z125]
290 mm (11.4 in) [DR-Z125L]
- Seat Height
- 775 mm (30.5 in) [DR-Z125]
805 mm (32.0 in) [DR-Z125L]
- Curb Mass
- 88 kg (194 lbs) [DR-Z125]
89 kg (196 lbs) [DR-Z125L]
- Suspension Front
- Telescopic, coil spring, oil damped
- Rear
- Link type, coil spring, oil damped
- Brakes Front
- Drum [DR-Z125] / Disc [DR-Z125L]
- Rear
- Drum
- Tires Front
- 70/100-17 40M, tube type [DR-Z125]
70/100-19 42M, tube type [DR-Z125L]
- Rear
- 90/100-14 49M, tube type [DR-Z125]
90/100-16 52M, tube type [DR-Z125L]
- Fuel Tank Capacity
- 4.8 L (1.3/1.1 US/Imp gal)
