1986 | NZ250/NZ250S

Slim and sporty models equipped with single-cylinder oil-cooled engine

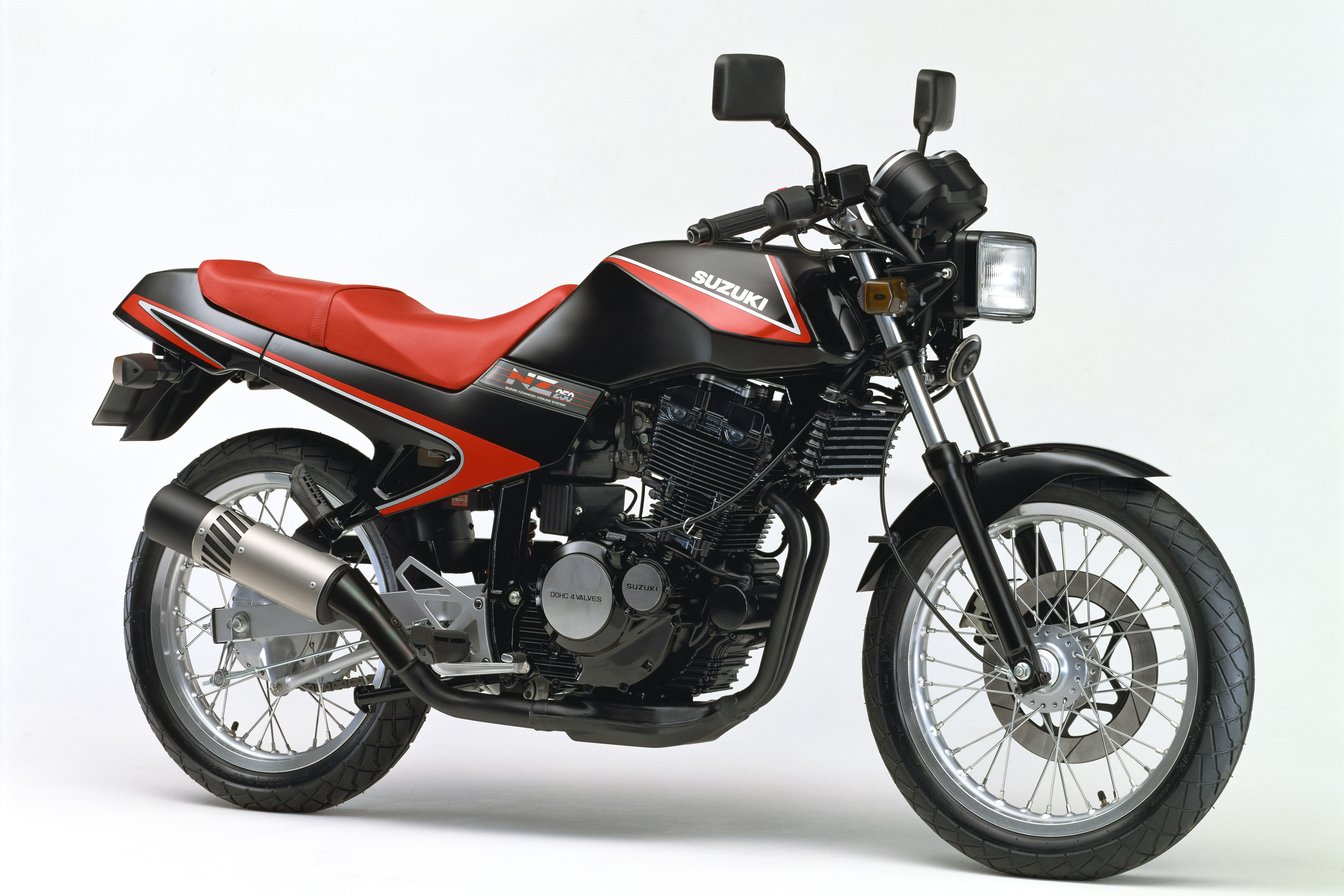

  • NZ250

    V-NZ250

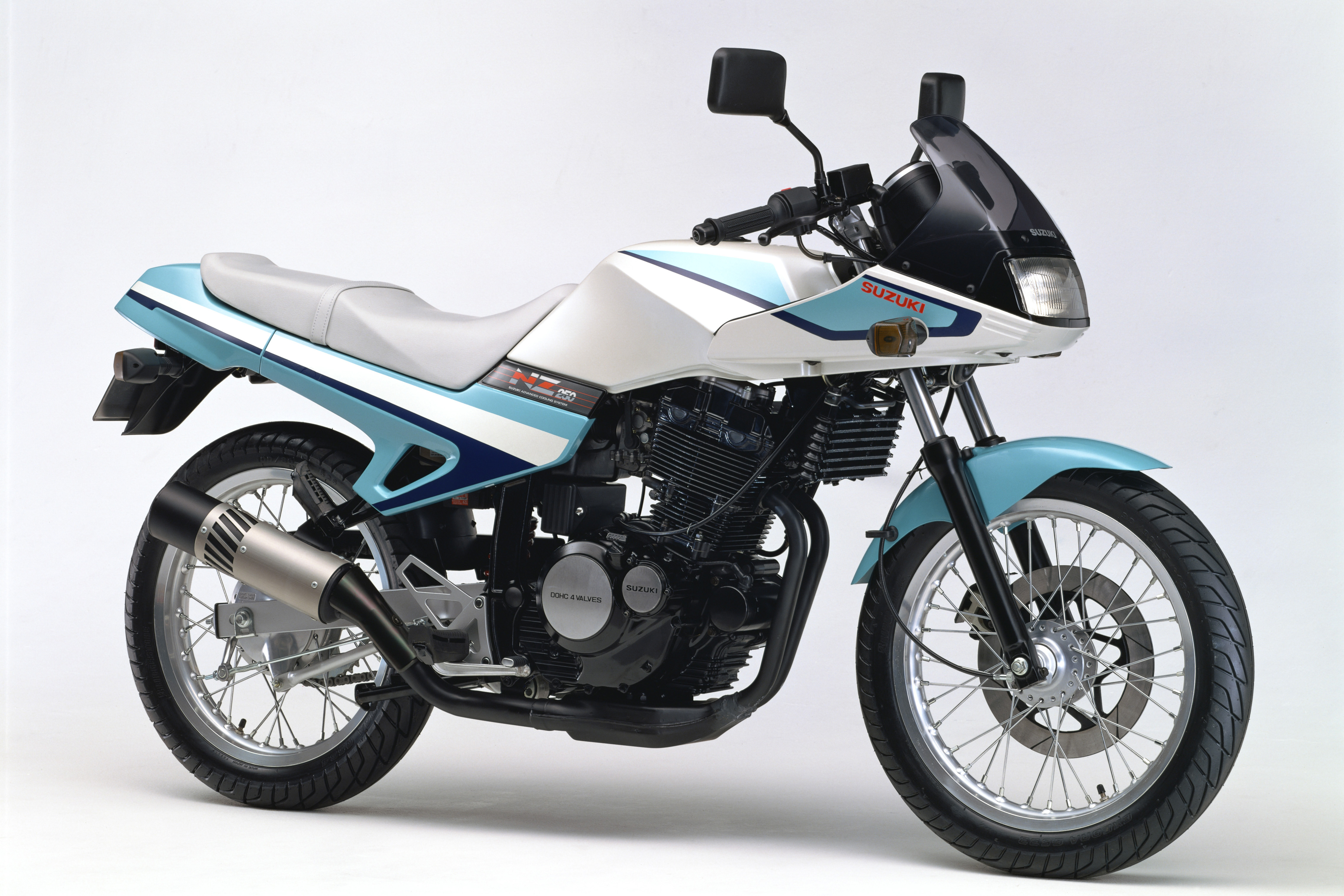

  • NZ250S

    NZ250S

The NZ250 and NZ250S combine a 250 cm³ 4-stroke 1-cylinder DOHC 4-valve engine featuring the Twin Swirl Combustion Chamber (TSCC) with a newly designed diamond frame. These models are also equipped with the Suzuki Advanced Cooling System (SACS) that was adopted for the first time on the GSX-R750 and realizes excellent cooling efficiency. Another feature of these models is the New Super Acceleration (NSA) carburetor. This carburetor helps to deliver the agile athleticism of a single-cylinder model to a wide range of customers, from beginners to veteran riders. In the model lineup, the NZ250 is complemented by the highly fashionable half-faired NZ250S.

V-NZ250 NZ250S
Dimensions and weight Dimensions Overall length 1,935 mm
Overall width 685 mm
Overall height 1,020 mm 1,075 mm
Wheelbase 1,325 mm
Weight 118 kg (Dry) 120 kg (Dry)
Engine Engine type 4-stroke, 1-cylinder, oil-cooled, DOHC
Engine displacement 249 cm³
Bore x stroke 72.0 mm × 61.2 mm
Maximum power 24.3kW(33PS) / 10,000rpm
Maximum torque 24.5N-m / 8,500rpm
Transmission 6-speed constant mesh
Front tire size 90/90-17 49S
Rear tire size 100/80-17 52S
