1971 | Hustler 125
Classical scrambler style model reflecting the success of the RH motocrosser
The Hustler 125 is equipped with a tough 2-stroke 125 cm³ 1-cylinder engine featuring the Cylinder Crank Injection (CCI) lubrication system. This is an aggressive-looking model with a racing-style down type muffler and practical fenders. It was designed assuming participation in motocross races. For example, in addition to an attachable headlight, original motocross racing kit parts including a piston, cylinder, carburetor, muffler, and sprocket were also prepared. In April of the same year, the TS125T touring model debuted as a Hustler variation, featuring down type fenders, a rear carrier, and universal tires.
Dimensions and weight | Dimensions | Overall length | 2,050 mm |
Overall width | 845 mm | ||
Overall height | 1,100 mm | ||
Wheelbase | 1,310 mm | ||
Weight | 88 kg (Dry) | ||
Engine | Engine type | 2-stroke, 1-cylinder, air-cooled | |
Engine displacement | 123 cm³ | ||
Bore x stroke | 56.0 mm × 50.0 mm | ||
Maximum power | 9.6kW(13PS) / 7,000rpm | ||
Maximum torque | 12.7N-m / 6,000rpm | ||
Transmission | 5-speed constant mesh | ||
Front tire size | 2.75-19-4PR | ||
Rear tire size | 3.25-18-4PR |

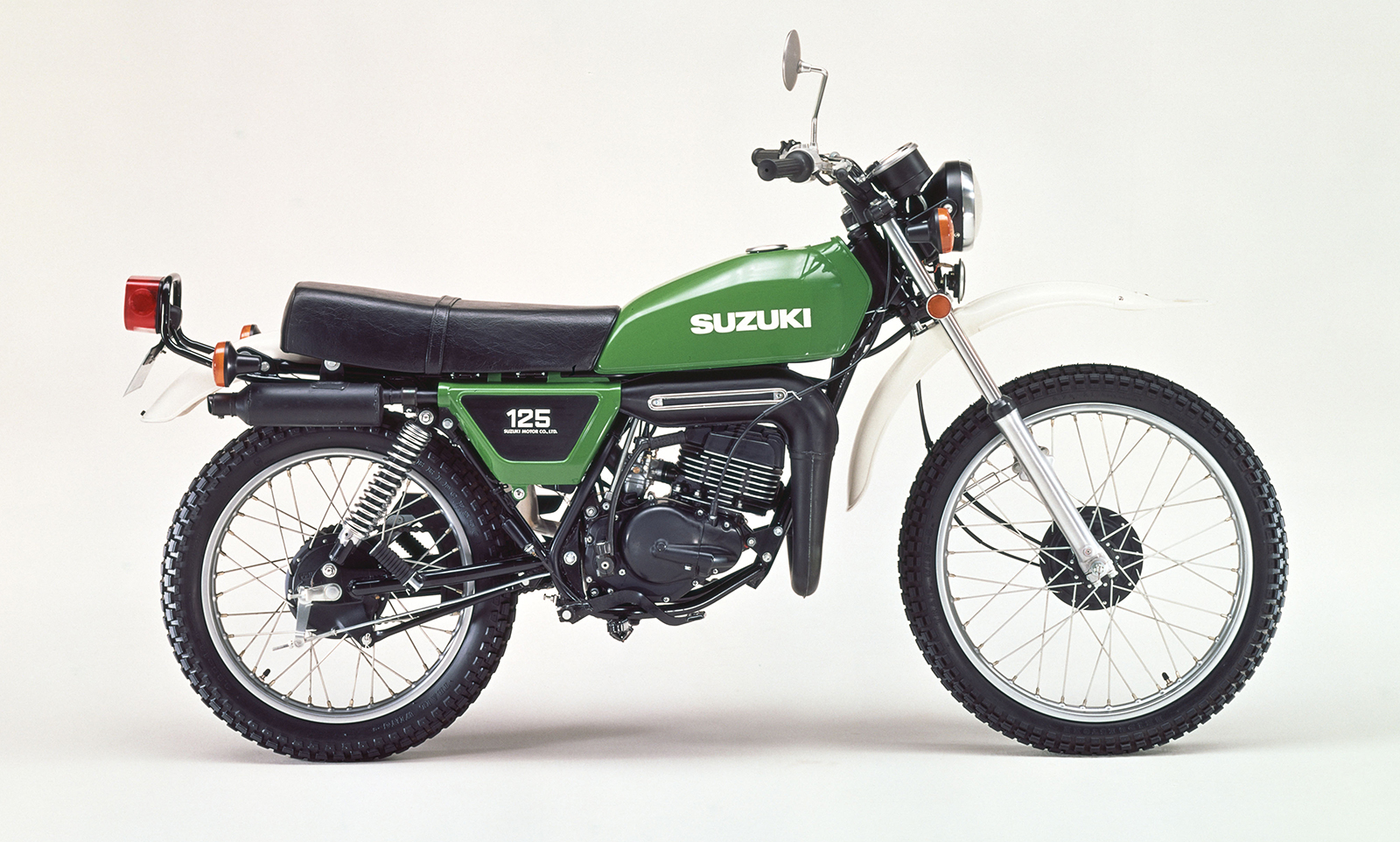

1977 |Hustler 125
Off-road model with aggressive image
The newly designed power reed engine delivers punchy performance from low- to high- rpm ranges with maximum horsepower of 14 PS and maximum torque of 12.7 kgm. The engine is paired with a highly rigid semi-double cradle frame capable of withstanding hard riding conditions. This model realizes a superb balance between performance and appearance with a so-called “tuck-in muffler” installed high up on the side of the body that perfectly complements the slimline chassis. The Hustler 125 also features Ceriani type front forks for excellent rough road handling performance.
Dimensions and weight | Dimensions | Overall length | 2,045 mm |
Overall width | 835 mm | ||
Overall height | 1,075 mm | ||
Wheelbase | 1,325 mm | ||
Weight | 92 kg (Dry) | ||
Engine | Engine type | 2-stroke, 1-cylinder, air-cooled | |
Engine displacement | 123 cm³ | ||
Bore x stroke | 56.0 mm × 50.0 mm | ||
Maximum power | 10.3kW(14PS) / 8,000rpm | ||
Maximum torque | 12.7N-m / 7,000rpm | ||
Transmission | 5-speed constant mesh | ||
Front tire size | 2.75-21-4PR | ||
Rear tire size | 3.25-18-4PR |

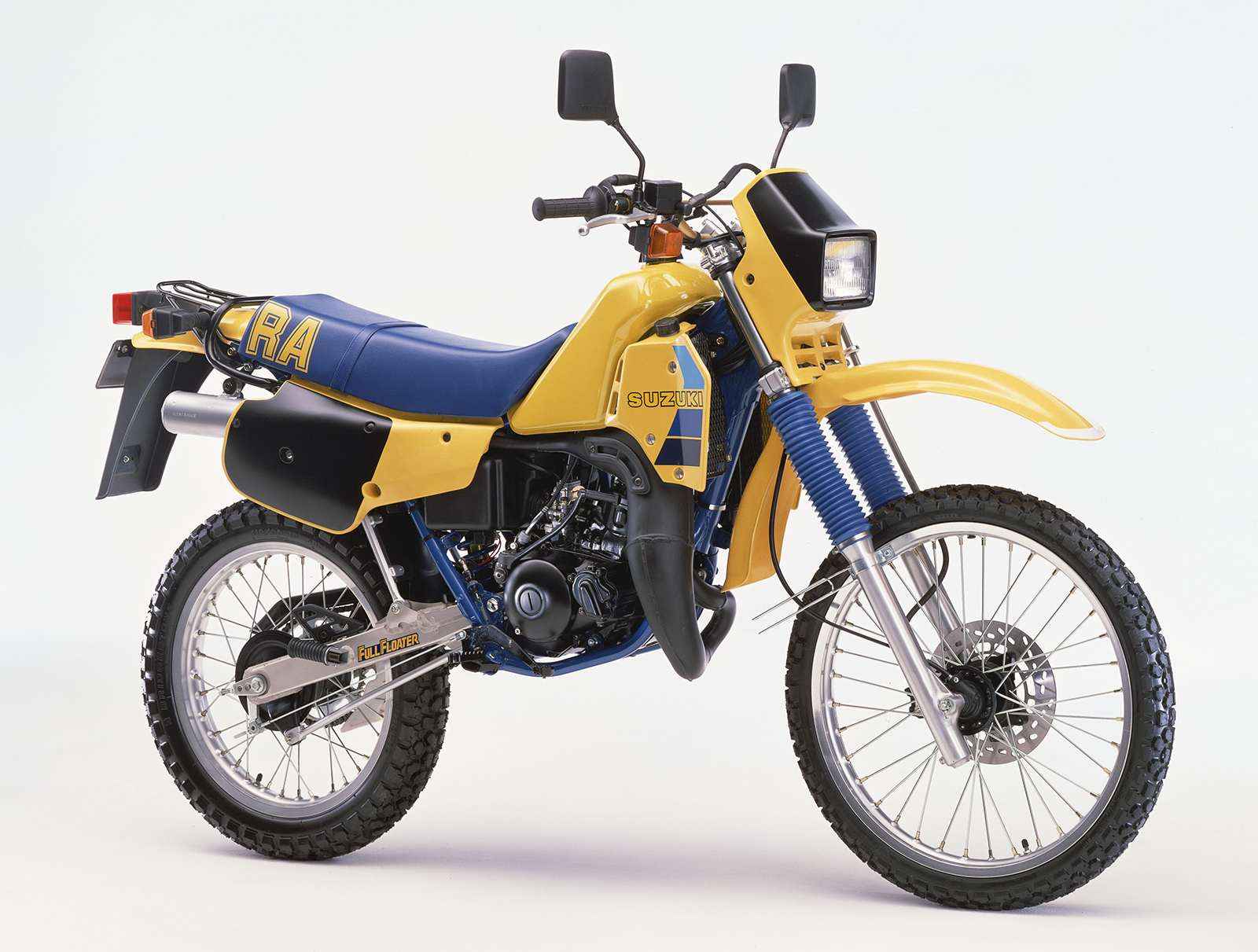

1984 |RA125
High-performance inherited from the RA, winner of nine consecutive Motocross World Championships
The RA125 inherits the high performance of the renowned RA factory machine that won nine consecutive titles in the 125 cm³ class of the FIM Motocross World Championship. The newly designed 2-stroke liquid-cooled power reed valve engine generates class-leading maximum horsepower of 22 PS. This high-performance power unit includes a highly efficient liquid-cooling system, flat slide carburetor, and multi-stage expansion type muffler with excellent exhaust efficiency. The semi-double cradle frame adopts high-tensile steel pipes to realize both low weight and high rigidity. The long stroke suspension includes the Full-Floater suspension and a square aluminum swingarm at the rear. Combined with features such as a hydraulic front disc brake and low profile tires, the RA125 is a true high-performance off-road machine.
Dimensions and weight | Dimensions | Overall length | 2,070 mm |
Overall width | 840 mm | ||
Overall height | 1,165 mm | ||
Wheelbase | 1,355 mm | ||
Weight | 96 kg (Dry) | ||
Engine | Engine type | 2-stroke, 1-cylinder, liquid-cooled | |
Engine displacement | 124 cm³ | ||
Bore x stroke | 56.0 mm × 50.6 mm | ||
Maximum power | 16.2kW(22PS) / 8,000rpm | ||
Maximum torque | 19.6N-m / 7,500rpm | ||
Transmission | 6-speed constant mesh | ||
Front tire size | 80/80-21 45P | ||
Rear tire size | 110/80-18 58P |

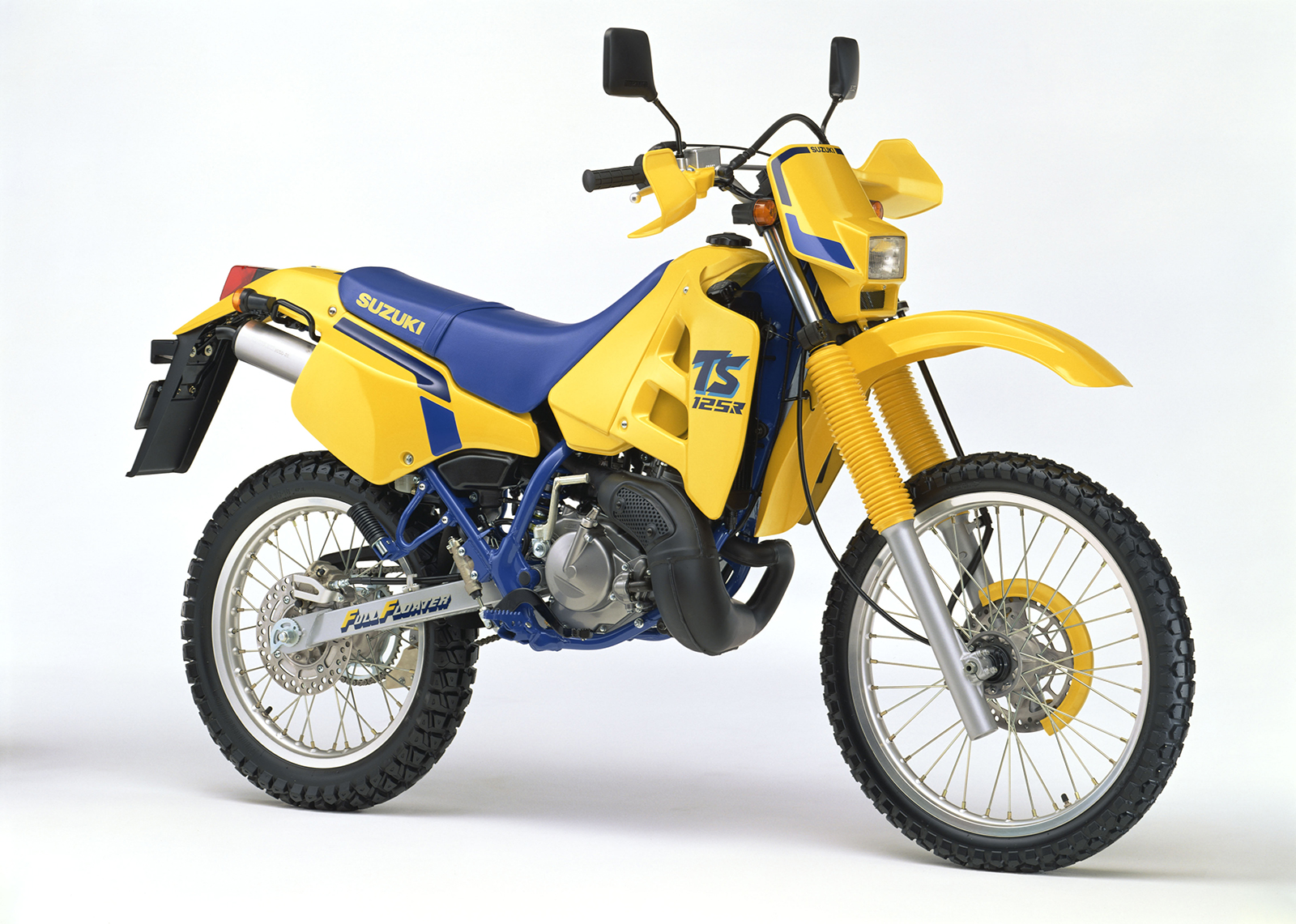

1989 |TS125R
Adding a sense of fun to hardware directly descended from the RM series
The TS125R was developed based on the RM series of motocrossers that had achieved great success in the All Japan Motocross and AMA Supercross Championships. To ensure performance that meets the needs of a wide range of applications from city streets to unpaved roads, a newly designed 2-stroke liquid-cooled 1-cylinder engine equipped with a crankcase reed valve and the Automatic Exhaust Timing Control (AETC) system was adopted alongside a slingshot carburetor, delivering high power and torque throughout the whole rpm range. In addition to front and rear disc brakes, the new link-type Full Floater Suspension was adopted at the rear. The TS125R combines a slim form inherited from the RM series that facilitates shifts in rider weight with a low center of gravity to realize superb maneuverability.
Dimensions and weight | Dimensions | Overall length | 2,150 mm |
Overall width | 880 mm | ||
Overall height | 1,225 mm | ||
Wheelbase | 1,400 mm | ||
Weight | 110 kg (Dry) | ||
Engine | Engine type | 2-stroke, 1-cylinder, liquid-cooled | |
Engine displacement | 124 cm³ | ||
Bore x stroke | 56.0 mm × 50.6 mm | ||
Maximum power | 16.2kW(22PS) / 9,500rpm | ||
Maximum torque | 18.6N-m / 8,000rpm | ||
Transmission | 6-speed constant mesh | ||
Front tire size | 2.75-21-4PR | ||
Rear tire size | 4.10-18-4PR |
